Power Wagon Rebuild (Update: 11/5/08) - Page 18 - HomemadeTurbo - DIY Turbo Forum

Go Back  HomemadeTurbo - DIY Turbo Forum > Homemadeturbo > Fabrication
Power Wagon Rebuild (Update: 11/5/08) >

Power Wagon Rebuild (Update: 11/5/08)

Fabrication Everything From JBwelded/Fluxcored downpipes to Equal length SS Manifolds.

Power Wagon Rebuild (Update: 11/5/08)

Old 01-17-2010, 09:55 PM
  #171
1.0 BAR
Thread Starter

Join Date: Feb 2003
Location: Wisconsin
Posts: 461
Default

more for wow factor than anything else. I could get to my power level with one big turbo, but plumbing two was easier. A single Eaton m90 would have been a restriction with the CID of the engine, and an Eaton m112 are hard to find.
josh19wrc is offline
Old 01-19-2010, 03:09 AM
  #172
0.5 BAR

Join Date: Mar 2009
Posts: 76
Default

Im all about efficient but i like this over the top style. Looks amazing and i got to say you got mad skills. not only are you doing a twin turbo bi super charger, but hell your intake manifolds were molded from wood you carved from wood you did yourself. mad props bro!!
twack is offline
Old 01-24-2010, 02:43 PM
  #173
0.0 BAR

Join Date: Oct 2009
Posts: 1
Default

wow update please
terrance362 is offline
Old 02-10-2010, 08:55 PM
  #174
1.0 BAR
Thread Starter

Join Date: Feb 2003
Location: Wisconsin
Posts: 461
Default

here is the latest and greatest:

Scored some parts for the rig. Got TWO Ramsey RE12000 Winches, brand new for $900... a friggin STEAL! They pull 6 TONS each!

Name:  IMG_8440.jpg
Views: 49
Size:  174.1 KB

The plan is to replace the front LU4 with one, and then make a trailer hitch mount to mount the second on the back. I also plan on making some hitch mounts that will bolt to the sides of the frame, just in front of the rear tires for this:

Name:  crane.jpg
Views: 7
Size:  28.2 KB


It is a folding crane. The small tube sticking up at the bottom will be a receiver where the winch will bolt on, then stick through the crane with a pin, then pin into the receiver on the truck, either in the back, or on the sides. This way, when I go junkyard hunting, I can pull stuff up to the side of the truck, and pick it up with the crane.

A hydraulic foot will be pinned into the bottom hole, and extend down to hold the weight of the crane off the truck frame. The boom will have an extension joint, and the sliding slip ring will adjust the mounting point for the cylinder that will raise and lower the boom, and I'll mount a small 2K lb winch on top near the swing joint to lift the load. The collar is designed to swivel, so it will swing round 360*. Best part is that it will fold down small enough to fit into the toolbox pocket in the bed!

Arm extended out:

Name:  crane2.jpg
Views: 49
Size:  16.9 KB

arm extension folded in:

Name:  crane3.jpg
Views: 44
Size:  19.3 KB
josh19wrc is offline
Old 02-20-2010, 12:48 AM
  #175
1.0 BAR
Thread Starter

Join Date: Feb 2003
Location: Wisconsin
Posts: 461
Default

finished mounting the front winch, on to the rear one. Here is the front however:

the carrier for the winch:

Name:  IMG_8463.jpg
Views: 39
Size:  107.8 KB

Name:  IMG_8464.jpg
Views: 44
Size:  107.4 KB

Name:  IMG_8472.jpg
Views: 43
Size:  105.8 KB

C channel brackets on the frame. This is how Dodge should have done it to start. It captures all 5 of the 1/2" bolts:





Old brackets over the new ones, you'll see why in a bit:

Name:  IMG_8468.jpg
Views: 12
Size:  93.3 KB

Name:  IMG_8469.jpg
Views: 15
Size:  97.2 KB

Roller fairlead is mounted to the carrier. I put it up high enough that it should feed straight out on the 4th and 3rd wraps, as I figure there will be very few times I spool out enough cable to get down to layers 1 and 2:

Name:  IMG_8480.jpg
Views: 4
Size:  104.8 KB

only downside to my mounting job... motor hangs down a bit. I might come back later and make a little skidplate for it:

Name:  IMG_8481.jpg
Views: 47
Size:  110.2 KB

still plenty of room to get the wire lugs on the motor studs. I plan on mounting the solenoids up on the firewall:

Name:  IMG_8482.jpg
Views: 41
Size:  102.4 KB

Mounted in, all 1/4" plate or tube:



Name:  IMG_8485.jpg
Views: 38
Size:  122.6 KB

Name:  IMG_8487.jpg
Views: 38
Size:  119.3 KB

and, here is the reason for the original brackets. I love the look of the original winch, but, since mine got trashed, I did the next best thing and made the original cases into covers, so the new one looks like the original. I bet 98% of the people who will ever look at it wont' even be able to tell it's not original. They are not finalized in their locations yet, just kinda sitting on top for now:

Name:  IMG_8490.jpg
Views: 4
Size:  120.4 KB

Name:  IMG_8491.jpg
Views: 38
Size:  98.9 KB

Name:  IMG_8492.jpg
Views: 32
Size:  115.3 KB

I am going to make covers that bolt to the insides of the cases to hide the original drum shaft holes:

Name:  IMG_8493.jpg
Views: 35
Size:  113.8 KB

Name:  IMG_8495.jpg
Views: 38
Size:  128.8 KB
josh19wrc is offline
Old 02-22-2010, 10:50 PM
  #176
1.0 BAR
Thread Starter

Join Date: Feb 2003
Location: Wisconsin
Posts: 461
Default

Finished the rear conversion to a standard 2" tube type receiver hitch. this will let me put a regular ball on, as well as the factory pintle, and the rear winch. I drilled a 5/8" receiver pin hole, for a locking, O ringed stainless steel pin, as well as a larger, 3/4" hole behind the frame for a load bearing 3/4" bolt when the winch is in. I welded a top plate above the tube, to the plate behind the frame, for some lateral support in sideways pulls

Question for you guys:

In the front, would you weld the cover plate to the hitch, or leave it bolted as-is? I dont really like the look of the gap around the tube, and, I don't see why I would ever have to remove the hitch, but, if I welded the plate to the tube, removing it could really, really suck...

Stock:
Name:  IMG_8496.jpg
Views: 41
Size:  95.9 KB

After:
Name:  IMG_8497.jpg
Views: 2
Size:  61.1 KB

Name:  IMG_8498.jpg
Views: 3
Size:  85.7 KB

Name:  IMG_8499.jpg
Views: 32
Size:  77.2 KB

Name:  IMG_8501.jpg
Views: 4
Size:  77.5 KB

Name:  IMG_8502.jpg
Views: 44
Size:  91.2 KB

SS locking pin, to deter the theves...

Name:  IMG_8503.jpg
Views: 41
Size:  82.3 KB



Bolt for load bearing when the winch is in. Camera angle makes it look crooked but it is straight:

josh19wrc is offline
Old 02-24-2010, 12:57 PM
  #177
0.0 BAR

Join Date: Jan 2010
Posts: 8
Default

Just went through the whole thread, this is one seriously awesome project you got going on!

Fab work looks great, keep it up.
87roach is offline
Old 03-01-2010, 06:37 PM
  #178
1.0 BAR
Thread Starter

Join Date: Feb 2003
Location: Wisconsin
Posts: 461
Default

a bit more progress. Finished the pintle hitch conversion. Will work on the winch tonight. Sandwiched a plate between the two factory plates, then bolted it all together, then welded the body to the plate between the two. can still get to the grease zerk from underneath, and it still swivels.

Name:  IMG_8512.jpg
Views: 7
Size:  116.3 KB

Name:  IMG_8511.jpg
Views: 41
Size:  116.9 KB


Name:  IMG_8509.jpg
Views: 34
Size:  108.4 KB

Name:  IMG_8508.jpg
Views: 5
Size:  101.7 KB

Name:  IMG_8506.jpg
Views: 39
Size:  100.4 KB
Also worked out what to do for ignition. Read up on ignition KV as it relates to cylinder pressure. Under a bar of boost, I will have equivalent cylinder pressures to 245 or so PSI, not including the volume occupied by the fuel, but, also not taking into account leakdown and such, so, it's probably pretty close. at 245 PSI, you need 21KV to fire a plug with a .030 gap. Reason I looked into this is I have these very nice, very FREE coils:



Problem is, said coils only output 15KV, so, I am out of luck.

I'll instead be running GM LS2 coils:



these output 45-50KV, have a dwell time of only 5 mS, and output 150mJ of energy at the plug. Basically, they are 2-3 times more powerful than a normal distributed V8 coil, and could probably fire a spark plug under 15 PSI of boost with a .040 or possibly bigger gap!
josh19wrc is offline
Old 03-02-2010, 09:38 PM
  #179
1.0 BAR
Thread Starter

Join Date: Feb 2003
Location: Wisconsin
Posts: 461
Default

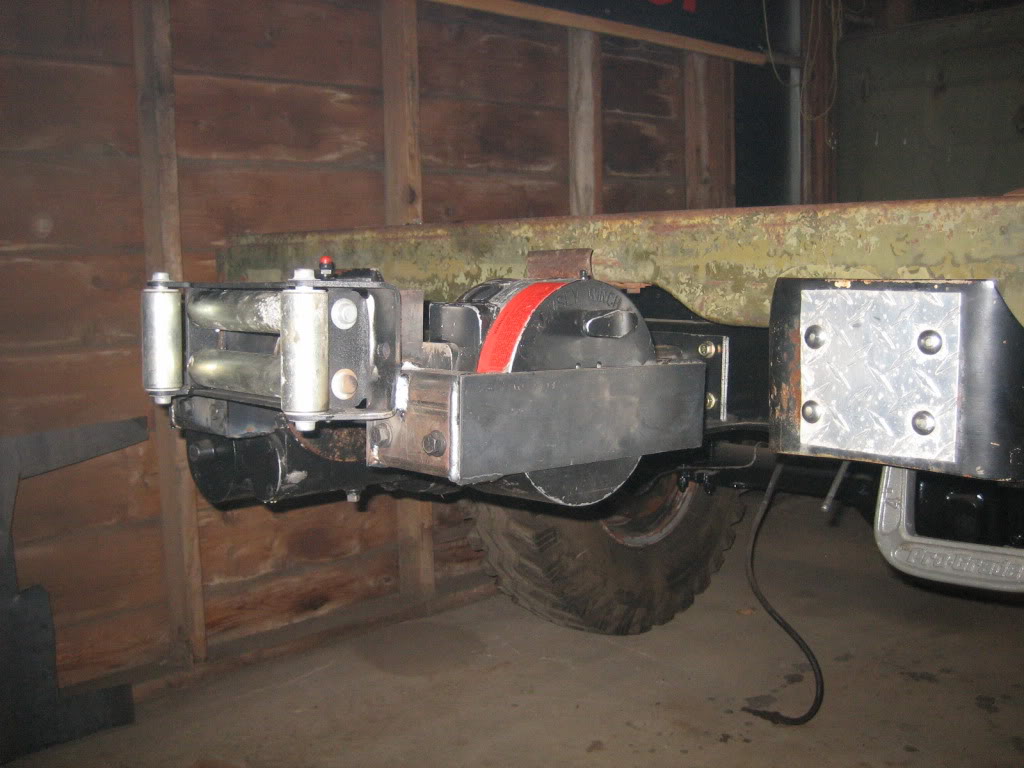

Rear winch mount is done:

Name:  IMG_8518.jpg
Views: 38
Size:  111.3 KB

Name:  IMG_8519.jpg
Views: 52
Size:  114.9 KB

Name:  IMG_8519.jpg
Views: 52
Size:  114.9 KB

Name:  IMG_8521.jpg
Views: 51
Size:  107.3 KB

Barely clears the stock bumperettes, but, its good!

Name:  IMG_8517.jpg
Views: 2
Size:  94.0 KB

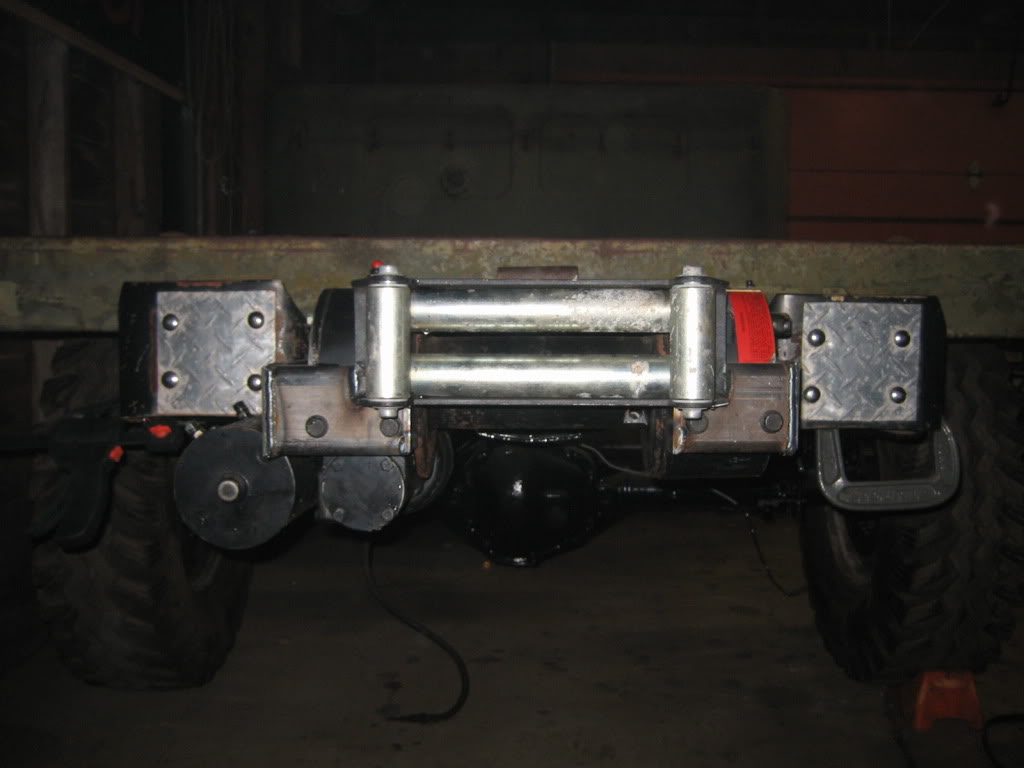

the business end:

Name:  IMG_8523.jpg
Views: 45
Size:  67.1 KB
Attached Images
File Type: jpg
josh19wrc is offline
Old 03-07-2010, 12:14 AM
  #180
1.0 BAR
Thread Starter

Join Date: Feb 2003
Location: Wisconsin
Posts: 461
Default

bit more work done. Got the calipers and pads for the rear axle, as well as the hub flange gaskets.

Name:  IMG_8524.jpg
Views: 4
Size:  162.2 KB

Name:  IMG_8525.jpg
Views: 39
Size:  110.7 KB

Then, I had an idea... :twisted:

2' of 2"X2" 6061 billet:

Name:  IMG_8527.jpg
Views: 3
Size:  169.4 KB

4" of said billet:

Name:  IMG_8526.jpg
Views: 31
Size:  93.1 KB

4" of billet cut in half:

Name:  IMG_8528.jpg
Views: 2
Size:  153.1 KB

4" of billet drilled:

Name:  IMG_8533.jpg
Views: 37
Size:  67.7 KB

drilled again:

Name:  IMG_8538.jpg
Views: 43
Size:  96.2 KB

sawed again:

Name:  IMG_8542.jpg
Views: 2
Size:  98.2 KB

threaded:

Name:  IMG_8545.jpg
Views: 5
Size:  107.3 KB

counterbored the other half:

Name:  IMG_8548.jpg
Views: 44
Size:  121.1 KB

for this:

Name:  IMG_8549.jpg
Views: 39
Size:  103.9 KB

to do this:

Name:  IMG_8552.jpg
Views: 37
Size:  85.5 KB

put it all back together:



and, the reason for the insanity:

Name:  IMG_8555.jpg
Views: 42
Size:  143.6 KB

Name:  IMG_8557.jpg
Views: 19
Size:  89.2 KB

Much prettier than those ugly rubber lined stamped steel clamps. Plus, once I set up a mini "assembly line" I cranked out 4 of em in about an hour. I can make them for all different lines... brake lines, electrical lines, fuel lines, hydraulic lines, air lines, etc. Best part is that I can vary the height to add or remove holes of all different sizes for different sizes of lines. I drilled 4 holes in this set as I am going to have 4 6AN fuel lines, 2 feed, 2 return, heading up to the engine.
josh19wrc is offline

Thread Tools
Search this Thread
Quick Reply: Power Wagon Rebuild (Update: 11/5/08)


Contact Us Sitemap Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
