D16z6 Turbo Build, lots of pics!
#41
Re: D16z6 Turbo Build, lots of pics! (think wer're OK now)
Originally Posted by T3_60trim2
I had 140psi across on my beat up high mileage stock z6, with vitara`s that is not a bad number at all. Should be fine.
Originally Posted by SDRAWKCAB
did you get the d16 rings?
#45
Re: D16z6 Turbo Build, lots of pics! (Scroll down, Turbo Setup Complete!!!)
Alright I finished the turbo setup, currently only running about 10 lbs until I get some bigger injectors, fuel pump, and map sensor. The install went slow but well, I put about 1,500 miles on the motor before boosting. Still cant get the ostrich to work, I went through the moates website thingy, even changed it to com3 still I get a cel with the ostrich, its fine if I burn an identical map on a chip so thats what i've been doing.

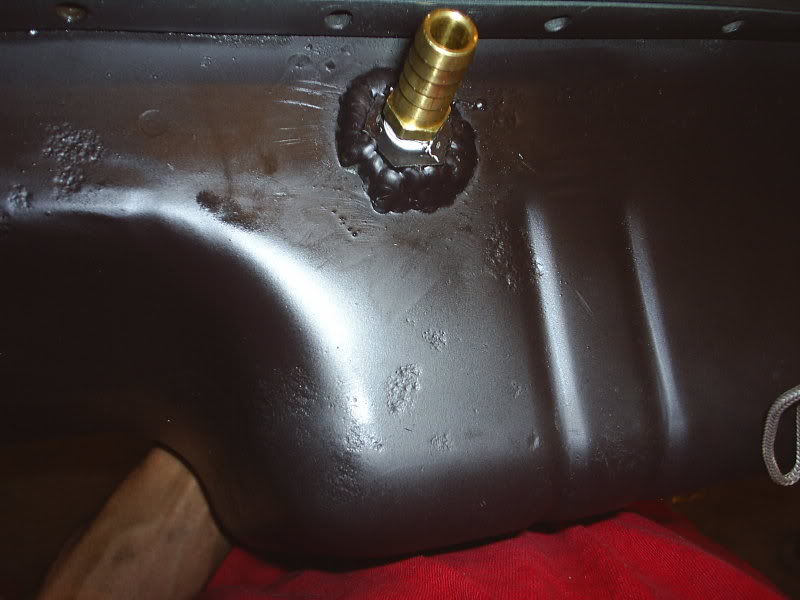

oil return bung, I welded in a steel fitting then threaded in the nipple.

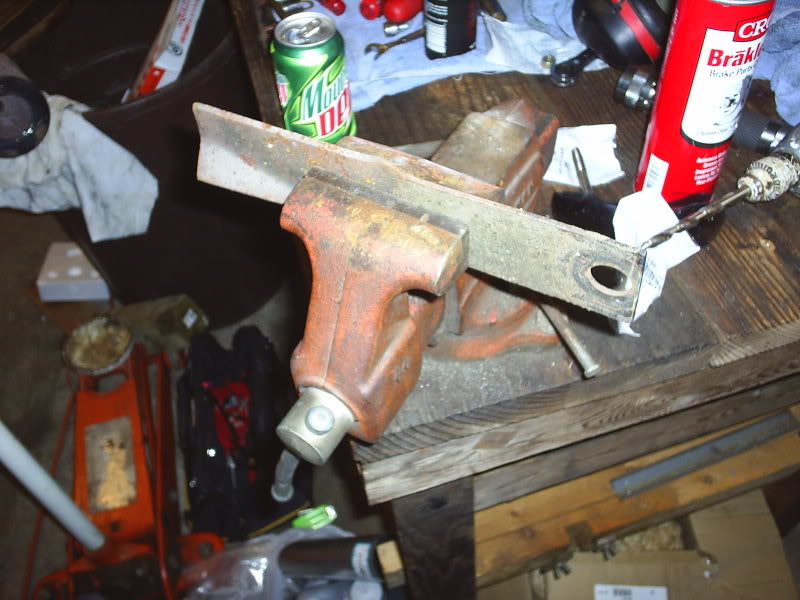

used a scrap lawnmower blade to make some brackets for my intercooler

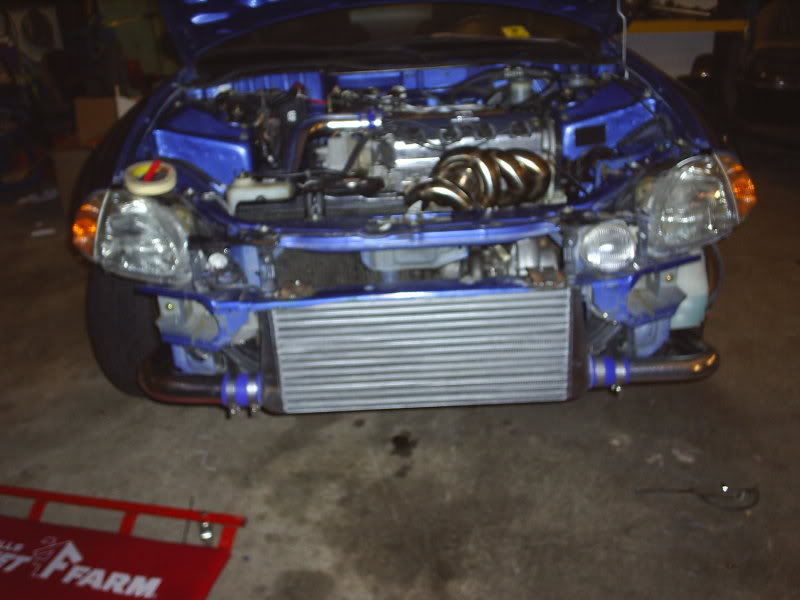

Intercooler fitting up

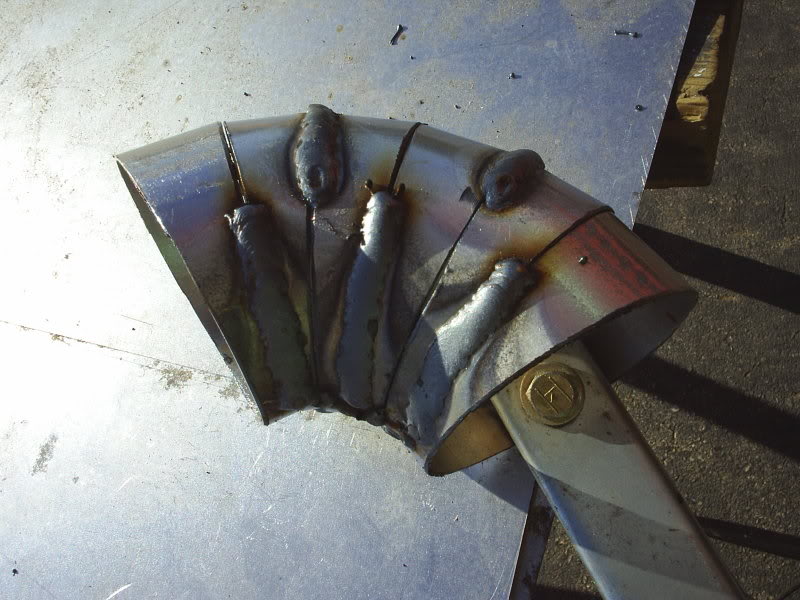

"Whittey style 90 for my downpipe, welded small strips so I didnt warp it to bad.

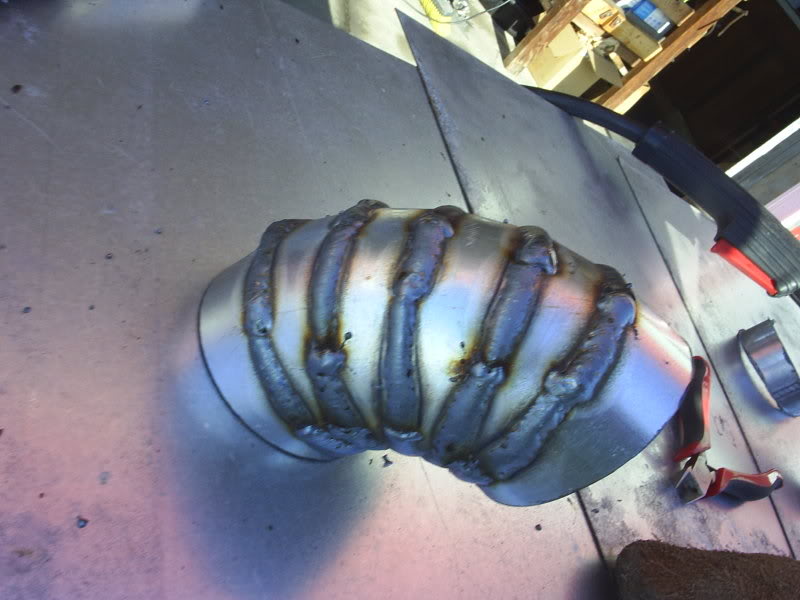

finished welding

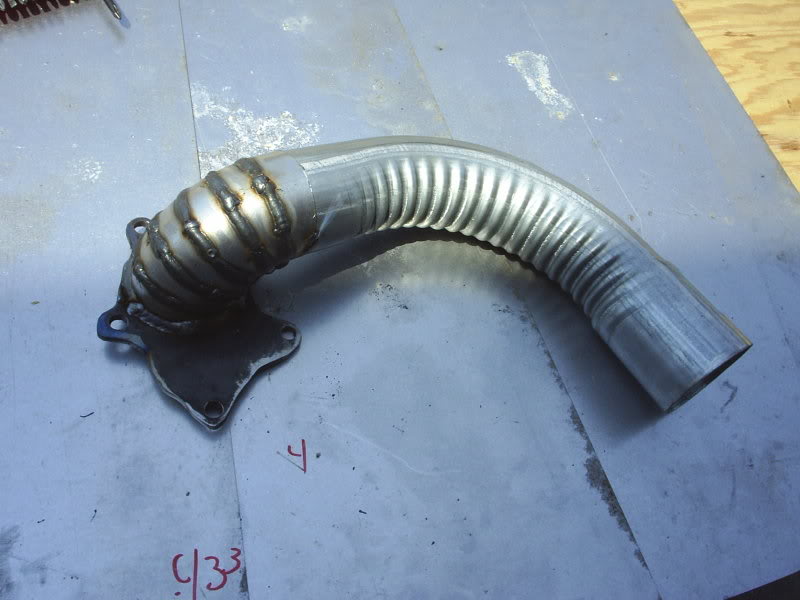

finished downpipe
How does this oil drain look? it seems to work ok

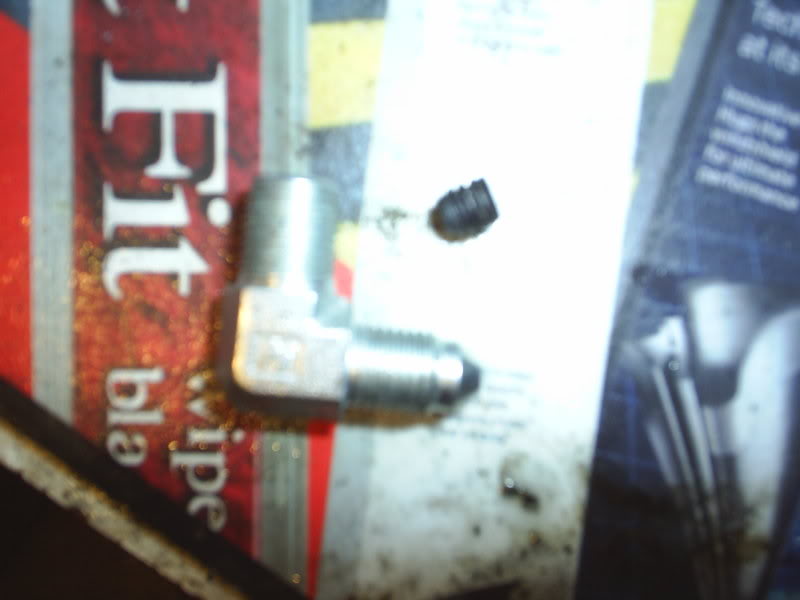

crappy pic, but I drilled a hole in the set screw then tapped/threaded it into the fitting for an oil restricor, works great!
fabbed up this dumptupe from a SS 90 bend its atmospheric and sounds pretty badass when it opens up
this bov is pretty quiet, the adjustment spring doesnt seem to make much of a difference

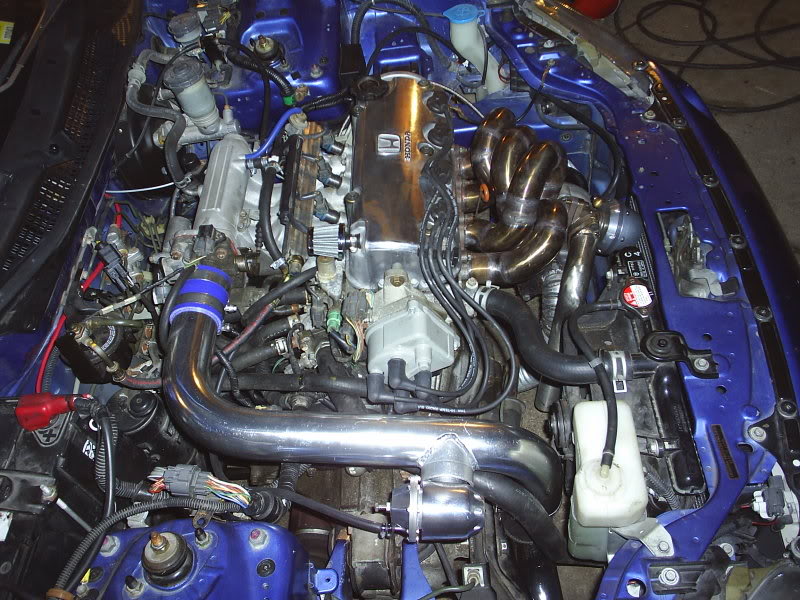

Another shot of the setup, I put some reflective aluminum tape on the hood because it was getting REALLY hot, a little tape and its much cooler.
it pulls REAL strong, the .70/.63, To4E t3/t4 spools around 4,500 and it snaps to 10 psi pretty quick and holy ***** does it blow that teo4h out of the water! spinning tires in 2nd at 10 psi. I'll try and get some vids up but I dont know how to edit them so it might be a few days. Its all tuned on cromepro by me, like i said i'm having some problems with the ostrich, i'm using version 1.45 I've tried everything but using a different version.
oil return bung, I welded in a steel fitting then threaded in the nipple.
used a scrap lawnmower blade to make some brackets for my intercooler
Intercooler fitting up
"Whittey style 90 for my downpipe, welded small strips so I didnt warp it to bad.
finished welding
finished downpipe
How does this oil drain look? it seems to work ok
crappy pic, but I drilled a hole in the set screw then tapped/threaded it into the fitting for an oil restricor, works great!
fabbed up this dumptupe from a SS 90 bend its atmospheric and sounds pretty badass when it opens up
this bov is pretty quiet, the adjustment spring doesnt seem to make much of a difference
Another shot of the setup, I put some reflective aluminum tape on the hood because it was getting REALLY hot, a little tape and its much cooler.
it pulls REAL strong, the .70/.63, To4E t3/t4 spools around 4,500 and it snaps to 10 psi pretty quick and holy ***** does it blow that teo4h out of the water! spinning tires in 2nd at 10 psi. I'll try and get some vids up but I dont know how to edit them so it might be a few days. Its all tuned on cromepro by me, like i said i'm having some problems with the ostrich, i'm using version 1.45 I've tried everything but using a different version.
#48
Re: D16z6 Turbo Build, lots of pics! (Scroll down, Turbo Setup Complete!!!)
good job man, thats a clean setup!!
what problems are you having with the ostrich? i saw you said something about getting a cel, did you disable the checksum routine?
what problems are you having with the ostrich? i saw you said something about getting a cel, did you disable the checksum routine?
#49
Re: D16z6 Turbo Build, lots of pics! (Scroll down, Turbo Setup Complete!!!)
yeah checksum is disabled, The SAME EXACT bin file runs the car perfect with no CEL when I burn it onto a chip and stick it in the socket. In crome I go through the settings and connect and it tells me "successfully connected to ecu" and the map verifies good but when I turn the ignition I just get a solid CEL, wtf?
#50
Re: D16z6 Turbo Build, lots of pics! (Scroll down, Turbo Setup Complete!!!)
thats a clean *** build! what did u ever find out about posting, filling, blockguard etc?? im curious as well and didnt read every post
good luck with the ostrich
good luck with the ostrich
