trevor72

The dart is something my buddy is working on for a guy. 70 swinger full resto. pain in the *** it is!

malibutwinturbo

my mother has a '72 dart, eventually it will have a rebuilt /6 in it with a small turbo just for fun she doesn't want a V8, but i can't leave it stock either

HiProfile

You'd have to find out how the Vitara engine rotates in relation to the intake side. All the pics I've found show the Vitara motors as virtual mirror-images, when looking at the pulley side. If they are clockwise-spinning motors, that means the arrows should point to the FW. That would give it the right offset as well as giving your valves the room they want.

FYI not all OEM/replacement pistons are offset anyways. For Hondas, however, they generally are, so you'd want that correct above all else.

trevor72

from what i see the vitara motors have the cams on the opposite sides of the head compared to hondas. its the wich way the motor turns that begins to baffle me.

edit: ie exhaust and intake are swapped relative to the T-belt

trevor72

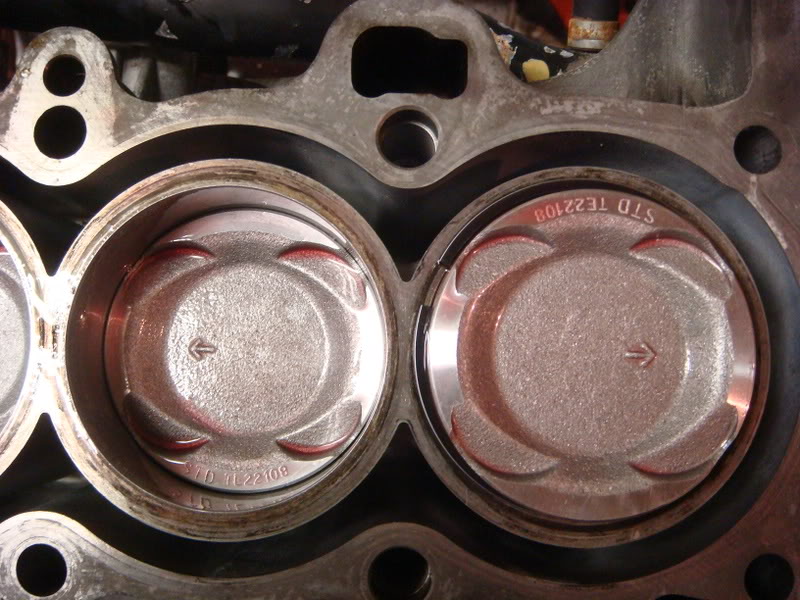

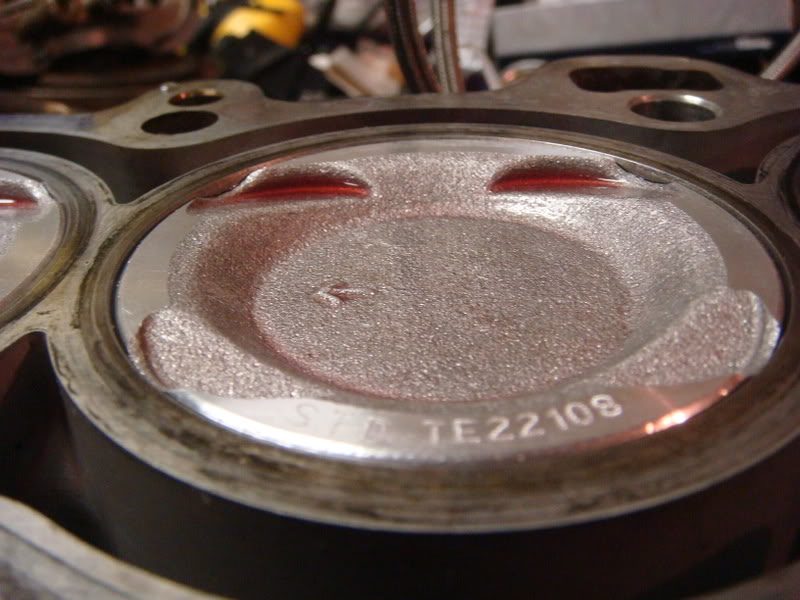

Ok not too much accomplished here last night, but here it is anyways. Got the pistons facing the right way now (thanks guys for catching that) and the oil pump and rear main saddle mounted.


The beach is 'that' way haha

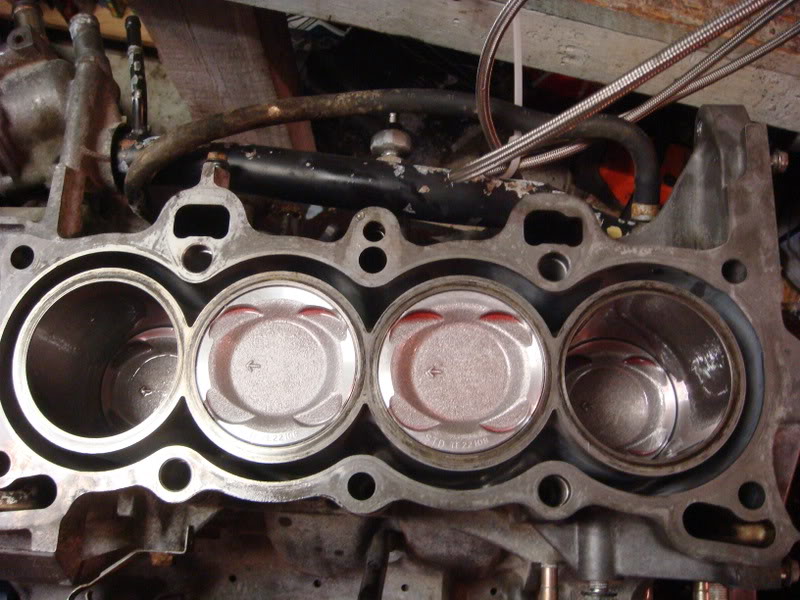

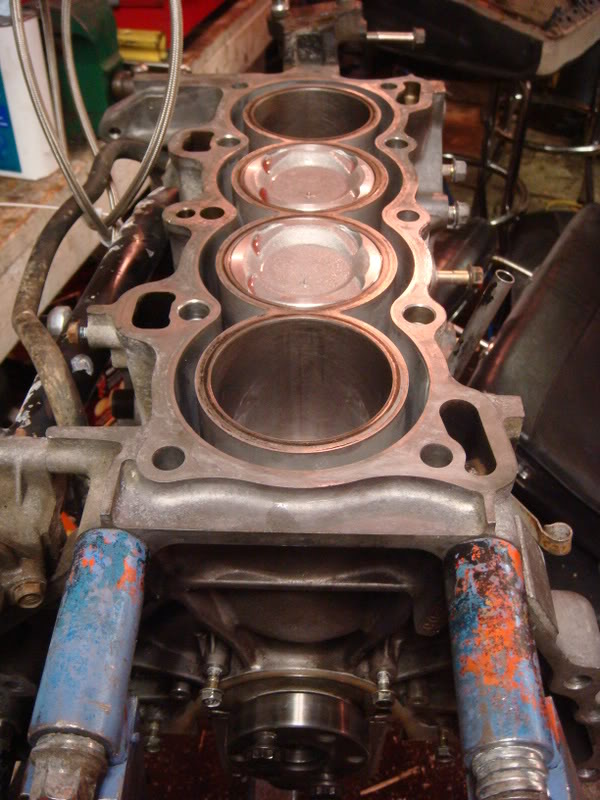

All in and torqued.

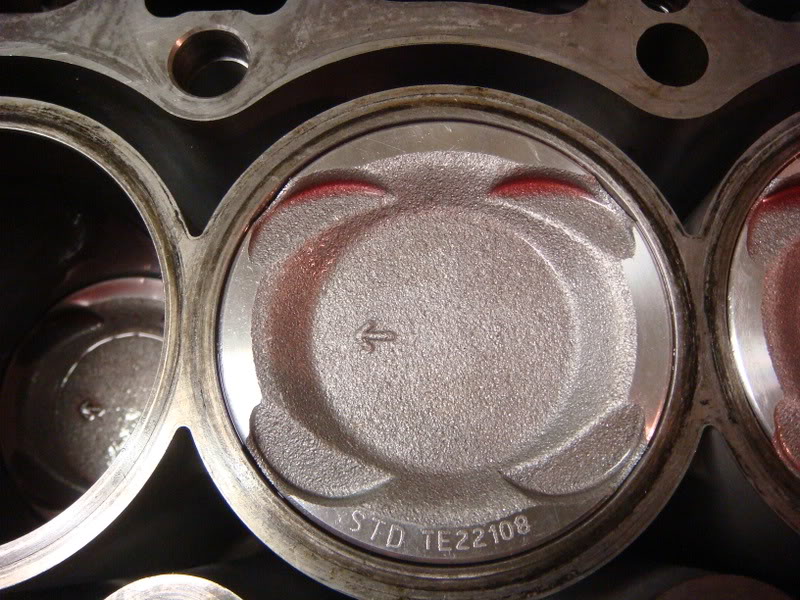

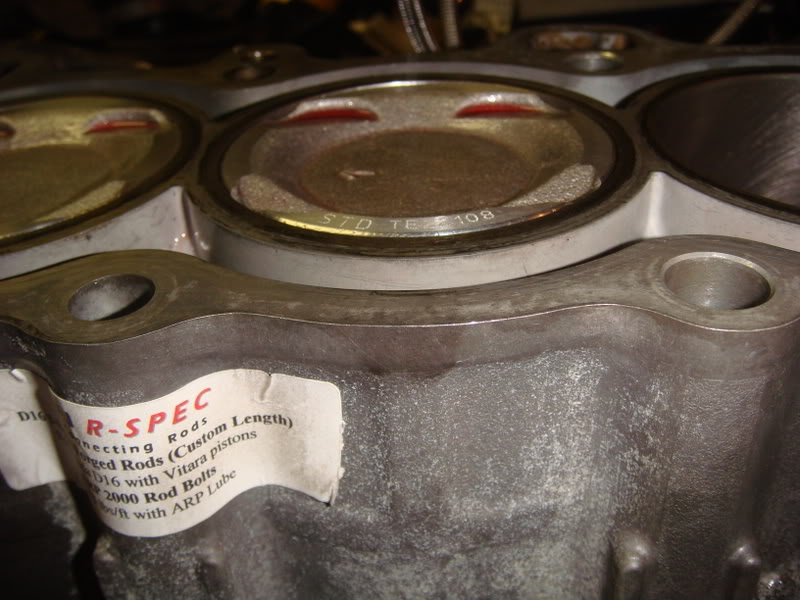

Can't seem to get over how well these rods bring the damn near 0 deck height back.

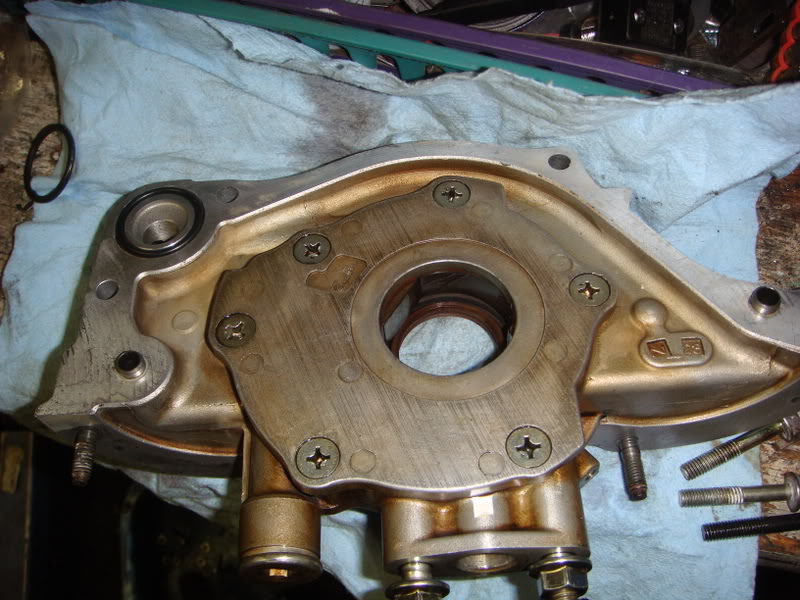

Oil pump cleaned lubed and lock-tighted, ready to go

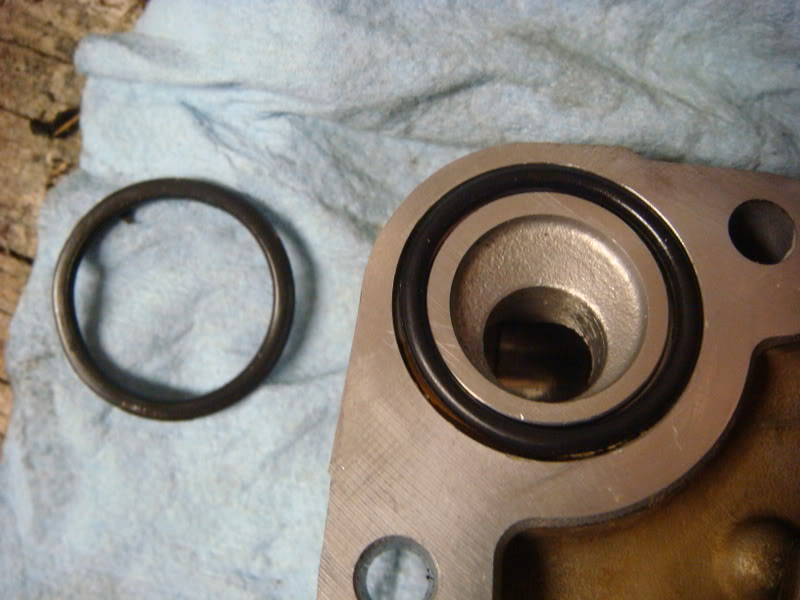

New O-ring courtosy of the FJT superkit.

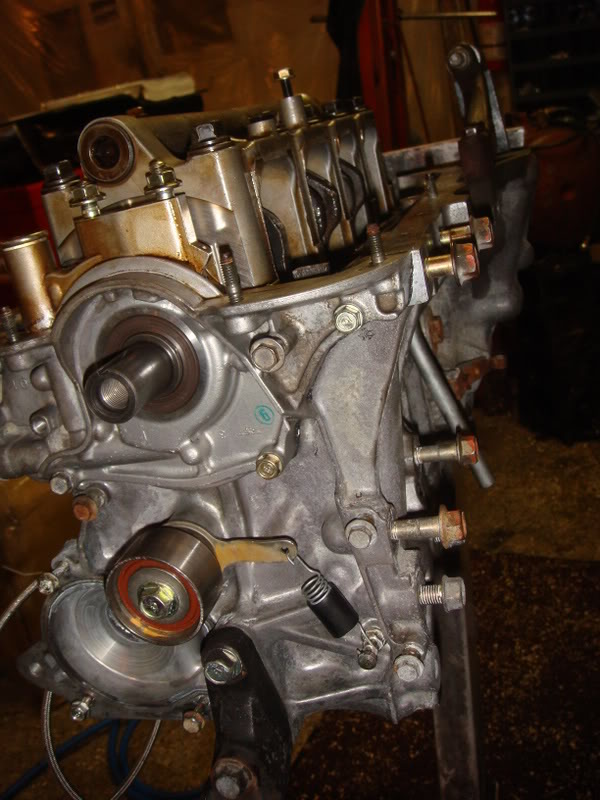

Buttoned up

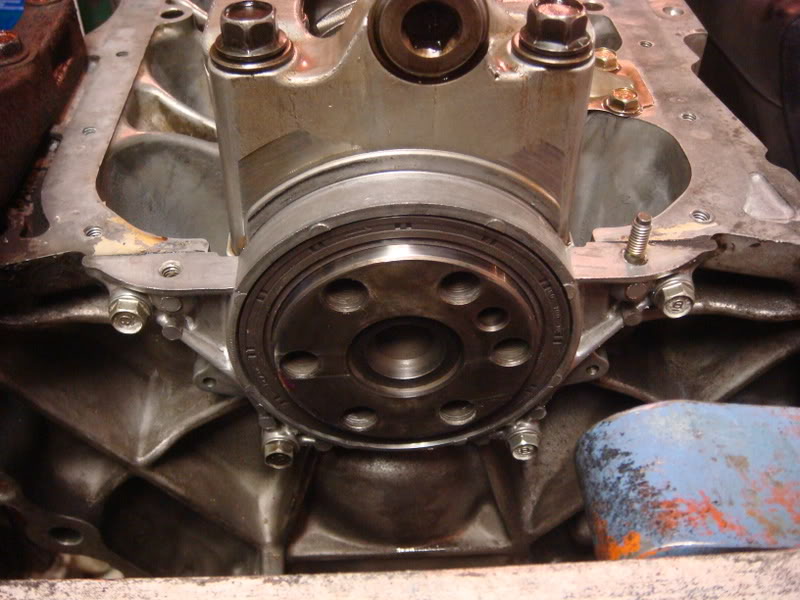

New rms and saddle installed.

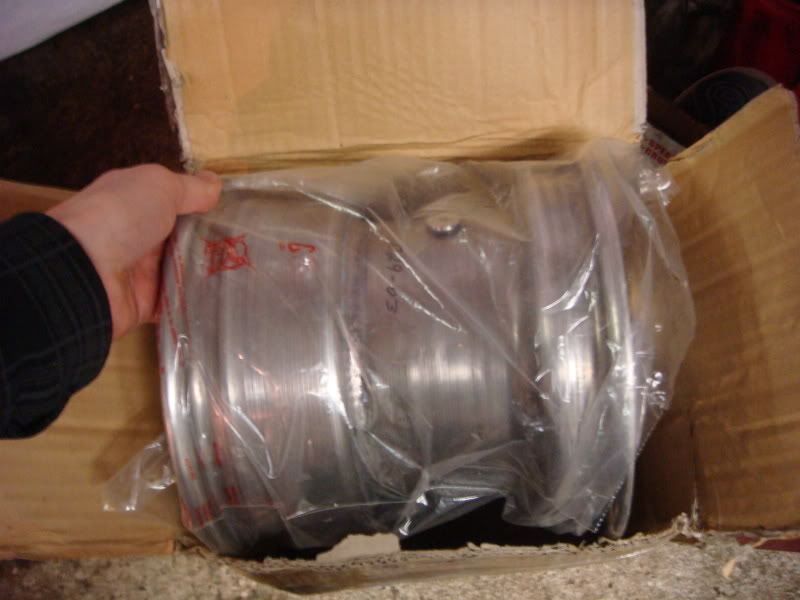

Look Jr Digger wheels...aren't they cute.



Looks like a Russian hat up atop there!


Some perspective


The slide is burried


Race car for the past two seasons.

danz

good man on turning the pistons around the proper way.

i had to uninstall mine as well. worth the 2 hours for sure.

90dx

Mine are pointing to the timing belt but really i dont think it matters much as with stock valves and the low compression I cant see any issues.Looks good Trevor keep up the good work

AJxr

mine were facing the timing belt for 10k + miles and counting, on 20psi for the last 5k.

Loki

Did your head studs make it there?
