Shifting issues with Prelude *updated 4/6/08*
03-26-2008, 02:36 PM
#51
0.0 BAR
Thread Starter
Join Date: Nov 2005
Posts: 0
Re: Shifting issues with Prelude
Well I got up in there good and it looks like when yo press the clutch in the master cylinder as well as the whole clutch pedal assembly has some pretty good play in it. I noticed a bolt hole that was empty also. I'm guessing this is where the pedal assembly bolts to the bracket that auto's don't have?

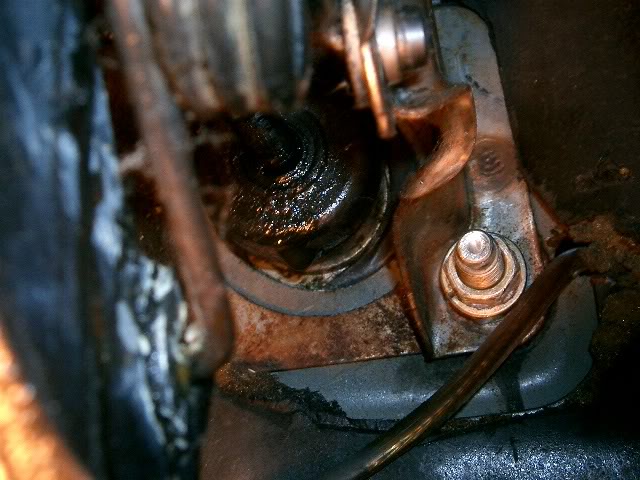

On further inspection I noticed this? I guess the slave rebelled against the master. Notice the nice tear dripping from the beast.
Could I shitty master be part of the issue then?
On further inspection I noticed this? I guess the slave rebelled against the master. Notice the nice tear dripping from the beast.
Could I shitty master be part of the issue then?
03-26-2008, 07:31 PM
#53
3.0 BAR
Join Date: Dec 2005
Posts: 2,299
Re: Shifting issues with Prelude *updated with more shittastic*
id replace that nasty pos up there^^^^! if not your only gonna run into more problems, it may even solve the issues you are having now. thats one reason why i hate hydros that are hard to work with. then again the rx7 is a breeze to get too.
03-26-2008, 08:47 PM
#54
0.0 BAR
Thread Starter
Join Date: Nov 2005
Posts: 0
Re: Shifting issues with Prelude *updated with more shittastic*
Yeah the upper bolt is going to be a bitch to get to. It wasn't even tight at all. I could only get to the bottom bolt with a wrench and tightened it good. It didn't solve the problem, but it felt a lot smoother driving around. Have to order the master which will take 3-5 days.
03-26-2008, 09:00 PM
#55
3.0 BAR
Join Date: Dec 2005
Posts: 2,299
Re: Shifting issues with Prelude *updated with more shittastic*
Originally Posted by doug684
Yeah the upper bolt is going to be a bitch to get to. It wasn't even tight at all. I could only get to the bottom bolt with a wrench and tightened it good. It didn't solve the problem, but it felt a lot smoother driving around. Have to order the master which will take 3-5 days.
03-26-2008, 10:12 PM
#56
0.0 BAR
Thread Starter
Join Date: Nov 2005
Posts: 0
Re: Shifting issues with Prelude *updated with more shittastic*
Yeah I wish it was cable. It was so much easier to deal with the old EF. Part should be in Friday. Read that I need to have a brace made for both sides of the firewall since it's weak especially without the stock bracket.
04-08-2008, 02:18 PM
#60
0.0 BAR
Thread Starter
Join Date: Nov 2005
Posts: 0
Re: Shifting issues with Prelude *updated 4/6/08*
When they did the 5spd swap they didn't get the brace for the top of the clutch pedal. It was just held on to the master. When you pressed the pedal it was flexing which was causing a really low engagement and not full disengagement. Just used a big bolt and drilled a hole into the top of the firewall and braced it.
