Default put EF tranny in first without shift linkage to test model
http://www.honda-tech.com/zerothread/1508680

in this FAQ it shows how to tell what model the tranny is but how do you put the tranny in first without the shift linkage? I'm guessing pushing it all the way forward?
cloud is offline
Reply
Old 06-11-2007, 01:29 AM
  #2
1.5 BAR

danronian's Avatar

Join Date: Jul 2005
Posts: 942
Default Re: put EF tranny in first without shift linkage to test model
Just imagine how the shift linkage turns the shift selecter thing. Pull it out and turn it counter-clockwise (if looking at the tranny from the back of the car).
danronian is offline
Reply
Old 06-11-2007, 12:48 PM
  #3
3.0 BAR

Scott-EP's Avatar

Join Date: Oct 2005
Location: St. Augustine FL
Posts: 3,936
Default Re: put EF tranny in first without shift linkage to test model
if you are at the back of the tranny turn the yoke counterclockwise and pull. that will be 1st gear
Scott-EP is offline
Reply
Old 06-11-2007, 01:51 PM
  #4
1.5 BAR

danronian's Avatar

Join Date: Jul 2005
Posts: 942
Default Re: put EF tranny in first without shift linkage to test model
Originally Posted by PhilStubbs
if you are at the back of the tranny turn the yoke counterclockwise and pull. that will be 1st gear
Correct...I was thinking backwards for some reason, sorry. :1
danronian is offline
Reply
Old 06-11-2007, 03:50 PM
  #5
0.0 BAR

Bone1's Avatar

Join Date: Jan 2005
Posts: 0
Default Re: put EF tranny in first without shift linkage to test model

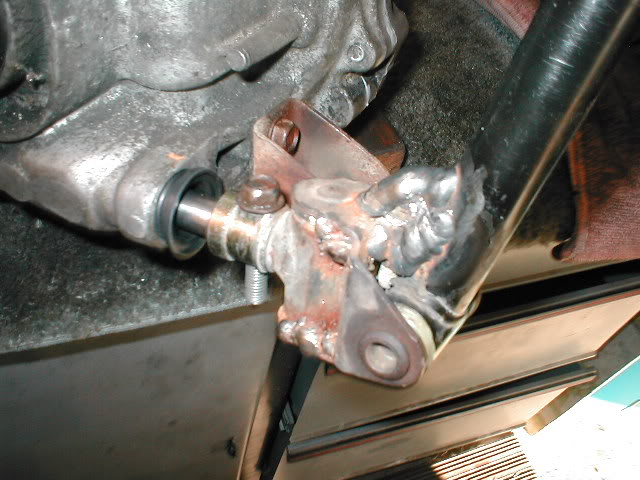

Name: P8040001.jpg Views: 10 Size: 61.6 KB
Bone1 is offline
Reply
Old 06-11-2007, 06:55 PM
  #6
3.0 BAR

Scott-EP's Avatar

Join Date: Oct 2005
Location: St. Augustine FL
Posts: 3,936
Default Re: put EF tranny in first without shift linkage to test model
what was the reason for welding the shifter like that?
Scott-EP is offline
Reply
Old 06-11-2007, 11:01 PM
  #7
0.0 BAR

Bone1's Avatar

Join Date: Jan 2005
Posts: 0
Default Re: put EF tranny in first without shift linkage to test model
so I can bench shift the tranny, aka test it.

I build trannys, I don't install them for customers.

Bone1 is offline
Reply
Old 06-12-2007, 06:37 AM
  #8
3.0 BAR

Scott-EP's Avatar

Join Date: Oct 2005
Location: St. Augustine FL
Posts: 3,936
Default Re: put EF tranny in first without shift linkage to test model
oh, i see
Scott-EP is offline
Reply
Old 06-12-2007, 06:48 PM
  #9
0.5 BAR

Sepheroth86's Avatar

Join Date: Jul 2006
Posts: 189
Default Re: put EF tranny in first without shift linkage to test model
Originally Posted by Mista Bone
so I can bench shift the tranny, aka test it.

I build trannys, I don't install them for customers.


Customers like me
