OBD1 D external coil install
So my car has been misfiring real bad lately and it got to the point I couldn't drive it anymore. I went to a friends house and we diagnosed it as a bad coil. My car is converted to obd1 and actually has an Accord distributor on it that was originally set up for external coil. So I had the cap and coil laying around. Here is how I installed it. Its real easy all you do is run the 2 wires that go to the stock coil to the outside and to the new one.
I removed the distributor.

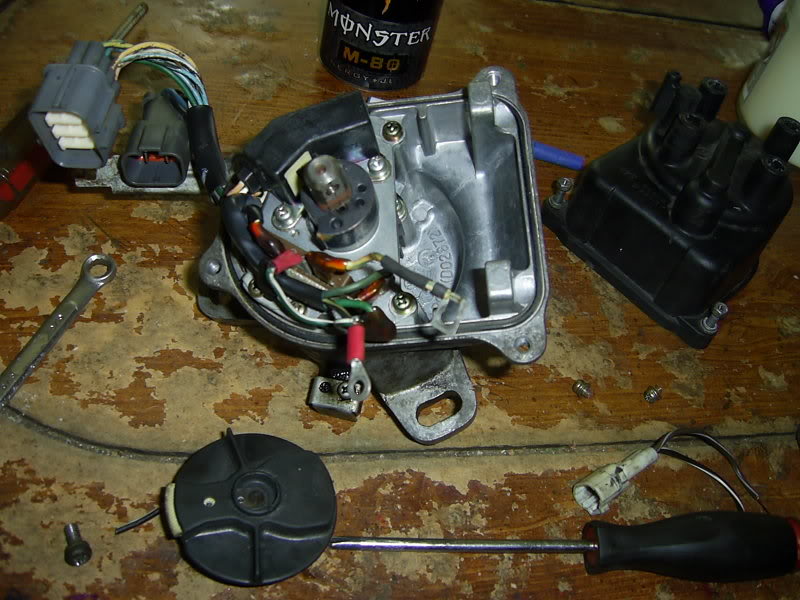

I then removed the stock coil.

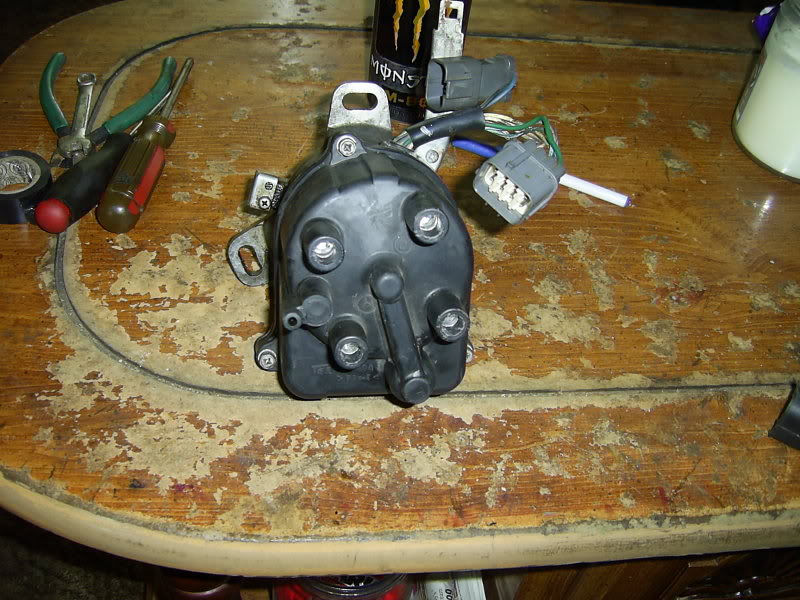

Here is the cap I used. As far as I know its from an 92-93 Accord.

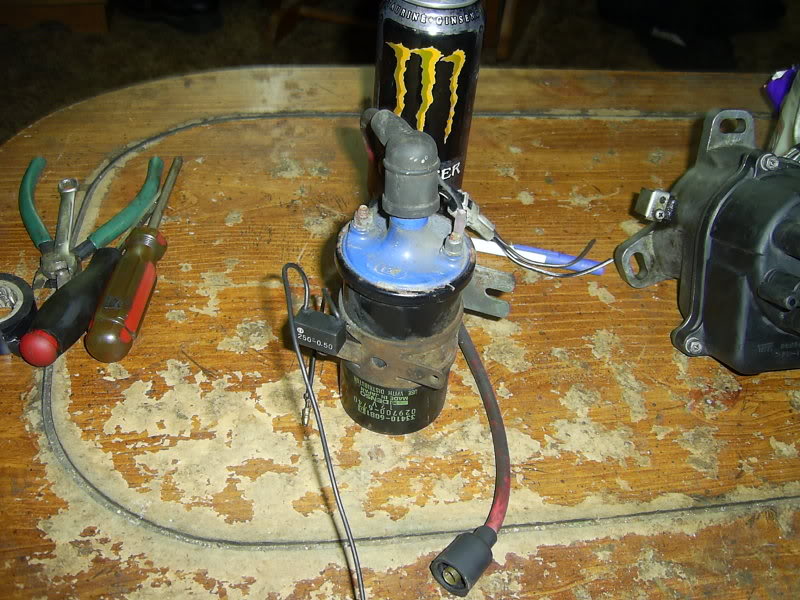

Here is the coil I am using temporarily until I get the money to buy a better one. It is originally from my old 90 geo metro lol

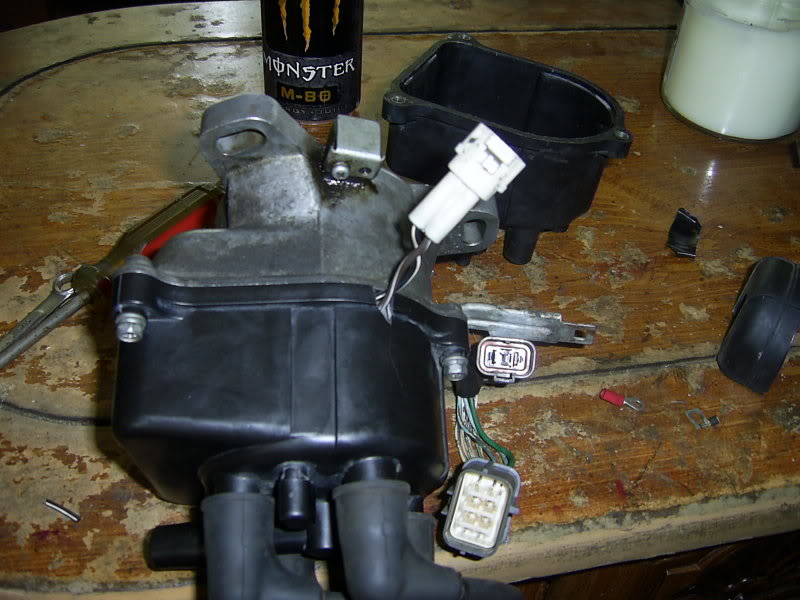

I cut a small notch in the cap to run the 2 wires out.

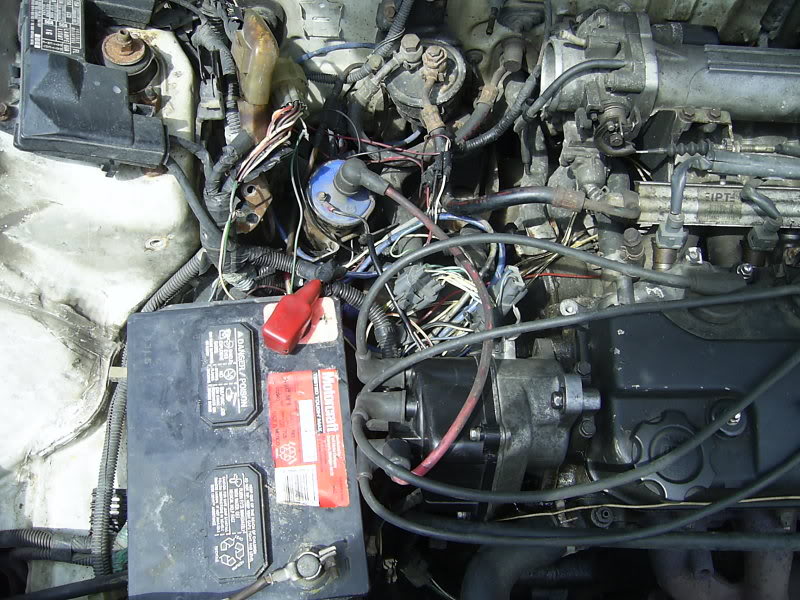

Here it is on my car. Ignore the crappy wiring and engine bay this car is my beater.
I still have to solder my wires I ran and put a little rtv on the cap where I made the notch. I know no one on here cares but at least my car runs good now.
