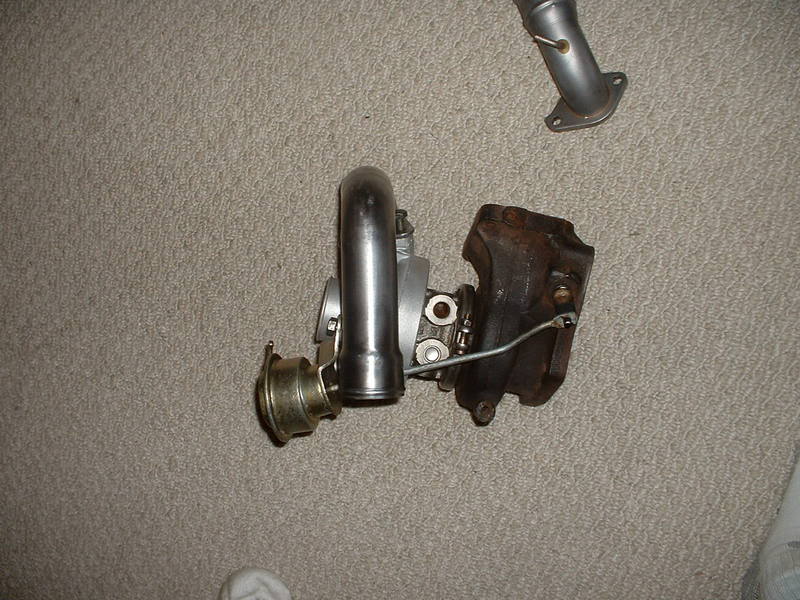

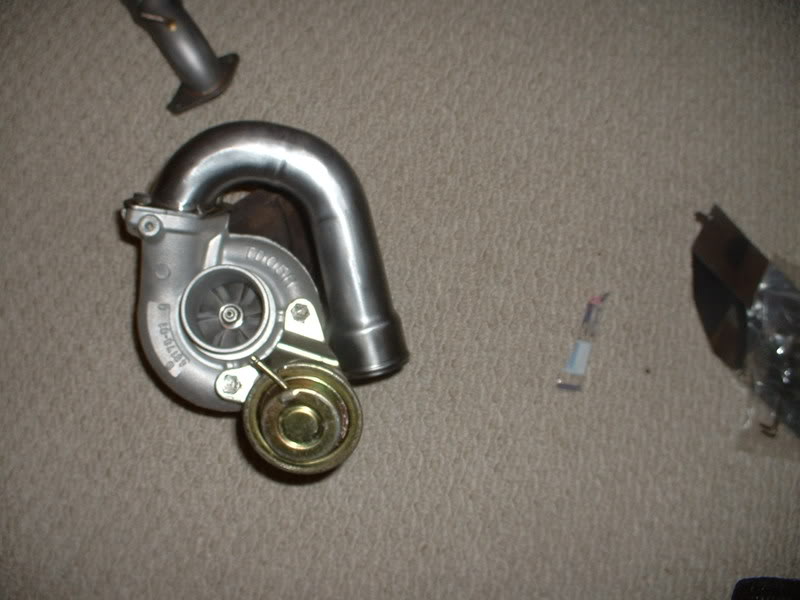

Well ----, I figured I should include some more from different angles and with the wastegate actuator installed. As you can see it is routed behind the actuator and a tad below the arm. There's space between the outlet and the actuator arm too. Easy to get a coupler on there. I just use a 90 hump connector and never mess with it again. Fitment is great. If you want to buy mine cool. If not that's cool too. My main concern was just illustrating for you some of the options you have for getting a proper compressor outlet pipe on there.



damn see i dont know.. hah the way N/A mike has his is exactly how im setting up my 14b, so i could use the stock one and go like that... but then again i could always use that bent one and face the outlet of the turbo almost down and make it swing back up, .. lemme think about it but yea ill defenately get back to you


thanks guys for all the help

-matt



the stock one sits a little close to the block. you will need a crazy tight bend to get it out of there. which is why i made my own.



so do you think that silver bent one would be better?



if this one fits on the zc then i like how it looks, but how are you doing your intercooler piping? mine comes up through the hole for the ac drier near the coolant overflow. so the pic above wouldn't work for me.



ha yea im not sure, im thinking with that silver one that i would have to do a real quick 90 degree bend twards the coolent overflow, so im not too sure hah ill think about it and let you know
