My Turbo Project!
#1
My Turbo Project!

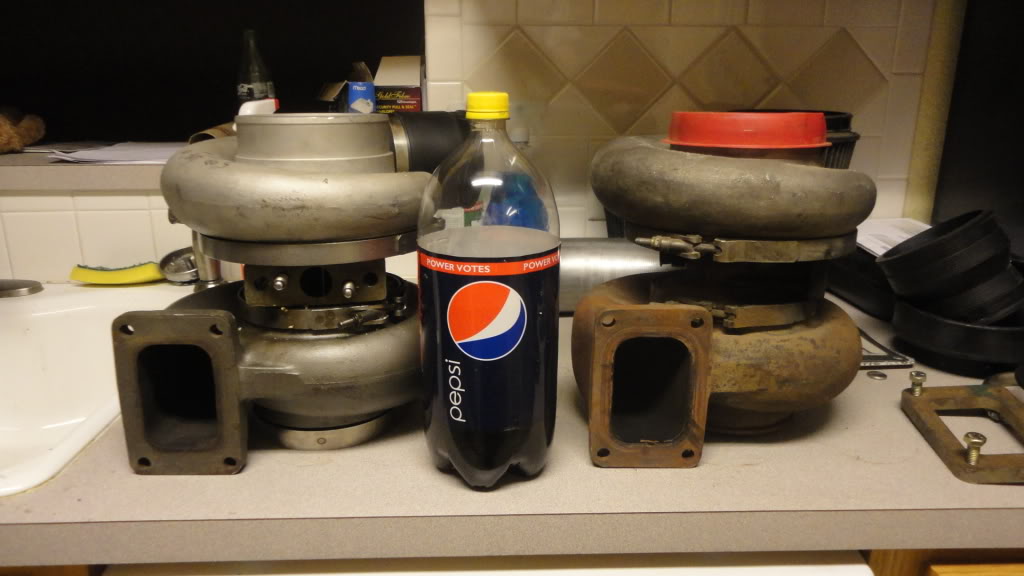

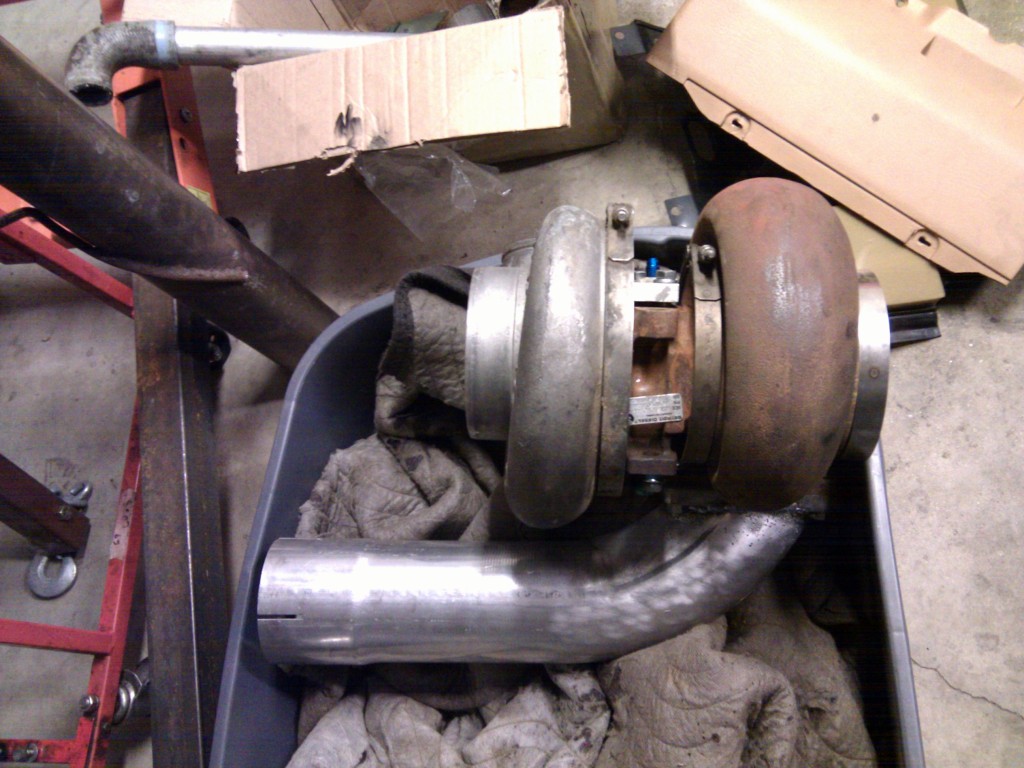

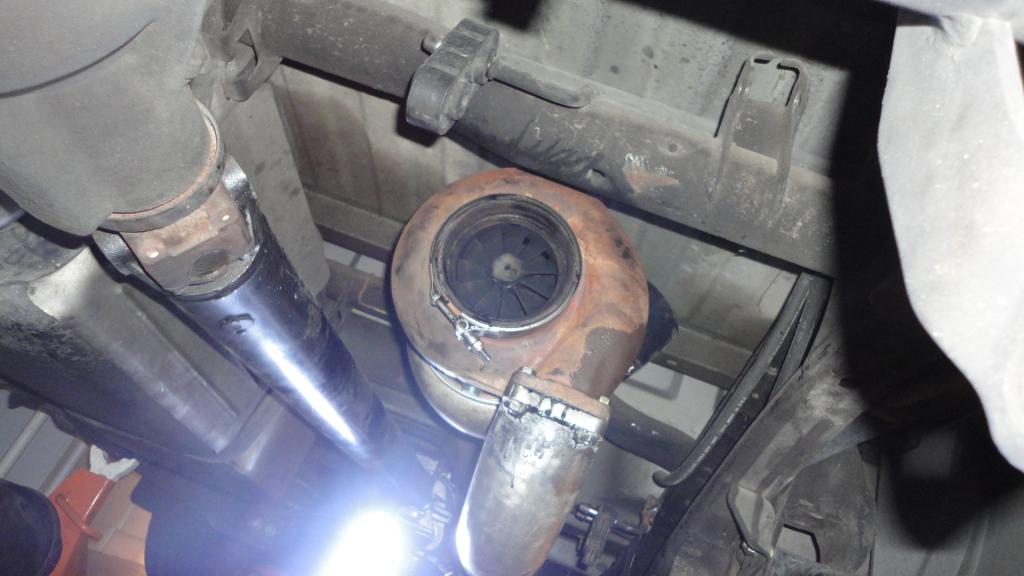

I need some suggestions. I putting a tv8101 t6 turbo rear mount on my 04 silverado with my 505 big block and t56.
Specs on the engine.
4.290 bore
4.370 stroke
Cnc ported stock heads 2.19 1.88
zz502 camshaft hydraulic roller
The duration at .050 224/234
Lift 527/544.
Lobe centerline is 110 degrees.
Stock intake at the moment with ls1 throttlebody
1"7/8's headers into 3 inch into a dual 3" flowmaster merge collector to a single 4 inch pipe

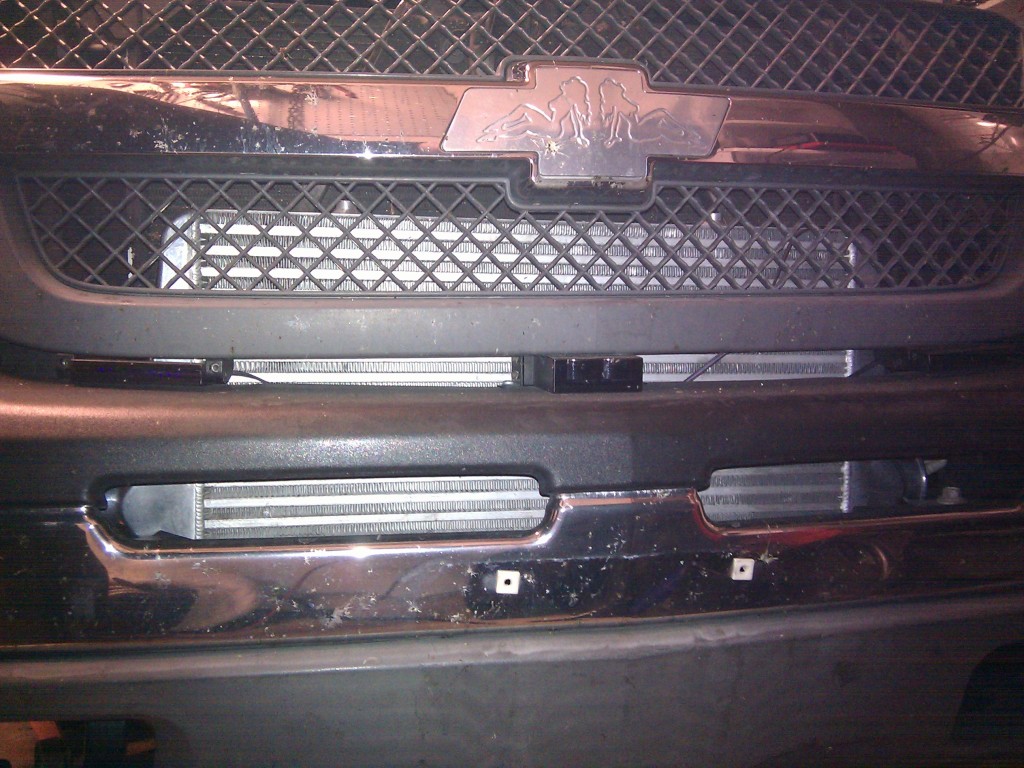

I got an air to air intercooler and the turbo
Plan on buying synapse wg and bov
After that I am kinda lost. I know I need a suction pump to suck the oil back up to the motor
I got a ton of questions.
What size should the oil feed and return for the turbo be?
What size pipe should i run into and out of turbo? I am thinking 4 inch in and out on the hot side and 3.5 on the cold side
Should i blow thru the maf or just run speed density?
Bov location? on the IC or near the throttle blades?
I am sure more will come up!
Thanks
SPC Coss
Specs on the engine.
4.290 bore
4.370 stroke
Cnc ported stock heads 2.19 1.88
zz502 camshaft hydraulic roller
The duration at .050 224/234
Lift 527/544.
Lobe centerline is 110 degrees.
Stock intake at the moment with ls1 throttlebody
1"7/8's headers into 3 inch into a dual 3" flowmaster merge collector to a single 4 inch pipe
I got an air to air intercooler and the turbo
Plan on buying synapse wg and bov
After that I am kinda lost. I know I need a suction pump to suck the oil back up to the motor
I got a ton of questions.
What size should the oil feed and return for the turbo be?
What size pipe should i run into and out of turbo? I am thinking 4 inch in and out on the hot side and 3.5 on the cold side
Should i blow thru the maf or just run speed density?
Bov location? on the IC or near the throttle blades?
I am sure more will come up!
Thanks
SPC Coss
#5
I got a ton of questions.
What size should the oil feed and return for the turbo be?
What size pipe should i run into and out of turbo? I am thinking 4 inch in and out on the hot side and 3.5 on the cold side
Should i blow thru the maf or just run speed density?
Bov location? on the IC or near the throttle blades?
I am sure more will come up!
Thanks
SPC Coss
What size should the oil feed and return for the turbo be?
What size pipe should i run into and out of turbo? I am thinking 4 inch in and out on the hot side and 3.5 on the cold side
Should i blow thru the maf or just run speed density?
Bov location? on the IC or near the throttle blades?
I am sure more will come up!
Thanks
SPC Coss
oil return will depend on your scavenge pump.
the larger the hot side pipes the more lag. you dont want to go too large or small. i think 3" will be good for less lag without choking the exhaust system.
the cold size i would use 3" just because of the size turbo. 3.5 maybe overkill and tough to hide.
speed density is by far the best for a boosted application but a maf is more accurate and precise. if your maf has a built in air intake temp sensor then use it as a blow through for more accurate air temp readings.
bov can be mounted anywhere on a speed density system.
on a maf system you need to mount the bov before the maf so when the bov vents it doesnt vent metered air causing closed throttle stumble/stalling.
#6

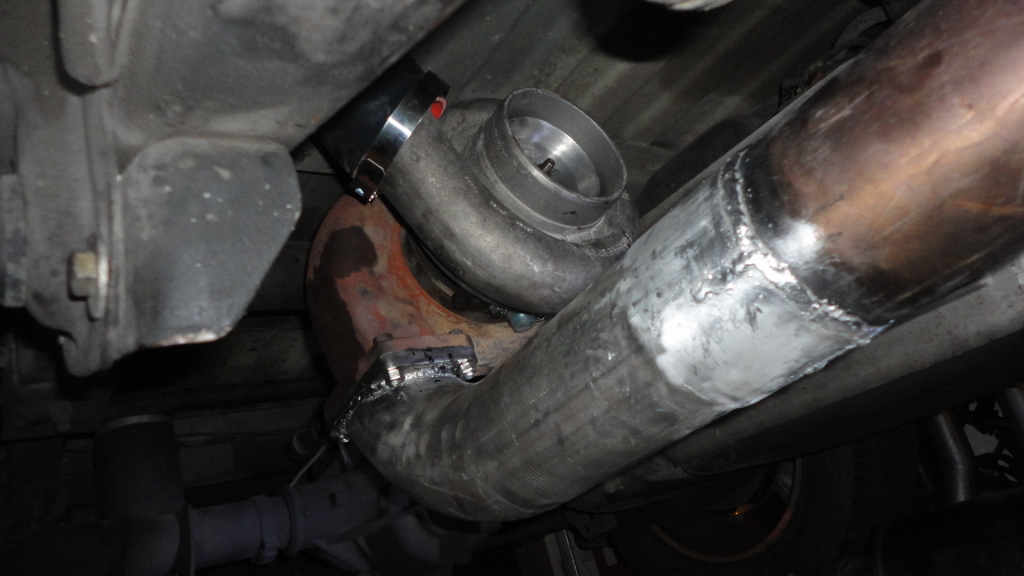

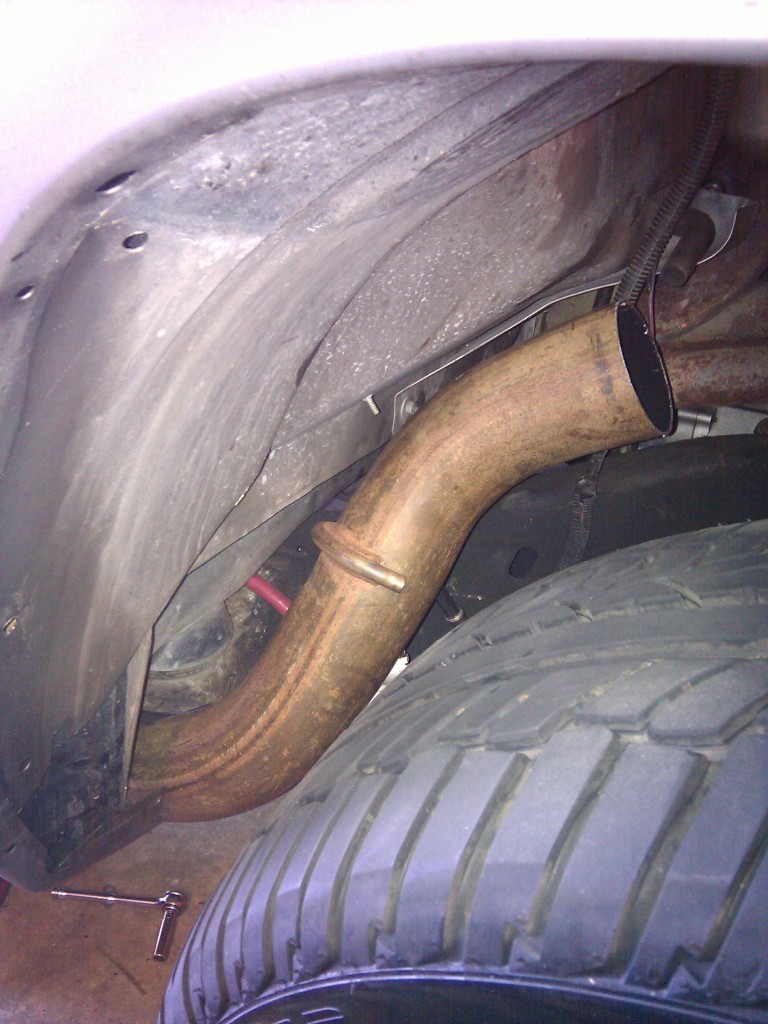

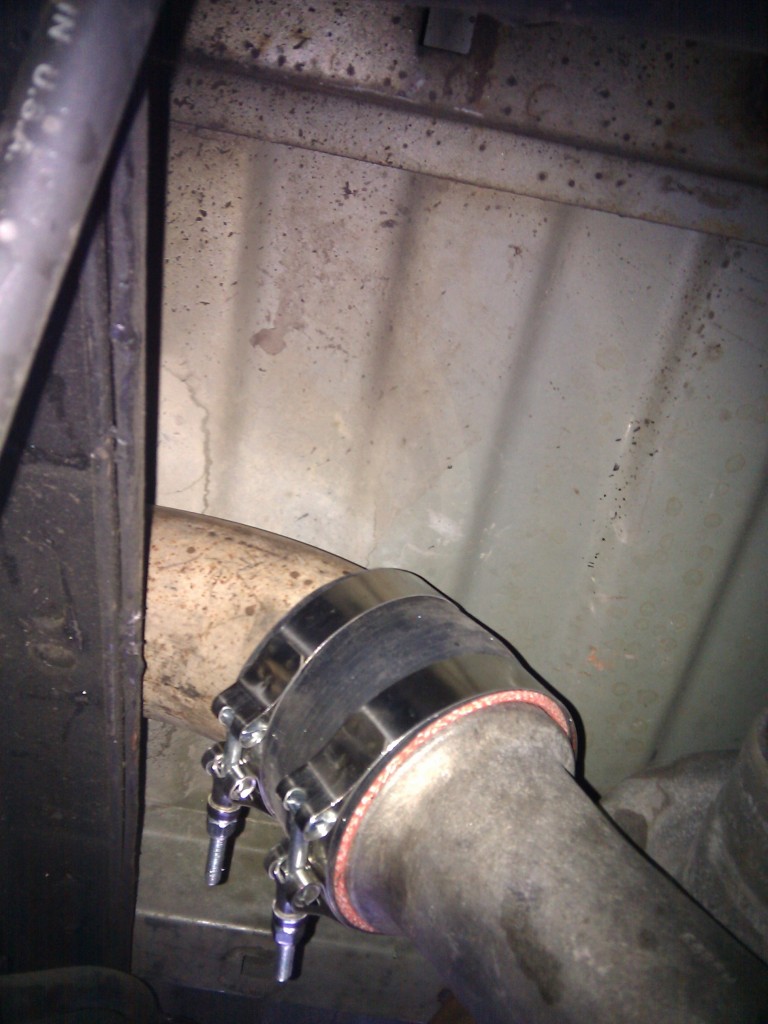

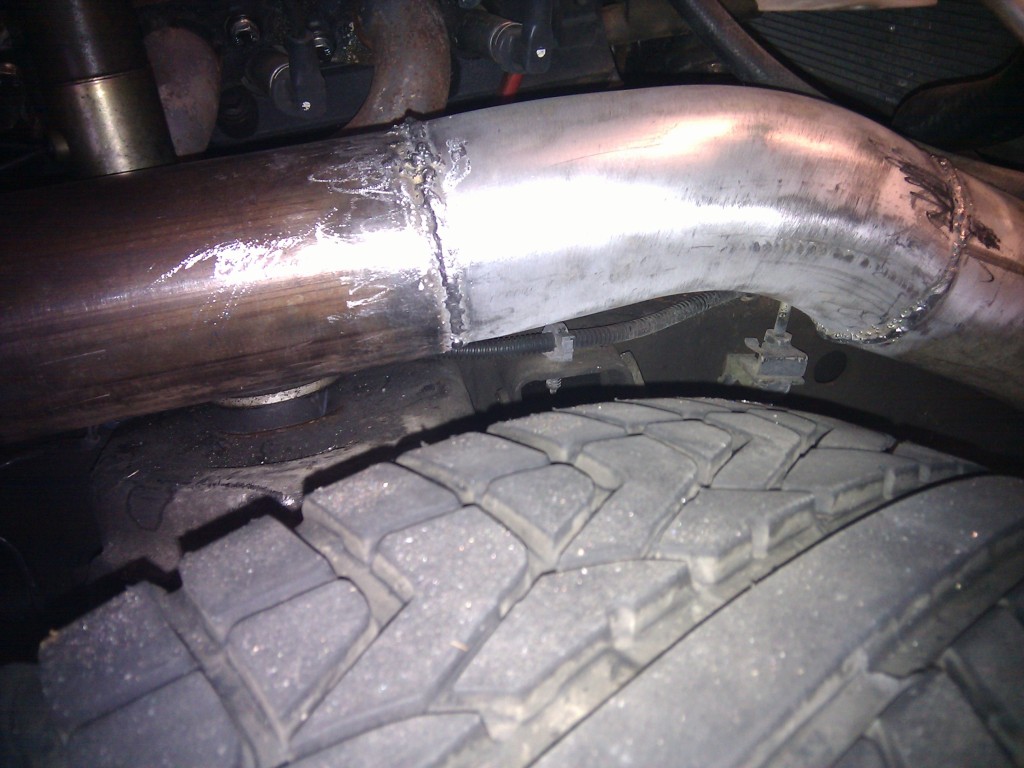

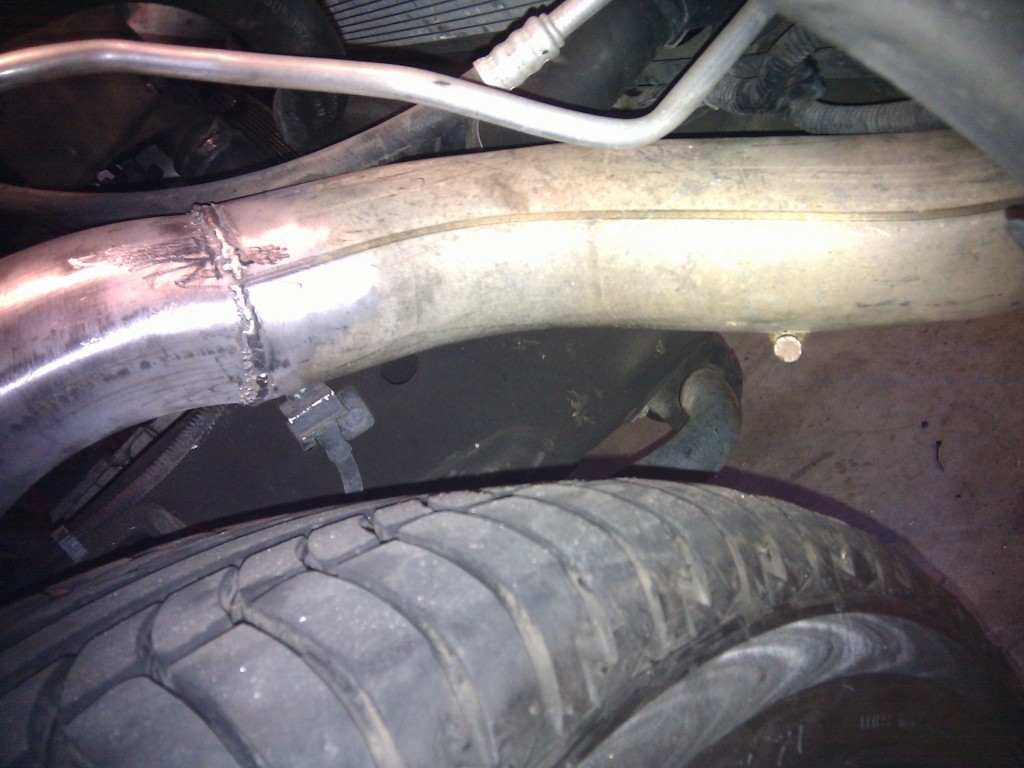

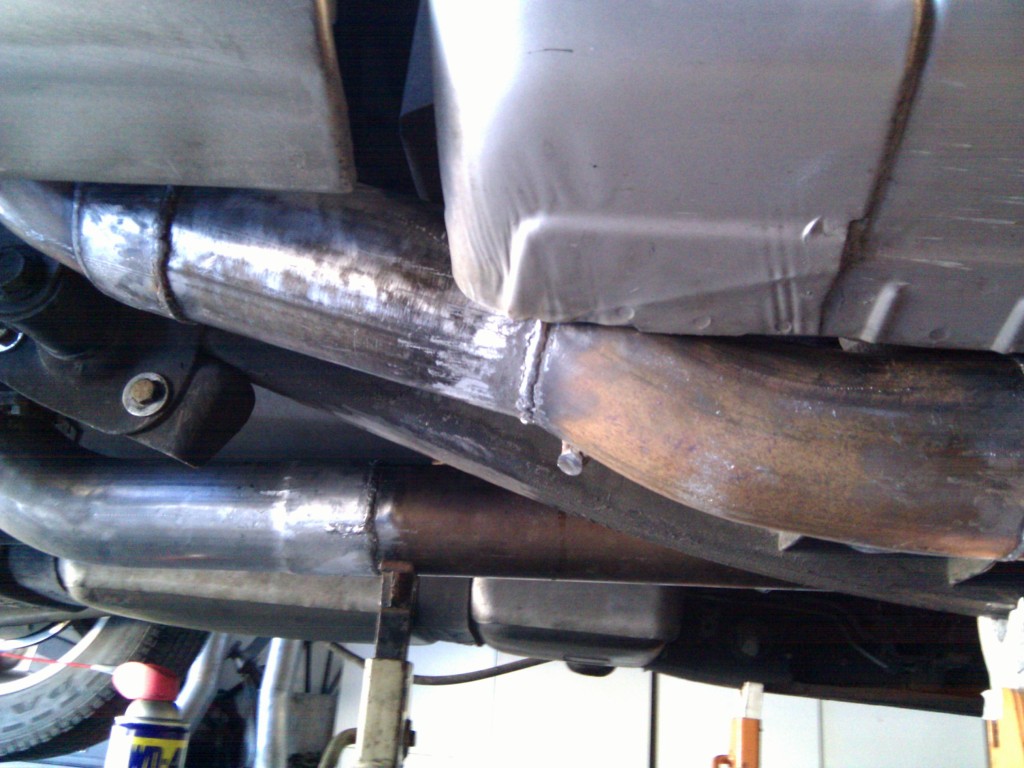

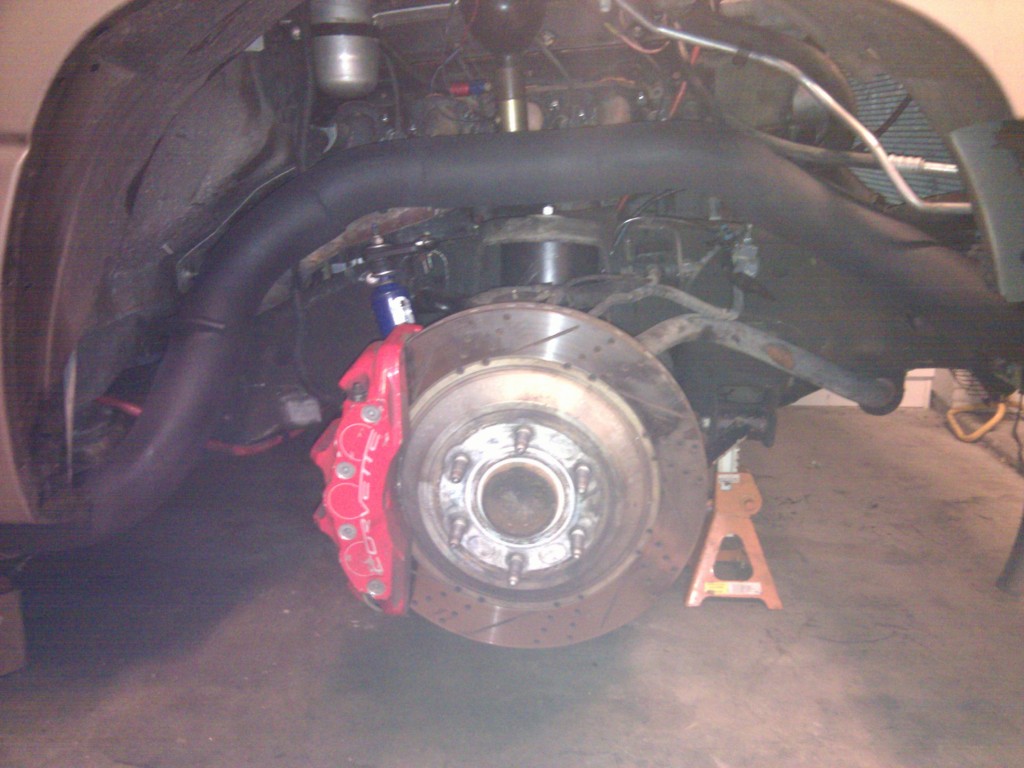

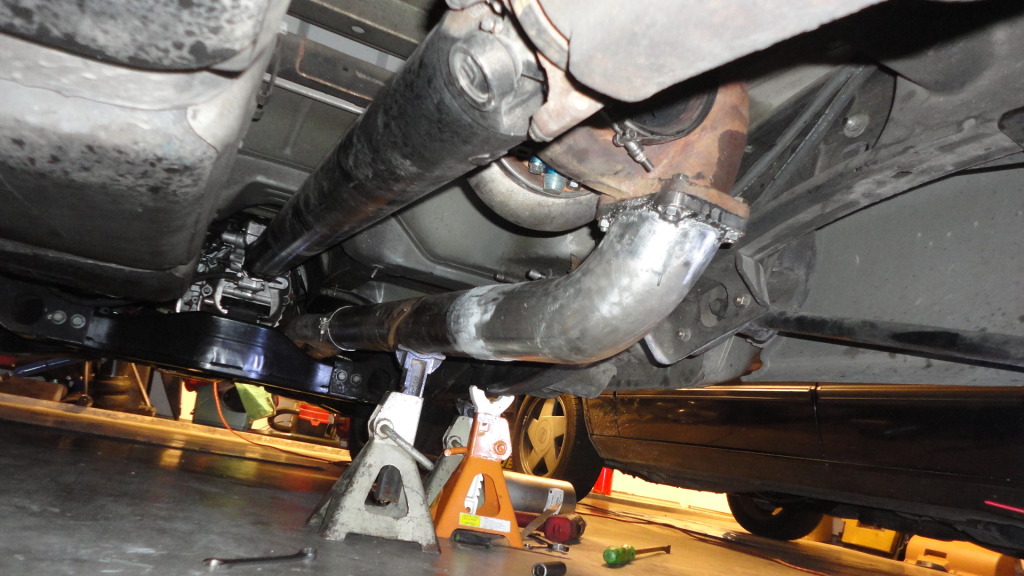

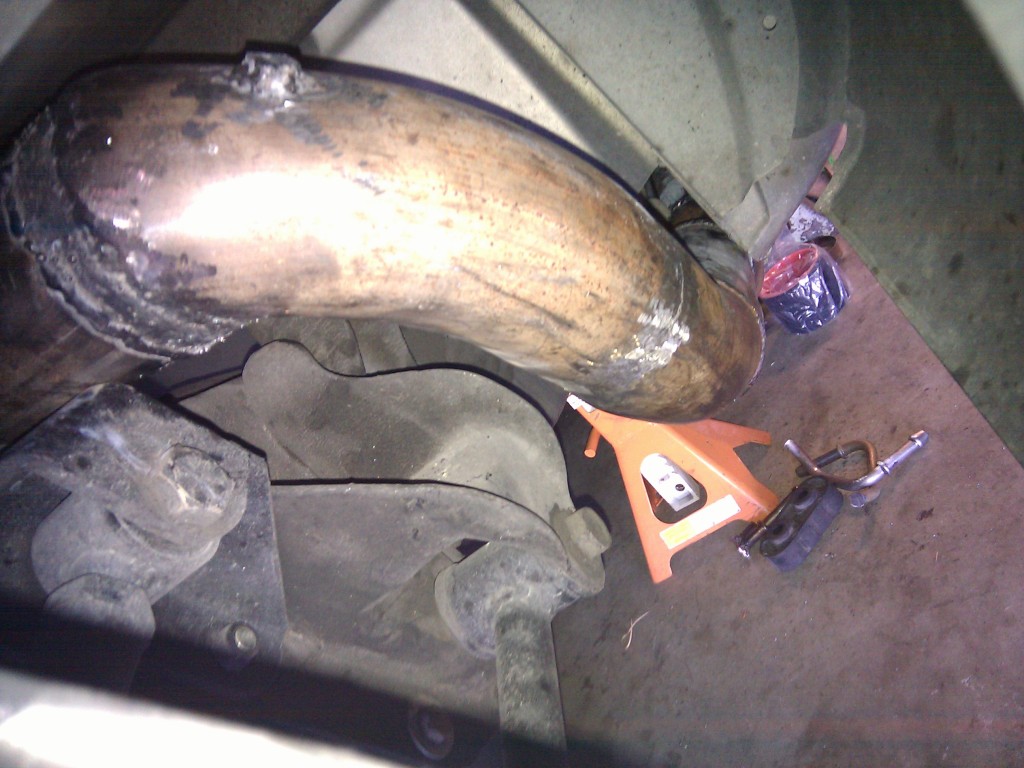

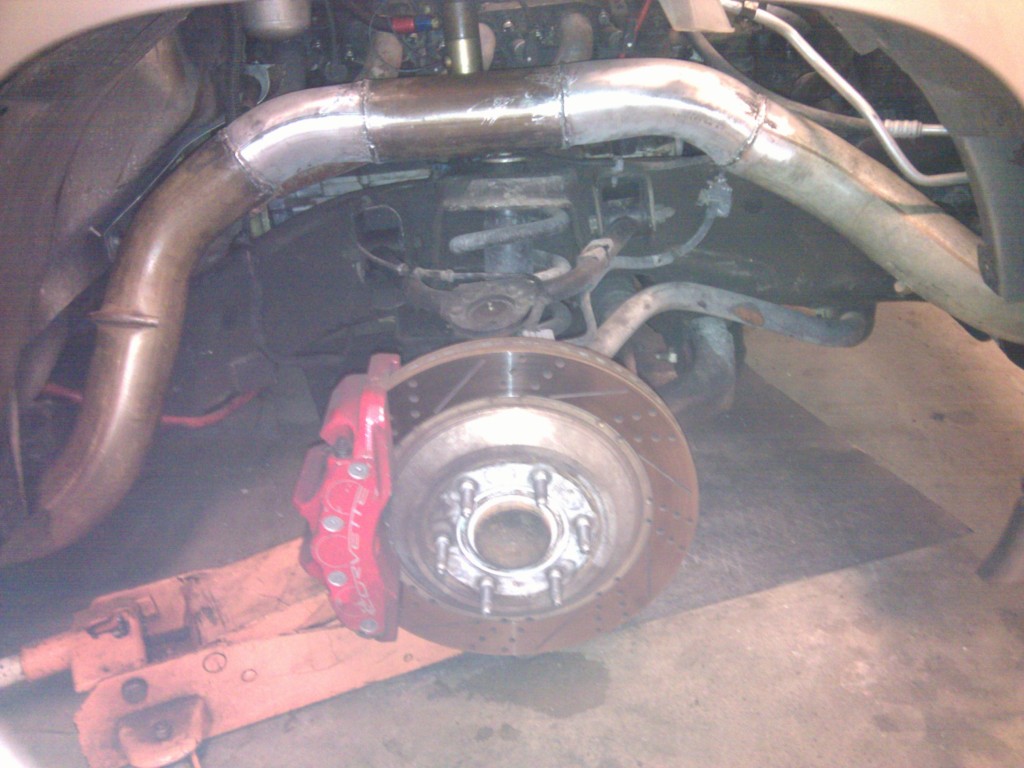

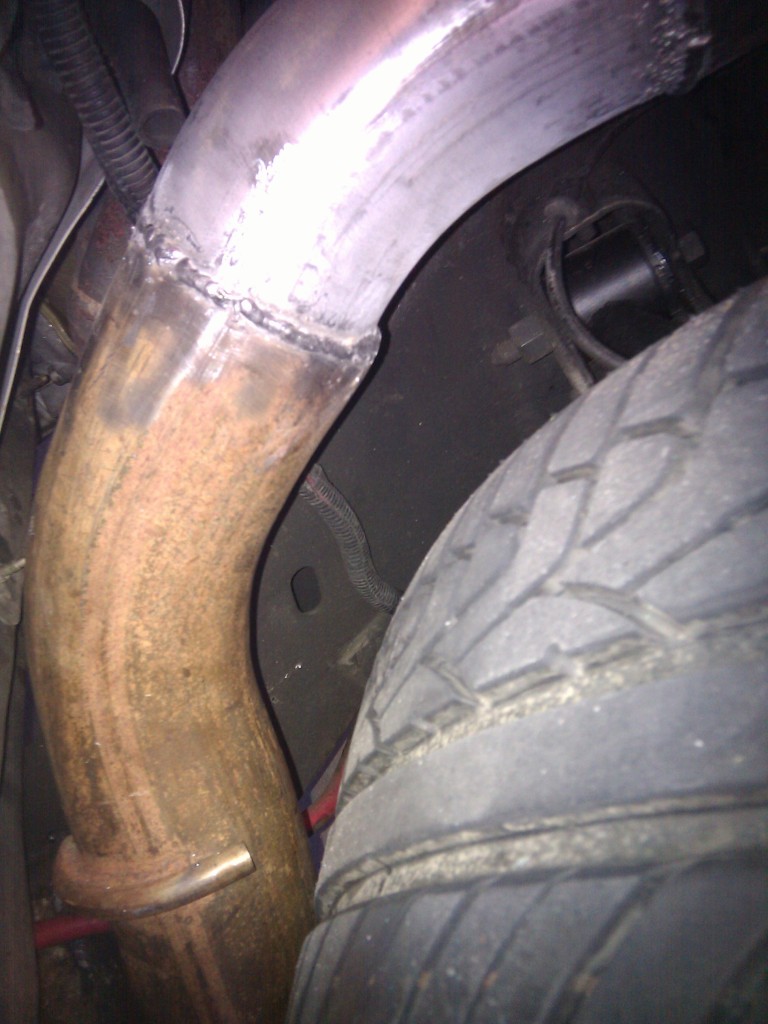

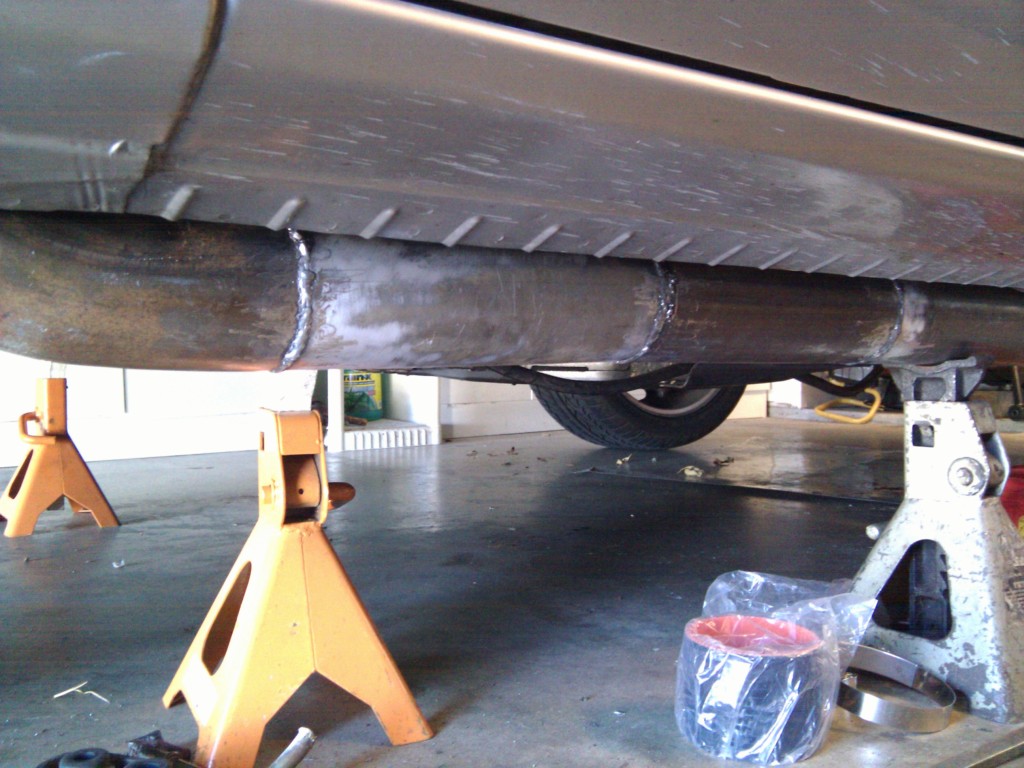

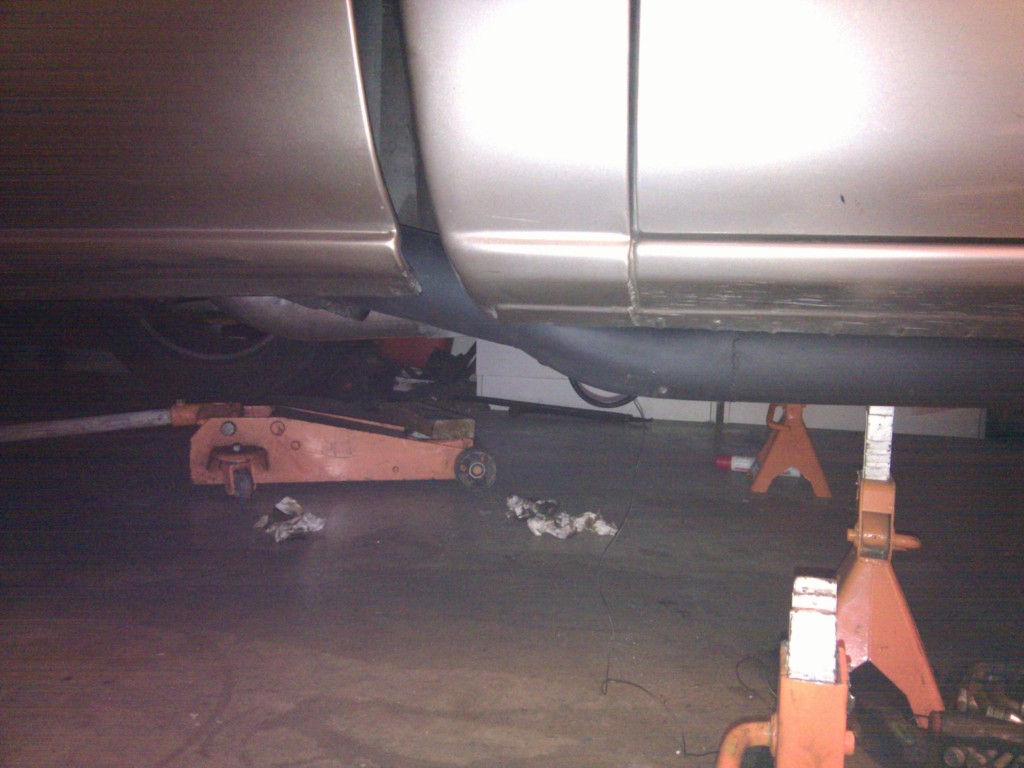

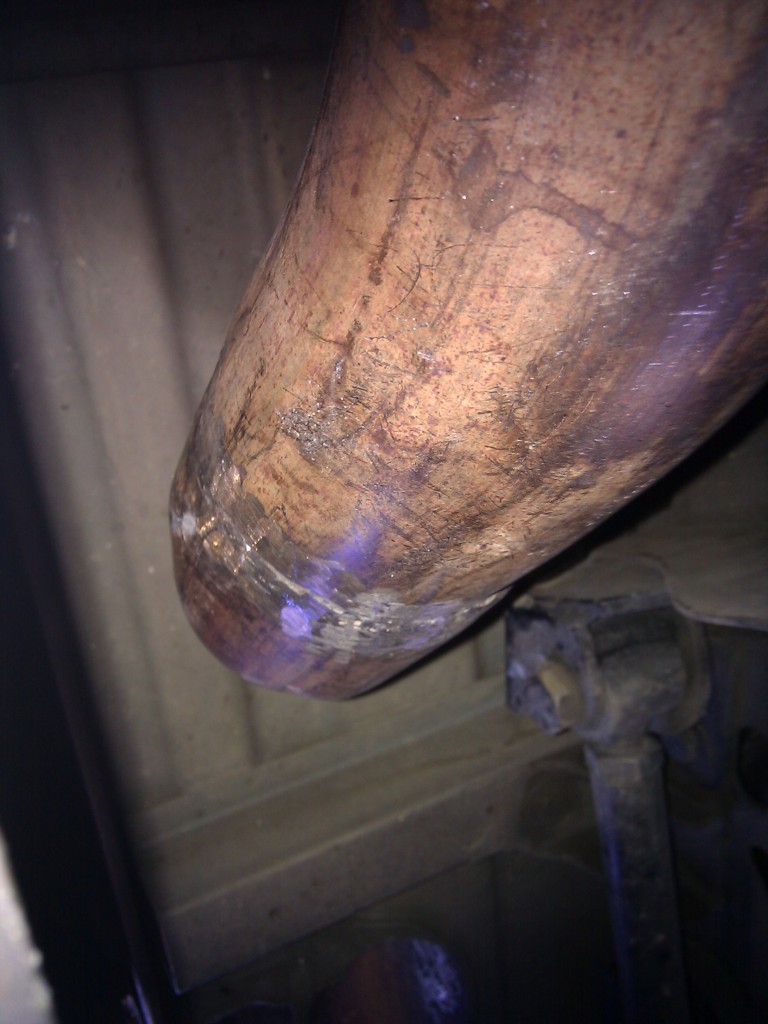

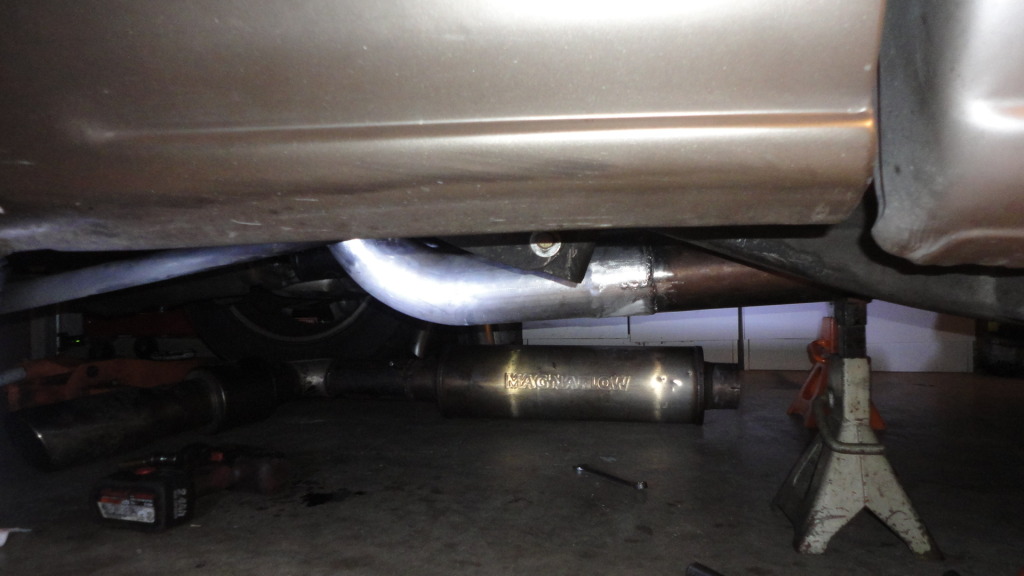

Yeah I ended up running 4 inch to the t6 flange, and 3.5 to intercooler. It has been suggested that since i aint running a bunch of boost to not even run a BOV between it being a stick and the length of my charge pipe.

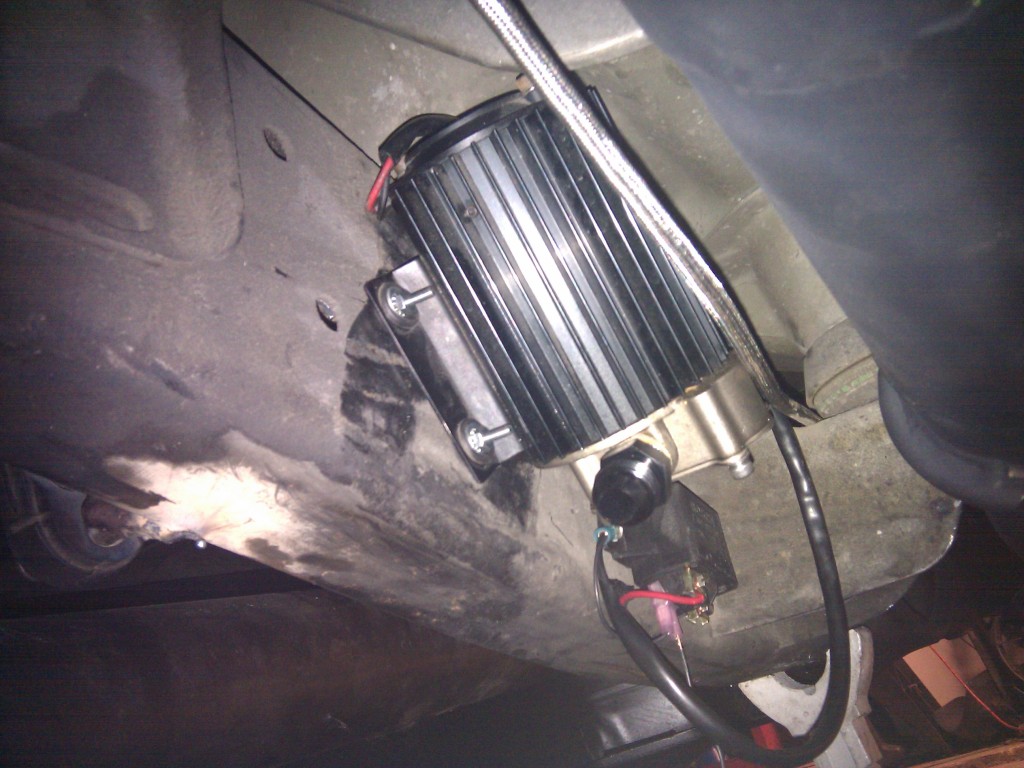

I also ran -4 to the oil fitting and -10 to the scavenge pump.
I also ran -4 to the oil fitting and -10 to the scavenge pump.
