My Homemade Turbo Project...
06-22-2006, 09:57 AM
#52
1.0 BAR
Thread Starter
Join Date: May 2006
Posts: 295
Re: My Homemade Turbo Project...
some pics of the intercooler/piping install:

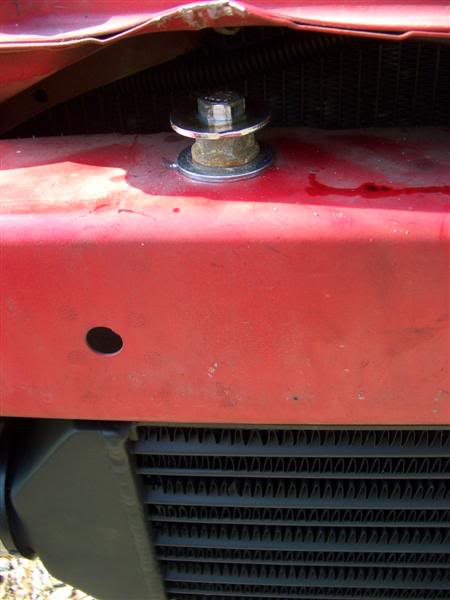

measured, and drilled holes in top, and bottom of bumper support:

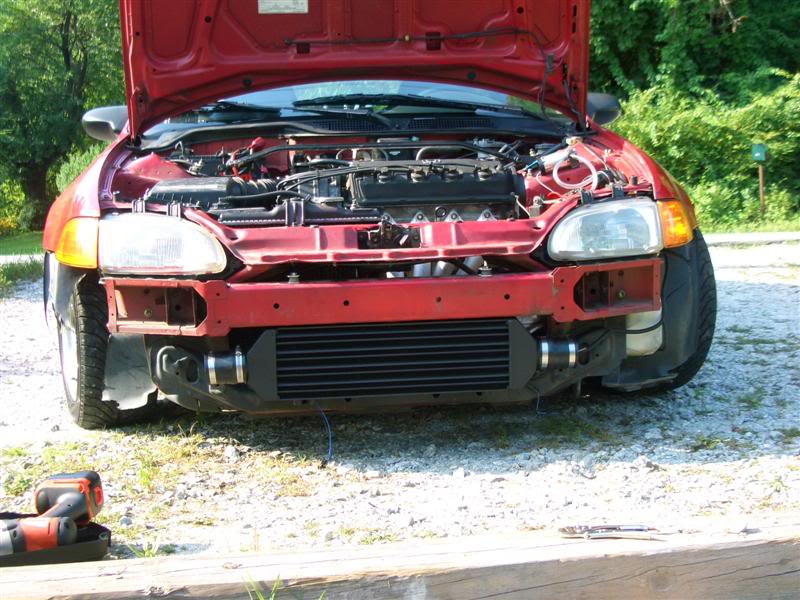

mounted intercooler using 6in. bolts and a big nut as a spacer: (they were too long)

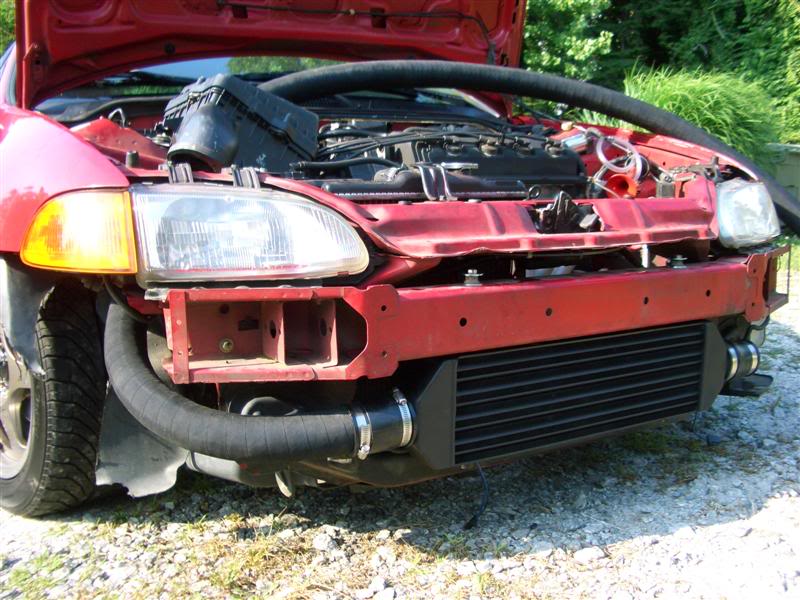

charge pipe is 2" tank truck hose: (as you can see, it should work well)
that's not me: (in case you were wondering... he owns a supercharged gsr hatch(supercharger is not installed yet)
also not me:
Not shown, but hose runs thru stock airbox and will be covered by stock intake tube: (with slit in bottom to wrap over hose)
measured, and drilled holes in top, and bottom of bumper support:
mounted intercooler using 6in. bolts and a big nut as a spacer: (they were too long)
charge pipe is 2" tank truck hose: (as you can see, it should work well)
that's not me: (in case you were wondering... he owns a supercharged gsr hatch(supercharger is not installed yet)
also not me:
Not shown, but hose runs thru stock airbox and will be covered by stock intake tube: (with slit in bottom to wrap over hose)
06-22-2006, 02:52 PM
#55
0.5 BAR
Join Date: Dec 2005
Posts: 108
Re: My Homemade Turbo Project...
Originally Posted by StinkyFeet
everyone i kno's been bashing the rubber hose so far.. what you guys think?
(its 2" tank truck hose, super thick, and rated for 140psi)
(its 2" tank truck hose, super thick, and rated for 140psi)
06-24-2006, 01:16 AM
#57
1.0 BAR
Thread Starter
Join Date: May 2006
Posts: 295
Re: My Homemade Turbo Project...
Originally Posted by 95_civic_lx
where did you get the hose? how much is it?
im looking into turboing my civic this summer...on a budget..so it catched my eye
im looking into turboing my civic this summer...on a budget..so it catched my eye
06-27-2006, 10:44 AM
#58
1.0 BAR
Thread Starter
Join Date: May 2006
Posts: 295
Re: My Homemade Turbo Project...
Update:
Got the injectors and resistor box in sunday. It was real easy. If not for the rain, it prob would of only taken 45min for both.
Ran like ***, and would barely start til i installed ECU chip. (custom from phearable.net)
It runs great, a lil rich in the higher rpms but thats to be expected (especially w/out the turbo installed).
So, all i need now is the hf to t25 adaptor plate (on order) and downpipe (having it made locally) and the beast will be spoolin.
Got the injectors and resistor box in sunday. It was real easy. If not for the rain, it prob would of only taken 45min for both.
Ran like ***, and would barely start til i installed ECU chip. (custom from phearable.net)
It runs great, a lil rich in the higher rpms but thats to be expected (especially w/out the turbo installed).
So, all i need now is the hf to t25 adaptor plate (on order) and downpipe (having it made locally) and the beast will be spoolin.
06-28-2006, 01:30 PM
#60
1.0 BAR
Thread Starter
Join Date: May 2006
Posts: 295
Re: My Homemade Turbo Project...
sold some, and the rest is on ebay, if anyone wants it... heres the links:
