LS1 s10 turboooo ~~~Sleeper~~~!!!!
04-30-2009, 12:57 PM
#32
1.0 BAR
Thread Starter
Join Date: Jan 2006
Posts: 328
Hey ladies.
So this past weekend the new rear axle got put in… The Ford 8.8 rear. Awesome axle swap, especially for the price.
Ford 9” rear’s go for $2,000 complete, plus they require fabrication to fit.
My Ford 8.8” rear is direct bolt in!!!! $400 from the salvage yard out of a 95+ explorer. I also Sold my stock axle 20 mins after I took it out as well for $100 on craigslist.
Best parts about this new axle: 3.73 gears, Limited slip, Ladder bars, Disc brakes, 31 spline axles. To do all this to a Ford 9”, or even to modify my stock axle, would have been WAY MORE THAN THE $300 it cost me! So for the dollars spent, this was a hell of a deal.
$400 for the axle
-$100 old axle
$30 U bolt kit and lowering blocks
$45 Ford U joint flange
So for $375, I think it’s a HELL of a mod.
Hopefully this axle will handle the Hoosiers I wanna get: 29”x12”- 15 drag slicks. I think a 12” wide tire should be good enough to make up for the zero weight in the back of this thing.
Hoosier 18190D06 - Hoosier Drag Slicks

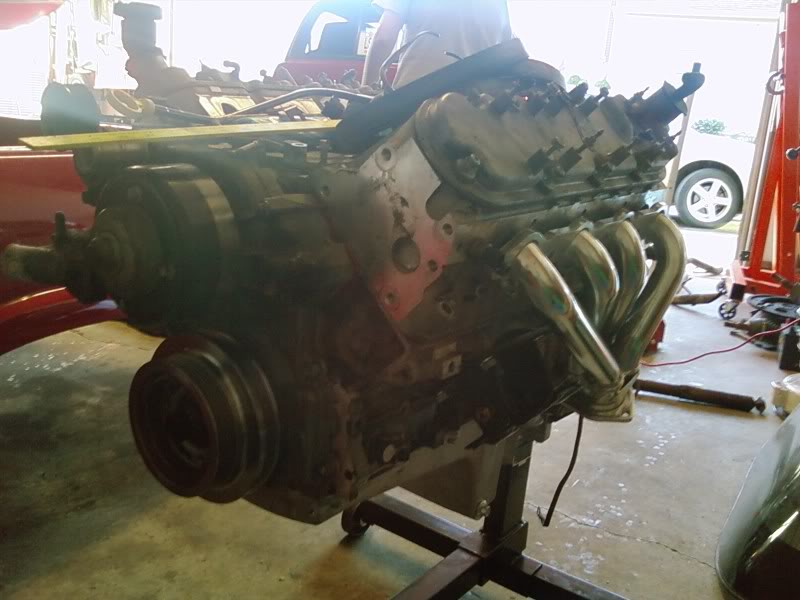

new BRIB underdrive pulley, and headers.

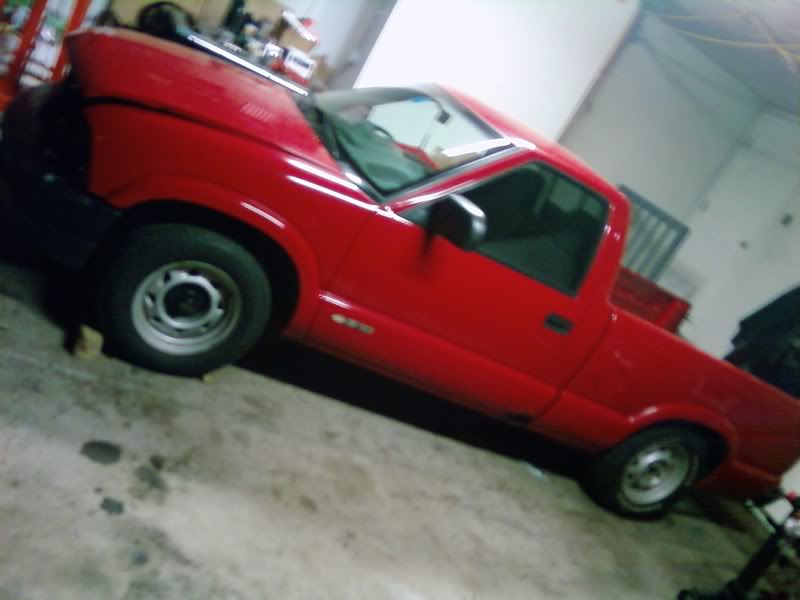

Row row row your truck… gently past the Honda!

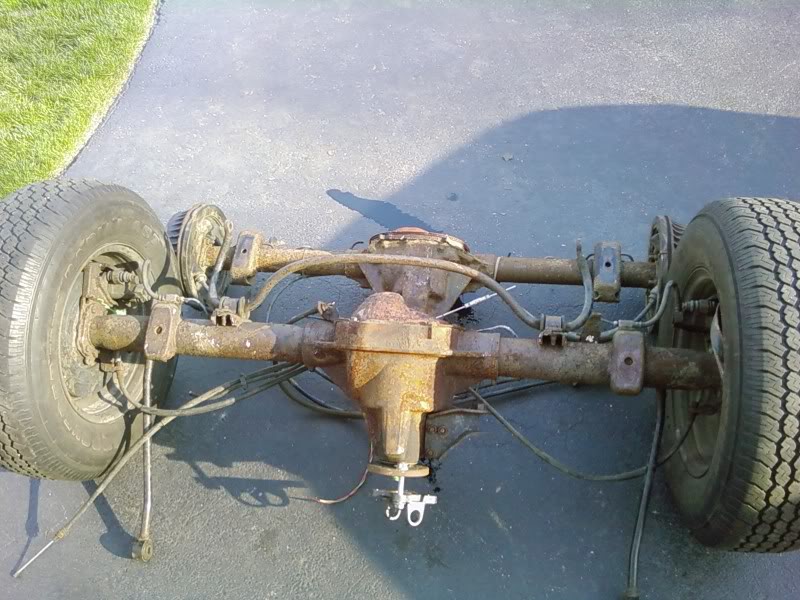

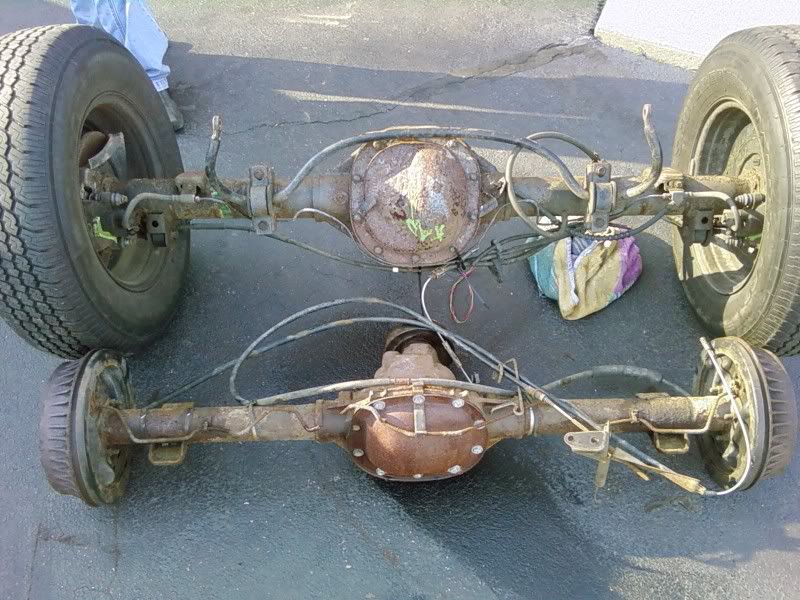

Check out how much BEEFIER the 8.8 is than the stock GM 7.5

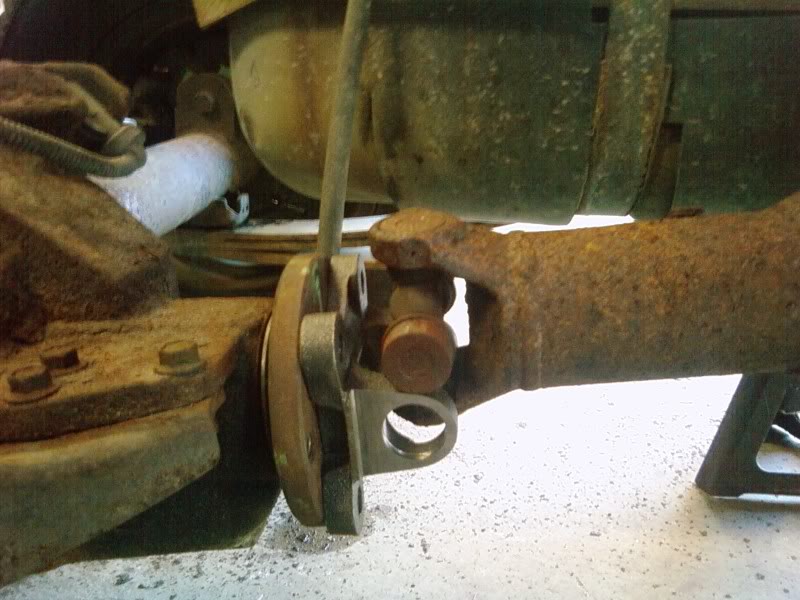

If only I was using the stock 2.2L and t5 tranny… then the drive shaft would have lined up perfectly w/ the 8.8!

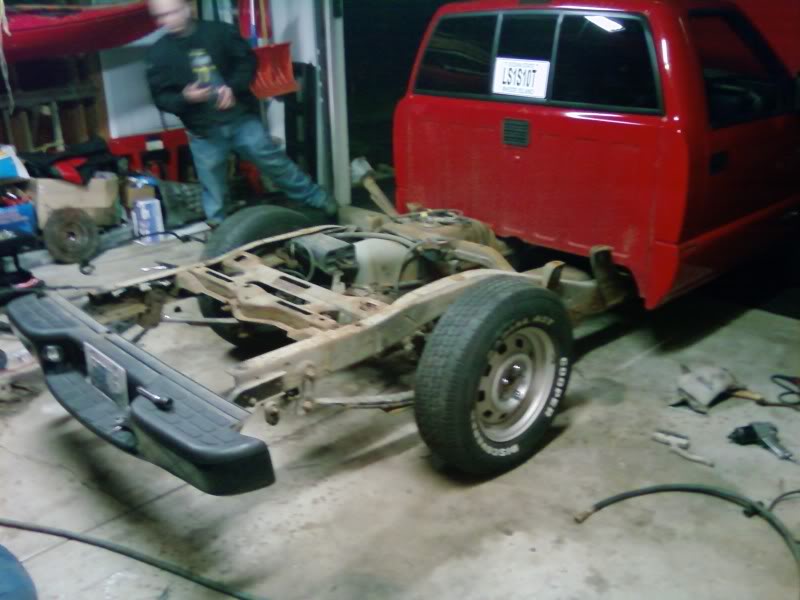

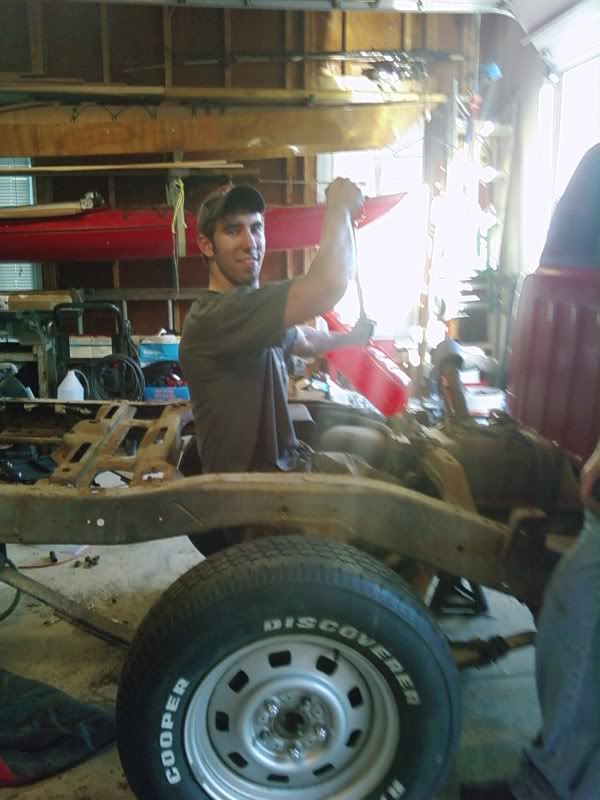

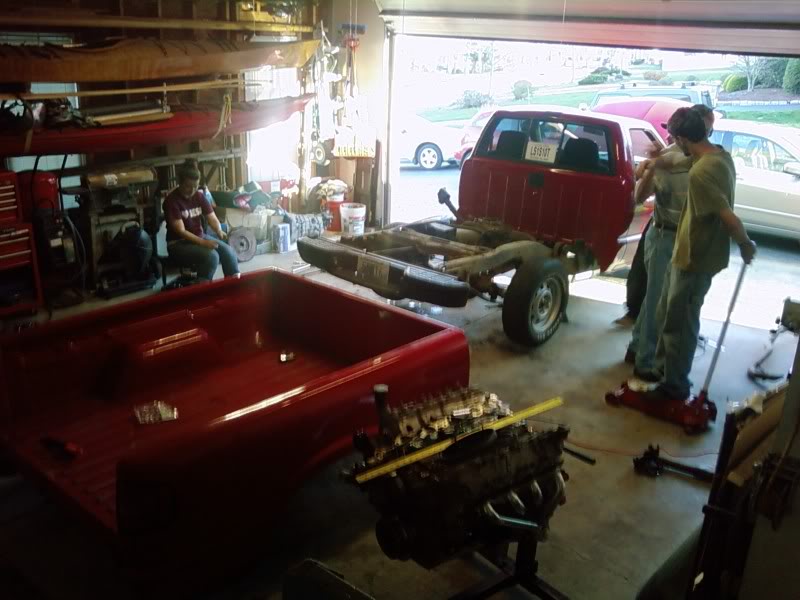

Doin work:

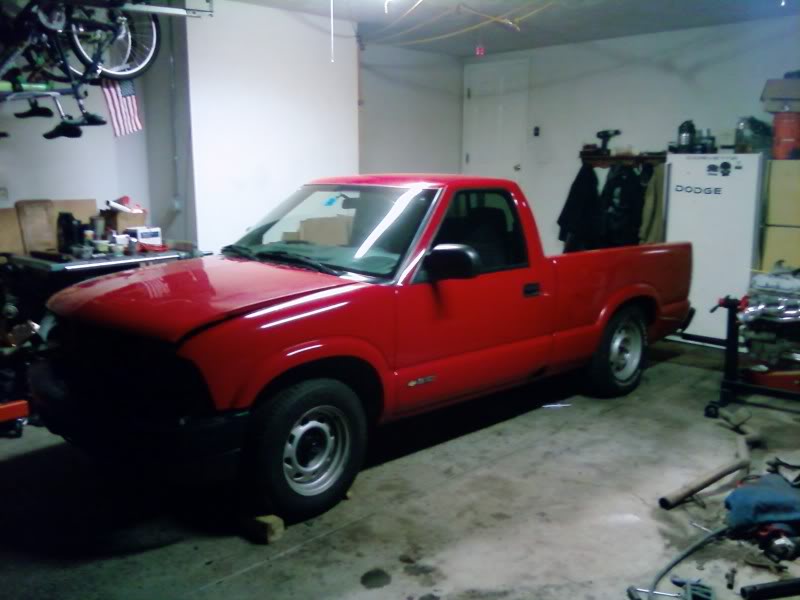

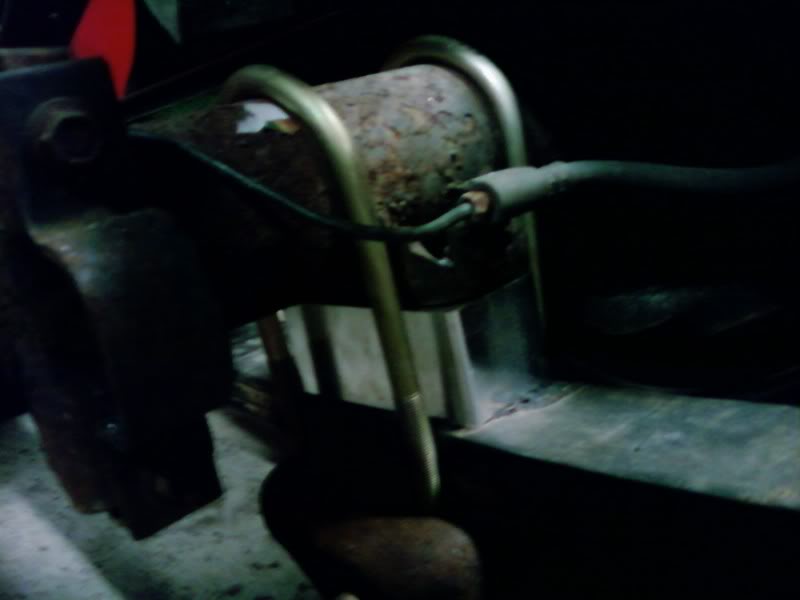

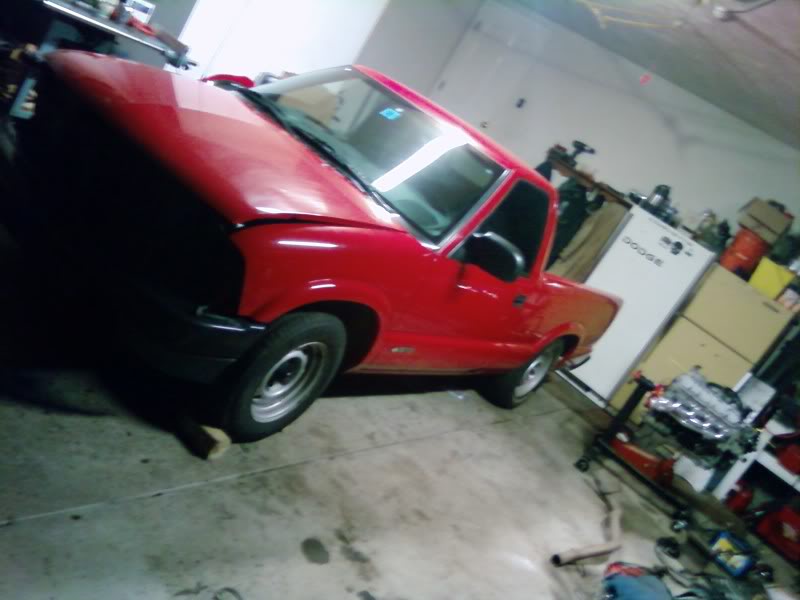

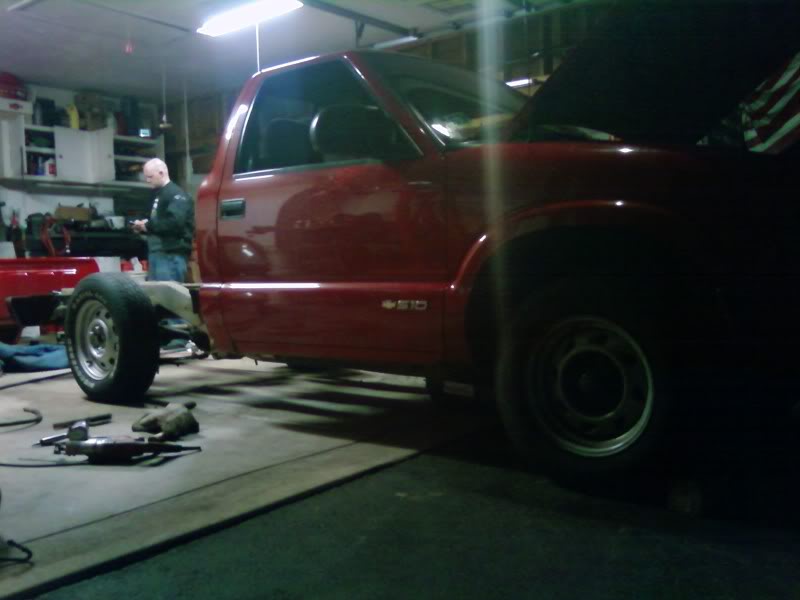

The rear has 2” lowering blocks. Hoefully w/ the heavier engine in front, the front should come down 2” as well… If not, I might just cut off half a coil out of the front spring.
The Rear axle (8.

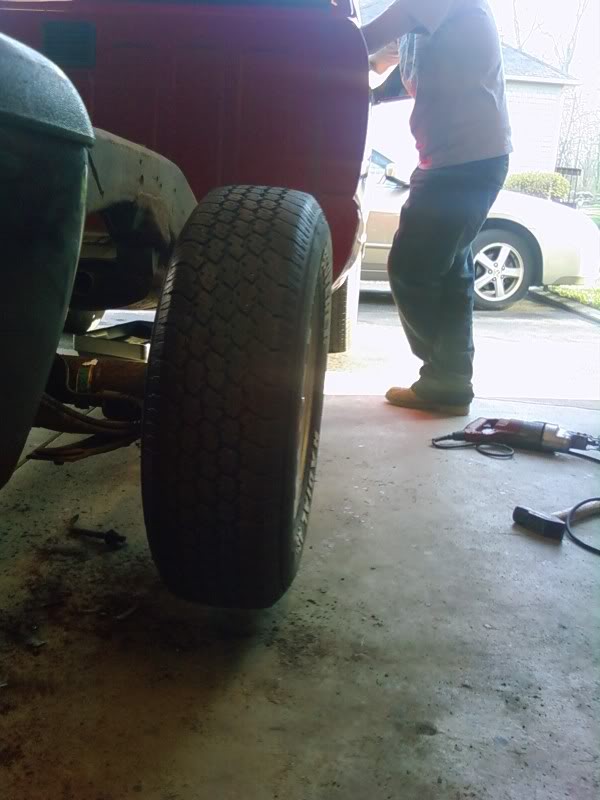

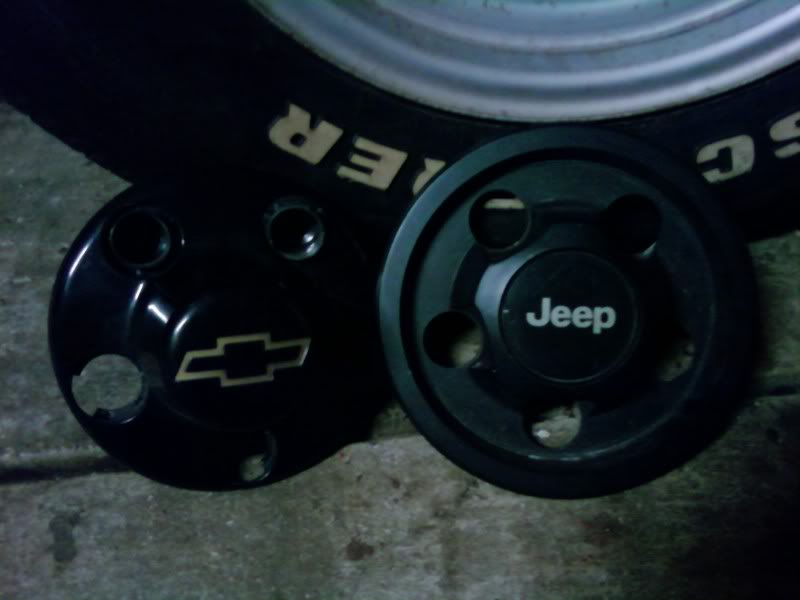

was 6” wider overall from hub to hub than the 7.5. Luckily, the stock jeep wrangler tires I had lying around were the right Lug pattern (5x4.5), and also the perfect offset! Check it out!
SO… why didn’t I get anything else done this weekend
?
Two reasons… I had to finish making a passenger seat for the woman… and help a friend put his LS/vtec engine in his honda. Built, and turbod… should be 350whp~~ He’s my hired help paid in returned help.
^ He didn’t trust my Schwab Shop Customs welding job on his engine mounts… So I showed him I could dance on his valve cover… THEN I made him dance too, and snagged a Polaroid of his stupidity…

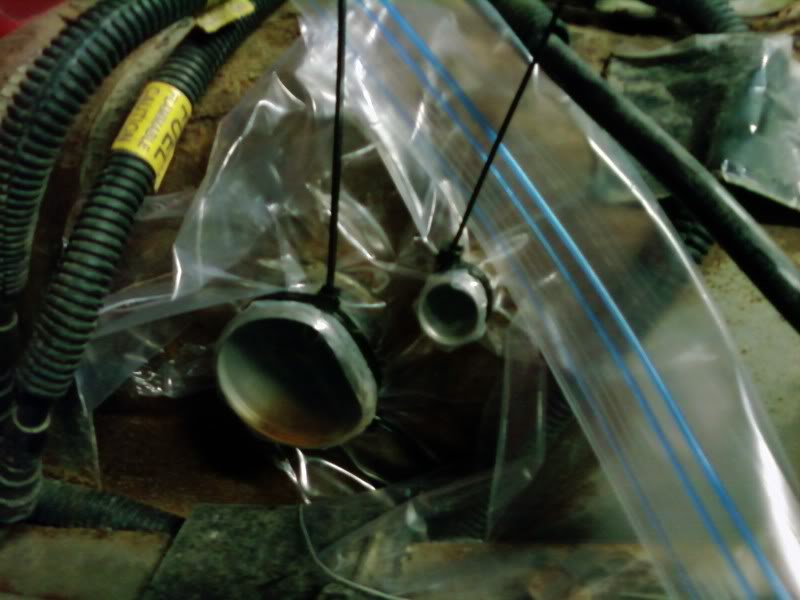

Zip Lock bags and Zip ties… I think Zip Branigan shoulda put this on… How to stop ---- from going into the gas tank:

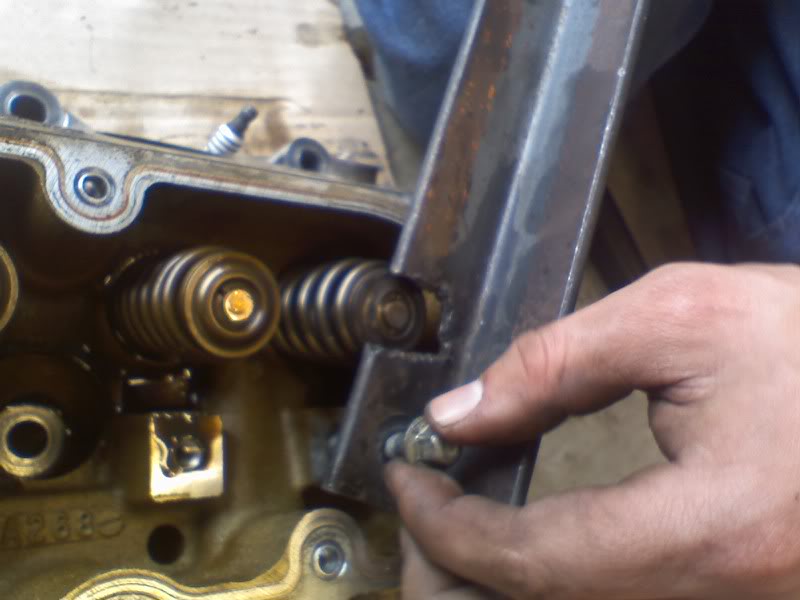

Home made valve spring compressor!

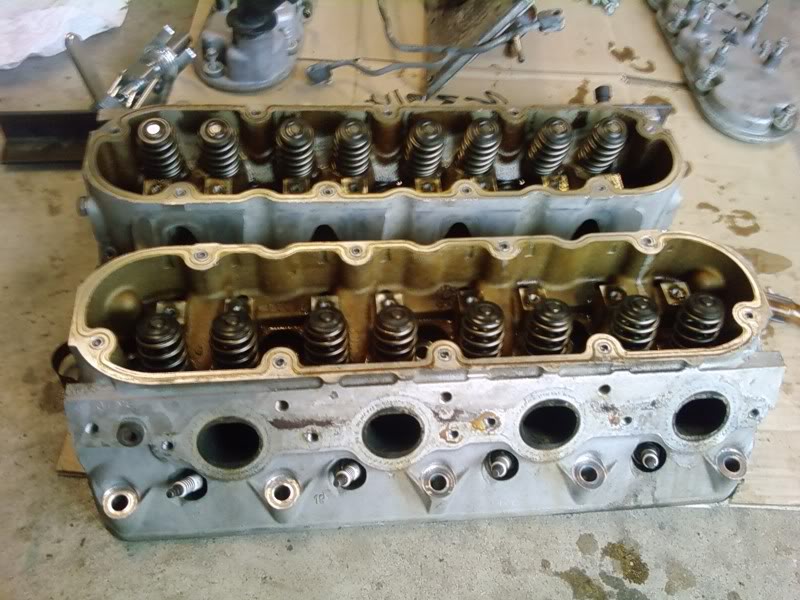

Comp cam pushrods, vavle springs, and retainers.

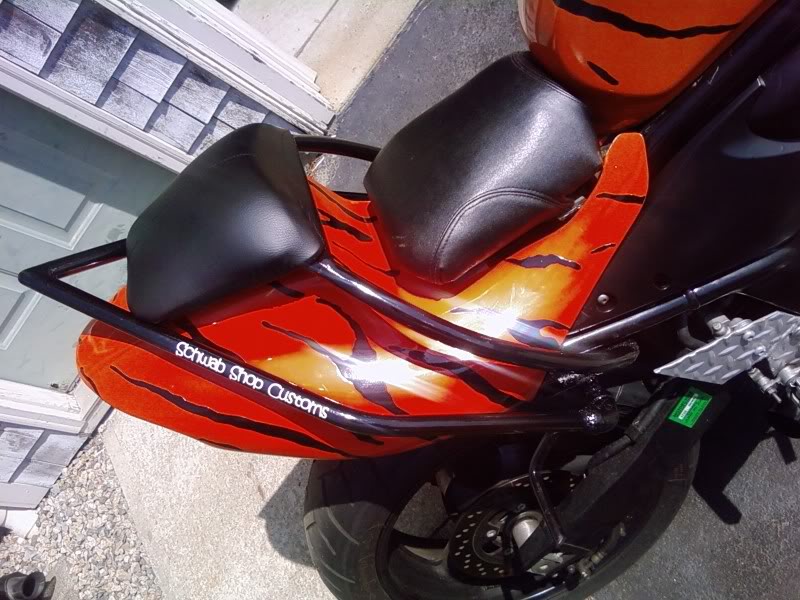

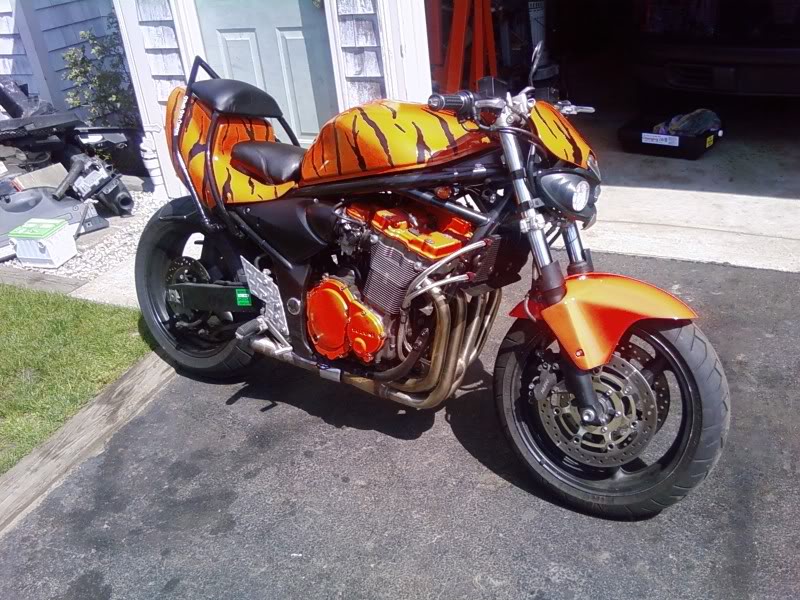

And the other weekend fabrication job… Passenger seat! Damn I’m a good seamstress and upholsterer… and welding and grinding skills aint bad either huh?
She does grinding too!!!!!!!!!!
When she’s not helping….
Make believe vanity plate:
So this past weekend the new rear axle got put in… The Ford 8.8 rear. Awesome axle swap, especially for the price.
Ford 9” rear’s go for $2,000 complete, plus they require fabrication to fit.
My Ford 8.8” rear is direct bolt in!!!! $400 from the salvage yard out of a 95+ explorer. I also Sold my stock axle 20 mins after I took it out as well for $100 on craigslist.
Best parts about this new axle: 3.73 gears, Limited slip, Ladder bars, Disc brakes, 31 spline axles. To do all this to a Ford 9”, or even to modify my stock axle, would have been WAY MORE THAN THE $300 it cost me! So for the dollars spent, this was a hell of a deal.
$400 for the axle
-$100 old axle
$30 U bolt kit and lowering blocks
$45 Ford U joint flange
So for $375, I think it’s a HELL of a mod.
Hopefully this axle will handle the Hoosiers I wanna get: 29”x12”- 15 drag slicks. I think a 12” wide tire should be good enough to make up for the zero weight in the back of this thing.
Hoosier 18190D06 - Hoosier Drag Slicks
new BRIB underdrive pulley, and headers.
Row row row your truck… gently past the Honda!
Check out how much BEEFIER the 8.8 is than the stock GM 7.5
If only I was using the stock 2.2L and t5 tranny… then the drive shaft would have lined up perfectly w/ the 8.8!
Doin work:
The rear has 2” lowering blocks. Hoefully w/ the heavier engine in front, the front should come down 2” as well… If not, I might just cut off half a coil out of the front spring.
The Rear axle (8.
was 6” wider overall from hub to hub than the 7.5. Luckily, the stock jeep wrangler tires I had lying around were the right Lug pattern (5x4.5), and also the perfect offset! Check it out!SO… why didn’t I get anything else done this weekend
?Two reasons… I had to finish making a passenger seat for the woman… and help a friend put his LS/vtec engine in his honda. Built, and turbod… should be 350whp~~ He’s my hired help paid in returned help.
^ He didn’t trust my Schwab Shop Customs welding job on his engine mounts… So I showed him I could dance on his valve cover… THEN I made him dance too, and snagged a Polaroid of his stupidity…
Zip Lock bags and Zip ties… I think Zip Branigan shoulda put this on… How to stop ---- from going into the gas tank:
Home made valve spring compressor!
Comp cam pushrods, vavle springs, and retainers.
And the other weekend fabrication job… Passenger seat! Damn I’m a good seamstress and upholsterer… and welding and grinding skills aint bad either huh?
She does grinding too!!!!!!!!!!
When she’s not helping….
Make believe vanity plate:
Last edited by IowaTCoupe; 04-30-2009 at 01:00 PM.
05-01-2009, 09:00 AM
#36
1.0 BAR
Thread Starter
Join Date: Jan 2006
Posts: 328
haha, oh yea? what sucks about it? All the seams are straight, no crinkled fabric, seat foam is all shaped to match the lines of the bike...
i think you're talking so much bullshit that you're stinky breath is bleaching my hair all the way over here across the interwebs.
In other news... Engine harness arrived from Jared at Current Performance this week, that will get set up, stock engine will be pulled, and new engine put in this weekend... pics to ensue~
i think you're talking so much bullshit that you're stinky breath is bleaching my hair all the way over here across the interwebs.
In other news... Engine harness arrived from Jared at Current Performance this week, that will get set up, stock engine will be pulled, and new engine put in this weekend... pics to ensue~
05-01-2009, 12:39 PM
#37
1.0 BAR
Join Date: Dec 2007
Posts: 327
You have seams, where they shouldn't be. You don't have seams, where they need to be. Top stitching looks horrid. Wrong type of vinyl for application. Dont get me wrong, I have seen a lot worse, but its not by all means good.

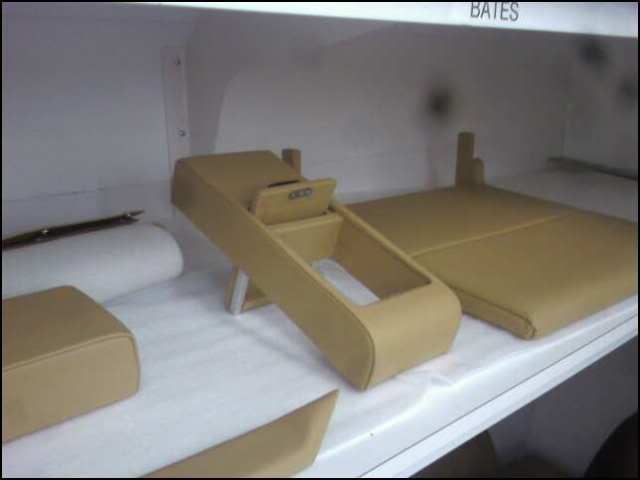

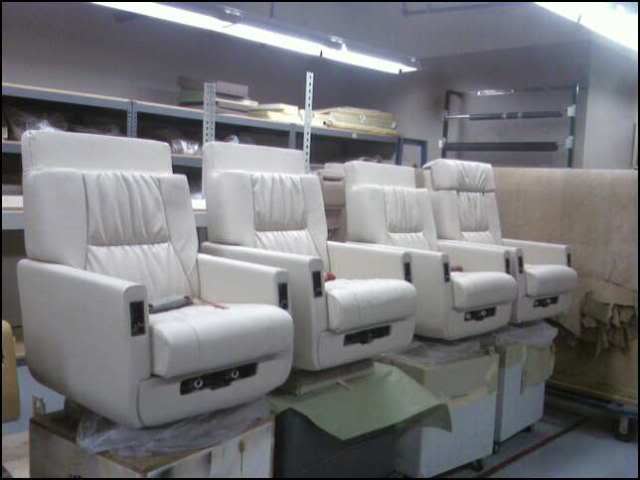

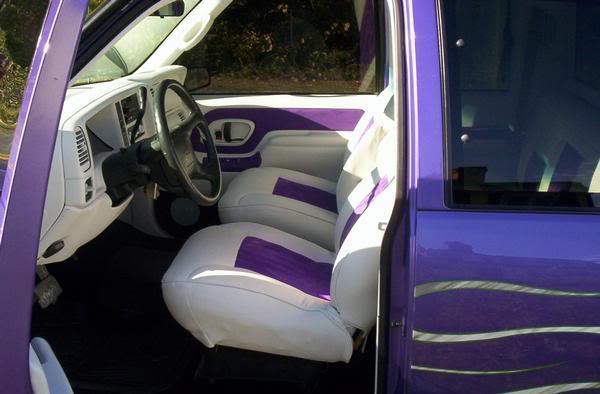

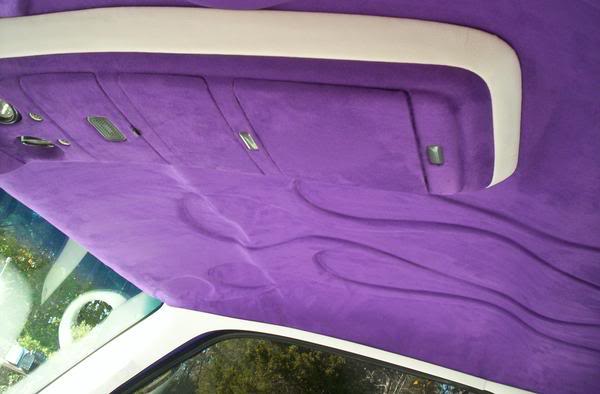

Heres what GOOD upholstery work looks like. Of course this is it a $95/hour labor rate.
Here is some crappier automotive stuff.
Heres what GOOD upholstery work looks like. Of course this is it a $95/hour labor rate.
Here is some crappier automotive stuff.
05-03-2009, 10:47 PM
#38
1.0 BAR
Thread Starter
Join Date: Jan 2006
Posts: 328
B- you have NO idea what kind of vinyl i used from looking at a picture, therefore you can't say i used the wrong type, therefore eat a shoe. (besides, there are two types, not one).. but i'm sure you didnt see that from the picture either.
C- I didn't do the stitching... stitching came from something else that was upholstered by the factory... I don't use girly sewing machines, nor a needle and thread.
D- You're ignorant... talking about my bike seats when you have no idea. You just got owned by my Back-yard / basement upholstery knowledge. Try again.
IN OTHER NEWS.... THE ENGINE IS IN THE TRUCK!!!!!!!!! pics coming monday-ish.
1- Clutch STILL isn't here... it's been close to 2 months
2- Oil Sandwich adapter is WRONG size again... how many different types of PF48 filters are there in California? silly teenage pimply parts counter worker... had to send it back again.
3- ARP headbolts, WRONG ONES AGAIN!. 1st set came from local speed shop guy... Small block chevy bolts. NOT LS1!. Returned them... 2nd set came from Ebay. ordered for LS1 specific. Box arrives, i look inside... they are LS6 bolts. WRONG AGAIN! sending them back tomorrow morning, hopefully get the right ones this time.
