Hf manifold w/ AC. where are the clearance issues?

Thread Tools

Search this Thread

Old 12-29-2005, 05:55 PM
  #1
1.0 BAR
Thread Starter

Hob684's Avatar

Join Date: Jan 2005
Posts: 296
Default Hf manifold w/ AC. where are the clearance issues?
I've got a log mani/t3 (.42/.4 and slim fans w/ the ac fan out front (pusher) D16y8 97 Civic blah blah blah..


If i get a Hf manifold+t25 or 14b where would my clearance problems be? AC condensor or compressor? i'm tryin to get some cash out of this deal while still having a turbo on hand for when i install it all...

yes i've searched..
Hob684 is offline
Reply
Old 12-29-2005, 06:07 PM
  #2
3.0 BAR

Scott-EP's Avatar

Join Date: Oct 2005
Location: St. Augustine FL
Posts: 3,936
Default Re: Hf manifold w/ AC. where are the clearance issues?

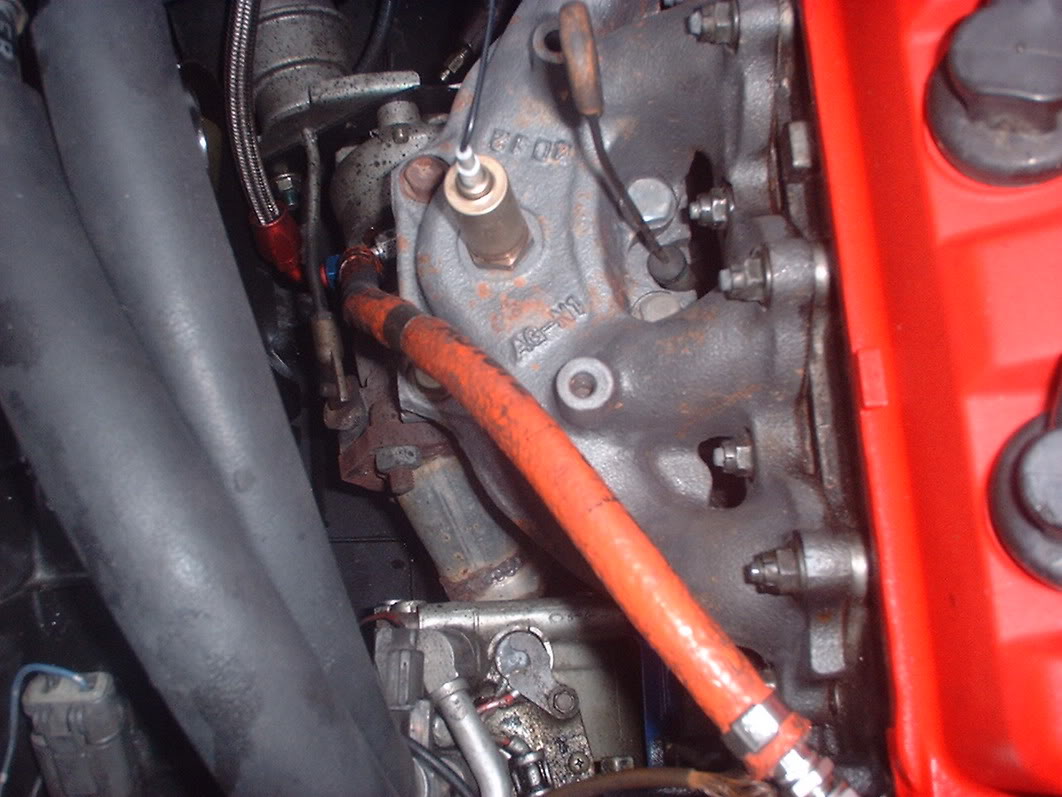

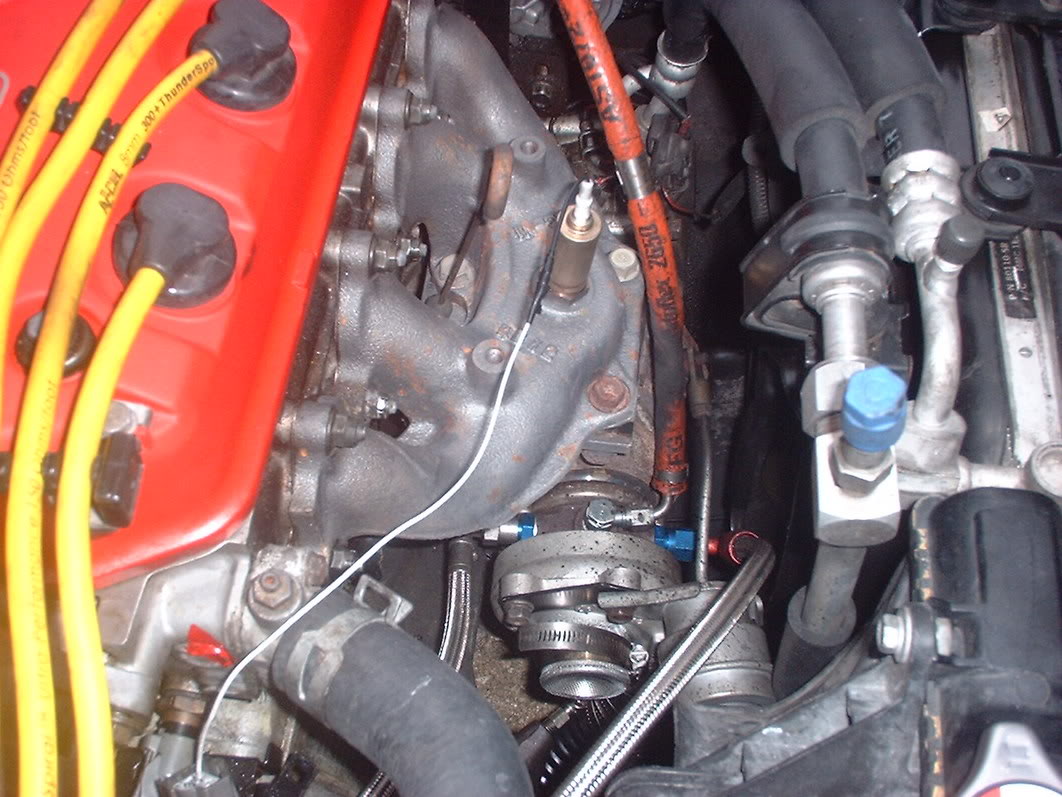

things will be close at the compressor and the clutch slave cylinder

Name: DSCF0171.jpg Views: 98 Size: 121.5 KB
Name: DSCF0170.jpg Views: 178 Size: 148.7 KB

Scott-EP is offline
Reply
Old 12-29-2005, 06:16 PM
  #3
1.0 BAR
Thread Starter

Hob684's Avatar

Join Date: Jan 2005
Posts: 296
Default Re: Hf manifold w/ AC. where are the clearance issues?
no slave cylinder so no prob there...

is that a t25 or t3 in the pics? i suck at IDing turbos..

could you email/post more pics of your setup?
Hob684 is offline
Reply
Old 12-29-2005, 06:29 PM
  #4
3.0 BAR

Scott-EP's Avatar

Join Date: Oct 2005
Location: St. Augustine FL
Posts: 3,936
Default Re: Hf manifold w/ AC. where are the clearance issues?
https://www.homemadeturbo.com/forum/...8664#msg608664
Scott-EP is offline
Reply
Old 12-29-2005, 11:44 PM
  #5
1.5 BAR

drunkinmaster1's Avatar

Join Date: Oct 2005
Posts: 1,276
Default Re: Hf manifold w/ AC. where are the clearance issues?
13b?
drunkinmaster1 is offline
Reply
Old 12-30-2005, 06:08 AM
  #6
3.0 BAR

Scott-EP's Avatar

Join Date: Oct 2005
Location: St. Augustine FL
Posts: 3,936
Default Re: Hf manifold w/ AC. where are the clearance issues?
tdo4 from a 3000gt vr4
Scott-EP is offline
Reply
Old 12-30-2005, 08:09 AM
  #7
1.5 BAR

drunkinmaster1's Avatar

Join Date: Oct 2005
Posts: 1,276
Default Re: Hf manifold w/ AC. where are the clearance issues?
Originally Posted by PhilStubbs
tdo4 from a 3000gt vr4
the auto eclipse's came with a tdo4-13b, the mitsubishi 3000gt and stealth rt tt came with twin tdo4-9b which are as small as a doughnut, wayy smaller than a t25. the 13b is more like a t25, just a bit smaller than a 14b.
drunkinmaster1 is offline
Reply
Old 12-30-2005, 09:37 AM
  #8
1.0 BAR
Thread Starter

Hob684's Avatar

Join Date: Jan 2005
Posts: 296
Default Re: Hf manifold w/ AC. where are the clearance issues?
do ya'll think my set up would fit a t3 (ha)... i'm sure t25 will fit.. how 'bout a t28?
Hob684 is offline
Reply
Old 01-03-2006, 04:57 AM
  #9
WTF
3.0 BAR

WTF's Avatar

Join Date: Jan 2006
Posts: 2,057
Default Re: Hf manifold w/ AC. where are the clearance issues?
anyone run a 14b with hf manifold on a y8? how close is it to the slave and ac ----
WTF is offline
Reply
Old 01-04-2006, 07:47 PM
  #10
!! UNCONFIRMED EMAIL !!

mizter_2's Avatar

Join Date: Aug 2005
Posts: 199
Default Re: Hf manifold w/ AC. where are the clearance issues?
well i had a t25 setup on my d series and the a/c compressor had to be removed and the front right motor mount as well, but if you really wanna save your a/c, i think... DRAG might make some a/c saving turbo manifolds for a t3...
mizter_2 is offline
