2008 Daewoo Matiz Turbo by Boost Freaks

Forced Induction Custom FI Setup Questions

2008 Daewoo Matiz Turbo by Boost Freaks

Old 12-07-2015, 12:13 PM
  #51
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

This is how the engine sounds without a muffler

Regen is offline
Old 12-17-2015, 02:43 PM
  #52
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

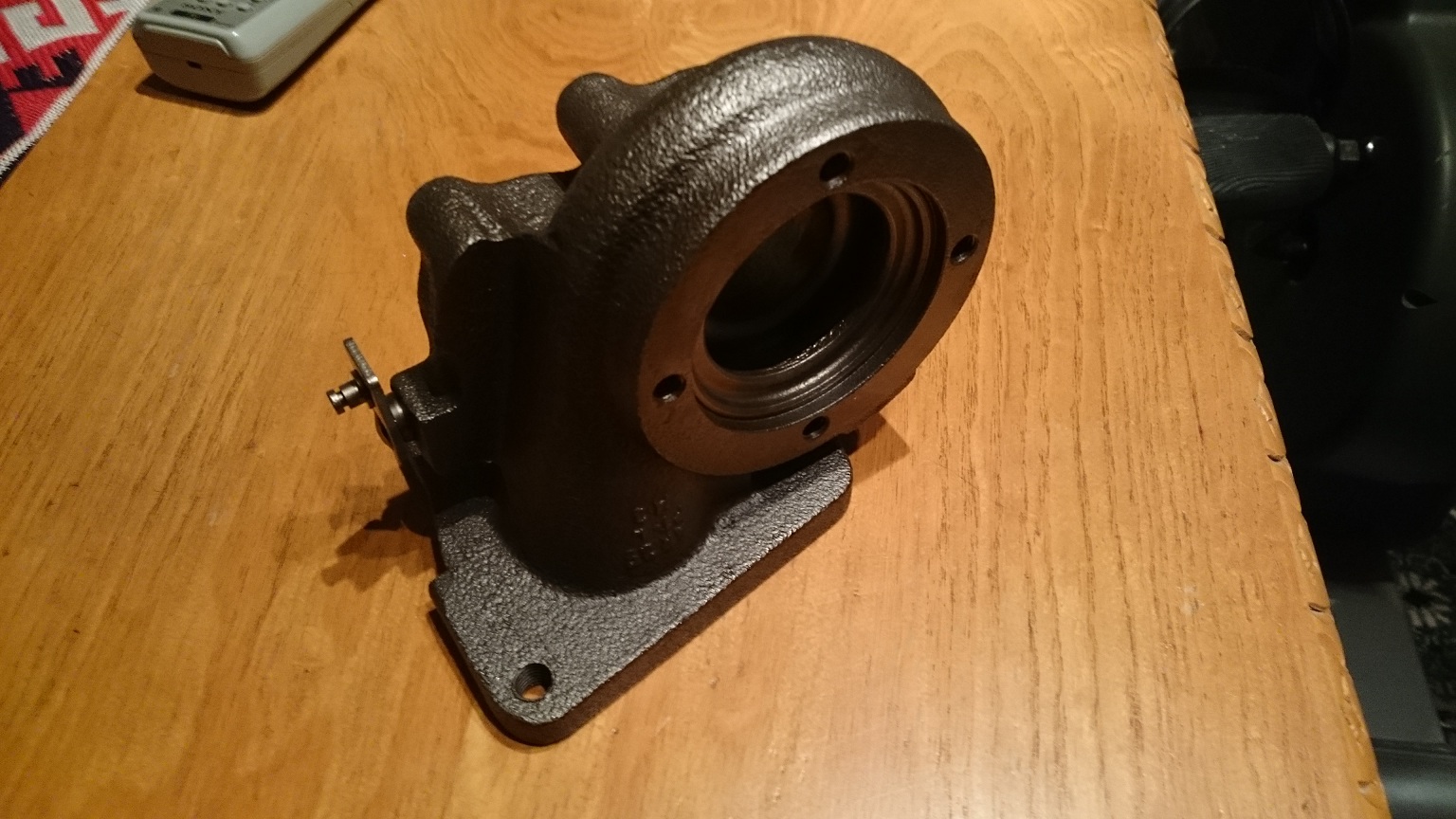

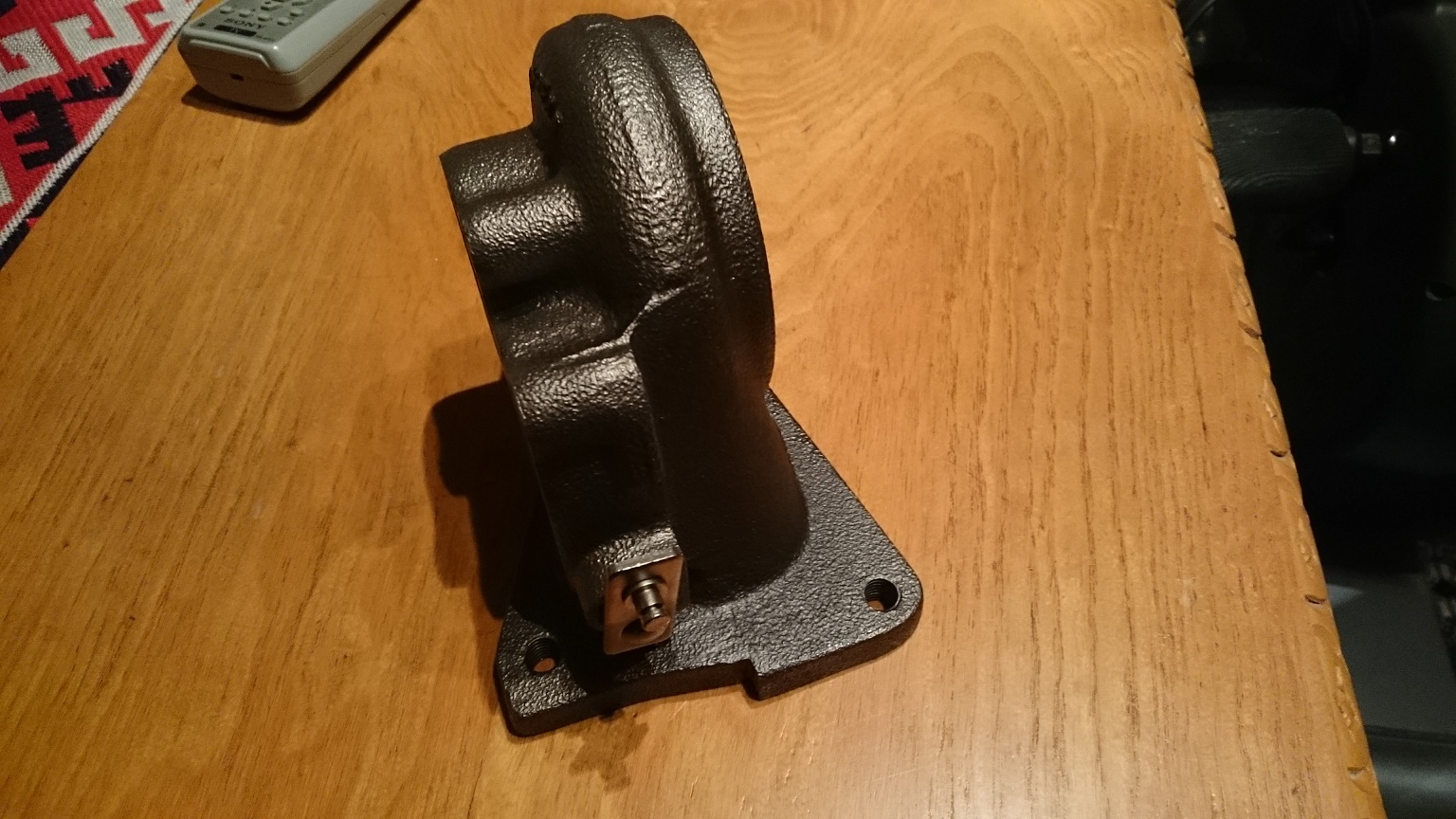

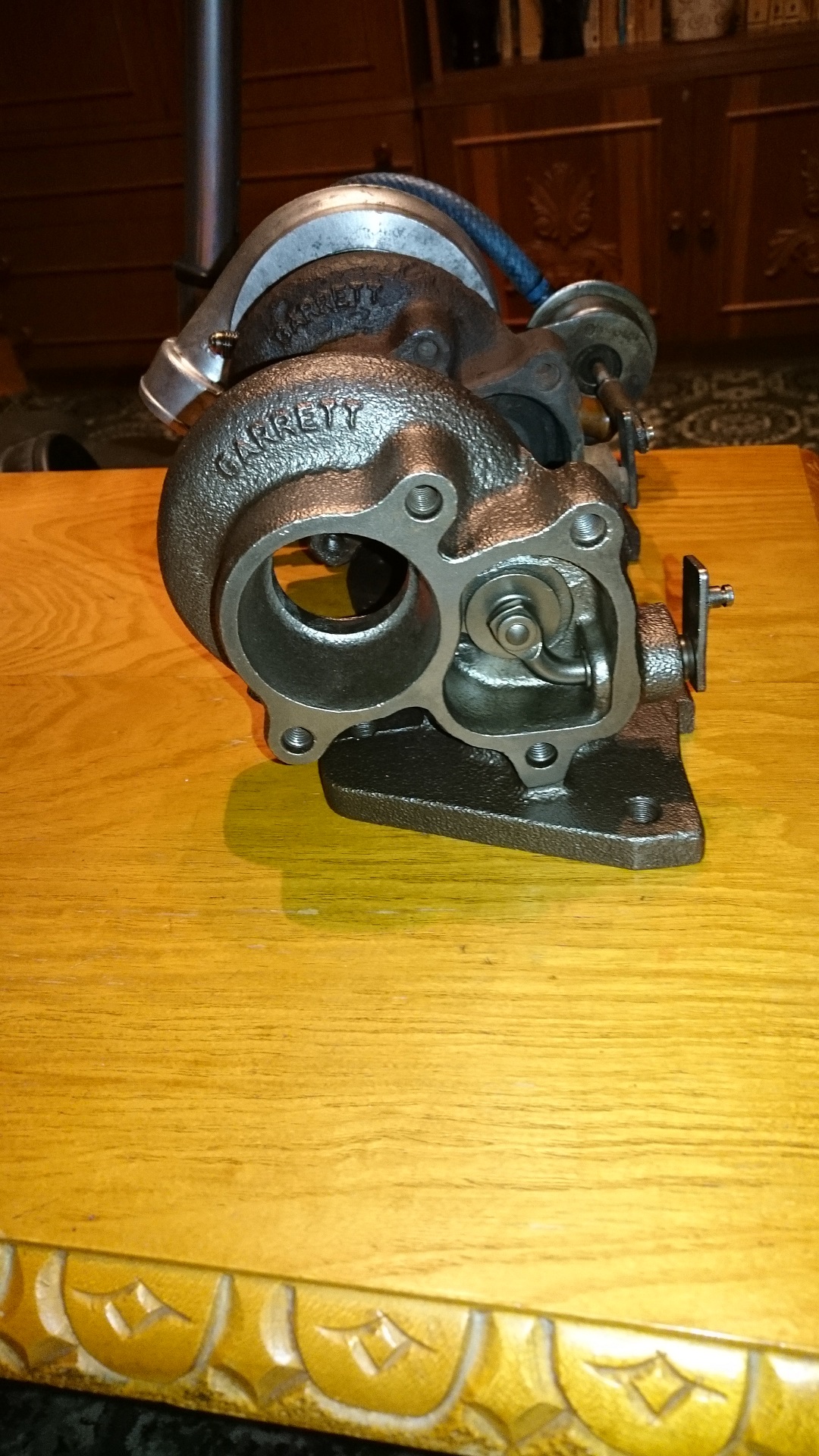

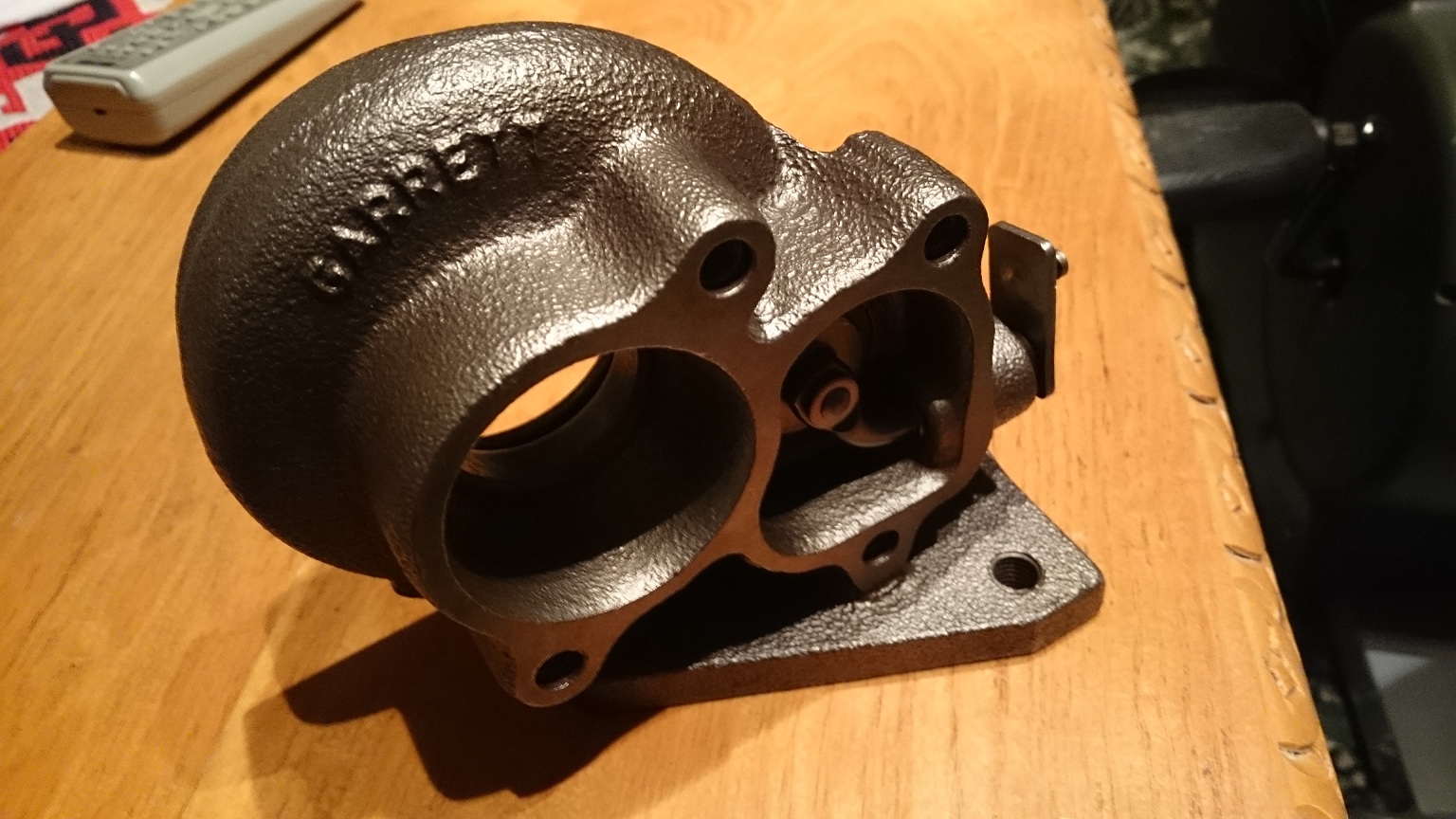

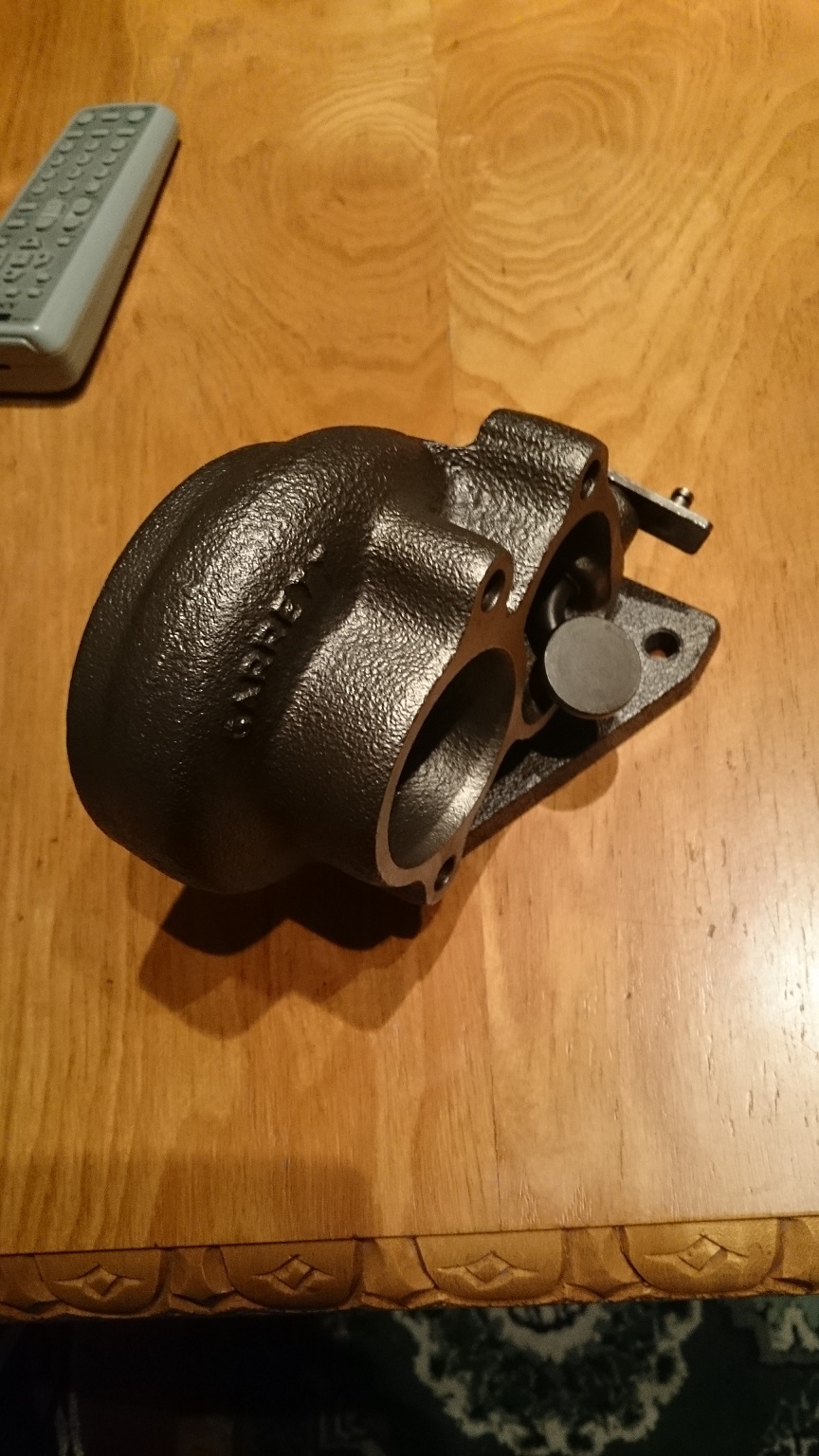

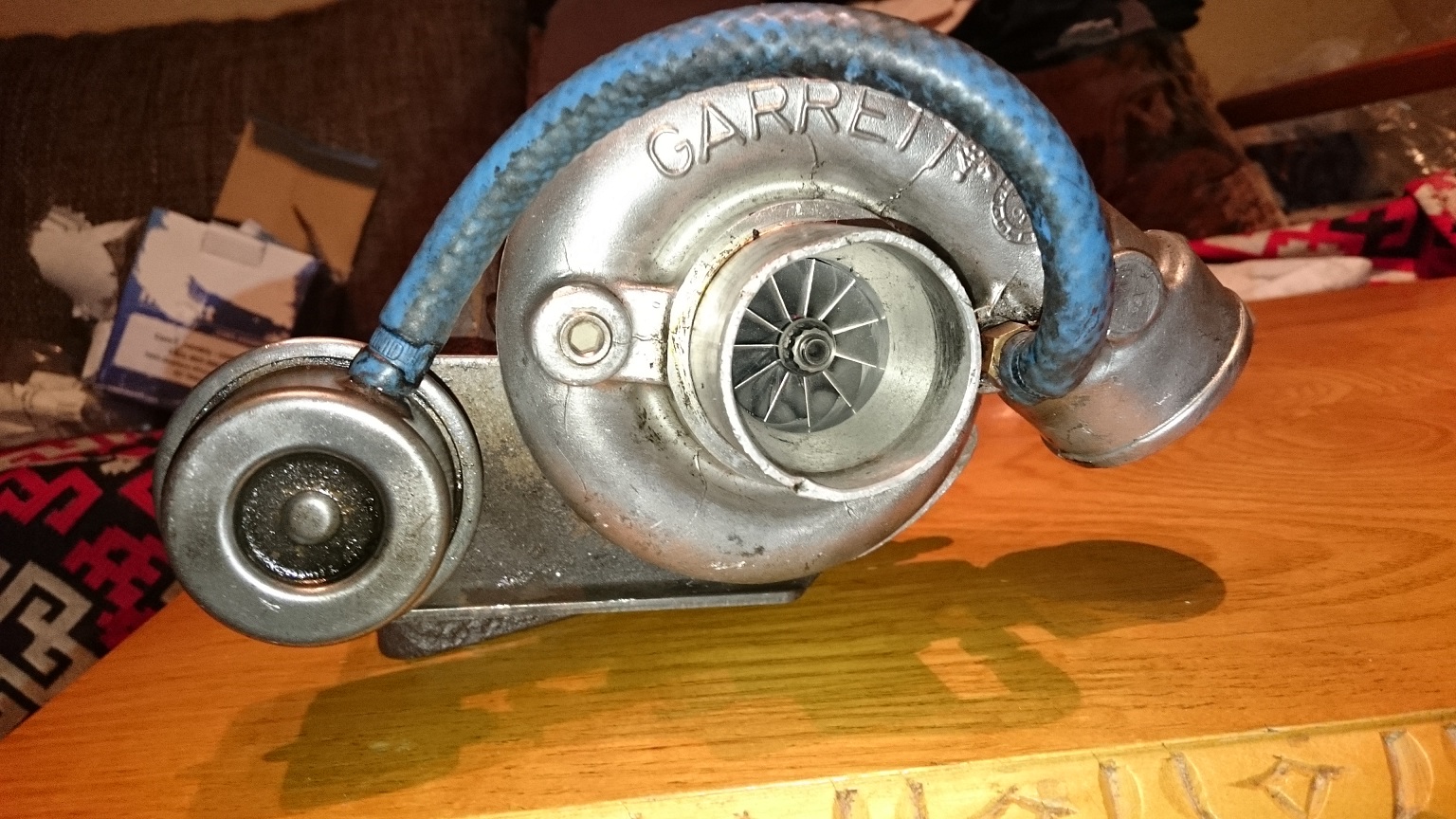

Hybrid turbo almost ready.

- Repair kit
- Machined-From-Solid (MFS) compressor wheel with 11 fins,custom built. Inducer/exducer diameters are the same however the wheel is taller and lighter
- dynamic balancing
- retrofit AR .35 turbine housing straight from Honeywell Garrett

And pics!
Attached Thumbnails 2008 Daewoo Matiz Turbo by Boost Freaks-1.jpg   2008 Daewoo Matiz Turbo by Boost Freaks-2.jpg   2008 Daewoo Matiz Turbo by Boost Freaks-3.jpg   2008 Daewoo Matiz Turbo by Boost Freaks-4.jpg   2008 Daewoo Matiz Turbo by Boost Freaks-5.jpg

2008 Daewoo Matiz Turbo by Boost Freaks-6.jpg   2008 Daewoo Matiz Turbo by Boost Freaks-7.jpg
Regen is offline
Old 12-23-2015, 03:35 PM
  #53
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

I've registered the car on a contest held on facebook.

If y'all like the vehicle and would consider voting for it please like the following picture


Cheers!
Regen is offline
Old 01-30-2016, 10:12 AM
  #54
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

Regen is offline
Old 06-11-2016, 09:52 AM
  #55
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

Stage 2 not ready yet, however I have added a rev meter with shift light. Plans are to complete the build by the end of this autumn.

Regen is offline
Old 06-23-2016, 01:54 AM
  #56
0.0 BAR

Join Date: Jun 2016
Posts: 14
Default

Giving you more information for 2008 Daewoo Matiz Turbo by Boost Freaks from vortech supercharger actuator.
karinsheng is offline
Old 06-26-2016, 05:17 AM
  #57
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

Redline? What's that?

Regen is offline
Old 10-13-2016, 08:42 AM
  #58
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

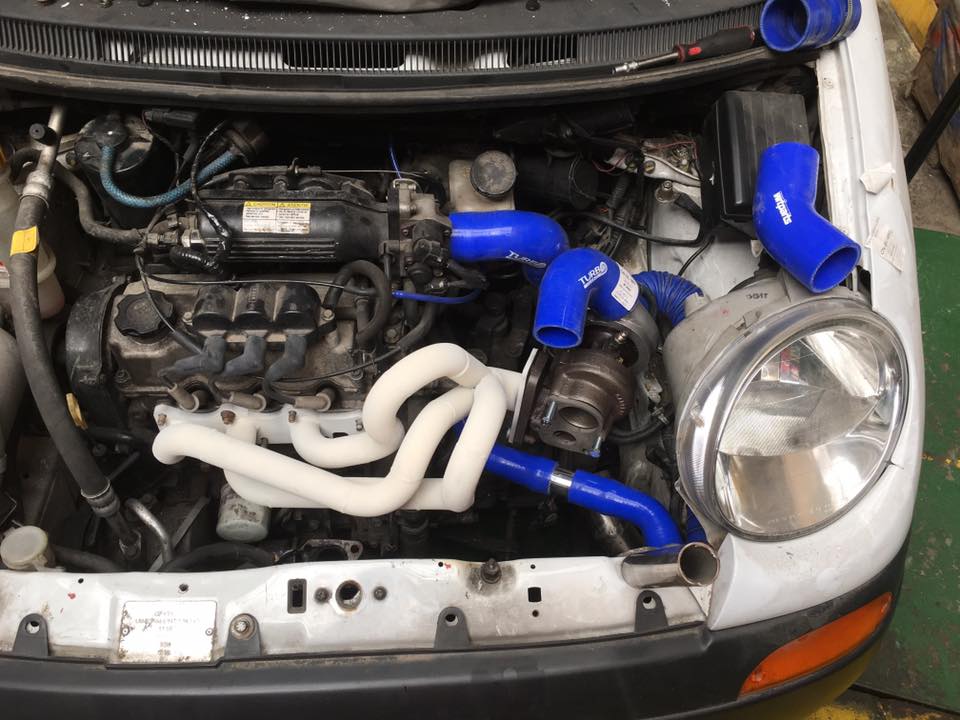

A brand new setup is underway as we speak. I have kept the IC, BOV and dashboards intruments, the rest will be replaced by better/more power capable parts. So far we have:

- Hybrid Garrett turbo

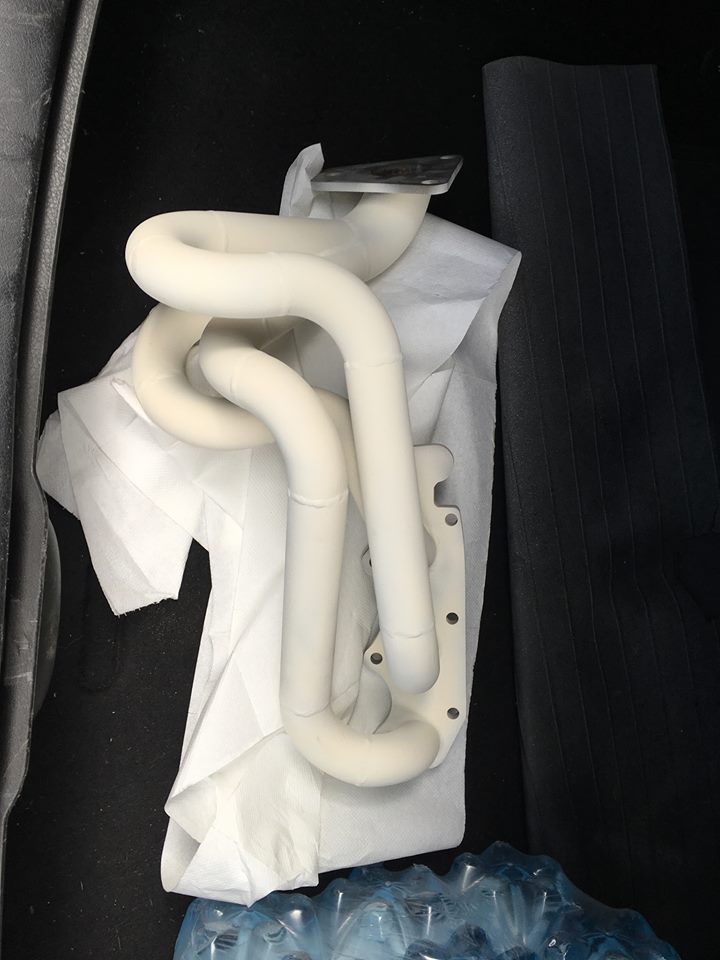

- new exhaust manifold with added high temp ceramic coating
- 250 cc injectors (good for about 100 crank hp)
- fittings, hoses and whatever else necessary

Both turbo and exhaust are spec'd to be capable of 150+ crank hp.
Other updates as they arrive in final form on the car.
Attached Thumbnails 2008 Daewoo Matiz Turbo by Boost Freaks-22222.jpg   2008 Daewoo Matiz Turbo by Boost Freaks-44444.jpg

Last edited by Regen; 10-13-2016 at 08:44 AM.
Regen is offline
Old 10-30-2016, 04:45 AM
  #59
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

First start with the hybrid turbo. Still lots to do but at least the car can move again on its own wheels.

Regen is offline
Old 11-12-2016, 12:06 PM
  #60
0.5 BAR
Thread Starter

Join Date: Dec 2013
Posts: 73
Default

First run with the new setup on stock injectors. Turbo delivers greatly so it leans out like crazy.

Car will receive fueling upgrade and a custom tune to fit this new frankenstein setup.

Regen is offline
