Garrett T3/T4. Low miles. Sold!
#1
Garrett T3/T4. Low miles. Sold!

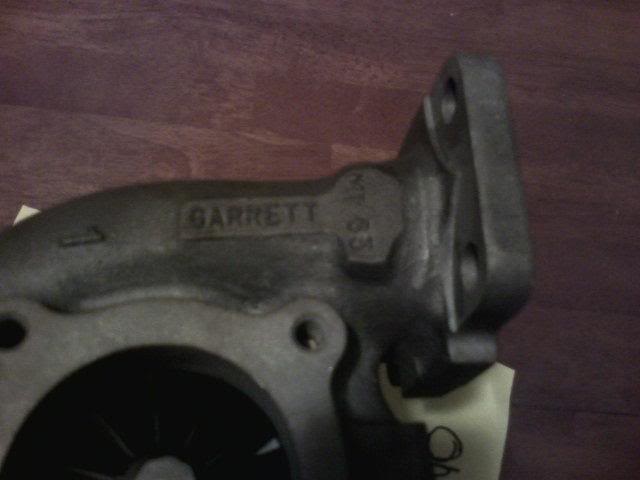

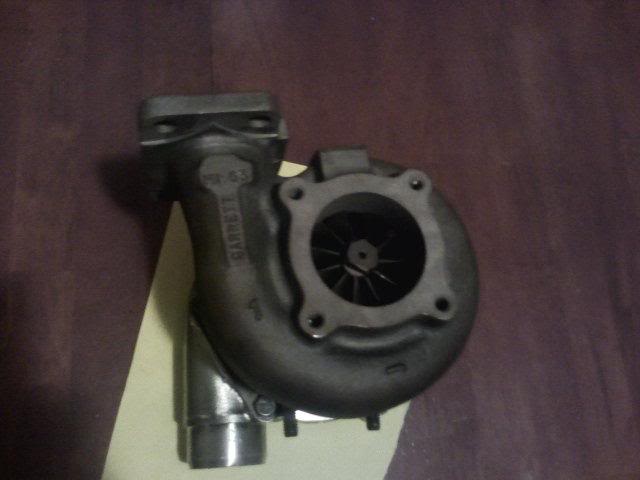

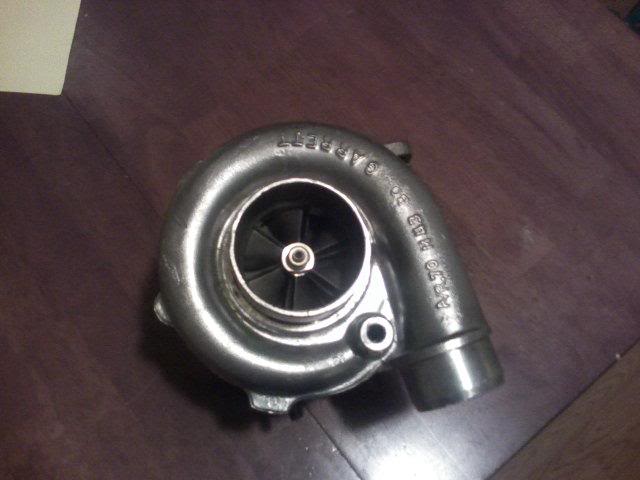

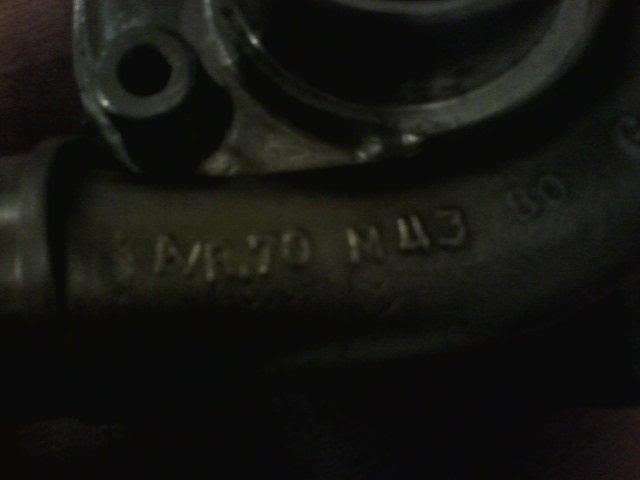

Need to sell this turbo. I kind of wanted to keep it around, but need some extra funds for the holidays and what not. Good turbo! It's a .70 a/r T4 compressor housing and the compressor wheel is a TO4B H-trim. That puts the inducer at 58.4mm and just a little step below the 60-1. Compressor exducer is a healthy 70mm too. Turbine wheel is the T31 aka stage 3. Turbine housing is the 4 bolt .63 a/r T3 which is one of, if not the, most efficient T3 turbine housing made. Oil cooled only bearing housing for easy install. 3" compressor inlet and 2" out.
If you look up the compressor map you'll like what you see too. This turbo makes a good bit of power at lowish boost levels which is a good thing for all but the most serious drag racers. This is the turbo for you if you're goals are 300-450hp. PM me if you're seriously interested. Shaft play is as new and the turbo spins great. Pics below. Additional pictures and a video on request via PM. Thanks for looking.
I know you guys are broke too, but a genuine Garrett t3/t4 in this condition is worth a fair amount on other forums or Ebay. My HMT price is $300 shipped plus Paypal fees. I could get a good bit more on Ebay, but if somebody wants to take it now or soon, let me know. Otherwise Ebay time.
If you look up the compressor map you'll like what you see too. This turbo makes a good bit of power at lowish boost levels which is a good thing for all but the most serious drag racers. This is the turbo for you if you're goals are 300-450hp. PM me if you're seriously interested. Shaft play is as new and the turbo spins great. Pics below. Additional pictures and a video on request via PM. Thanks for looking.
I know you guys are broke too, but a genuine Garrett t3/t4 in this condition is worth a fair amount on other forums or Ebay. My HMT price is $300 shipped plus Paypal fees. I could get a good bit more on Ebay, but if somebody wants to take it now or soon, let me know. Otherwise Ebay time.
#3
Re: Garrett T3/T4. Low miles. Pics and vid.
How do you figure out the compressor is an H or a 60-1 type wheel.
I have three turbos sitting in my garage and I figured out the (inducer^2/exducer^2)*100 but I have no reference to what compressor wheels I have.
By the way they of the Garrett variety like yours.
On Garrett's website all they show is data on GT series turbos.
I have three turbos sitting in my garage and I figured out the (inducer^2/exducer^2)*100 but I have no reference to what compressor wheels I have.
By the way they of the Garrett variety like yours.
On Garrett's website all they show is data on GT series turbos.
#5
Re: Garrett T3/T4. Low miles. Pics and vid.
Originally Posted by 92CXyD
How do you figure out the compressor is an H or a 60-1 type wheel.
I have three turbos sitting in my garage and I figured out the (inducer^2/exducer^2)*100 but I have no reference to what compressor wheels I have.
By the way they of the Garrett variety like yours.
On Garrett's website all they show is data on GT series turbos.
I have three turbos sitting in my garage and I figured out the (inducer^2/exducer^2)*100 but I have no reference to what compressor wheels I have.
By the way they of the Garrett variety like yours.
On Garrett's website all they show is data on GT series turbos.
If you'd like; you can PM me and I'll send you a shitload of information detailing all of Garrett's compressor and turbine measurements and some more information I've stockpiled. Also, invest in a good set of digital calipers. You'll pretty much be able to figure out what any turbo is.
#6
Re: Garrett T3/T4. Low miles. Pics and vid. Partial Trades Considered
Originally Posted by Birdley42008
let me get my insurance settlement then I will let you know, I am very interested!
Also, if you're local (Northwest Washington/Seattle and North) and interested lmk because you can see it in person before you buy and I'll make you a better deal since I won't have to ship it. This thing really is a bad bitch, and offers almost identical performance to the t3/60-1 except this turbo peaks a hair earlier.
Accepting partial trades too! I need 550cc< fuel injectors (4), a good sized fmic (I'll add cash if it's a bawler *** core), and a wideband set-up. I need a good suspension for a 2G DSM, but I doubt anyone has that lol. Going to need some cash out of the deal too as that's the reason I decided to sell this thing in the first place. Only willing to go without cash and even take some out of my own pocket if I can get my hands on one serious fmic (500+whp efficient). I've needed a serious FMIC for awhile now, so if I can get one I'll just make everyone in my family presents with my welder rofl.
#7
Re: Garrett T3/T4. Low miles. Pics and vid. Partial Trades Considered.
Also, FYI, this turbo is pretty much identical to the Precision SC44. Both have the T31 turbine wheel, both have a ~58mm compressor inducer. Only difference(s) is the ~3mm larger compressor exducer of the 60 trim SC44 (H-trim is ~57 trim) and PTE put it in a .60 a/r E cover for the base model. They also make their own bearing housings and internals and turbine housings.
You can get the SC44 with a .70 a/r S cover, but it's a lot more money. They claim 565hp, but that's with the S cover and maxed out. Bottom line is this is a basic T3/T4 that's toward the upper end on size and output. Perfect for a high hp street car that doubles as a drag racer on the weekends. PM me for my phone number if you want to talk before you pay. Thanks doods.
You can get the SC44 with a .70 a/r S cover, but it's a lot more money. They claim 565hp, but that's with the S cover and maxed out. Bottom line is this is a basic T3/T4 that's toward the upper end on size and output. Perfect for a high hp street car that doubles as a drag racer on the weekends. PM me for my phone number if you want to talk before you pay. Thanks doods.
#9
Re: Garrett T3/T4. Low miles. Pics and vid. Partial Trades Considered.
Originally Posted by Birdley42008
Ill trade you a brand new lm-1!
#10
Re: Garrett T3/T4. Low miles. Pics and vid.
Originally Posted by c0mpl3x
well MY hmt price is $150+ shipping
