d-series tranny rebuild ?

Thread Tools

Search this Thread

Old 11-07-2007, 11:25 AM
  #1
1.5 BAR
Thread Starter

absolutezroo's Avatar

Join Date: May 2004
Location: Westminster,MD
Posts: 1,032
Default d-series tranny rebuild ?

I have a d-series tranny with a broken shifter fork I'm going to use for my current build. This will be my friend time rebuilding a trans. What should be replaced? I'm obviously going to replace the synchros and shifter fork. I'm assuming I should use genuine honda parts. Can anyone give me a list of the bearings and things that I should also order? Thanks guys.

p.s. Didn't post ****, due to the fact that I'm at work.
absolutezroo is offline
Old 11-07-2007, 02:49 PM
  #2
3.0 BAR

RotaryGeek's Avatar

Join Date: Jun 2005
Posts: 2,753
Default Re: d-series tranny rebuild ?

pm mista bone. iirc he is the tranny guru around here.
RotaryGeek is offline
Old 11-07-2007, 03:08 PM
  #3
3.0 BAR

TorganFM's Avatar

Join Date: Oct 2003
Location: Your mom's panties
Posts: 3,696
Default Re: d-series tranny rebuild ?

Straight cut gears while you got it apart, if you're feeling squirrelly.
TorganFM is offline
Old 11-07-2007, 03:09 PM
  #4
0.0 BAR

Bone1's Avatar

Join Date: Jan 2005
Posts: 0
Default Re: d-series tranny rebuild ?

doubt the synchros are hurt.......

while tranny is apart replace the input shaft bearing and all 4 seals, which I have in stock.

Shifter fork I don't stock, they have to come from the main Cail warehouse anyways.

Also you'll wanna stake in the countershaft clutch side bearing to prevent it from walking out.

Name:  csbearingout.jpg
Views: 16
Size:  54.3 KB

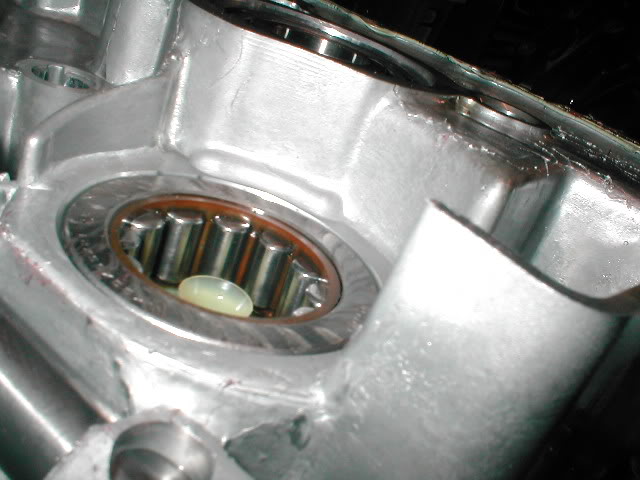

Name:  csbearingin.jpg
Views: 13
Size:  46.7 KB

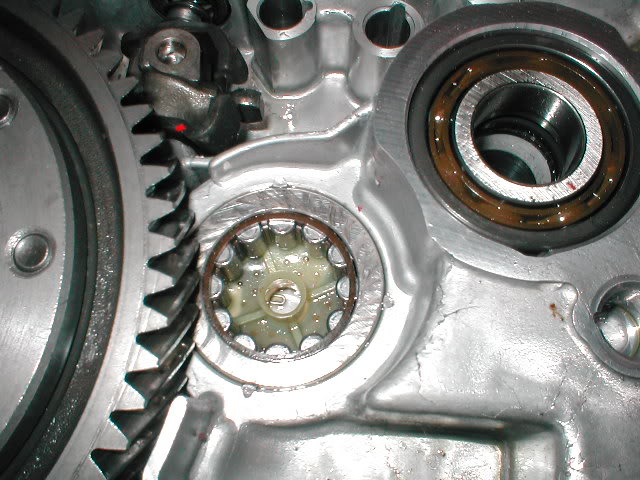

Name:  csbearingstaked.jpg
Views: 9
Size:  73.0 KB


Bone1 is offline
Old 11-07-2007, 03:12 PM
  #5
3.0 BAR

TorganFM's Avatar

Join Date: Oct 2003
Location: Your mom's panties
Posts: 3,696
Default Re: d-series tranny rebuild ?

Neat trick.
TorganFM is offline
Old 11-07-2007, 06:00 PM
  #6
1.5 BAR
Thread Starter

absolutezroo's Avatar

Join Date: May 2004
Location: Westminster,MD
Posts: 1,032
Default Re: d-series tranny rebuild ?

Outstanding, thanks for the help.
