B-series tranny question
#1
B-series tranny question
well yesterday i took the hatch out to look at some apartments... got about three blocks, when i shifted into second and let my clutch go i lost every single gear
when i push the clutch in i hear kind of a scrapeing/light grinding sound and it continues for about 30 seconds after releaseing it as well.. if i put it in gear and rev it the sound will get slightly louder and you can tell something is rubbing and corresponds with the engine rpms
im thinking throw out bearing because the last week or so every now and then i'd have trouble shifting into gears for about a minute of frantic clutch stomping because i was in traffic and i heard the classic T/O bearing scrape when i had the clutch pushed in at a stop
i have a guy comeing to get it tomorrow and take a look but just want opinions... what do you guys think? and what would you think would be a fair price to charge to replace it for a shop?
when i push the clutch in i hear kind of a scrapeing/light grinding sound and it continues for about 30 seconds after releaseing it as well.. if i put it in gear and rev it the sound will get slightly louder and you can tell something is rubbing and corresponds with the engine rpms
im thinking throw out bearing because the last week or so every now and then i'd have trouble shifting into gears for about a minute of frantic clutch stomping because i was in traffic and i heard the classic T/O bearing scrape when i had the clutch pushed in at a stop
i have a guy comeing to get it tomorrow and take a look but just want opinions... what do you guys think? and what would you think would be a fair price to charge to replace it for a shop?
#2
Re: B-series tranny question
i am going through similar troubles now. so far its only the release bearing spring that broke. once i get it back together i'll know if there is more damage.
oh, you dont want a shop to do this. you gotta pull the engine and trans. big $$$$
you can do it w/ basic hand tools and an engine hoist (i rented the hoist for $20/day) took me 3 hours to get everything out and apart. i dont know you level of expertise but its only nuts and bolts, neanderthal type ----, not difficult
oh, you dont want a shop to do this. you gotta pull the engine and trans. big $$$$
you can do it w/ basic hand tools and an engine hoist (i rented the hoist for $20/day) took me 3 hours to get everything out and apart. i dont know you level of expertise but its only nuts and bolts, neanderthal type ----, not difficult
#6
Re: B-series tranny question
Originally Posted by ghettoturbo
if its off can you get it into gear?
Originally Posted by Racintweek
i am going through similar troubles now. so far its only the release bearing spring that broke. once i get it back together i'll know if there is more damage.
oh, you dont want a shop to do this. you gotta pull the engine and trans. big $$$$
you can do it w/ basic hand tools and an engine hoist (i rented the hoist for $20/day) took me 3 hours to get everything out and apart. i dont know you level of expertise but its only nuts and bolts, neanderthal type ----, not difficult
oh, you dont want a shop to do this. you gotta pull the engine and trans. big $$$$
you can do it w/ basic hand tools and an engine hoist (i rented the hoist for $20/day) took me 3 hours to get everything out and apart. i dont know you level of expertise but its only nuts and bolts, neanderthal type ----, not difficult
i rebuilt my turbo D but im liveing in an apartment complex where i cant work on it so its pretty much a shop or nothing
Originally Posted by Mista Bone
"lost every single gear"
I vote you exploded the diff.
I vote you exploded the diff.
#7
Re: B-series tranny question
yes grasshopper.
88-91 diff pins are NOT harden and the pinion gears wear thru the shaft. One wheel peels = certain death.
Select a gear, let the clutch out. Speedo moves, rattling noise, but no movement.
Only two things can cause that, exploded diff or spit out a axle.

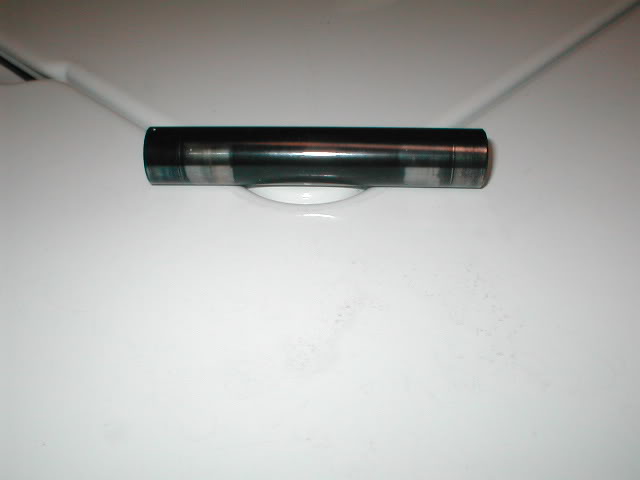

92+ pin (except on rare 95 tranny)

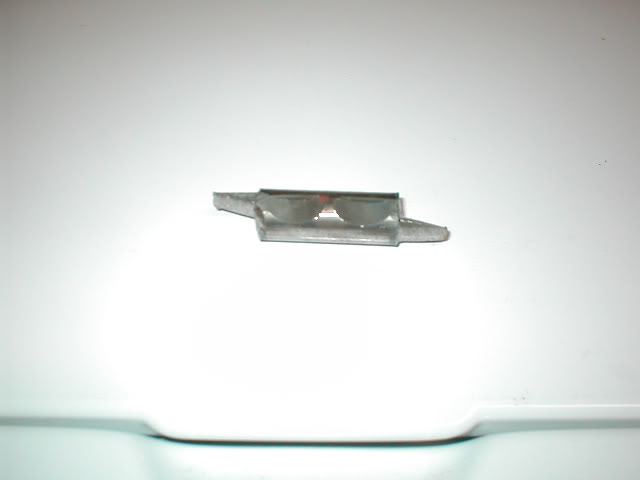

88-91 pin that wore thru and snapped off
the damage
88-91 diff pins are NOT harden and the pinion gears wear thru the shaft. One wheel peels = certain death.
Select a gear, let the clutch out. Speedo moves, rattling noise, but no movement.
Only two things can cause that, exploded diff or spit out a axle.
92+ pin (except on rare 95 tranny)
88-91 pin that wore thru and snapped off
the damage
#8
Re: B-series tranny question
Originally Posted by Racintweek
oh, you dont want a shop to do this. you gotta pull the engine and trans. big $$$$
you dont have to remove the engine, its easy to take the engine out with it, but doesnt have to be
#9
Re: B-series tranny question
Originally Posted by Mista Bone
yes grasshopper.
88-91 diff pins are NOT harden and the pinion gears wear thru the shaft. One wheel peels = certain death.
Select a gear, let the clutch out. Speedo moves, rattling noise, but no movement.
Only two things can cause that, exploded diff or spit out a axle.
88-91 diff pins are NOT harden and the pinion gears wear thru the shaft. One wheel peels = certain death.
Select a gear, let the clutch out. Speedo moves, rattling noise, but no movement.
Only two things can cause that, exploded diff or spit out a axle.
#10
Re: B-series tranny question
well passenger side axle is all the way in, im gonna have to wait untill tomorrow to check the driver side..
i didnt see any damage to the tranny case like in your pic though mista bone
i didnt see any damage to the tranny case like in your pic though mista bone
