what turbo is this?
06-05-2007, 04:37 PM
#3
1.5 BAR
Thread Starter
Join Date: Aug 2004
Posts: 710
Re: what turbo is this?
ya i figured that much, just wanted to know what the specs are on it.
the only thing i could find was that it was a borg warrner turbo s300
http://www.bullseyepower.com/S300.asp
the only thing i could find was that it was a borg warrner turbo s300
http://www.bullseyepower.com/S300.asp
06-05-2007, 04:43 PM
#4
3.0 BAR
Join Date: Feb 2006
Posts: 2,808
06-06-2007, 05:06 PM
#6
1.5 BAR
Thread Starter
Join Date: Aug 2004
Posts: 710
Re: what turbo is this?

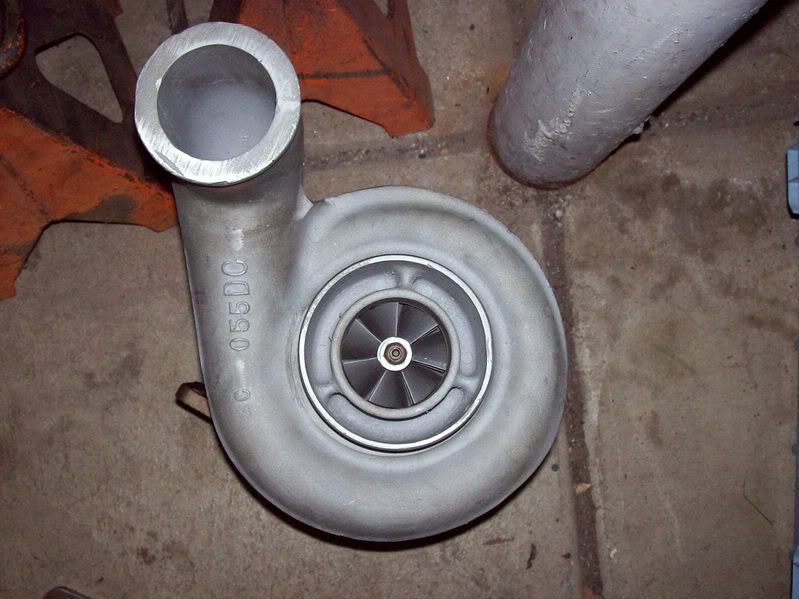

dont know if i am doing this right, but i took a dial calliper and measured the inducer and exducer of the compressor side. the inducer was 2.2inches(55mm) and the exducer was 3.2inches(81mm). They say the formula is inducer squared divided by exducer squared and then times by 100. So i took 55x55 = 3025
81x81 = 6561
3025/6561 =0.46 x 100 = 46
so does that mean its a 46 trim? that can't be. its way too big for that. maybe i am doing this wrong...
