what tee do i use for oil passage?
12-27-2002, 10:08 PM
#1
0.5 BAR
Thread Starter
Join Date: Dec 2002
Posts: 71
what tee do i use for oil passage?
What tee do i use to tap into the oil pressure? and what oil lines do i use and where can i get it? I heard someone mention about summit racing? What's the part number?
3-wayT 1/8 NPT and Straight Union 1/8NPT ?
What fitting do i use for the turbo? and where can i get the fittings?
And can these parts be found at auto part stores like NAPA, Kragen, AutoZone
3-wayT 1/8 NPT and Straight Union 1/8NPT ?
What fitting do i use for the turbo? and where can i get the fittings?
And can these parts be found at auto part stores like NAPA, Kragen, AutoZone
12-28-2002, 12:08 AM
#4
Administrator
Join Date: Dec 2002
Posts: 13,991
Re:what tee do i use for oil passage?
Well how about a bit more info?
Engine?
Turbo?
Not everyone has a honda here...
If it is a honda, 1/8 NPT is the thread pitch off the back of the block. you can then T into it with a Extension and splitter. Then however you run your oil feed is up to you, if you want to use a barb, or get a -an fitting.
Jeff
Engine?
Turbo?
Not everyone has a honda here...
If it is a honda, 1/8 NPT is the thread pitch off the back of the block. you can then T into it with a Extension and splitter. Then however you run your oil feed is up to you, if you want to use a barb, or get a -an fitting.
Jeff
12-28-2002, 12:36 AM
#6
Administrator
Join Date: Dec 2002
Posts: 13,991
Re:what tee do i use for oil passage?
Braided line you mean? -an sized hose? You can get that through summit/jegs or a local race shop.
I would go with a -an 4 hose. The inlet for the oil feed on the t3/t4 is a 1/8 npt fitting as well. So its pretty basic stuff.

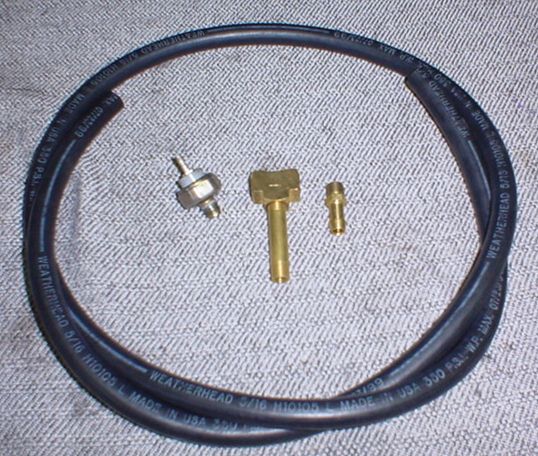

you will need (2) 1/8 to -an4 fittings and the 3 way 1/8 splitter and a brass 1/8 extension.
The brass fittings you can get at napa or local hardware stores.
Jeff
I would go with a -an 4 hose. The inlet for the oil feed on the t3/t4 is a 1/8 npt fitting as well. So its pretty basic stuff.
you will need (2) 1/8 to -an4 fittings and the 3 way 1/8 splitter and a brass 1/8 extension.
The brass fittings you can get at napa or local hardware stores.
Jeff
12-28-2002, 12:46 AM
#8
Administrator
Join Date: Dec 2002
Posts: 13,991
Re:what tee do i use for oil passage?
Originally Posted by akirazian
how much does all those cost altogether?
Call around.
Jeff
12-28-2002, 12:56 AM
#10
Administrator
Join Date: Dec 2002
Posts: 13,991
Re:what tee do i use for oil passage?
I think you need to re-read my posts dude, I explain what you need for your oil feed, where to get it and how much it costs. I also state which size fitting you need for your turbo.
Oil return is a differnt story, you will need to get a Oil return flange, (drain)
You can get one at
http://www.roadraceengineering.com/f...andgaskets.htm
15 bucks w/ gasket, you will then need to weld a fitting in your oil pan. Then connect the 2 fittings together, with some basic rubber 5/8 hose, and hose clamp it.
Jeff
Oil return is a differnt story, you will need to get a Oil return flange, (drain)
You can get one at
http://www.roadraceengineering.com/f...andgaskets.htm
15 bucks w/ gasket, you will then need to weld a fitting in your oil pan. Then connect the 2 fittings together, with some basic rubber 5/8 hose, and hose clamp it.
Jeff
