viperscort

I finally bit the bullet and did it
Turbo Mods
1st gen DSM mani,14b turbo, #19 LB injectors, 12:1 FMU, Greddy Knock off BOV, Diablo SportChip
Also a rebuilt motor
Motor Mods: bored .030, hyperutectic pistons, crome molly rings
Head: multi angle valve grind, shaved, Fully Gasket matching intake and exhaust, 2.0 TB,

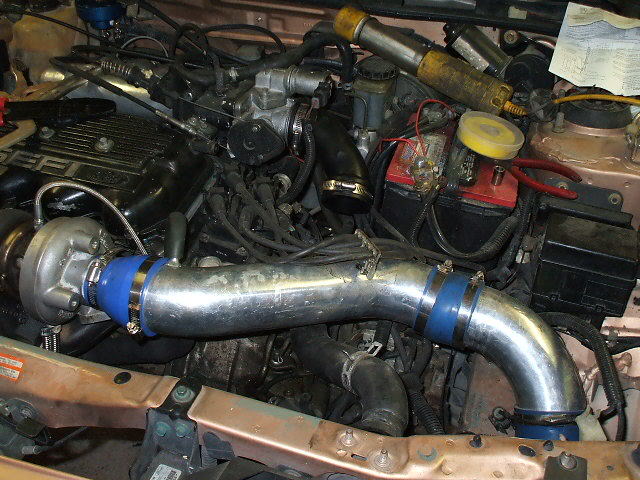

Motor Pic


BOV

FMU


Intake side

Oil Drain


Intake


I feel like theres more stuff done but im tired... update later

iLLstate

how much boost? why no intercooler

Atticus

you running open turbo?
how much psi

HondaTuner

That FMU looks familar to me! :P

viperscort

its not running yet, its still in progress... im hoping to see about 10 psi on 10:1 CR after some tunning with the chip.

all thats left is the downpipe and im done and boosting

european_dude

10:1 CR + 10psi + No intercooler ...

are you goin to run race fuel all the time?

tunercrazy00

ur FMU why are there 2 clamps on the tank side...and one on the pressure side? R u running higher than 93 octane 4 10:1 comp ratio 10psi is a lot 4 that!!!

evo_lucian

can you say KAABOOMMM !!!

viperscort

i mean thats what im shooting for .. i might have to lower the compression later

intercooler will come with more money.. im broke

reason being the one on the pressuer side sealed good... very good.. and the return side i didnt trust it so i added another.

tunercrazy00

have u ran it? if so any detonation......how did u get the manifold to bolt up to the 1.9 head?
