Lots of people already know how to do this, and what to get, but I figure I would take a few pics on the install.

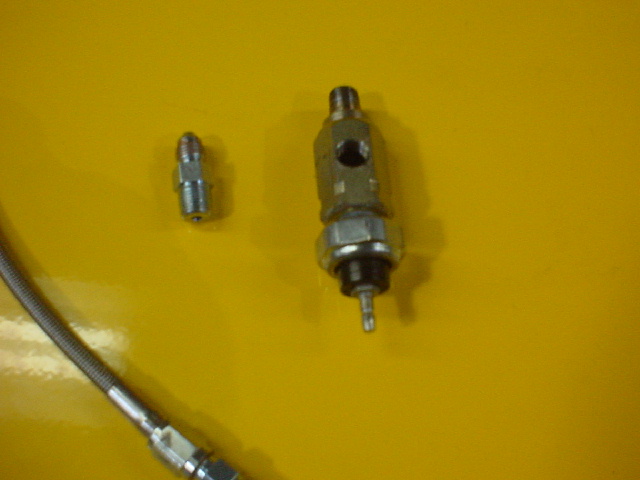

1- Tunertoys 3way Steel fitting
1- 1/8th to -3an Adapter
1- 4ft of -3an stainless steel line
1- Stock oil pressure sender 1/8bspt



Heres a pic of the fitting installed, I normally always put the oil pressure sender on nice and tight on the fitting before I install it on the block, and reguardless of thread sizes and tapers, I always throw a little bit of thread sealant on all fittings. It never hurts. You can see this block is a JDM engine, with the external water (oil cooler) which seems to get in the way of things, so be sure to get a good angle of how you want your fitting to sit.



Now install your 1/8 to -3 adapter and your stainless steel line, I tend to route almost all my setups over the front timing cover, or just off to the side.

Enjoy

Jeff
