sup everyone.
my walbro is currantly wired to the stock relay, and i want towire it with thicker wires like everyone does,
anyone have instructions or can tell me how to do this?

ps, which relay i need?


thanks

90dx

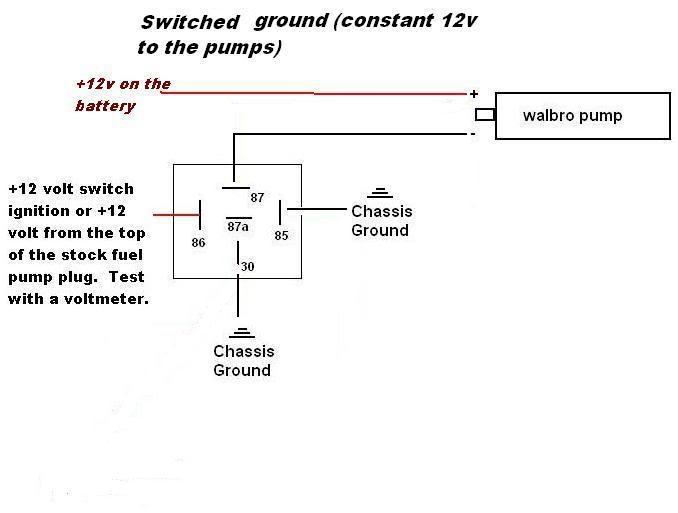

Like this

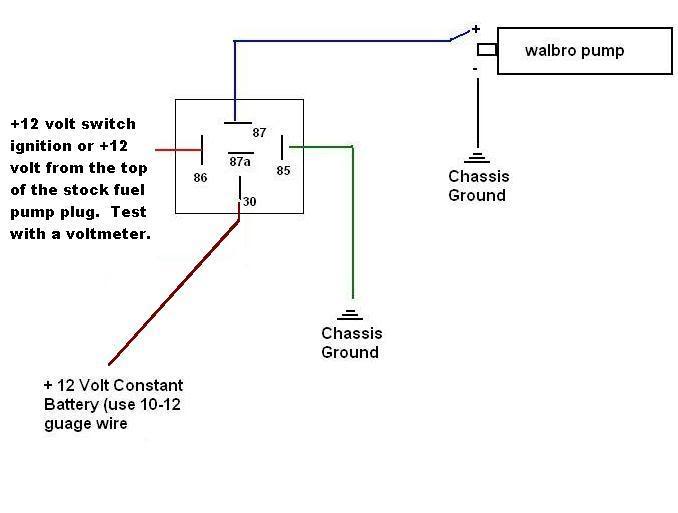

Or this way either works

bigdaddyvtec

I went the 2nd route... 1 relay for each pump..... (I have 2) 10 gauge....

racepak

thanks fot the pics,


do u mean the stock relay?

Dive_Miguel

Couldn't you just wire it the way the stock one was Maybe run thicker wires but not sure it is mandatory.

bigdaddyvtec

NO, that defeats the purpose... Run the Power wire to the battery (or the alt post), run 10 gauge - (dont forget a fuse) to the relay you ARE adding... and use the stock fuel wire (coming form the stock relay) to switch the added relay, and in effect turn on your pump (S)

racepak

cool.... that way it wont draw alot from the stock right?

bigdaddyvtec

The curremnt drawn will be from either the alt post, or battery DIRECTLY... The stock lead will simply switch the new relay and allow the current to the pump (s)

racepak

so thanks.
so will it be ok just use the stock wire to trigger the relay and mount the relay near the pump and then run thicker pos & ground wires?


ps
what relay amptitude will i need?
