my turbo
#1
my turbo

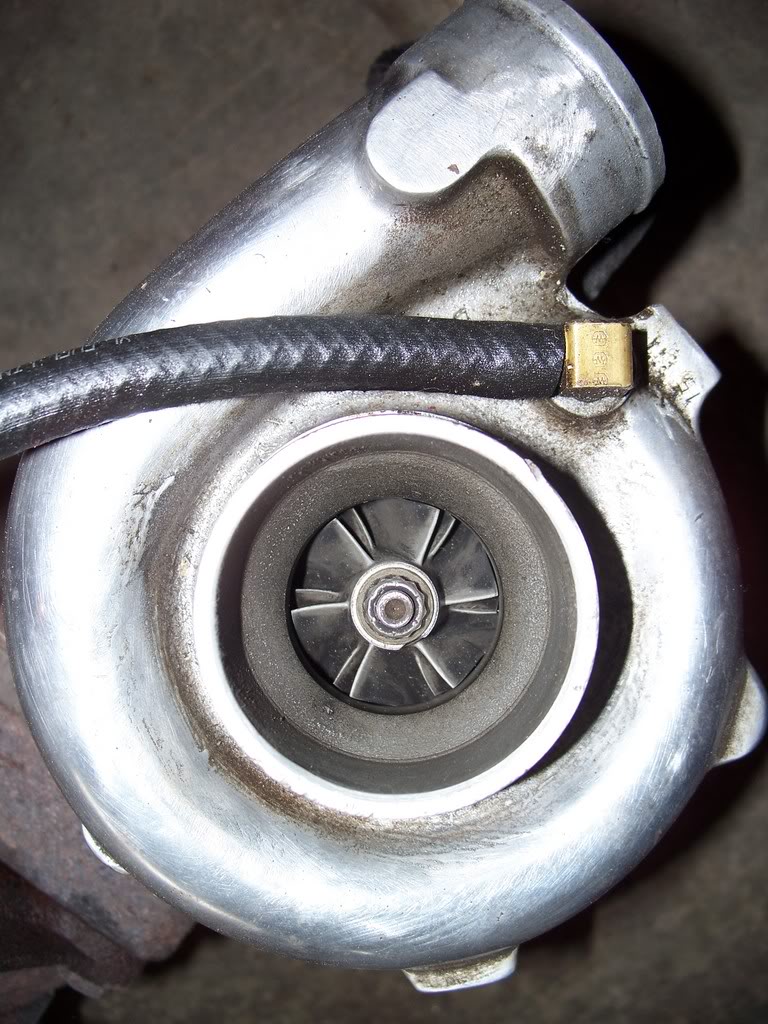

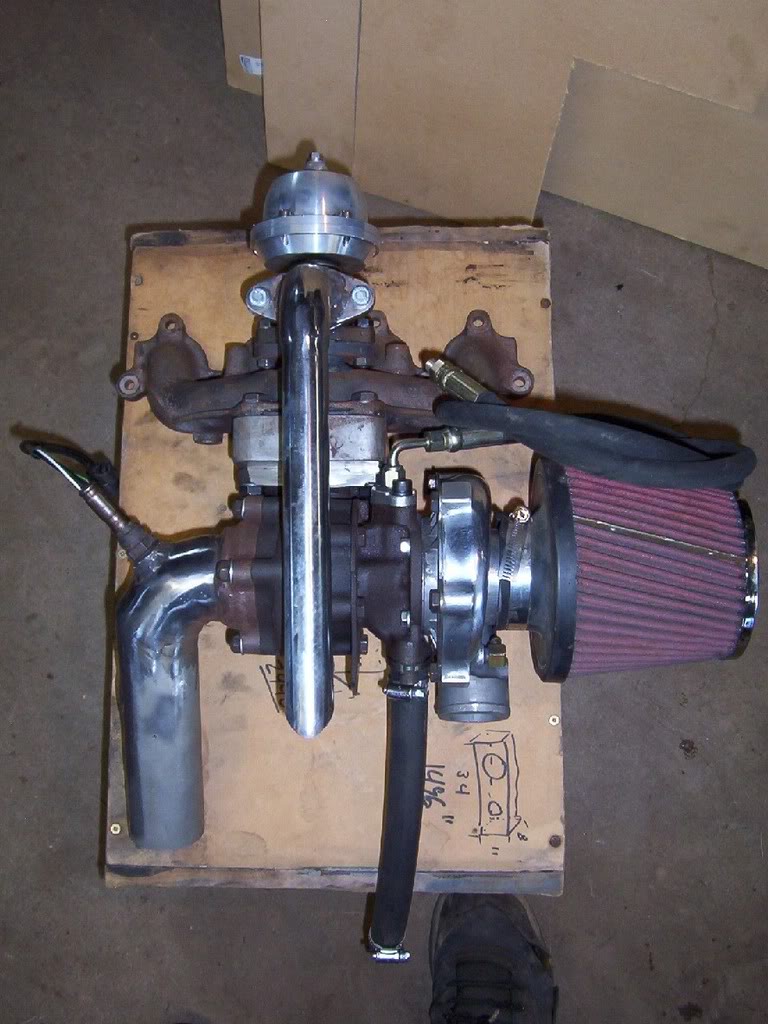

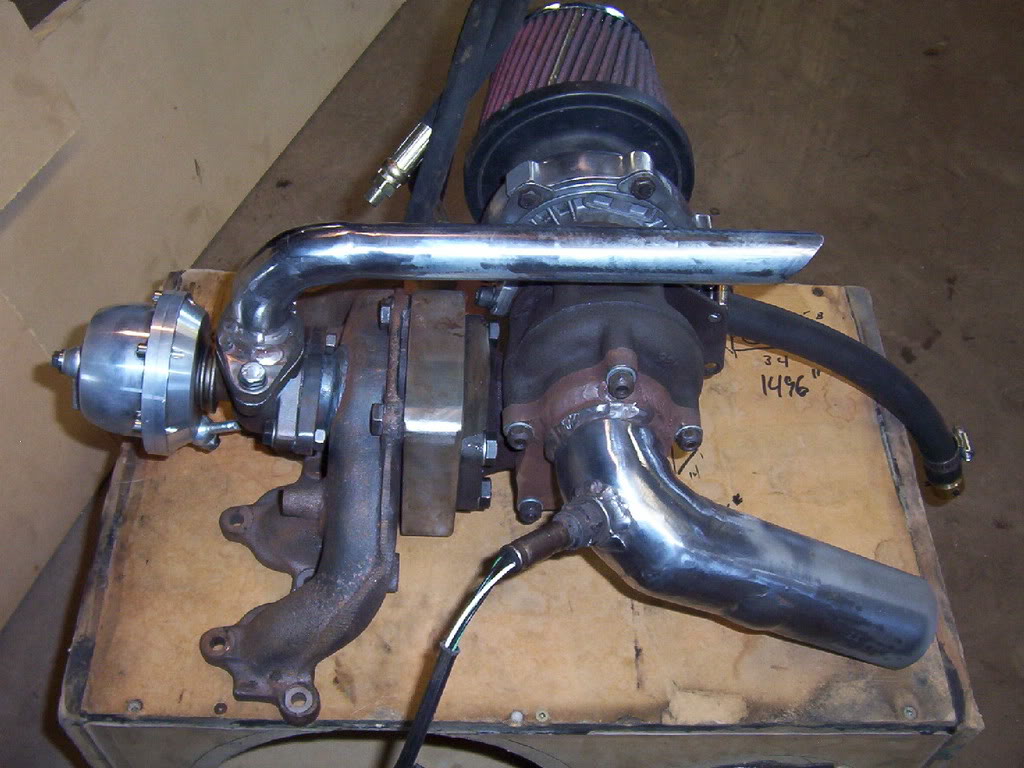

Well i posted quite some time ago when i got my setup done. now i have a question, i woudl like to knwo if anyone knows what my turbo actually is. here are my pics all i really kwno is its a air research.
at the time i didnt really care the price was right so i bought it up.
at the time i didnt really care the price was right so i bought it up.
#3
Re: my turbo
Yep, i eye ball this as a 45 trim T3 .48/.42.
The comp wheel should be 40 mm x 60 mm.
at 8-10 psi it's good for barely 200 HP.
Not quite enough to make you the king of the road if you know what i mean.
it has a good turbine side though. standard Stage 1 t3. slight porting in the turbine snail, slap a 60 trim comp side on this and 260-280 HP is possible.
The comp wheel should be 40 mm x 60 mm.
at 8-10 psi it's good for barely 200 HP.
Not quite enough to make you the king of the road if you know what i mean.
it has a good turbine side though. standard Stage 1 t3. slight porting in the turbine snail, slap a 60 trim comp side on this and 260-280 HP is possible.
#5
Re: my turbo
i think "HMT" is mostly about installing a turbo all by yourself at home using easily found local parts. As far as the turbo itself is concerned, more than just a "write up" is unfortunately needed to properly rebuild or modify one with reliable results. Do you have a turbo or diesel shop locally? They might be able to help you upgrade your turbo. You probably can purchase a used T4 turbo from which you can salvage a good compressor side.
Here's some that i found on ebay ...
item 230116276654. 320103213554, 220101628706...
Here's some that i found on ebay ...
item 230116276654. 320103213554, 220101628706...
