McBoost

Most of my stuff has arrived and I really want to get it all installed (NW install party!)... took a few pics because they look good (for now). It's going on an Integra LS 4 door


What I already have (pics only show a few of these things):

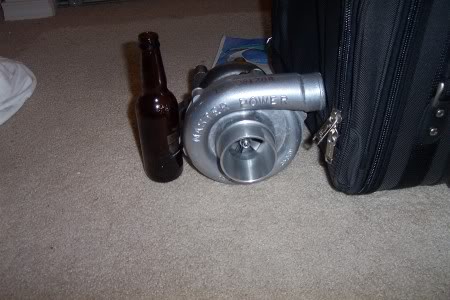

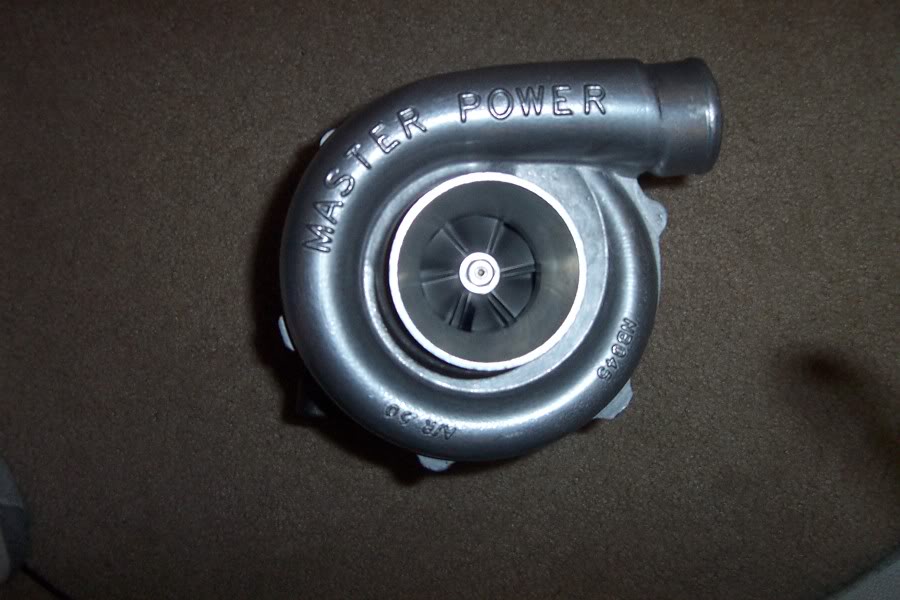

Turbo - Master Power (real one), t3/t4 50 trim .50/.63

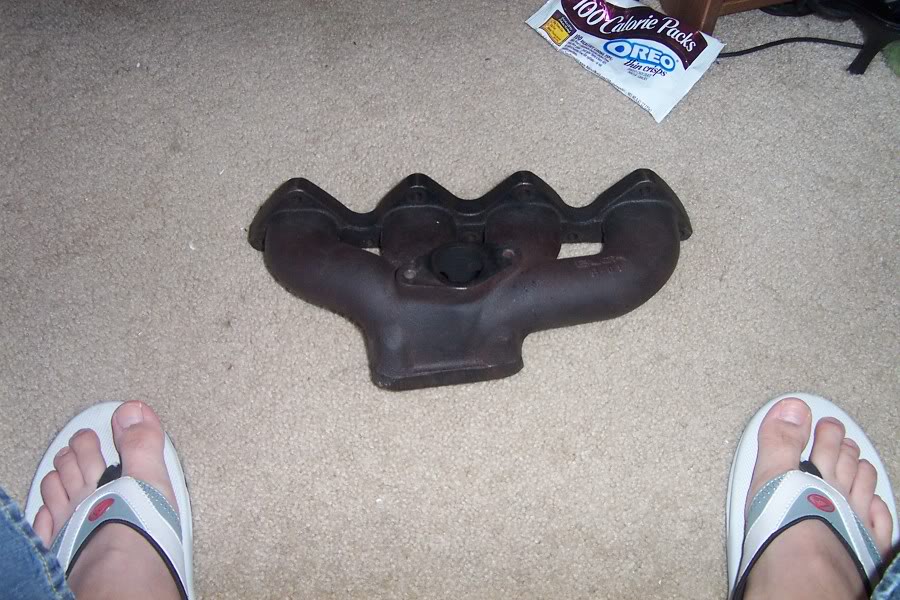

Manifold - Blox cast iron
Downpipe - 5 bolt, 2.5" AC compatible, 02 bung, flex section
Wastegate - Tial 38mm
Iintercooler Piping - SFP, annodized black 2.5"
BOV - Greddy type S
MAP - GM 3 bar
Injectors - DSM 450's with inline resistors
Engine Management - Xenocron hooked me up with the Tuner Package 1 (Ostrich, chip kit, LC-1 wideband, usb logging cable) - undecided on which tuning program, probably Crome Pro though
Vacuum Manifold - Golden Eagle
Fuel Pump - Xenocron, 255lph pump
Cat - 2.5" Carsound
Oil lines - Stealthmode

Still need:
Oil Pressure Gauge
vac lines, filter, misc.
Bigger exhaust

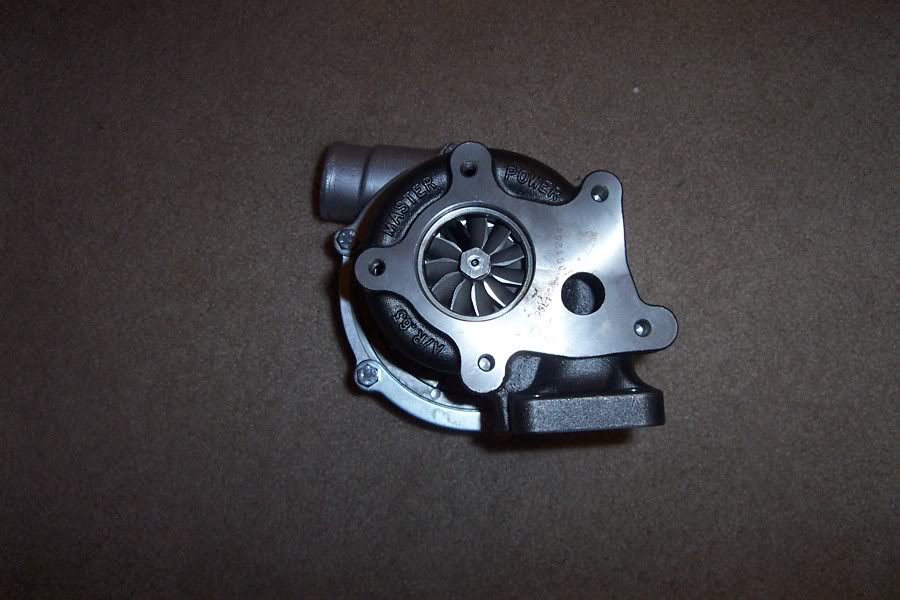

I know one of the fins looks like it's missing, but it's something they used when they balanced it

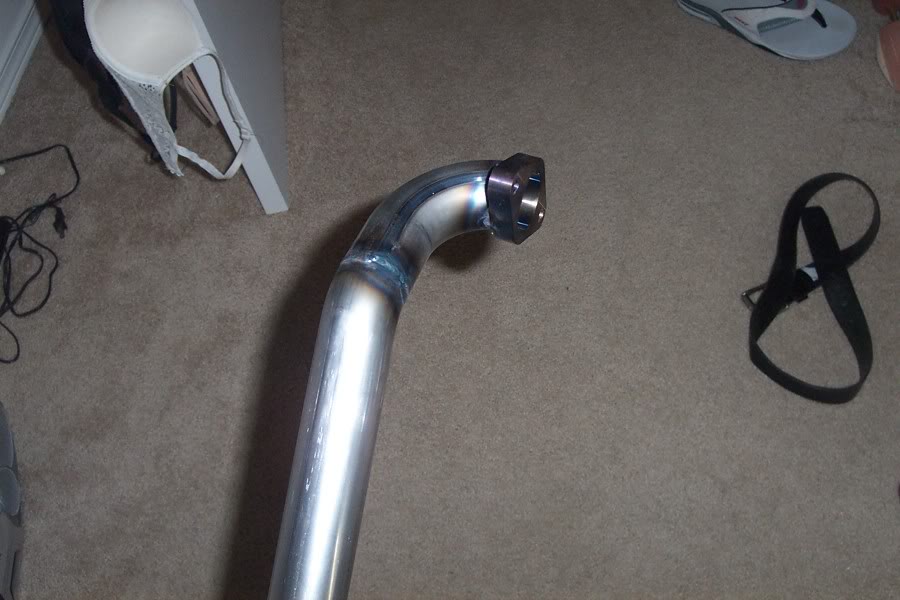

and... the dumptube (will be welded back into the DP)

HondaTuner

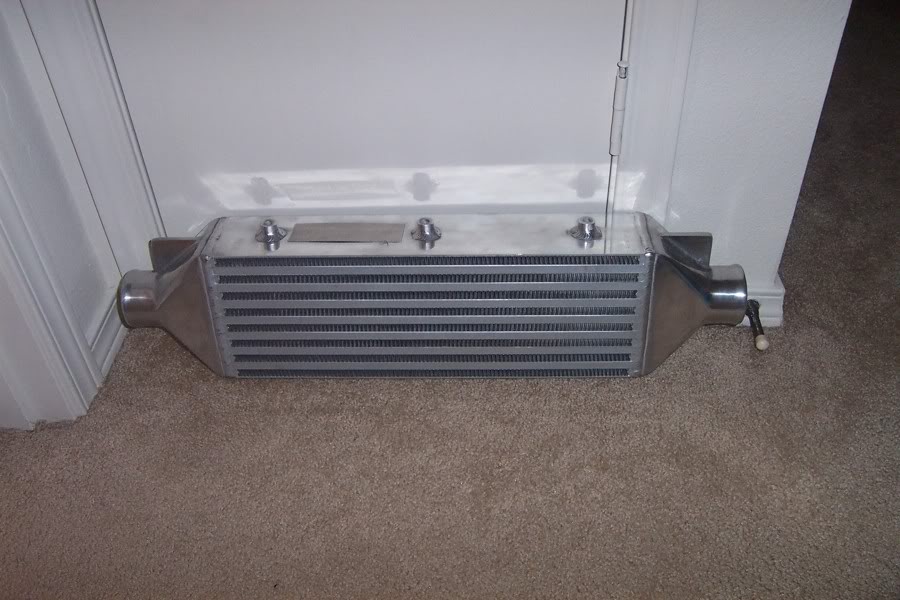

Looks nice, I think that's the same intercooler we're using on the f22a1 setup.

What power you looking to get out of that nonvtack B?

McBoost

I'm going for around 225 - 250. Whatever I can get out of 7.25 psi and a good tune :P

z1guy

7psi should put you around 190-210 whp range. tq will be quite a bit more. nice parts. looks like you need lots more stuff though. or did you just take a couple pics instead of everything.

McBoost

I just took a few pics... a couple things are still on their way (LC-1 and Ostrich are on backorder... everywhere!). Xenocron is really cool though... he offered to send whatever I wanted for the time being, but I'm not installing for a little while so I told him to hang on to it until all the parts are in.

I'm curious to see what kind of numbers this will produce... I gave that 225-250 HP range based off some similar setups. They probably had some upgraded internals though... my motor is bone stock :P (for now)

HondaTuner

-----, 300 whp or go home

















:P I think you should try to get about 240 whp atleast, but then again its not my setup good luck with it though.

z1guy

you can get more than your goal w/ stock LS bottom end, if its in descent shape it will stay together. but on 7psi you probably wont see more than 210whp.

McBoost

We'll see... I may want to turn up the boost after 2 months :P

soontobeDA

nice setup...

almost same as mine
but i dump my wg under the car

hehe

Walter

where did you get that Downpipe?
