Well as few may notice in posts about IM I'm thinking of fabbing my own. In my searches for aluminum velocity stacks I was linked to a post on H-T for Steel IM and I was wonder what peoples thought on a Steel IM would be.
http://www.honda-tech.com/zerothread?id=1369010
I like the idea due to the fact that It would be easier to fanricate myself in my shop, and materials are a little easier to come by.
They had a good instruction page linked too.
http://www.sdsefi.com/techinta.htm
The site above has alot of other good info on fabbing Turbo manifolds and tuning which I'm sure people have found before.
http://www.honda-tech.com/zerothread?id=1369010
I like the idea due to the fact that It would be easier to fanricate myself in my shop, and materials are a little easier to come by.
They had a good instruction page linked too.
http://www.sdsefi.com/techinta.htm
The site above has alot of other good info on fabbing Turbo manifolds and tuning which I'm sure people have found before.
3.0 BAR
Joined: May 2005
Posts: 1,811
Re: Intake Manifold *Revisted With Ideas and Thoughts"
Be sure you angle (prefferably curvve) the section for the throttlebody around 33-40* off center. Be sure to give an inch or two of space after the last runner. (Most opposite of the throttlebody) Otherwise distrobution will be uneven.
Build a huge plenum. Best thing you can do. FI loves a huge common area.
AFA the runners, N/A has to have a balance between small diameter promoting high velocity charge speeds, and having large runners that can flow more with less effort. Go to big, or too small & power suffers. Same for head porting.
The runners also should be tuned to length. That way the sound pressure wave will bounce back through the intake & with the right timing(length), you can catch a returning sound pressure wave to shove air into the cylinder.
All of this is completely different when you're shoving air into the engine. The head & intake runners can be grossly enlarged (If you dont' mind loosing power out of boost). having the shortest runners possible also helps.
A lot of times, the easyest thing to do is saw the stock runners off & simply port them very large. Then build your own intake plenum.

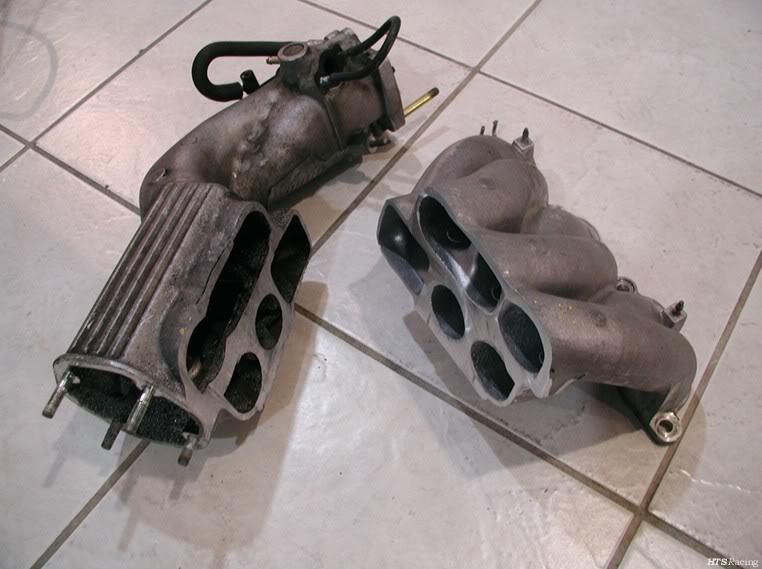

Spend a couple of weeks griding & polishing, then spend a week with a tig welding the alu together & you wind up with something like...
\
Build a huge plenum. Best thing you can do. FI loves a huge common area.
AFA the runners, N/A has to have a balance between small diameter promoting high velocity charge speeds, and having large runners that can flow more with less effort. Go to big, or too small & power suffers. Same for head porting.
The runners also should be tuned to length. That way the sound pressure wave will bounce back through the intake & with the right timing(length), you can catch a returning sound pressure wave to shove air into the cylinder.
All of this is completely different when you're shoving air into the engine. The head & intake runners can be grossly enlarged (If you dont' mind loosing power out of boost). having the shortest runners possible also helps.
A lot of times, the easyest thing to do is saw the stock runners off & simply port them very large. Then build your own intake plenum.
Spend a couple of weeks griding & polishing, then spend a week with a tig welding the alu together & you wind up with something like...
\
