Got a free turbo...pics inside
08-13-2007, 04:59 PM
#1
1.0 BAR
Thread Starter
Join Date: Nov 2006
Posts: 505
Got a free turbo...pics inside

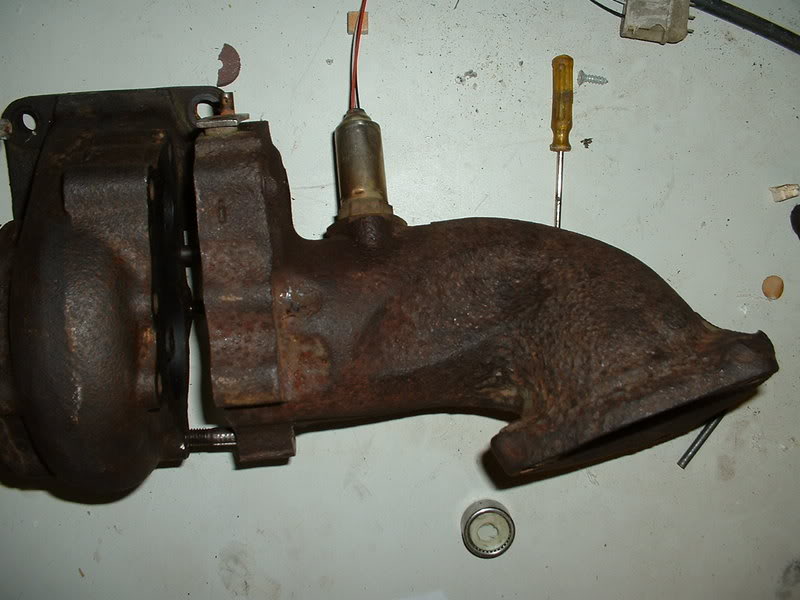

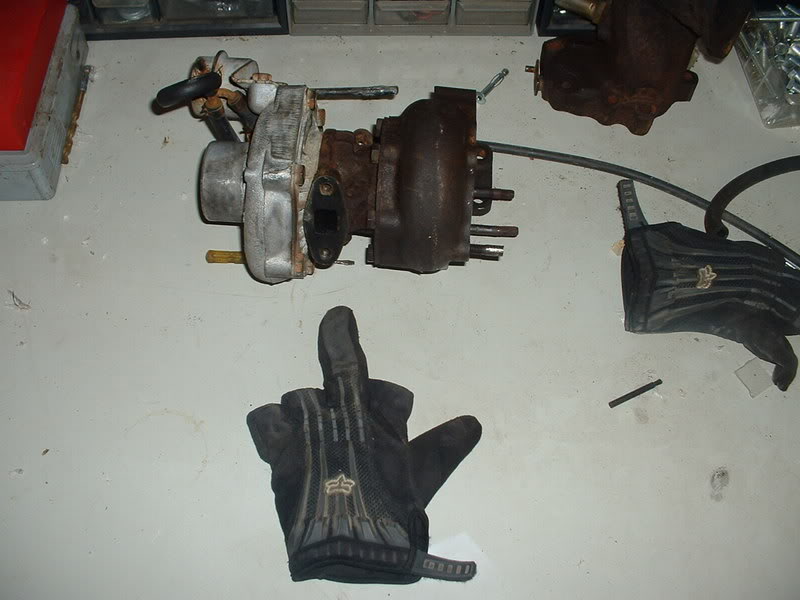

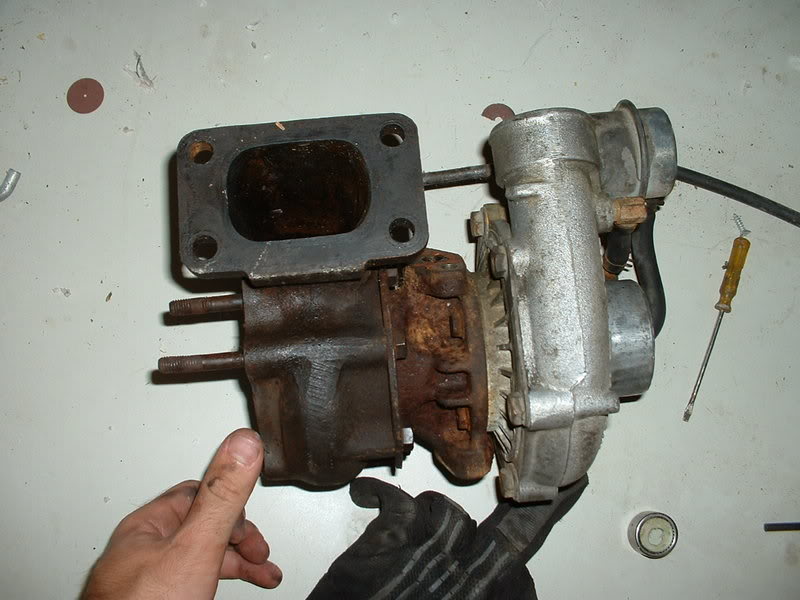

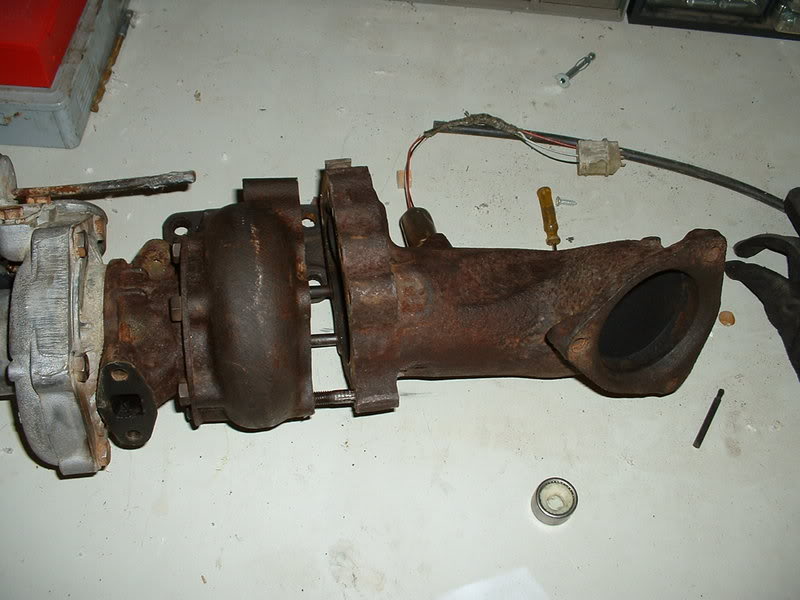

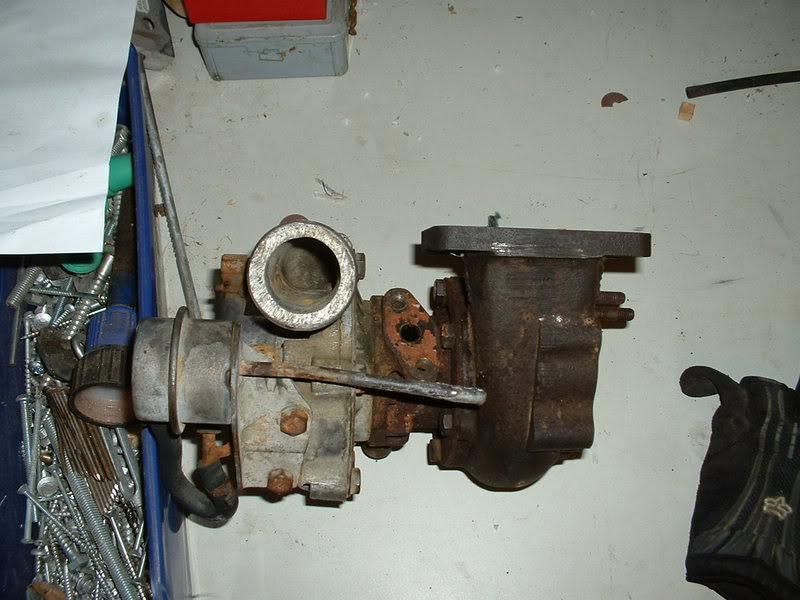

well this lady was giving away a 84 turbo 300zx motor so i called her and picked it up last weekend..i was really surprised that she just gave it away free, so

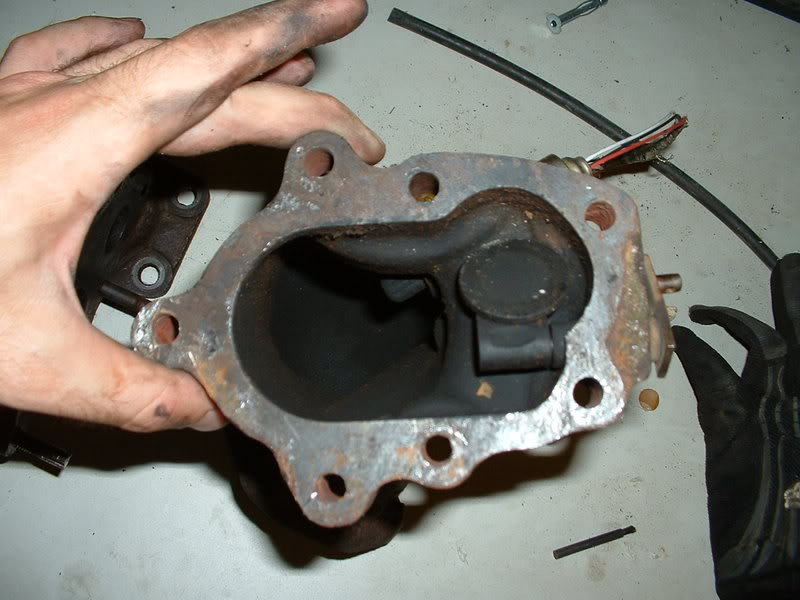

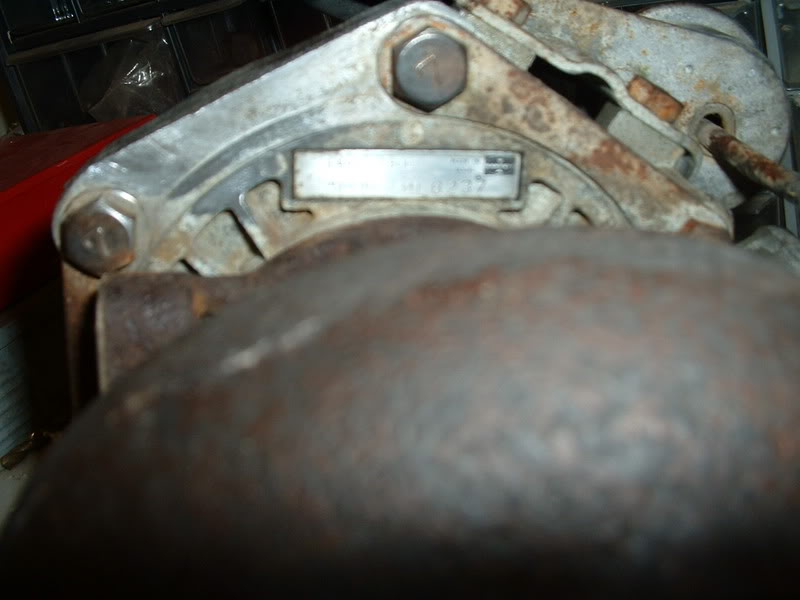

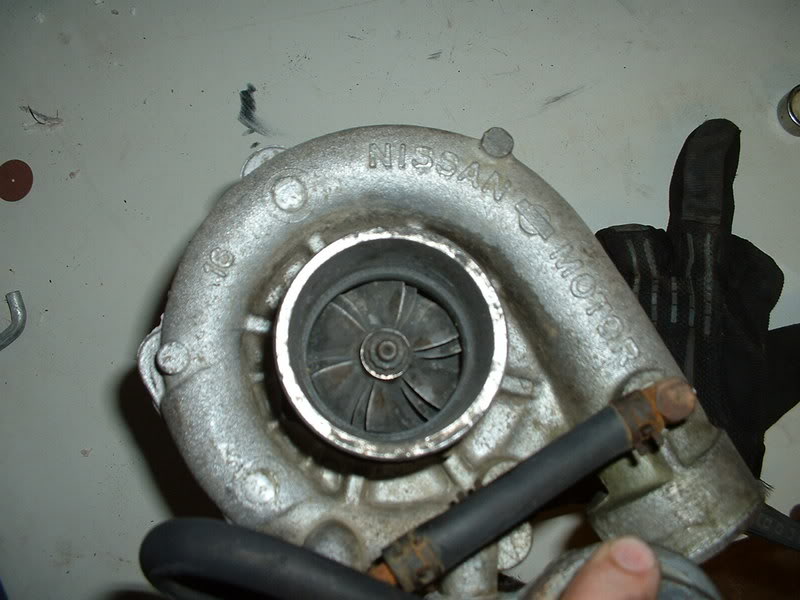

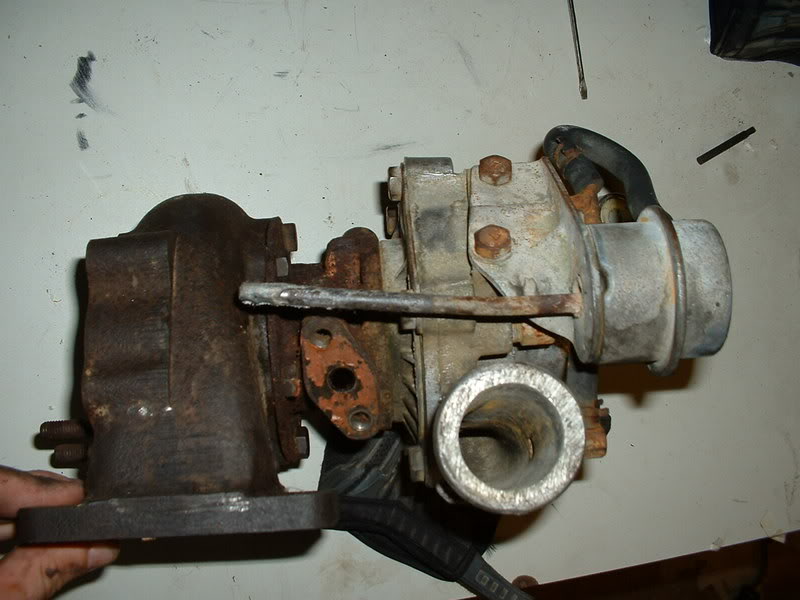

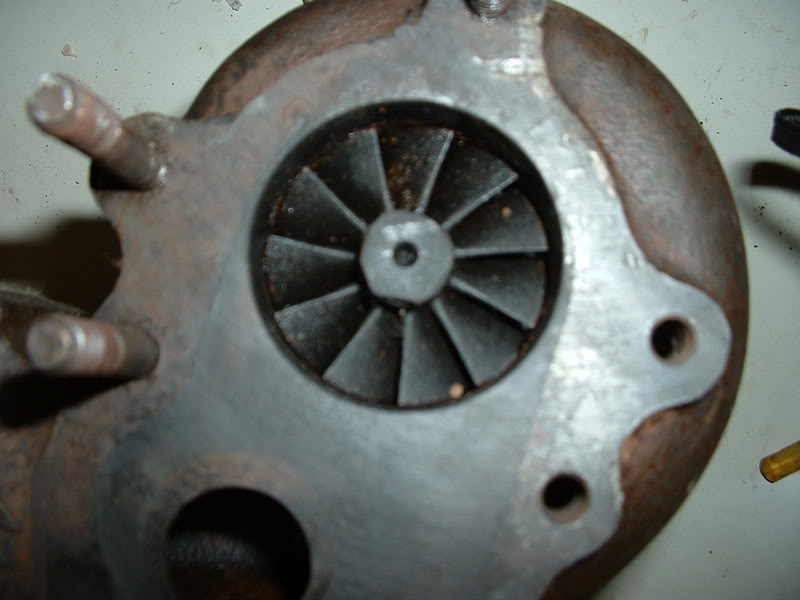

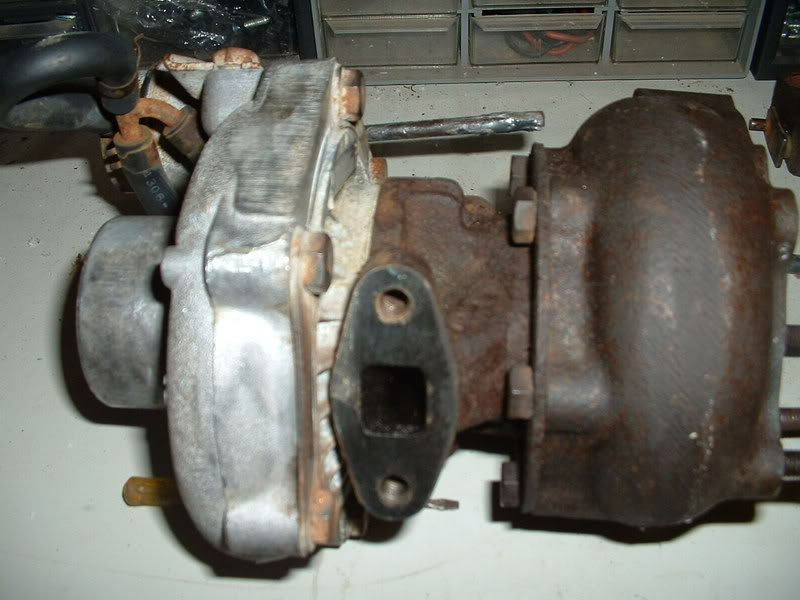

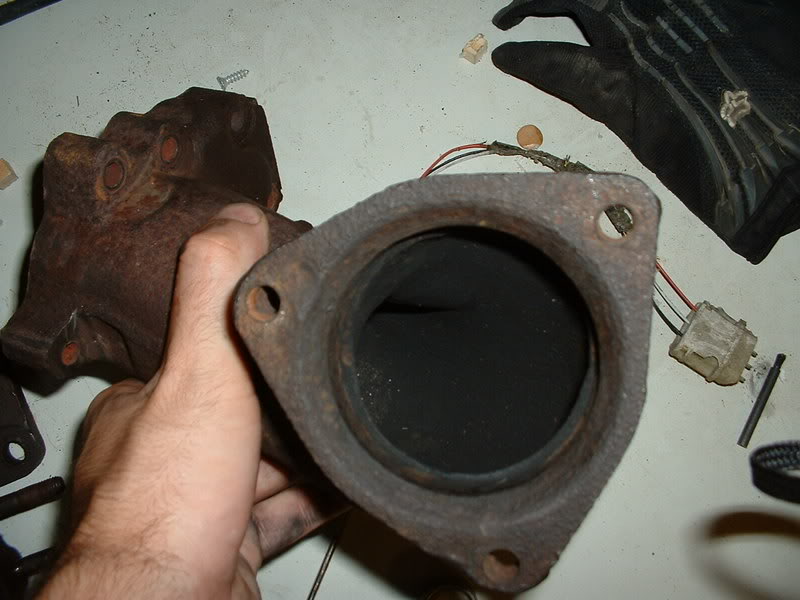

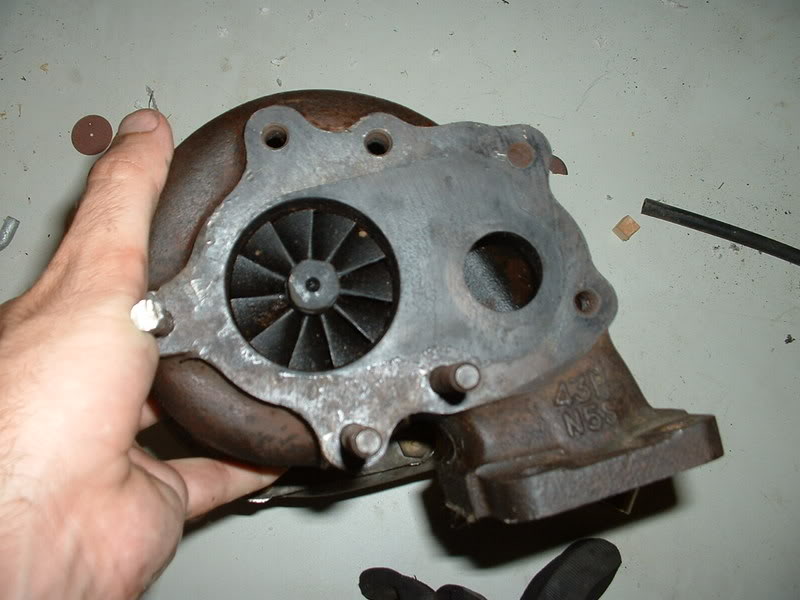

to me....it has no shaft play and in not to bad of shape, the only thing broke was the wastegate arm......... i was told it was a T3 60 trim stage 1, but i wanna find out for sure what it is...
tell me what yall think..
to me....it has no shaft play and in not to bad of shape, the only thing broke was the wastegate arm......... i was told it was a T3 60 trim stage 1, but i wanna find out for sure what it is...tell me what yall think..
08-13-2007, 06:37 PM
#4
1.0 BAR
Thread Starter
Join Date: Nov 2006
Posts: 505
Re: Got a free turbo...pics inside
Originally Posted by D16Y8-Z6
Its a 60/63. I had the same 7 bolt turbo.
Pulled nice on the d15 @ the time.
Pulled nice on the d15 @ the time.
im going to put it on my b16crx
08-13-2007, 06:56 PM
#5
1.5 BAR
Join Date: Jan 2006
Posts: 865
Re: Got a free turbo...pics inside
Yeah I put that same turbo on a d15b in my rex. I went with an external wg. 7lbs spring.
pulled really well up top. Little laggy down low.
I was going to put that turbo on my b16, but sold the crx with the turbo on it.
pulled really well up top. Little laggy down low.
I was going to put that turbo on my b16, but sold the crx with the turbo on it.
08-14-2007, 01:19 AM
#6
1.5 BAR
Join Date: Mar 2005
Posts: 723
Re: Got a free turbo...pics inside
I got my t3/t04b s-trim with that ex housing on it, with a nice crack in it :1

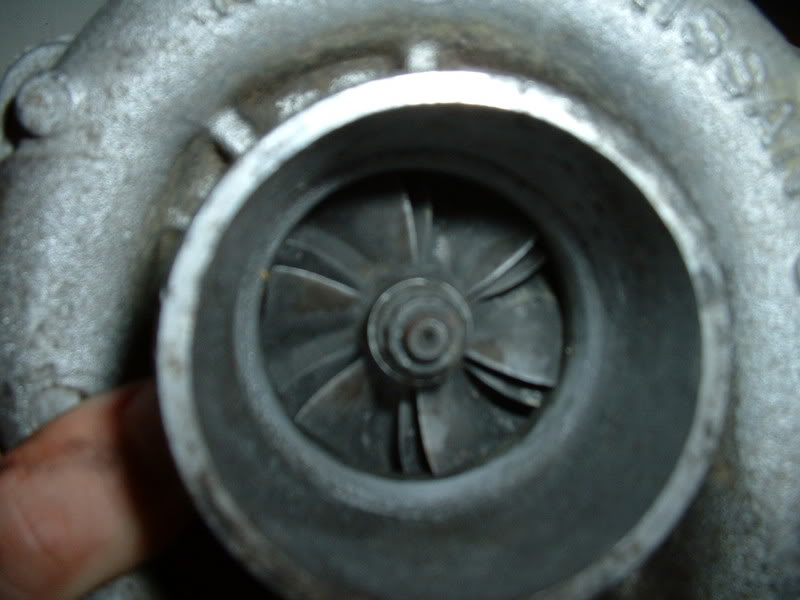

I can never remember, I think thats a 60trim t3 though - you'd have to measure the small diameter of the compressor to w/in 1/16" for us to ID it's trim. It should be a stage1 exhaust though.
good info came from:
http://www.redz31.com/turbofaq/turbo.faq.htm
Seems that its 6.8psi, ran on a car with NO bov, likely was close to overspinning all the time, and may have a coked-up shaft due to no water cooling. It also was on a non-intercooled 3.0L motor, meaning the exhaust probably glowed bright red anytime they boosted for more than an eye blink. Oddly enough, there are still some of the turbos that survived and are ran unbuilt.
I can never remember, I think thats a 60trim t3 though - you'd have to measure the small diameter of the compressor to w/in 1/16" for us to ID it's trim. It should be a stage1 exhaust though.
good info came from:
http://www.redz31.com/turbofaq/turbo.faq.htm
Seems that its 6.8psi, ran on a car with NO bov, likely was close to overspinning all the time, and may have a coked-up shaft due to no water cooling. It also was on a non-intercooled 3.0L motor, meaning the exhaust probably glowed bright red anytime they boosted for more than an eye blink. Oddly enough, there are still some of the turbos that survived and are ran unbuilt.
08-16-2007, 02:37 PM
#9
1.0 BAR
Thread Starter
Join Date: Nov 2006
Posts: 505
Re: Got a free turbo...pics inside
Originally Posted by Zxc4
I had a a very similar setup on my b16 crx. was pretty nice, whats that going on??
what was your hp? and where you using the stock wastgate?
08-16-2007, 04:37 PM
#10
0.0 BAR
Join Date: Nov 2003
Posts: 26
Re: Got a free turbo...pics inside
compressor side is a t3 ar60 60 trim ( like super 60 )
blaast sell a lot of those combined to a .48 exhaust side
thats what im running.. 10 psi @ 3000 rpm
remove that actuator
any t3 will bolt straight up to the housing
blaast sell a lot of those combined to a .48 exhaust side
thats what im running.. 10 psi @ 3000 rpm
remove that actuator
any t3 will bolt straight up to the housing
