Carbon seal fitment?
03-21-2007, 07:21 PM
#1
0.5 BAR
Thread Starter
Join Date: Mar 2006
Posts: 74
Carbon seal fitment?
I'm rebuilding a .60/.63 off a Buick Regal. The turbo uses a carbon seal. I was wondering how the seal goes in? Do I mate the flat side of the seal with the compressor backplate or the beveled side?
03-22-2007, 06:21 PM
#4
1.5 BAR
Join Date: Apr 2004
Posts: 995
Re: Carbon seal fitment?

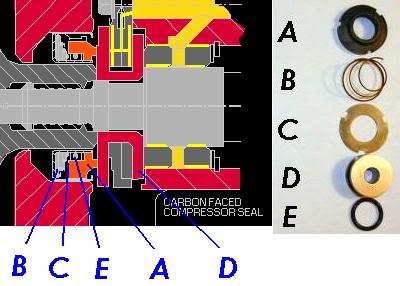

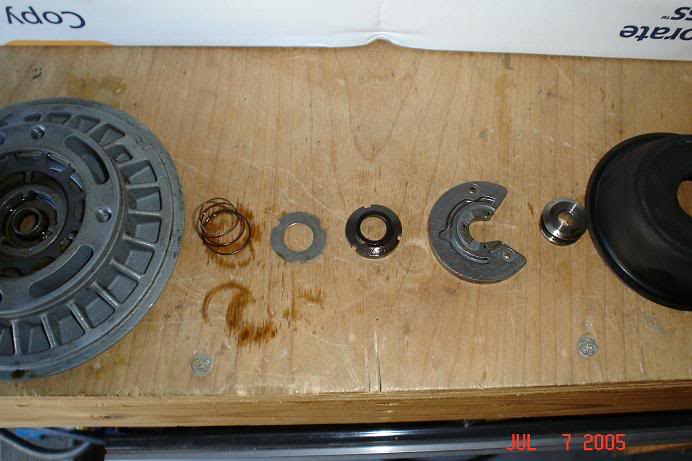

Here are some pics from a few years ago when I rebuilt my turbo. I'm pretty sure this is a carbon seal. I made a diagram showing the order the parts of the seal go in. Excuse my ms paint skills.
If this isn't a carbon seal disregard this message. lol
If this isn't a carbon seal disregard this message. lol
