Forced Induction Custom FI Setup Questions

Broke backplate thing (PIC)

Thread Tools

Search this Thread

Old Feb 21, 2009 | 09:41 PM
  #1
hard2obtain's Avatar
Thread Starter
1.0 BAR

Joined: Jan 2006
Posts: 525
Default Broke backplate thing (PIC)

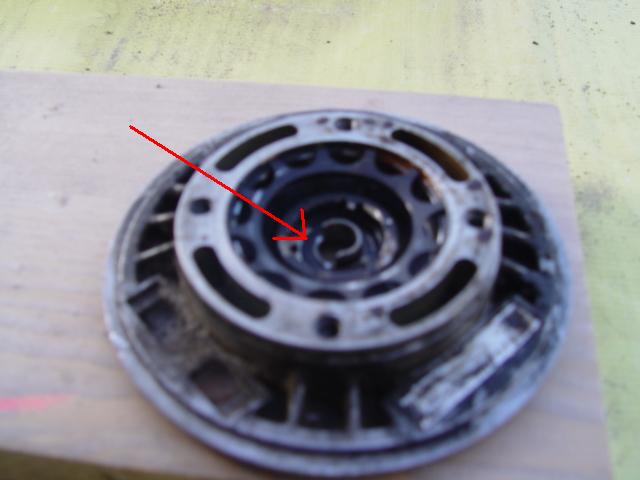

When i remove the backplate from turbo i see there is a part of it broke.

This what kind of problem can cause to the turbo if i use as it.

Pic attached
Attached Thumbnails Broke backplate thing (PIC)-broken-backplate.jpg
Old Feb 22, 2009 | 12:47 AM
  #2
crx2211's Avatar
1.5 BAR

Joined: Nov 2006
Posts: 1,449
Default Re: Broke backplate thing (PIC)

Get a new backplate. It'll leak like a ----------er among other things if you ran it. You can get them for cheap from G-Pop or maybe a sponsor on this site. I may have one for you too depending on what it is.
Old Feb 23, 2009 | 02:12 AM
  #3
HiProfile's Avatar
1.5 BAR

Joined: Mar 2005
Posts: 723
Default Re: Broke backplate thing (PIC)

That's right where the piston seal rubs, IIRC. Old worn out turbos can have that issue.

W/o replacing it, it will leak. The problem is the piston seal may be bad too, so with a new backplate, it might still leak. Post a picture of the CHRA that it mates to, shaft and all. If the ring is fine (impossible to tell visually), a backplate would make it good as new, assuming you marked the exact position the wheel & nut were on the shaft.
Old Feb 24, 2009 | 02:34 AM
  #4
hard2obtain's Avatar
Thread Starter
1.0 BAR

Joined: Jan 2006
Posts: 525
Default Re: Broke backplate thing (PIC)

Previous pic was from the Volvo turbo.

This new pics are from the Nissan AR.60 that have the same problem, even whorst because all the ring from the backplate dissapeared

Here is what i got

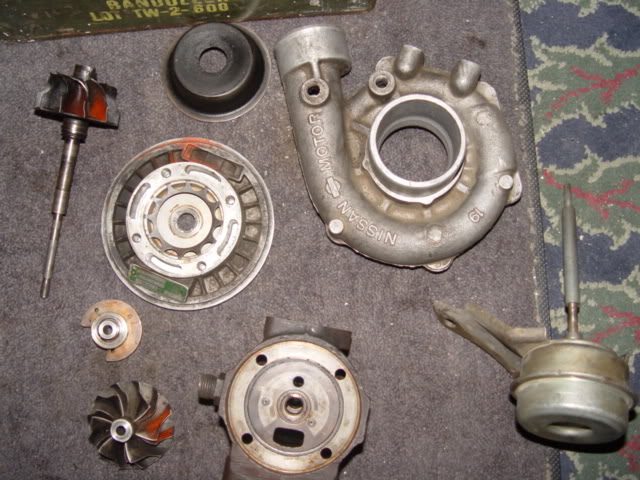

Name:  T3AR60-2.jpg
Views: 48
Size:  75.0 KB

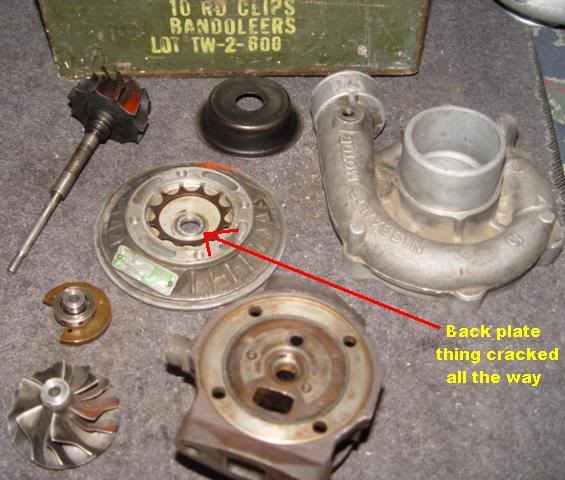

Name:  T3AR60.jpg
Views: 64
Size:  49.1 KB
Old Feb 24, 2009 | 10:50 PM
  #5
hard2obtain's Avatar
Thread Starter
1.0 BAR

Joined: Jan 2006
Posts: 525
Default Re: Broke backplate thing (PIC)

I think i need another back plate
