what kind pipe to use for manifold extension

Thread Tools

Search this Thread

Old 07-26-2008, 03:41 PM
  #1
WTF
3.0 BAR
Thread Starter

WTF's Avatar

Join Date: Jan 2006
Posts: 2,057
Default what kind pipe to use for manifold extension

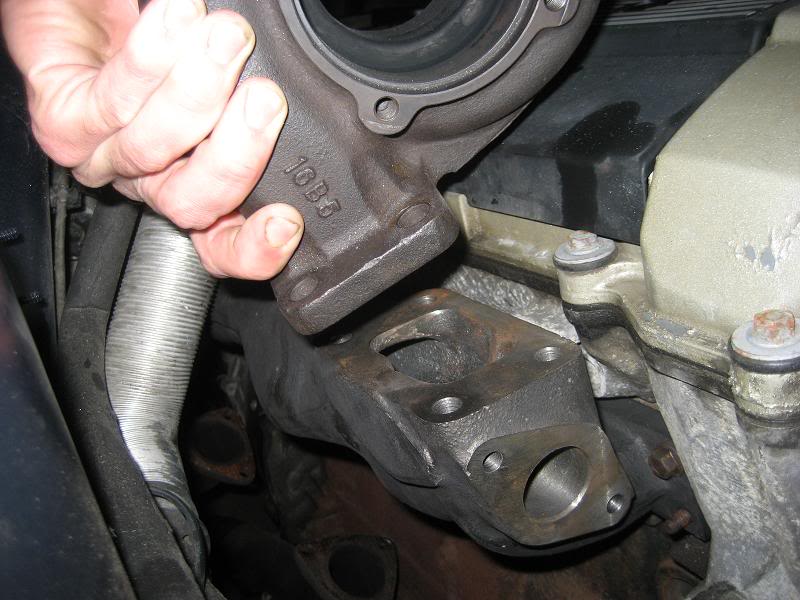

i have a cast manifold i made into a topmount but i need to make an exlention about 3" tall that turns and angles the turbo slighty to clear my valve cover, i was gona make it or have it made with probly 2.5" pipe and 2x t3 flanges. it has to support a holset. what size pipe would you guys use? would normal exhaust pipe be aright or somthing thicker gauge?

Name: IMG_0198SM.jpg Views: 22 Size: 73.9 KB
WTF is offline
Reply
Old 07-26-2008, 03:58 PM
  #2
0.5 BAR

That Guy's Avatar

Join Date: Mar 2008
Posts: 119
Default Re: what kind pipe to use for manifold extension
Sched 40?
That Guy is offline
Reply
Old 07-26-2008, 04:11 PM
  #3
3.0 BAR

E-b0la's Avatar

Join Date: May 2006
Posts: 1,967
Default Re: what kind pipe to use for manifold extension
Get some think steel and mill it into a wedge shape. Drill mill and tap the holes.
E-b0la is offline
Reply
Old 07-26-2008, 09:32 PM
  #4
3.0 BAR

ichbinsobose's Avatar

Join Date: Oct 2005
Posts: 3,450
Default Re: what kind pipe to use for manifold extension
my turbo is stuck to some standard 2.5 mild steel from racing solutions
cute m50
ichbinsobose is offline
Reply
Old 07-26-2008, 11:07 PM
  #5
0.0 BAR

seerex's Avatar

Join Date: Jun 2003
Posts: 0
Default Re: what kind pipe to use for manifold extension
Damn a lot of bmw guys around now.
seerex is offline
Reply
Old 07-26-2008, 11:48 PM
  #6
WTF
3.0 BAR
Thread Starter

WTF's Avatar

Join Date: Jan 2006
Posts: 2,057
Default Re: what kind pipe to use for manifold extension
Originally Posted by ichbinsobose
my turbo is stuck to some standard 2.5 mild steel from racing solutions
cute m50
ya bitch.
WTF is offline
Reply
Old 08-01-2008, 09:04 PM
  #7
1.5 BAR

G2turbo_terror's Avatar

Join Date: Jul 2003
Location: Minnesota
Posts: 1,122
Default Re: what kind pipe to use for manifold extension
I would use some rectangle steel tubing.
G2turbo_terror is offline
Reply
Old 08-01-2008, 11:59 PM
  #8
1.5 BAR

kamilk69's Avatar

Join Date: Apr 2006
Posts: 1,147
Default Re: what kind pipe to use for manifold extension

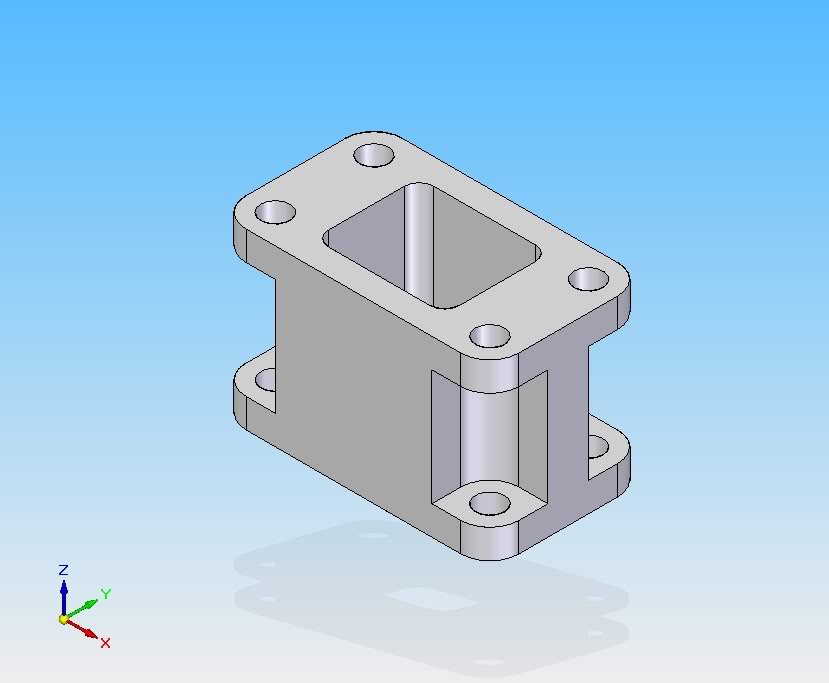

this is what i would do, the one holes would be straight through, and one side would be tapped, or studded.

let me know if you want the cad file.

Name: adapter-2.jpg Views: 24 Size: 34.4 KB
Name: adapter-3.jpg Views: 22 Size: 32.7 KB
kamilk69 is offline
Reply
Old 08-02-2008, 12:13 AM
  #9
WTF
3.0 BAR
Thread Starter

WTF's Avatar

Join Date: Jan 2006
Posts: 2,057
Default Re: what kind pipe to use for manifold extension
Originally Posted by G2turbo_terror
I would use some rectangle steel tubing.
ya thats what im looking for
WTF is offline
Reply
Old 08-04-2008, 10:15 PM
  #10
1.5 BAR

G2turbo_terror's Avatar

Join Date: Jul 2003
Location: Minnesota
Posts: 1,122
Default Re: what kind pipe to use for manifold extension
http://www.discountsteel.com/index.c.../itemID/47.htm
