V6 dakota turbo header
#1
V6 dakota turbo header
Building this single turbo header for a 3.9 liter V6 dakota. Mocking it up off my V8 dakota. I dont have the turbo so Im basing everything off measurments. Running garrett gt35 and a tial external gate.

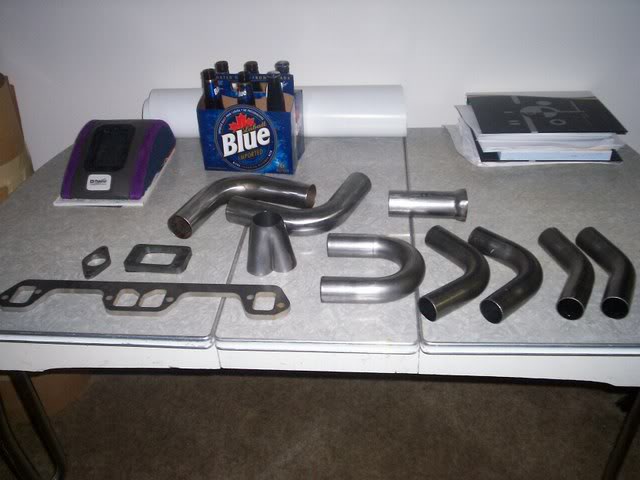

Most of of the parts came from racing-solutions. I couldnt get a V6 flange so Just got the V8 one and cut off the extra part that was not needing.

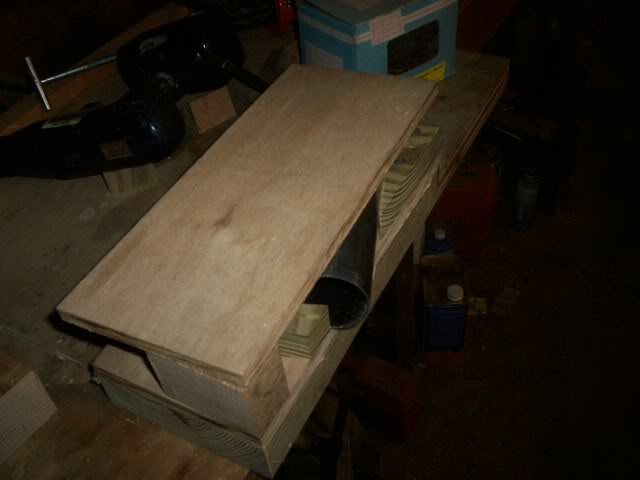

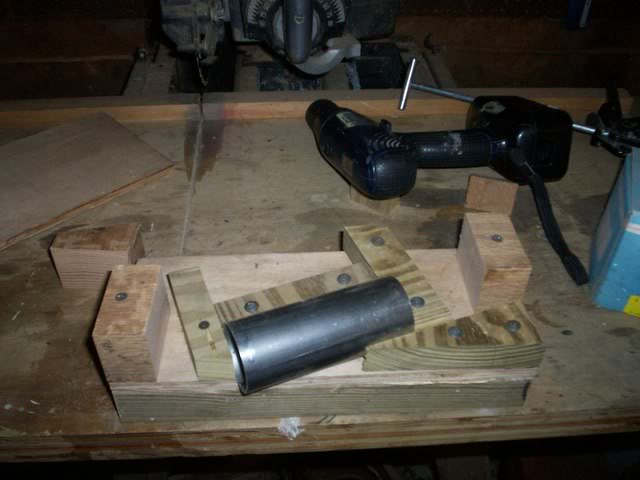

Made a sweet collector jig thing.

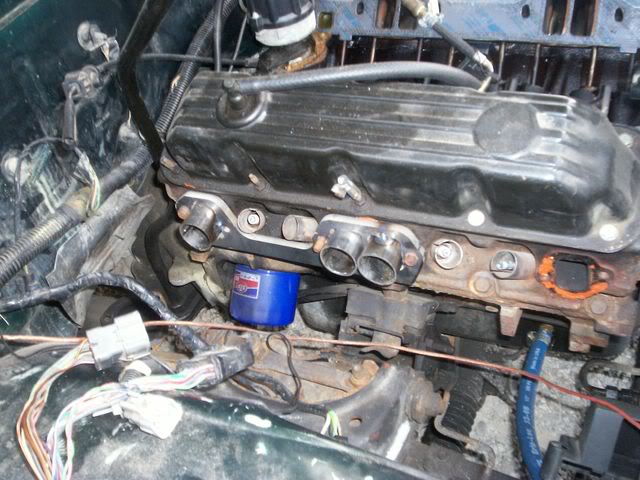

Goofy port shapes FTW

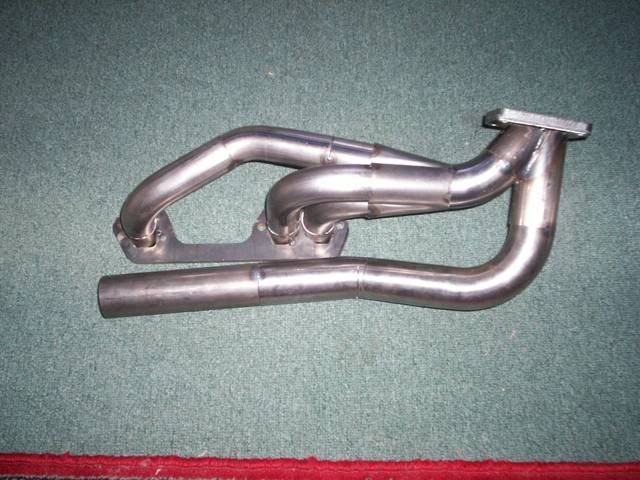

Welded most of it tonight. Should finish it tomarrow as well as adding the external gate pipe and flange.
Its 16gauge mild steel, it is getting ceramic coated. I told the customer he would have to build a brace to support the turbo, since that is not something I can mock up with my truck and without the turbo.
Most of of the parts came from racing-solutions. I couldnt get a V6 flange so Just got the V8 one and cut off the extra part that was not needing.
Made a sweet collector jig thing.
Goofy port shapes FTW
Welded most of it tonight. Should finish it tomarrow as well as adding the external gate pipe and flange.
Its 16gauge mild steel, it is getting ceramic coated. I told the customer he would have to build a brace to support the turbo, since that is not something I can mock up with my truck and without the turbo.
#3
Re: V6 dakota turbo header
Originally Posted by crxvtec91
Not bad, but 16 gauge a bit to thin?
#10
Re: V6 dakota turbo header
Originally Posted by t_cel_t
wow that took a lot of engineering,
lets make a v6
no, that will cost thousands of dollars
not if we just chop off 2 cylinders
genius
lets make a v6
no, that will cost thousands of dollars
not if we just chop off 2 cylinders
genius
