Some HMT style fabrication from across the pond!
Hi,
This is my first post so i thought i would dredge my photo bucket account for some photos of the stuff i have fabbed.
First up is a mig'd mild steel weld elbow mannyfold for a friends 3dr (kinda like a merkur). The engine is not the usual cosworth one but a zetec (same as in your zx3) with a fair bit of head work (all CNC'd), eagle rods, diamond pistons, GT30 and run with megasquirt that i mapped.
These pics are a couple of years old now from what i like to call my "pre TIG period".
Power was 330bhp@bar and much more now we have wound it up. Not had a chance to get back to the dyno but should be 400 bhp+.

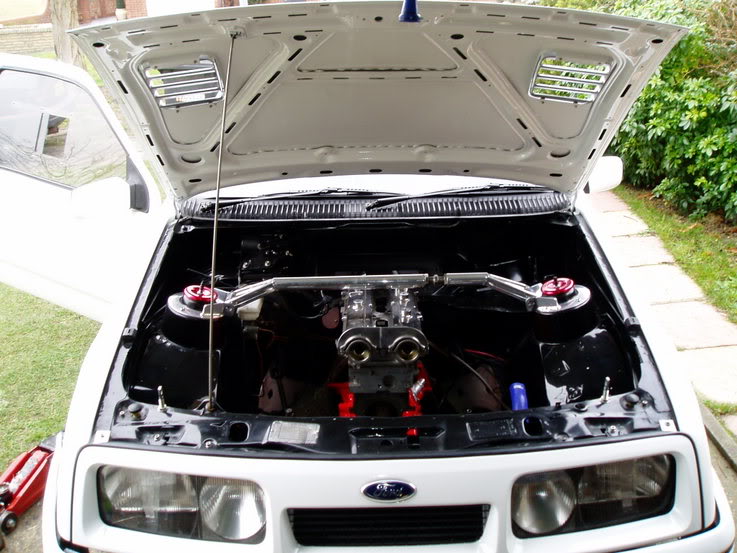

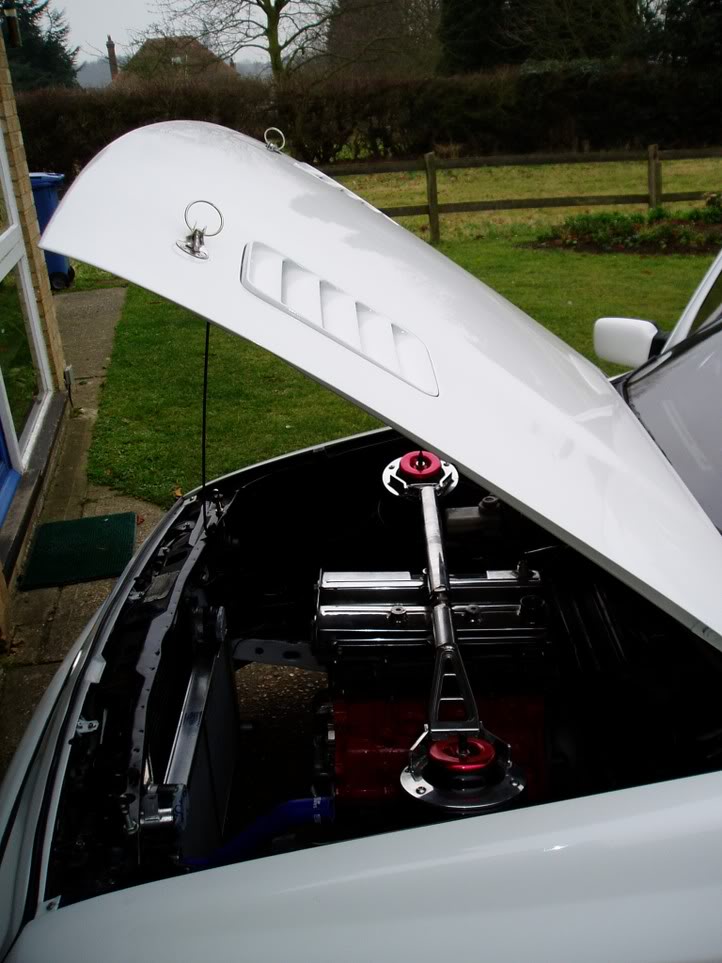

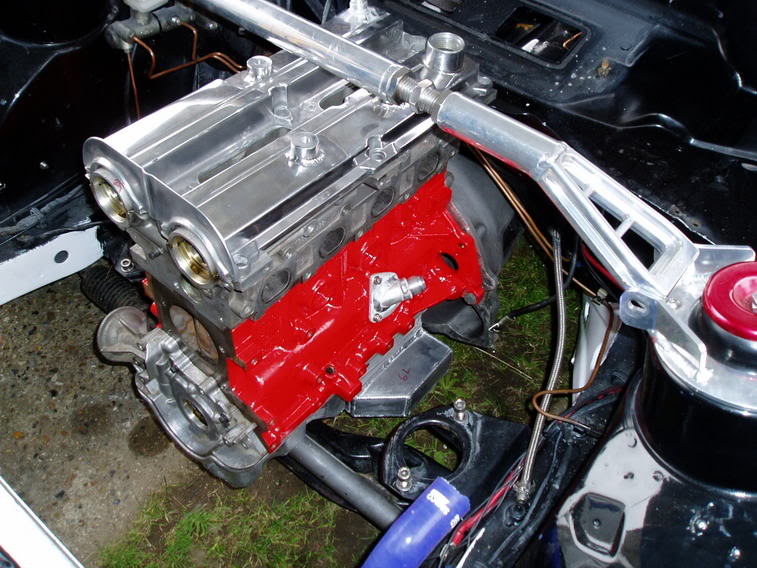

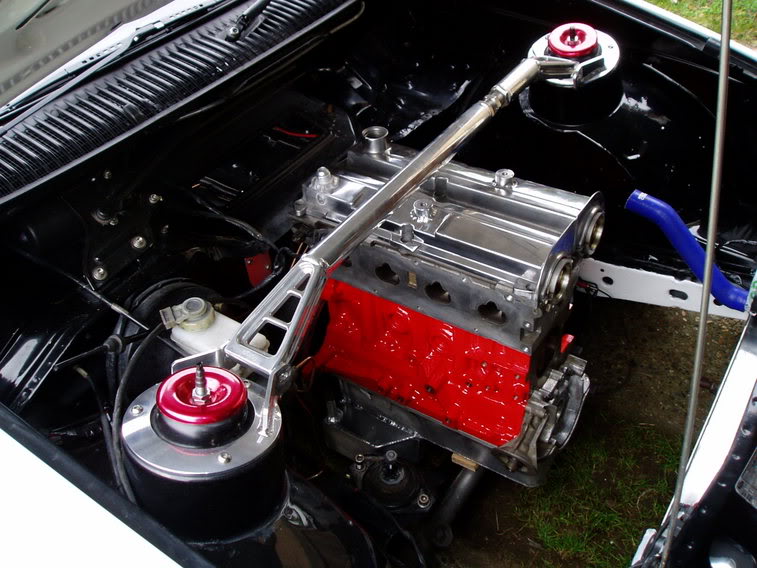

Positioning the engine for new mounts
The flywheel we designed and had machined to run the cosworth clutch on the zetec and bolt to a T5.

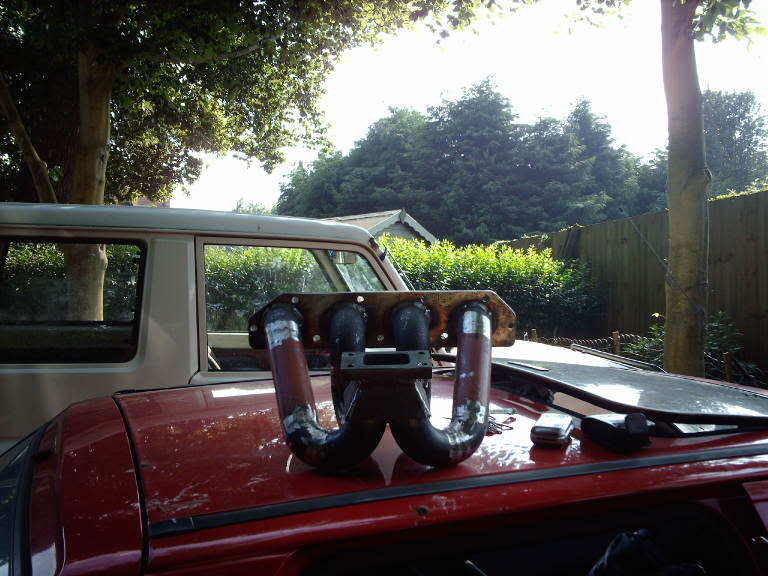

Manifold before paint

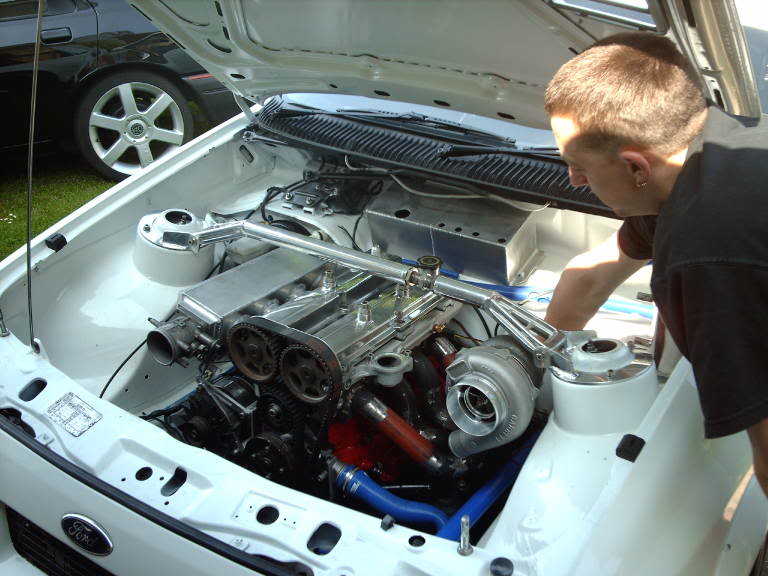

Checking if the GT30 will fit.

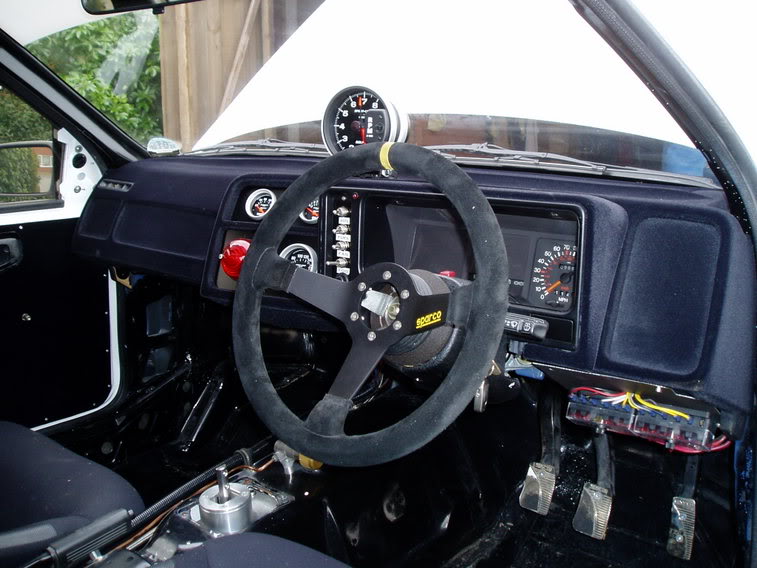

Interior

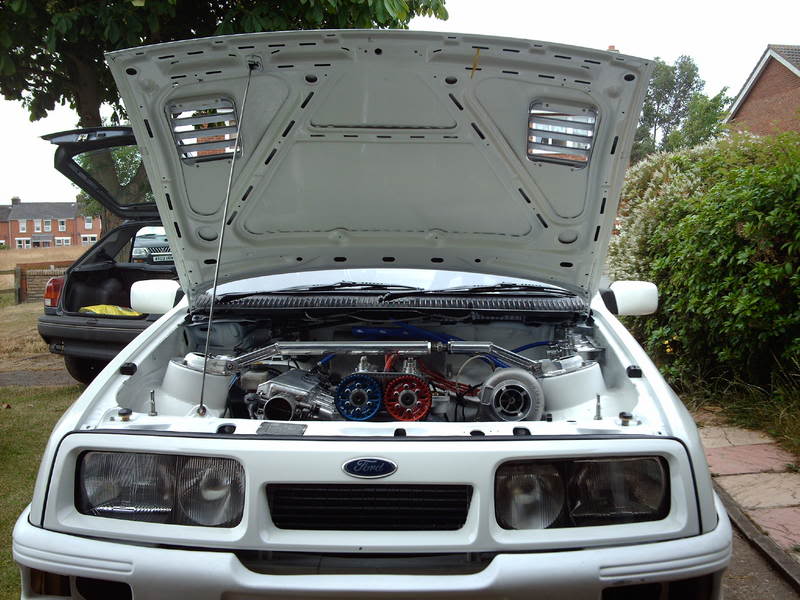

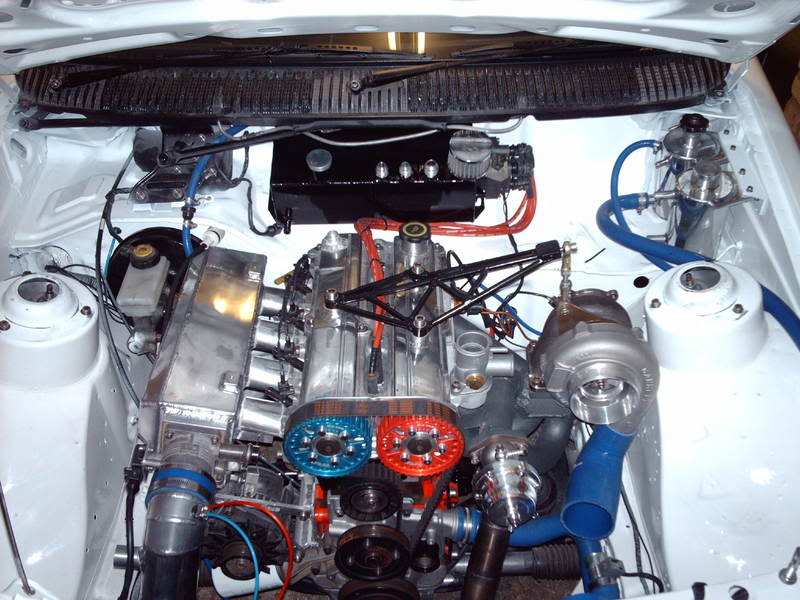

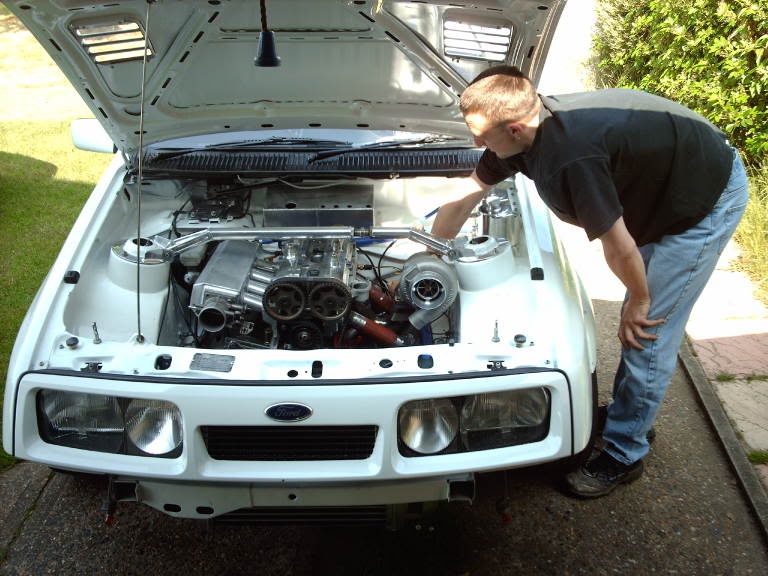

Engine in and nearly ready to go.
Will chuck some pictures of other projects up in a while.
Cheers,
Doug,
Ipswich, Suffolk, England!
This is my first post so i thought i would dredge my photo bucket account for some photos of the stuff i have fabbed.
First up is a mig'd mild steel weld elbow mannyfold for a friends 3dr (kinda like a merkur). The engine is not the usual cosworth one but a zetec (same as in your zx3) with a fair bit of head work (all CNC'd), eagle rods, diamond pistons, GT30 and run with megasquirt that i mapped.
These pics are a couple of years old now from what i like to call my "pre TIG period".
Power was 330bhp@bar and much more now we have wound it up. Not had a chance to get back to the dyno but should be 400 bhp+.
Positioning the engine for new mounts
The flywheel we designed and had machined to run the cosworth clutch on the zetec and bolt to a T5.
Manifold before paint
Checking if the GT30 will fit.
Interior
Engine in and nearly ready to go.
Will chuck some pictures of other projects up in a while.
Cheers,
Doug,
Ipswich, Suffolk, England!
12-31-2007, 01:26 PM
#4
3.0 BAR
Join Date: Mar 2006
Posts: 5,631
Re: Some HMT style fabrication from across the pond!
Very nice man... The real question is are you goinbg to be a siissy ****** like almost ALL your local counterparts and NOT post any ****... I bet a FLAKE bar you fail..... Surprise me.
Its tough, I know.... BUT **** NOW NIG
Its tough, I know.... BUT **** NOW NIG
12-31-2007, 07:27 PM
#9
0.0 BAR
Join Date: Jun 2003
Posts: 0
Re: Some HMT style fabrication from across the pond!
Nice build. Looks good any ripper vids? Looks like this one a bit, https://www.homemadeturbo.com/forum/...?topic=59422.0
