josh19wrc

so, I started on my header a few days ago. Drew the ****** up to ensure it would fit in the god damn car. I hate ford and their scrunched fornt ends. I can barely slip a booger edgewise between the block and radiator, let alone the GT28R I plan on stuffing in there.... but, thats what this is for:



Should give me the room I need to git-R-dun.

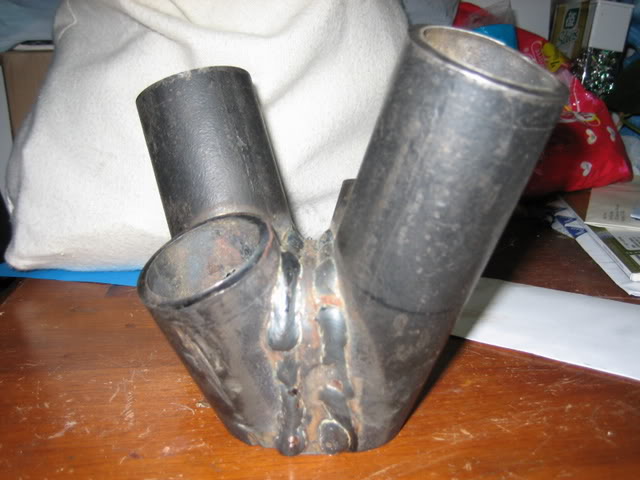

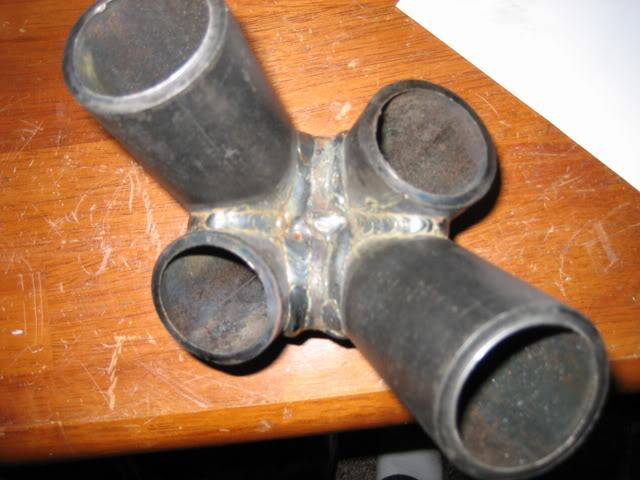

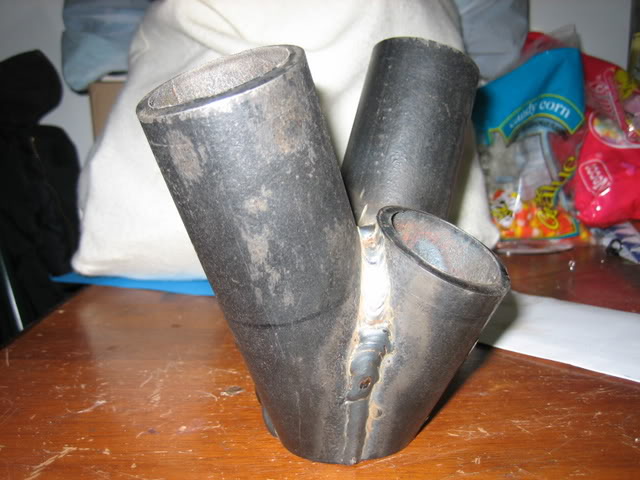

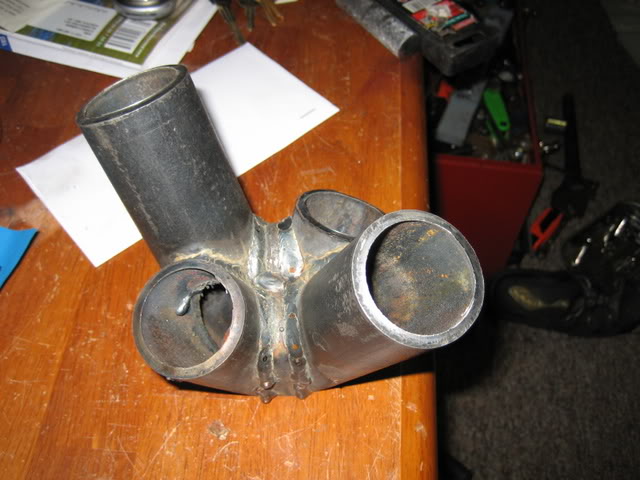

Im still working on the collector, but, its schedule 40 pipe, shouldn't crack:

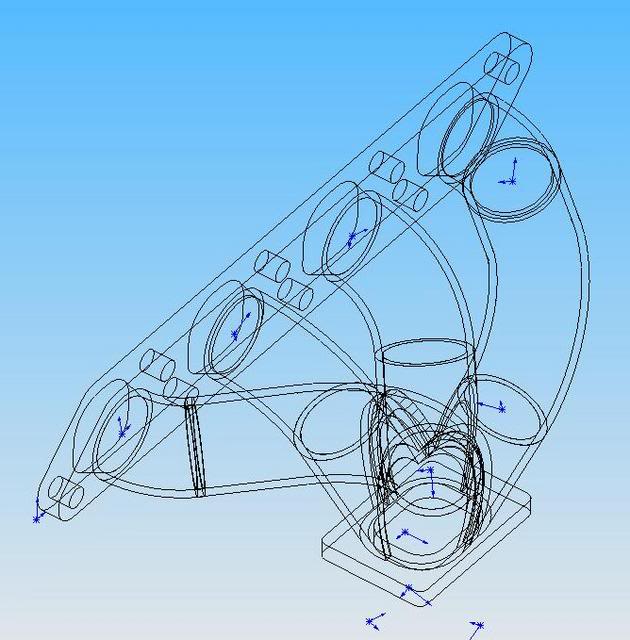

and the end result should look something like this:









all nice, thick sched 40 weld L's

dang

hooray solidworks

Fallen86

wow is that the sweep tool, been awhile sinc ei use SW

BLACKSI

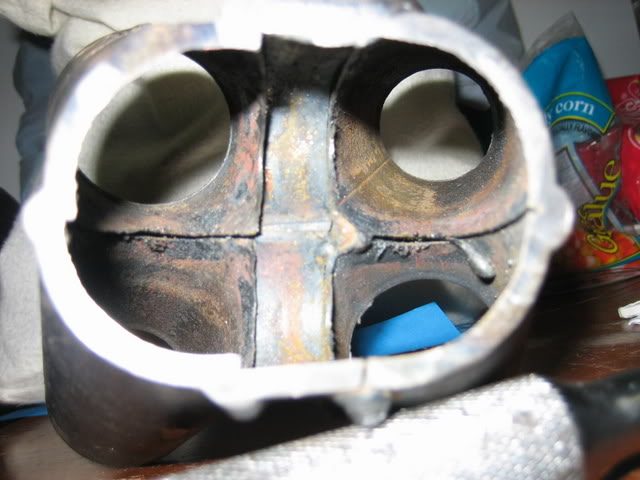

your collecter halfes, have an adpter plate. awsome

ososlohatch

i wouldnt run that collector, then again its going on a ford so it really doesnt matter

josh19wrc

ok, I'll bite, why wouldnt you run the collector? afraid it might work and my ford will make just as much power as your honduh?

soccerking3000

No he wouldn't run the collector because its going to cause unneeded turbulence in the exhaust flow thus lower velocity, and then increasing spool time. You want gradual merging not an ssauto type of setup...

josh19wrc

any longer collector and I wont have enough height to return oil to the pan or clear the radiator/core support... there is a reason I designed it the way I did.... I have to think about making the damn thing fit first, and flow good second. Escorts dont have a shitload of room in front of the engine like hondas do.. And the spacer between the pipes is to make it the same size and shape outlet as the turbo flange inlet. I could always build a log manifold instead....

soccerking3000

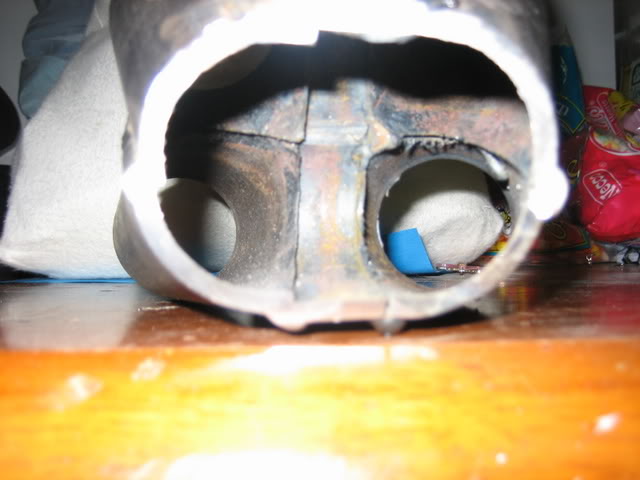

flow well, but regardless, the collector would be smaller had you not used that strip... I wasn't talking about collector length before, the way the collector splits and then is joined with a strip is stupid, why didn't you just weld it straight together?

josh19wrc

because then the collector would be square, and T2 flanges arent square. If we are going to get nitpicky about it, the convergence angle of the tubes shouldnt be more then 7*, any more then 7* creates turbulence... My tubes join at an 35* angle....

Strip or no strip, its still gonna be lighyears ahead of a log manifold.
