DIY turbo timer

Reply Subscribe

Thread Tools

Search this Thread

07-03-2008, 01:54 PM

#21

hondacivc93

1.5 BAR

Thread Starter

Join Date: May 2005

Posts: 673

Re: DIY turbo timer

Quote:

Originally Posted by txdohczc

what is the purpose of the diode. i think you are way over complicating it

if you didnt have the diode the power from the relay would keep charging the cap and it would never shut off

07-03-2008, 01:55 PM

#22

hondacivc93

1.5 BAR

Thread Starter

Join Date: May 2005

Posts: 673

Re: DIY turbo timer

Quote:

Originally Posted by wickedpumpkin

I built one with a 555 timer, a couple of caps, a pot, and a transistor driving a relay. It does just what it is supposto, it is variable from 1 to 15 minutes by turning a ****. Parts were free because I am an electrical tech, however they can be purchased for 5 to 10 bucks.

where would you go to buy this stuff? i dont think my local radio shacks carry stuff like this anymore.

07-03-2008, 02:01 PM

#23

deadnutsac

0.5 BAR

Join Date: May 2006

Posts: 73

Re: DIY turbo timer

radio shack still carries this ---- even the 555 timer. But I usualy just pick up electronics on the side of the road and desolder everthing. But then my chic calls my a heartless basterd.

07-03-2008, 02:03 PM

#24

deadnutsac

0.5 BAR

Join Date: May 2006

Posts: 73

Re: DIY turbo timer

hey wicked have you tested it out in a car yet

07-03-2008, 02:48 PM

#25

wickedpumpkin

0.5 BAR

Join Date: Jan 2007

Posts: 66

Re: DIY turbo timer

I never tested it on the car, crashed the damn thing before I get the chance. It will probally go into the next build. Its pretty dan simple though, all you are doing is sending power to the ecm, ignition, injectors, fuel pump, for a timed period. I have mine built with a 4 pole relay so I can have 4 seperate circuits running through it. I mounted it all in a little plastic box, I stuck a couple of status led's, a dial for the time delay, and a bypass switch.

07-03-2008, 02:54 PM

#26

hondacivc93

1.5 BAR

Thread Starter

Join Date: May 2005

Posts: 673

Re: DIY turbo timer

think you could whip up a quick MS paint schematic of that beast?

07-03-2008, 05:34 PM

#27

Atticus

1.5 BAR

Join Date: Oct 2006

Posts: 1,147

Re: DIY turbo timer

Quote:

Originally Posted by hondacivc93

think you could whip up a quick MS paint schematic of that beast?

x2

first noob that gets one running and posts a wright up will earn some good credit

07-04-2008, 10:48 AM

#28

wickedpumpkin

0.5 BAR

Join Date: Jan 2007

Posts: 66

Re: DIY turbo timer

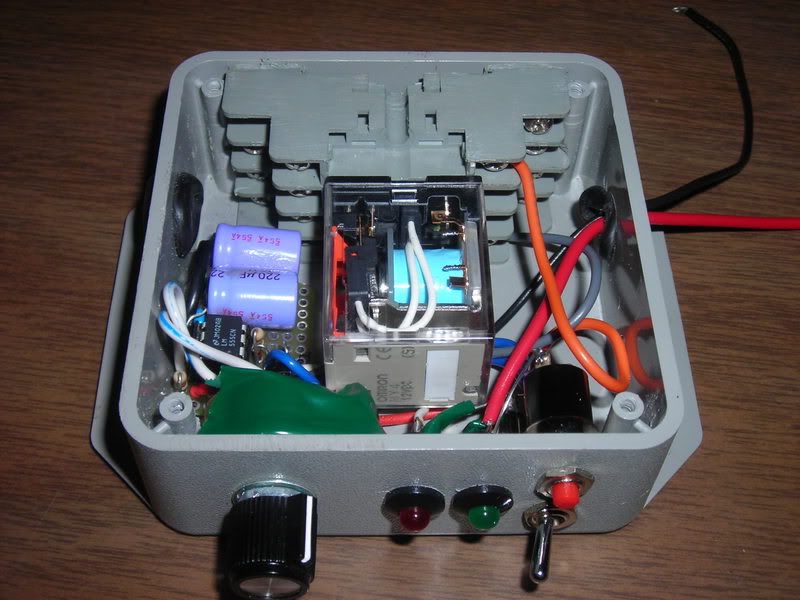

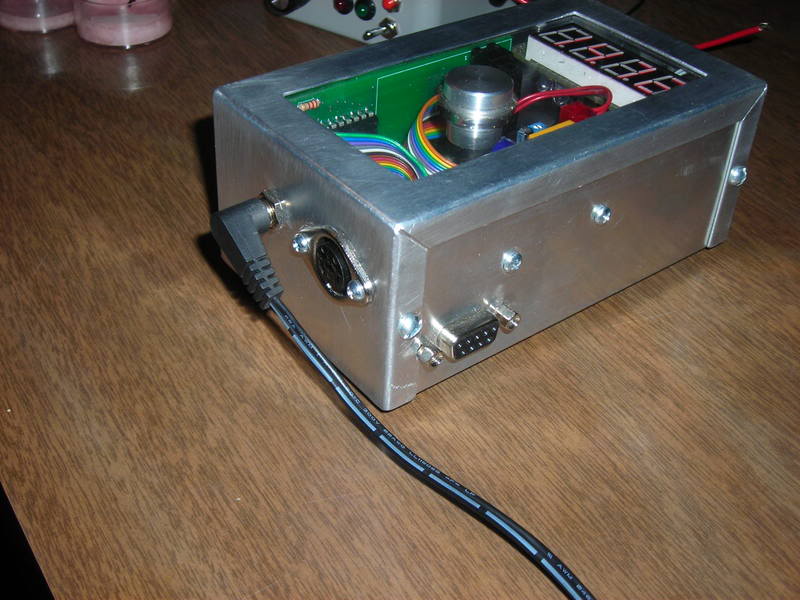

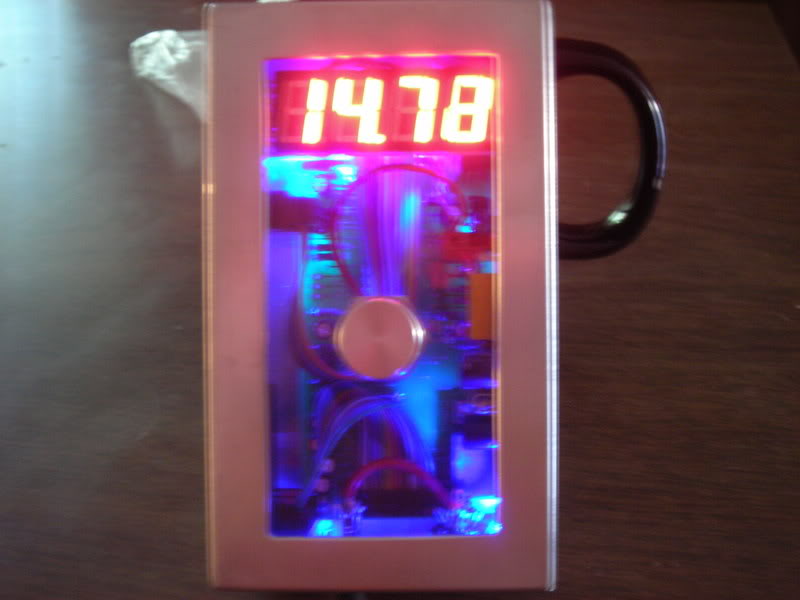

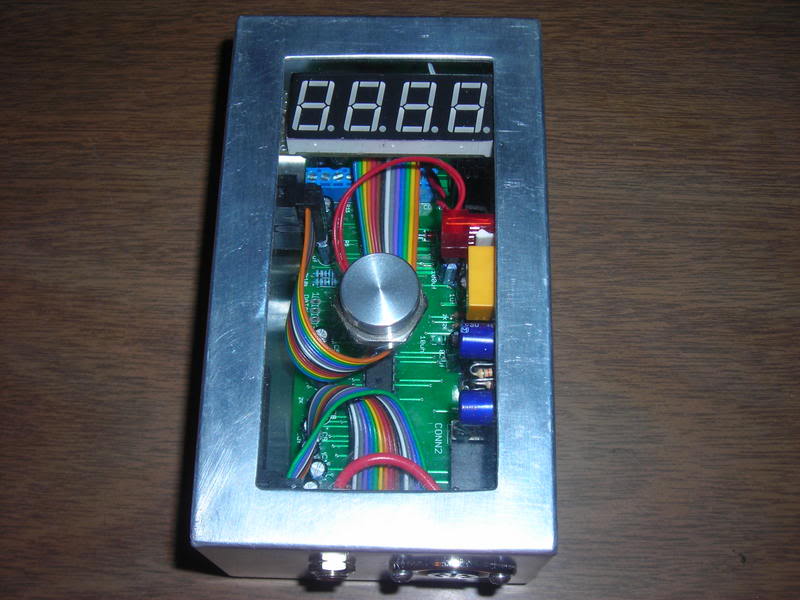

Yeah, I can make that happen. I believe I ave it written down a work some where so you wont see it until monday. Here are some pics of it and my 14point7 wide band. That is a piezo switch on the top, you turn it on by touch. I have too much free time at work!
I hope I posted the right link for pics :1

Name: DSCN0208.jpg
Views: 1261
Size: 80.3 KB
