Problems burning a chip with Burn1

Thread Tools

Search this Thread

Old 05-03-2007, 01:18 AM
  #11
1.0 BAR
Thread Starter

hard2obtain's Avatar

Join Date: Jan 2006
Posts: 526
Default Re: Problems burning a chip with Burn1

Ok, i burn again the beerbongkickass bin into a brand new chip, but have same problem. When the car starts, have a bad idle and smokes black, then shut downs, like if was very rich. I think it was in limp mode

Then i change for my actual chip and idles fine again, what can it be
hard2obtain is offline
Old 05-03-2007, 10:58 PM
  #13
1.0 BAR
Thread Starter

hard2obtain's Avatar

Join Date: Jan 2006
Posts: 526
Default Re: Problems burning a chip with Burn1

Originally Posted by Dmc1
Uninstall flash&burn and reinstall it..Or else BBK's rom just isn't compatible with your setup :P
The bin are ok, im going to try reinstalling flasn&burn
hard2obtain is offline
Old 05-06-2007, 08:17 PM
  #14
1.0 BAR

Ef8sirjunkie's Avatar

Join Date: Aug 2005
Posts: 209
Default Re: Problems burning a chip with Burn1

when ever i go to verify my chip with the buffer it says ""FAILURE: Verification Faild (Not Matched)"" is the Buffer address diffrent from the Chip address im using the same values for both
Start 008000 End 00FFFF for both Buffer and Chip Address... the chip Programed, Read, and Chip is not Blank...
Hard2Obtain did you get your Burn 1 fixed yet
Ef8sirjunkie is offline
Old 05-06-2007, 08:49 PM
  #16
1.0 BAR

Ef8sirjunkie's Avatar

Join Date: Aug 2005
Posts: 209
Default Re: Problems burning a chip with Burn1

Originally Posted by Dmc1
buffering address is start in hex 000000 and end in 00FFFF.
Thnak you ima try hear again...
Ef8sirjunkie is offline
Old 05-07-2007, 01:48 AM
  #17
1.0 BAR
Thread Starter

hard2obtain's Avatar

Join Date: Jan 2006
Posts: 526
Default Re: Problems burning a chip with Burn1

Originally Posted by Dmc1
buffering address is start in hex 000000 and end in 00FFFF.
Those are the hex values you actually use to burn 27sf512 chip?

hard2obtain is offline
Old 05-07-2007, 09:37 AM
  #18
1.5 BAR

ZC4ME's Avatar

Join Date: Mar 2004
Posts: 1,301
Default Re: Problems burning a chip with Burn1

When using a 512 chip you start at 008000 and end in 00FFFF The latest version of Flash&Burn should put the right values in when you select the chip.
ZC4ME is offline
Old 05-09-2007, 12:26 AM
  #19
1.0 BAR
Thread Starter

hard2obtain's Avatar

Join Date: Jan 2006
Posts: 526
Default Re: Problems burning a chip with Burn1

Originally Posted by Ef8sirjunkie
when ever i go to verify my chip with the buffer it says ""FAILURE: Verification Faild (Not Matched)"" is the Buffer address diffrent from the Chip address im using the same values for both
Start 008000 End 00FFFF for both Buffer and Chip Address... the chip Programed, Read, and Chip is not Blank...
Hard2Obtain did you get your Burn 1 fixed yet

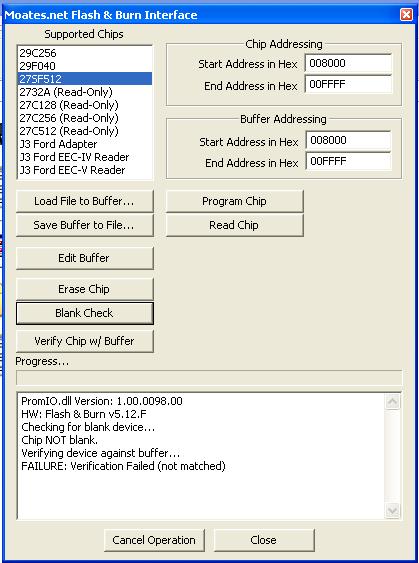

Thats what i do, i have the right values for buffer and chip address but still have that ""FAILURE: Verification Faild (Not Matched)"" error. Here's an image attached from my flash&burn program, i can red and burn but have that error
Attached Thumbnails Problems burning a chip with Burn1-flash-burn-problem.jpg
hard2obtain is offline
Old 05-09-2007, 12:38 AM
  #20
1.0 BAR

Ef8sirjunkie's Avatar

Join Date: Aug 2005
Posts: 209
Default Re: Problems burning a chip with Burn1

yep thats what im getting... im also now having diff problems with my laptop and desk top (i will start a new thread with these problems so we dont get off subject)...
Ef8sirjunkie is offline
