Hybrid/Tech B16 / B18 / ZC / D16 / H22 / Mini-Me Ask your Honda Engine Questions here.

Trans problems

Thread Tools

Search this Thread

Old May 19, 2008 | 11:35 PM
  #11
Guy-Fast's Avatar
0.0 BAR

Joined: Dec 2002
Posts: 0
Default Re: Trans problems

Originally Posted by Mista Bone
OG throwdown!
LOL I decided just to delate all of it. crxvtec's thread doesnt need me owning some kid LOL
Old May 20, 2008 | 12:31 AM
  #12
seerex's Avatar
Thread Starter
0.0 BAR

Joined: Jun 2003
Posts: 0
Default Re: Trans problems

Originally Posted by chris
LOL I decided just to delate all of it. crxvtec's thread doesnt need me owning some kid LOL
Lol well I guess tomorrow I am going to go help him pull the trans and take it apart to see whats up.
Old May 26, 2008 | 05:24 PM
  #13
seerex's Avatar
Thread Starter
0.0 BAR

Joined: Jun 2003
Posts: 0
Default Re: Trans problems

Small update: Well no pics at the moment but did the teardown on the transmission to find out it has a spoon lsd. Do you guys think that the clutches inside the lsd can be wore down that it is causing the right turn clunk noise? Also I swapped different transmissions into buddies car, a gsr transmission with obx lsd with same axles into buddies car and there is no more clunk noise....
Old May 26, 2008 | 05:28 PM
  #14
Bone1's Avatar
0.0 BAR

Joined: Jan 2005
Posts: 0
Default Re: Trans problems

calling BS on the Spoon
Old May 26, 2008 | 05:40 PM
  #15
seerex's Avatar
Thread Starter
0.0 BAR

Joined: Jun 2003
Posts: 0
Default Re: Trans problems

lol I will get pics before the end of the day.
Old May 27, 2008 | 04:42 PM
  #16
widebody93's Avatar
3.0 BAR

Joined: Jan 2006
Posts: 1,605
Default Re: Trans problems

Well here it is another day, where are/is the pictures
Old May 27, 2008 | 05:17 PM
  #17
seerex's Avatar
Thread Starter
0.0 BAR

Joined: Jun 2003
Posts: 0
Default Re: Trans problems

Well here are the pics :1

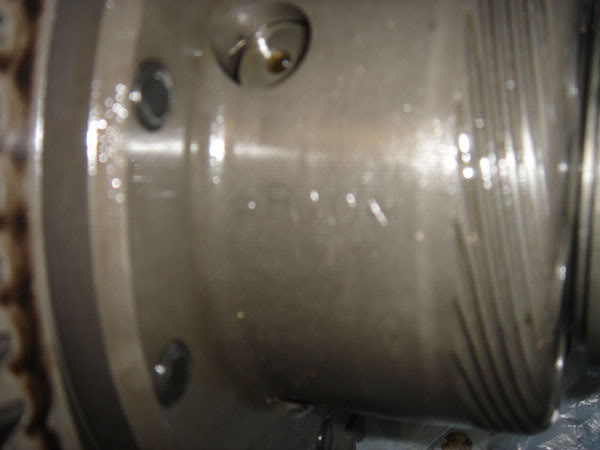

Name:  spoonlsd.jpg
Views: 13
Size:  28.0 KB

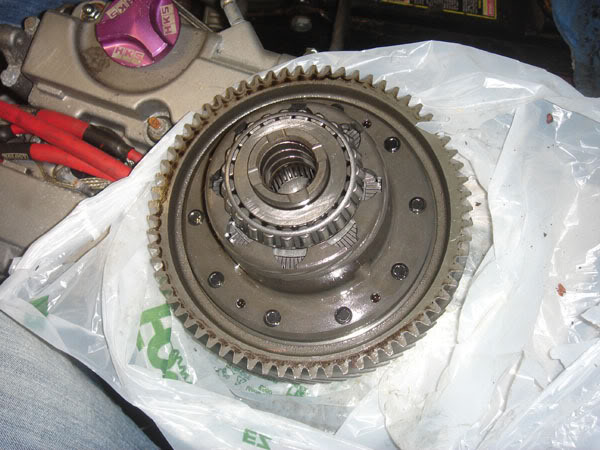

Name:  spoonlsd2.jpg
Views: 19
Size:  65.2 KB
Old May 27, 2008 | 06:33 PM
  #18
Bone1's Avatar
0.0 BAR

Joined: Jan 2005
Posts: 0
Default Re: Trans problems

it's a Kaaz unit that Spoon stamped their name on.

So it's not a Spoon unit

Wait that S looks like a "6"

Kaaz's always clunk, what oil was being used?

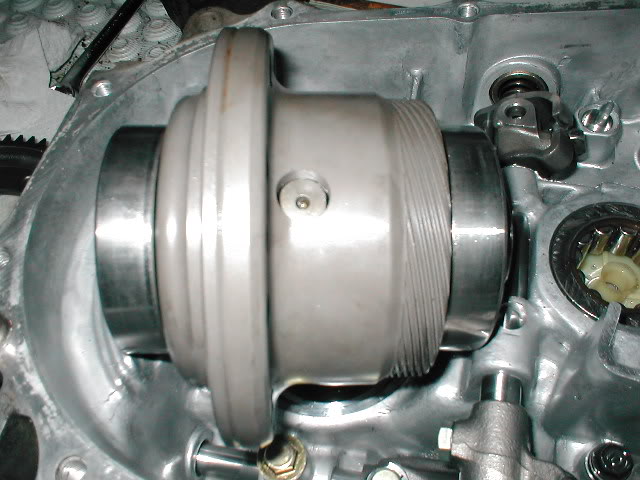

Name:  P5020015.jpg
Views: 15
Size:  55.6 KB

Cusco uses a smaller diameter clutch pack, where Kaaz claims 50% larger clutches. Also Kaaz's don't like superhard launches on sticky slicks

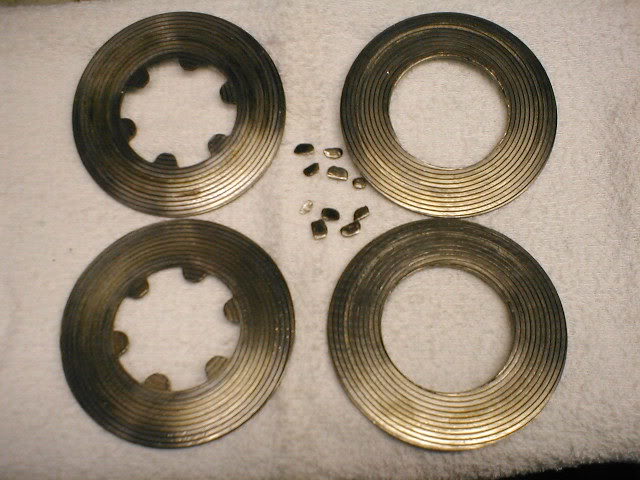

Name:  P7020014.jpg
Views: 15
Size:  61.4 KB


Old May 27, 2008 | 06:57 PM
  #19
seerex's Avatar
Thread Starter
0.0 BAR

Joined: Jun 2003
Posts: 0
Default Re: Trans problems

Humm it is a s not a 6 lol. Kaaz, spoon it does not really matter as long as it works. He was using Honda MTF when I told him not to. He also told me it only clunk when he turn right but not when he turn left. He gave me the trans so should I take the lsd apart and rebuild it?
Old May 28, 2008 | 01:11 AM
  #20
Bone1's Avatar
0.0 BAR

Joined: Jan 2005
Posts: 0
Default Re: Trans problems

figure about $500 or more in parts......thats if you can use the Kaaz parts.

I'd contact Ray at KaazUSA and see what he says.

Clutch kit for my Kaaz was $275 several years ago.....with OBX only $360 and holds more power, I'm gonna convert the Kaaz into a spool.
