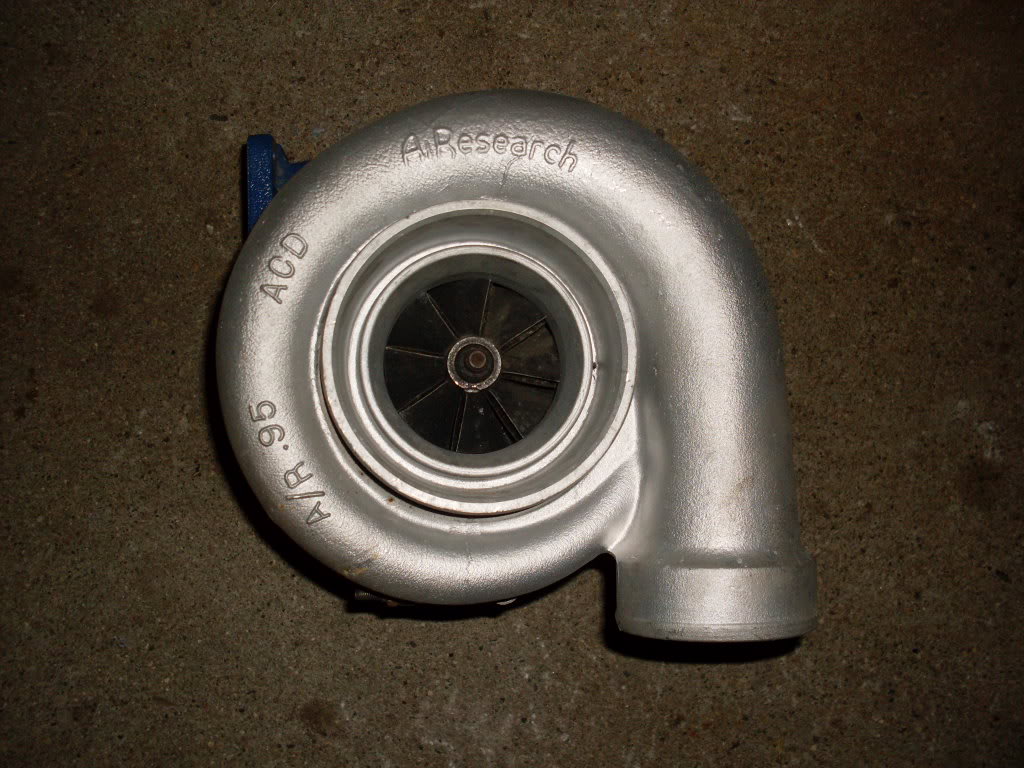

Buddy got it off of a 6.9 liter i think he said not sure just wondering if anyone knew what size it excatly is.No other numbers the exhaust is a 5inch outlet v band i think.And its like a T3 but way bigger exhaust inlet not divided or nothing.



is there a number stamped on the other side



found a tag was drunk lastnight so didnt see anything but yeah. tag

Detroit Diesel Alison
Part no. 5102352



i love that turbo. wanna sell?



Have to find out what its good for first if its to big for a 408w im going to build.



this turbo is made for 950-1100 cfm.it's for a 12-14 litre detroit diesel'it doesn't support an early spool.way to much lag.



damn so its useless even on a bigblock v8?



well calculate the cfm and see if turbo supports it,see the .95 a/r is set up for mid range so no early spool but on a race motor it might be great.



Im copying this build
dyno day 20 psi video part one - Car Videos on StreetFire
figure i go with a 383 windsor i can rev it higher which obviously seems to do better then to have a low reving bigger cubic inch motor.Although his is a gt47r what mm would my turbo be about?Or can i just pull the housing off and measure it?


Just wish i could find someone running this turbo.Its a t6 inlet.



here try this
TurboByGarrett.com - Turbochargers
