T-Bird downpipe flange

Reply Subscribe

Thread Tools

Search this Thread

Feb 7, 2008 | 11:37 PM

kamilk69

Thread Starter

1.5 BAR

Joined: Apr 2006

Posts: 1,147

T-Bird downpipe flange

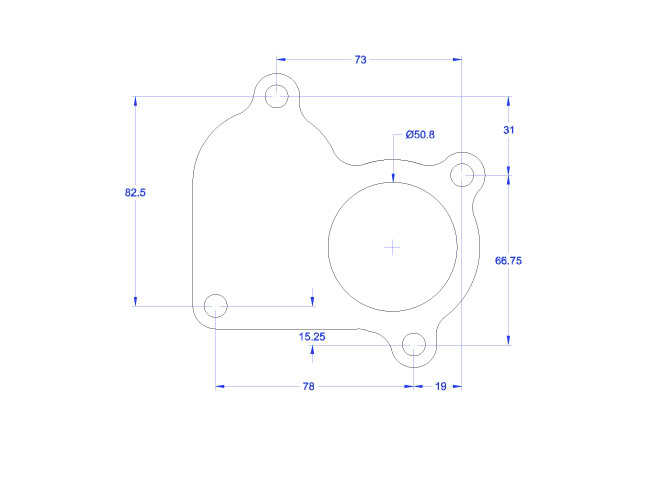

im putting together a kit for my buddies d15 and i got a ihi t3 from a t-bird, .52 .48, i drew up this flange in autocad and i just wanted to know if the measurement look right to you guys,

Name: downpipe-flange.jpg
Views: 82
Size: 305.5 KB

Name: downpipe-flange.jpg
Views: 82
Size: 305.5 KB

Feb 8, 2008 | 03:11 AM

1lowscort

0.5 BAR

Joined: Oct 2006

Posts: 177

Re: T-Bird downpipe flange

if it is an IHI it is not a t3. also the t3 uses a different flange than that.

Feb 8, 2008 | 03:13 AM

HMTguy

Guest

Posts: n/a

Re: T-Bird downpipe flange

Quote:

Originally Posted by 1lowscort

if it is an IHI it is not a t3. also the t3 uses a different flange than that.

? He never said it was a T3, it's definitely an IHI turbo.

And why are you asking us if the measurements are right? You have the turbo right in front of you.

Feb 8, 2008 | 08:37 AM

kamilk69

Thread Starter

1.5 BAR

Joined: Apr 2006

Posts: 1,147

Re: T-Bird downpipe flange

i know i have the turbo right in front but im not very good at the whole measuring acuratly thing, so i was hoping weir or bmc could chime in on this and verify the dimensions.

Feb 8, 2008 | 11:17 AM

HMTguy

Guest

Posts: n/a

Re: T-Bird downpipe flange

Well it's dimensioned incorrectly, I can tell you that much. I don't mean the actual dimensions are wrong though.

Feb 8, 2008 | 06:45 PM

1lowscort

0.5 BAR

Joined: Oct 2006

Posts: 177

Re: T-Bird downpipe flange

Quote:

Originally Posted by kamilk69

and i got a ihi t3 from a t-bird

hmm, i guess you are right, he didn't say that it was a t3

Feb 8, 2008 | 06:46 PM

HMTguy

Guest

Posts: n/a

Re: T-Bird downpipe flange

Missed that one!

Feb 8, 2008 | 07:45 PM

kamilk69

Thread Starter

1.5 BAR

Joined: Apr 2006

Posts: 1,147

Re: T-Bird downpipe flange

its a ihi with a t3 inlet flange, also know as a ihi t3,

anyone with usefull information?

Feb 9, 2008 | 01:21 AM

HMTguy

Guest

Posts: n/a

Re: T-Bird downpipe flange

Yes. Don't dimension anything off another dimension. Use a common reference point, because you increase the margin of error when you dimension the way you did.

Feb 9, 2008 | 05:05 AM

#10

BLAAST

1.5 BAR

Joined: Oct 2004

Posts: 877

Re: T-Bird downpipe flange

Quote:

Originally Posted by kamilk69

its a ihi with a t3 inlet flange, also know as a ihi t3,

anyone with usefull information?

Hey, zetec boosting fellow!

Yes it's a IHI 51t21, basically a ihi rhb5 just like the probe/MX6 with same turbine wheel but a 2mm LARGER compressor wheel. It's actually a nice turbo although the shaft is T25 sized and much flimsier than a T3.

I do have the factory cast iron O2 housing that fits it if you want. It's yours for the price of shipping.
