my turbo progress ..alot of pics
06-05-2006, 01:16 AM
#1
1.0 BAR
Thread Starter
Join Date: Apr 2006
Posts: 439
my turbo progress ..alot of pics
stock ls turbo
going for Full radiator, ac, ps

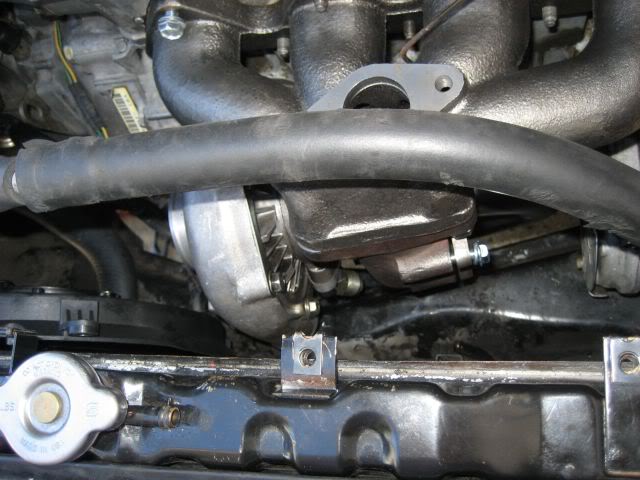

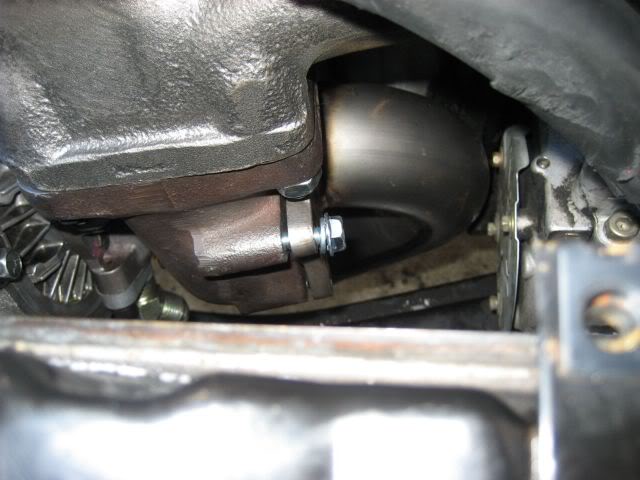

UGr manifold+turbonetics t3/t4 54 trim 63 ar stage3
spooling 2.5 ac/ps dp
spooling 2.5 dp
ac/ps compat
on jackstands....just took off xmember

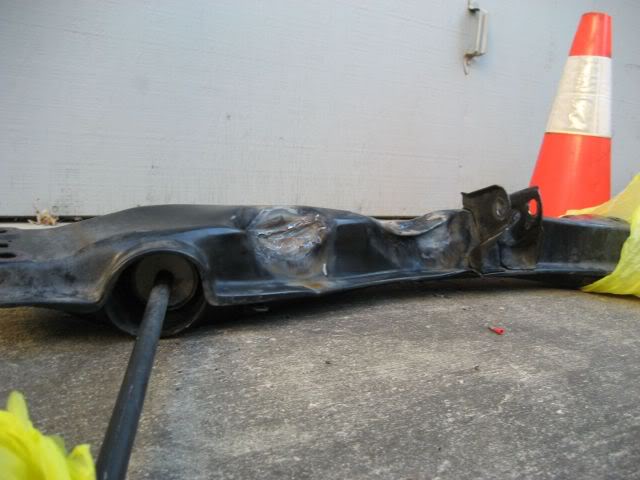

bang the ---- outa the stock xmember
shaved webbing

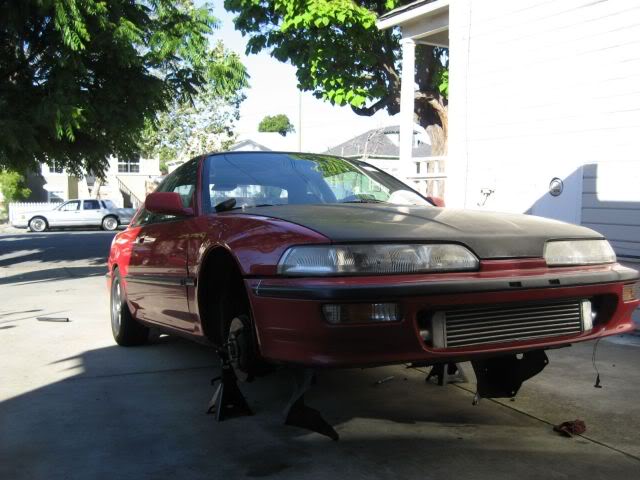

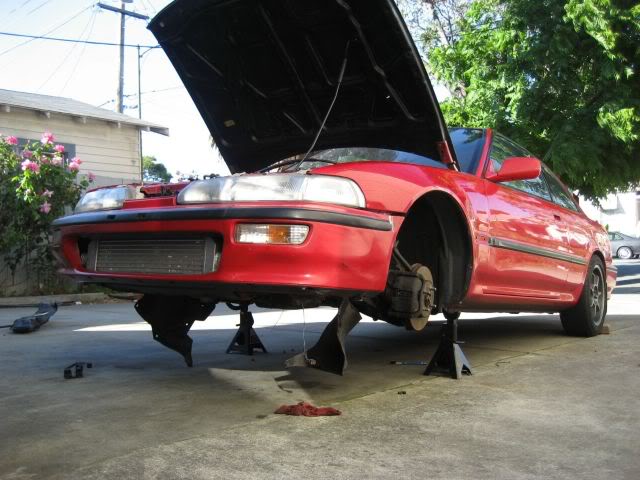

another view of jrc 6inch on jackstands
tunertoys block fitting+ steathmode lines

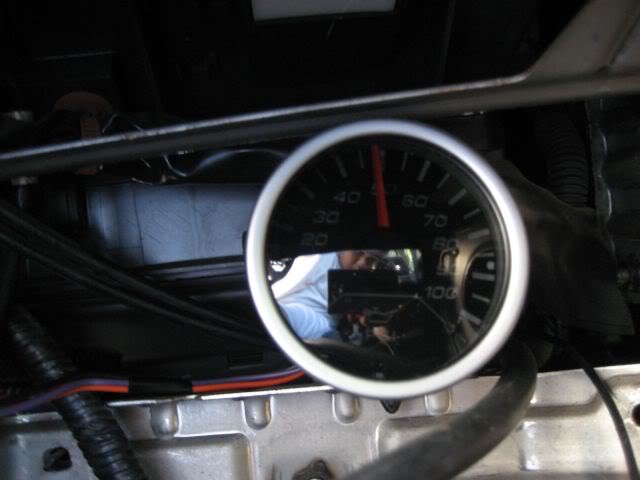

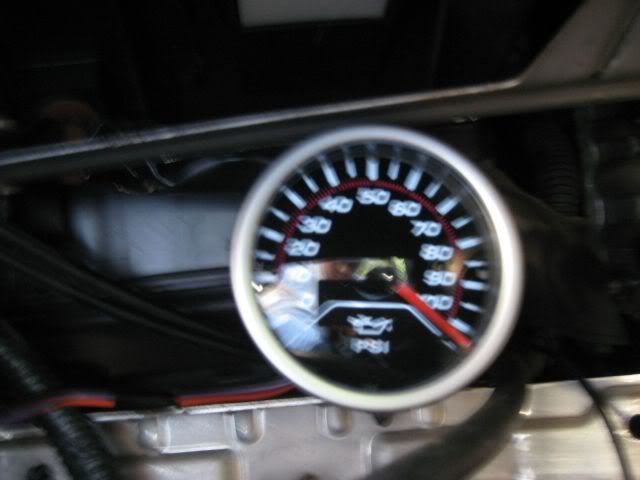

new megan racing guages
they rock

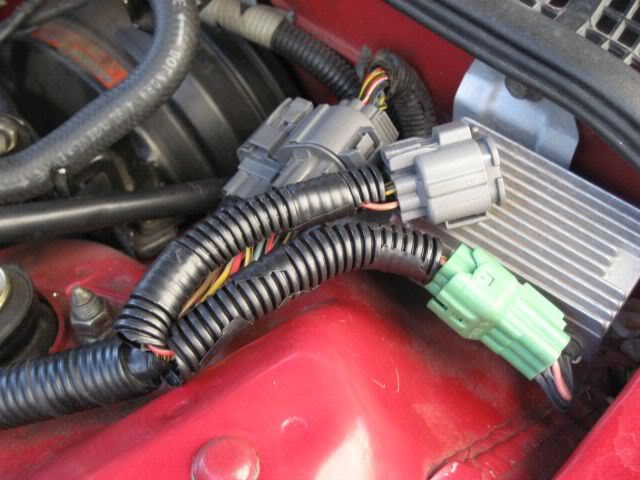

resisitorbox install no wire cutting
dsm 450cc blacktops
i got ownd in a small semi ditch
thx for viewing
ill update as i get more done as i need to finsih the oil return and hot fmic piping
going for Full radiator, ac, ps
UGr manifold+turbonetics t3/t4 54 trim 63 ar stage3
spooling 2.5 ac/ps dp
spooling 2.5 dp
ac/ps compat
on jackstands....just took off xmember
bang the ---- outa the stock xmember
shaved webbing
another view of jrc 6inch on jackstands
tunertoys block fitting+ steathmode lines
new megan racing guages
they rock
resisitorbox install no wire cutting
dsm 450cc blacktops
i got ownd in a small semi ditch
thx for viewing
ill update as i get more done as i need to finsih the oil return and hot fmic piping
06-05-2006, 02:28 AM
#4
0.0 BAR
Join Date: Feb 2006
Posts: 0
Re: my turbo progress ..alot of pics
very similar to the setup I'm buying Wednesday... Phil from SP is hooking me up with free shipping
I'm going with a 50 trim .63 A/R on my integra.
Your setup looks really clean so far. That manifold looks like a Blox... but silver.
I'm going with a 50 trim .63 A/R on my integra.
Your setup looks really clean so far. That manifold looks like a Blox... but silver.
06-05-2006, 12:07 PM
#7
1.0 BAR
Thread Starter
Join Date: Apr 2006
Posts: 439
Re: my turbo progress ..alot of pics
Originally Posted by sakpase
does your oil feed line bolt right into the turbo housing? I got a kit from stealthmode and the feed line is the only thing that doesn't have an adapter for the turbo.
end result is
i used a oil feed flange with pretaped threads
06-05-2006, 02:32 PM
#8
1.0 BAR
Join Date: Apr 2006
Location: Kingsland, GA
Posts: 539
Re: my turbo progress ..alot of pics
Originally Posted by soontobeDA
yah mine did but i broke a brass fitting it in
end result is
i used a oil feed flange with pretaped threads
end result is
i used a oil feed flange with pretaped threads
06-05-2006, 03:05 PM
#10
1.0 BAR
Thread Starter
Join Date: Apr 2006
Posts: 439
Re: my turbo progress ..alot of pics
Originally Posted by JK_Motorsports
100psi oil pressure?
Wha are you doing for a Crossmember now that your stocker is out?
Wha are you doing for a Crossmember now that your stocker is out?
i bangd it for more room for the oil return/ turbopiping
