my setup (h22 turbo)
#1
my setup (h22 turbo)
just finished installing my entire kit last weekend, and so far its running good. had a small oil leak problem, but thats fixed.
car is 1995 prelude SRV (VTEC for you states people )
setup consists of
borgwarner t3/t04e 54 trim 0.63 exhaust
custom top mount manifold made by blaast performance
3" downpipe also from blaast
38mm tial wastegate with 0.5bar spring
greddy type-s BOV (authentic)
2.5" charge piping
ebay special FMIC
650cc injectors (not installed, waiting on ecu)
chipped p28 rthat will be running uberdata (waiting on)
generic boost gauge

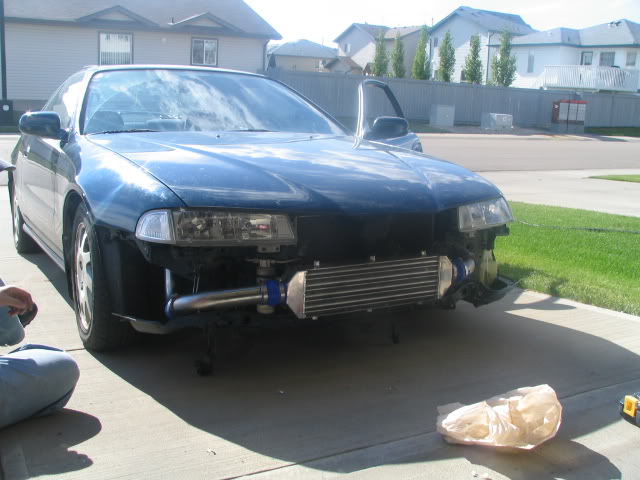

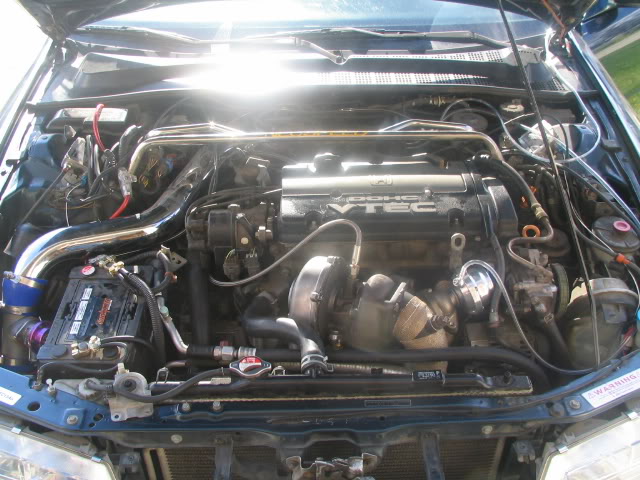

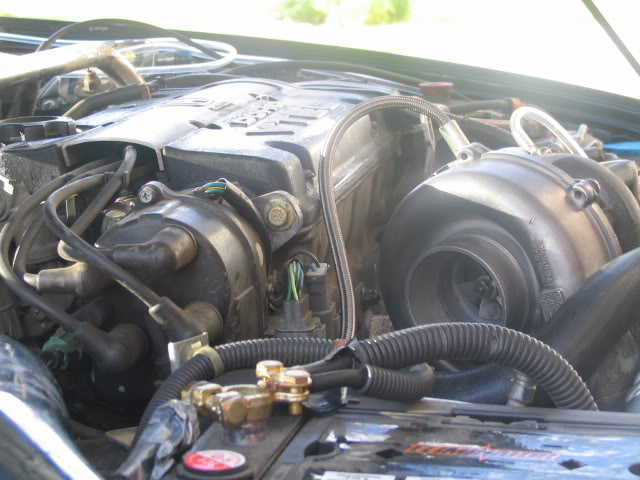

pics
car is 1995 prelude SRV (VTEC for you states people )
setup consists of
borgwarner t3/t04e 54 trim 0.63 exhaust
custom top mount manifold made by blaast performance
3" downpipe also from blaast
38mm tial wastegate with 0.5bar spring
greddy type-s BOV (authentic)
2.5" charge piping
ebay special FMIC
650cc injectors (not installed, waiting on ecu)
chipped p28 rthat will be running uberdata (waiting on)
generic boost gauge
pics
#4
Re: my setup
running open downpipe right now and it scares small children. the turbo spools insanely loud. bov was off ebay. i think 80 U.S. no vid yet as its not tuned. i only take it out for small trips, and be really easy on it. im going to be using a p28 from xenocron. injectors arn't in yet until i get my ecu
goals are around 250-260whp.
for right now i took the spring out of the wastegate and keeping a close eye on the boost gauge
goals are around 250-260whp.
for right now i took the spring out of the wastegate and keeping a close eye on the boost gauge
#8
Re: my setup
damn, went out to take more pictures, look under the car and i have another oil leak. pan is covered, some on downpipe. looks like return isn't tight enough/ oil pressure T is leaking a bit. easy fixes though.
