Just another 300 whp stock block honda....
#1
Just another 300 whp stock block honda....
well, after my original LS motor lost all oil pressure 5 days before my dyno day, i swapped in my backup motor. everything went well from there, with the help of xenocron and blundar. they helped get it running and tuned it. runs fantastic now, and made 302 whp and 235 tq at 13 psi. i'll list off the setup and post some pics for you all to enjoy.
setup consists of
stock LS, 94 b18b, oil pan to valve cover, 84k.
Borg warner GM-8 turbo
SSauto BLUR manifold (braced ALOT by me as a precaution)
3" DP, 3" exhaust with 2 small summit glasspacks
2.5 inch charge piping
no name front mount
"tial" BOV
ebay 38mm wastegate with 9 psi tial spring
Blaast oil feed kit
Fast-Turbo AN return kit
Motorola 2.5 bar map
Tuner toys "prototype" vac manifold
DSM 450s
Walbro 255
B+M FPR
PLX M-250
eCtune
im sorry i dont have the graph uploaded, if you dont believe me, ---- off, or ask xenocron
anyway, here are some pics of it.

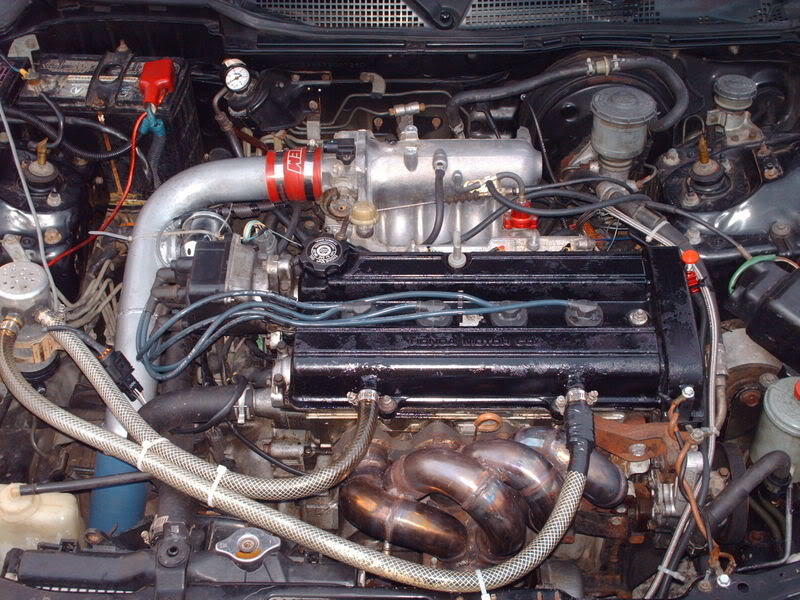

motor pic is slightly out of date, but its essentially the same, just changed a few little things
setup consists of
stock LS, 94 b18b, oil pan to valve cover, 84k.
Borg warner GM-8 turbo
SSauto BLUR manifold (braced ALOT by me as a precaution)
3" DP, 3" exhaust with 2 small summit glasspacks
2.5 inch charge piping
no name front mount
"tial" BOV
ebay 38mm wastegate with 9 psi tial spring
Blaast oil feed kit
Fast-Turbo AN return kit
Motorola 2.5 bar map
Tuner toys "prototype" vac manifold
DSM 450s
Walbro 255
B+M FPR
PLX M-250
eCtune
im sorry i dont have the graph uploaded, if you dont believe me, ---- off, or ask xenocron
anyway, here are some pics of it.
motor pic is slightly out of date, but its essentially the same, just changed a few little things
#3
Re: Just another 300 whp stock block honda....
i cant wait....my b18 is only days away...need my buddy to redo my chip for boost... similar setup but with garret 60/63 and a lil diff. style exh. mani. ill be running it in a black on black 91 Si hatchy!
#4
Re: Just another 300 whp stock block honda....
Originally Posted by samson
Congrats. I think Xenocron tuned an LS a while back to 299whp. Nice job. I assume those are little holes in your catch can, right?
JP
JP
#6
Re: Just another 300 whp stock block honda....
Originally Posted by PshhHatchy91
i cant wait....my b18 is only days away...need my buddy to redo my chip for boost... similar setup but with garret 60/63 and a lil diff. style exh. mani. ill be running it in a black on black 91 Si hatchy!
Originally Posted by turbohf
orange ---- all over everything...
one clean *** teggy otherwise
one clean *** teggy otherwise
