HomemadeTurbo - DIY Turbo Forum

Forced Induction Custom FI Setup Questions

jdm d15b vtec & d16z6 pistons

Thread Tools

Search this Thread

Old 06-11-2007, 11:34 PM
  #1
0.5 BAR
Thread Starter

SpoolinZc's Avatar

Join Date: Dec 2006
Posts: 144
Default jdm d15b vtec & d16z6 pistons
are the d16z6 pistons the same as the d15b because i wanna forge my jdm d15b vtec and i wanna know if the d16z6 pistons are the same
SpoolinZc is offline
Reply
Old 06-12-2007, 01:19 AM
  #2
0.0 BAR

Guy-Fast's Avatar

Join Date: Dec 2002
Posts: 0
Default Re: jdm d15b vtec & d16z6 pistons
not even close
Guy-Fast is offline
Reply
Old 06-12-2007, 04:21 AM
  #3
3.0 BAR

imburne's Avatar

Join Date: Jun 2006
Posts: 3,256
Default Re: jdm d15b vtec & d16z6 pistons
someone makes pistons for the d15b. I wanna say diamond.
imburne is offline
Reply
Old 06-12-2007, 05:48 AM
  #4
0.0 BAR

Guy-Fast's Avatar

Join Date: Dec 2002
Posts: 0
Default Re: jdm d15b vtec & d16z6 pistons
Originally Posted by imburne
someone makes pistons for the d15b. I wanna say diamond.

if 20+people would most piston companies would devlop them
Guy-Fast is offline
Reply
Old 06-12-2007, 12:35 PM
  #5
3.0 BAR

whiterice's Avatar

Join Date: Jun 2003
Posts: 3,975
Default Re: jdm d15b vtec & d16z6 pistons
for low budget, you could run vitaras.
whiterice is offline
Reply
Old 06-12-2007, 02:48 PM
  #6
0.0 BAR

Bone1's Avatar

Join Date: Jan 2005
Posts: 0
Default Re: jdm d15b vtec & d16z6 pistons
Vitara's will stick up just a little, about .018", but not gonna hurt anything.

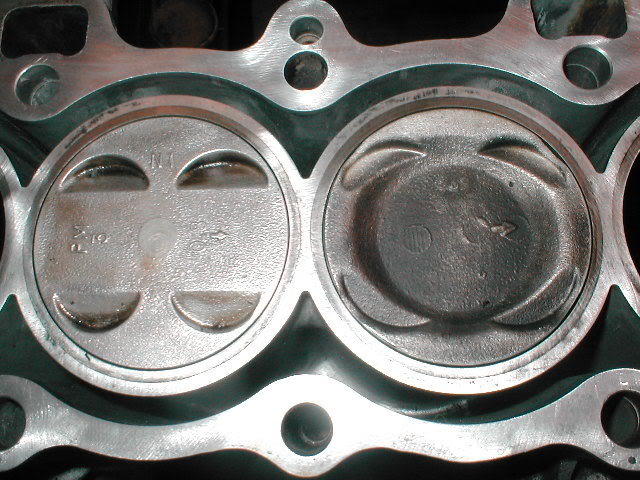

Name: b7vitara-1.jpg Views: 3203 Size: 78.0 KB

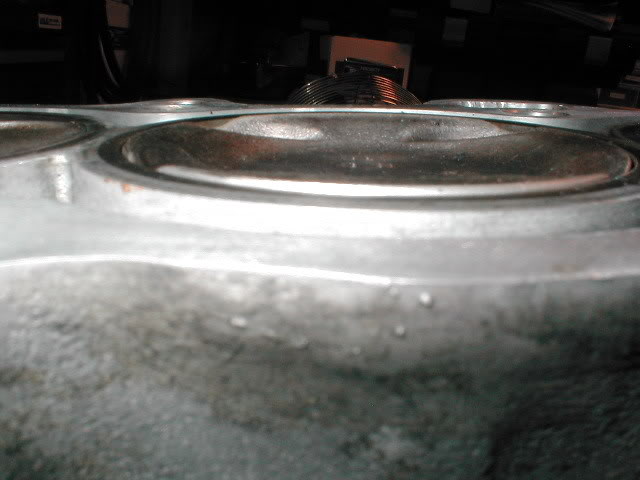

Name: b7vitara-2.jpg Views: 797 Size: 34.2 KB
Bone1 is offline
Reply
Old 06-12-2007, 08:07 PM
  #7
3.0 BAR

bitchasscracker's Avatar

Join Date: Apr 2005
Posts: 4,890
Default Re: jdm d15b vtec & d16z6 pistons
Originally Posted by Mista Bone
Vitara's will stick up just a little, about .018", but not gonna hurt anything.




with what rods
bitchasscracker is offline
Reply
Old 06-12-2007, 09:31 PM
  #8
3.0 BAR

whiterice's Avatar

Join Date: Jun 2003
Posts: 3,975
Default Re: jdm d15b vtec & d16z6 pistons
they use d16 rods. so take your pick.
whiterice is offline
Reply
Old 06-12-2007, 10:14 PM
  #9
0.0 BAR

Bone1's Avatar

Join Date: Jan 2005
Posts: 0
Default Re: jdm d15b vtec & d16z6 pistons
they can be used on either rod, but I used 137mm rods for that mock up. it D15 134mm rods were used, they would be about .100" in the hole.
Bone1 is offline
Reply
Old 06-13-2007, 01:37 PM
  #10
3.0 BAR

bitchasscracker's Avatar

Join Date: Apr 2005
Posts: 4,890
Default Re: jdm d15b vtec & d16z6 pistons
cool.
bitchasscracker is offline
Reply
