bigdaddyvtec

You CANNOT use the dsm manifold on any f sdeies that has a B denoted in the engine code... PERIOD. The center exhaust ports are siamesed together and the spacing is TOTALLY off.

You need a custom built manifold. There is no shortcut.

AS far as ECUS any chipped OBD1 honda ecu will work. I cant remember if the b2 has IABS or not, so youll have to look into that, If it does, a chipped P72 will allow you to utilize them. or take them out. ---- it.


THE DSM MANIFOLD WILL NOT FIT.

LiLbuddha

its a non IABS but anyways probably gonna have to pull the head off, since fixing the exhaust have a slight idle miss, not ignition, so thinking valve miss # leakdown on the exhaust side wasnt so happy but wasnt that bad only 16% loss but dont know if i really wanna do a full custom setup on this motor when its weak, anyways thanks so much for who has helped steer me in a direction,
right now just checking around edmonton ab or where ever to get a h22a motor and assembly, then go from there(big maybe though) just checking what i can do right now, as looking around f22b2's around here are hard to get, but i dont know how hard the swap is

joebowlr21

u should check out biddaddyvtec's h22 swapped turb'd accord.....that nagger is god around here when it comes to accords and also how to destroy tranny's with dirty 4ths

Skaterdudz02

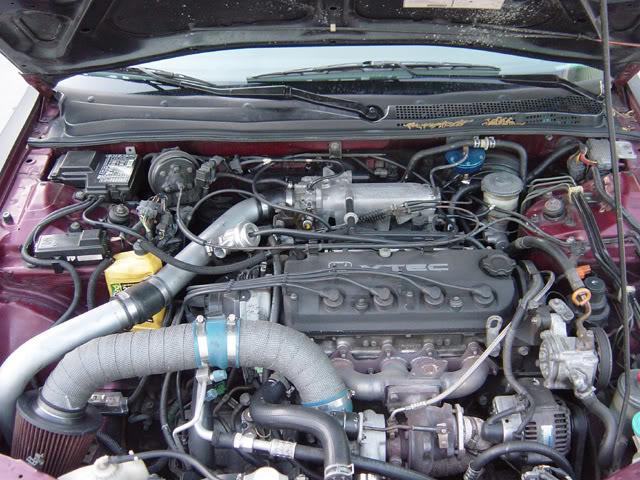

You're going to fork out some major dollars for a manifold for your f22b2. I paid 250 for mine. Here's my setup on my Accord.



Look at how close the spacing is between the two middle exhaust ports. 0--0-0--0.

HiProfile

Send me a head flange, I"ll MIG one up with pipe fittings for $120/shipped

LiLbuddha

well anyways was gonna just do a swap, but a friend convinced me otherwise so this weekend we pulled the head, put cleaned up all the valves cause they were built up with carbon badly, did a valve job and thought i might have to do guides but they were good,
so saturday finished that up, then ordered parts that afternoon haha
anyways i bought a set of dsm 450 injectors, bought a turbo smart pro gate, found a good old volvo turbo and have a older nissan 300zx turbo so decide what i wanna use, then i have from my old turbo setup a ebay special fmic and a old volvo turbo i/c,
then a few other parts i gotta choose from, got a stock 1g dsm bov, stock r32 skyline bov, and a old hks bov,

anyone have anything else they can suggest?
i emailed spec about choosing a clutch, but been hearing centerforces df is a good clutch for low boost? im hoping to run about 8psi

LiLbuddha

also im looking at spoolin turbo manifold
but if anyone has ever built a manifold and wants to build another im willing to pay

bigdaddyvtec

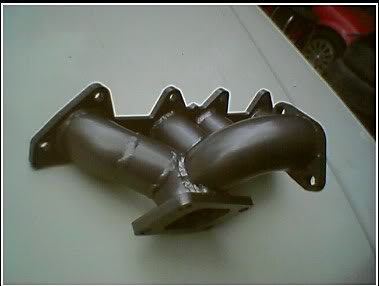

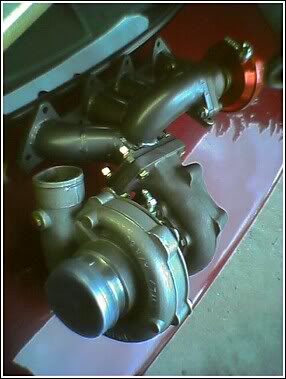

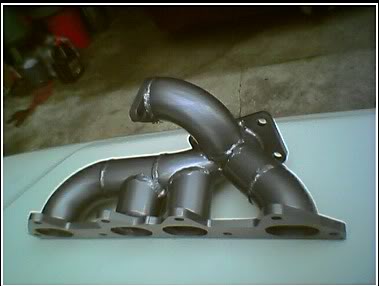

My ceramic coated LSD motorsports "mini"... They only made a few of them... Think I paid 350 and it made GREAT power....

If you can track one down... Excellent manifold

LiLbuddha

yeah i have been looking around the forum and a few other places and have heard about them, but lsd doesnt make them and looks like so hard to find,
if i can find one that would be amazing, they look like a good manifold

Skaterdudz02

I don't know if you can view this for sale thread but he's been trying to sell it for a while. It's exactly what you're looking for.

http://www.gen5alive.com/forums/showthread.php?t=6726
