Scott-EP

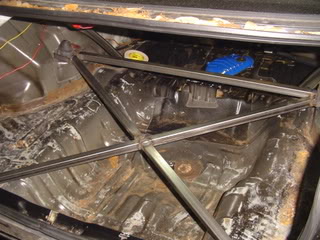

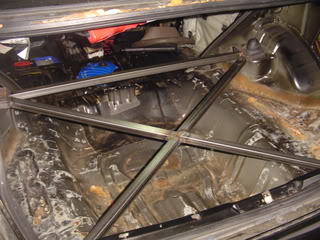

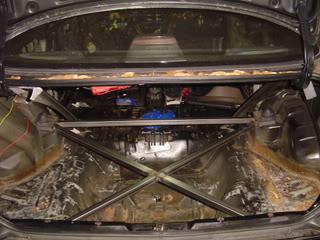

i have been thinking about this for a while lately and finally had the time this weekend to make it. total cost of materials was $37
i made the tie bar today. it will probobly get mounts added later for a sway bar, i just dont have a sway bar right now

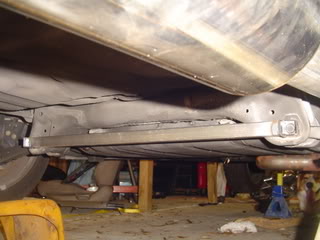

as an added bonus, my lower tie bar

G2turbo_terror

How'd you make the strut flange? Thats whats slowing me down from making my own bars, no plasma/tourch

Scott-EP

three pieces of 1" angle. i drilled a whole for the studs from the shocks at one end of 2 of the pieces and the cut 45 degree ends on the other side and on both sides of the last piece and then welded them together. i did it all with a band saw. you could do it with a hack saw but it would be a lot of cutting

90dx

Nice work I really need to get on the ball and build one of those i think you just inspired me to copy you

imburne

Thats sexy *** ---- right there!

SpankedYA!

Nice work. What does the whole thing weigh?

Scott-EP

thats a good question. i will weigh it and see. it isnt much more than an ebay strut brace though. i was surprized how light it was when it was done
::EDIT::i weighed it and found that it is 8lbs. i was expecting more so i am pretty happy with it

Scott-EP

added in the rear lower tie bar that was made today. i will post pics tomorrow of the painted finished products

Scott-EP

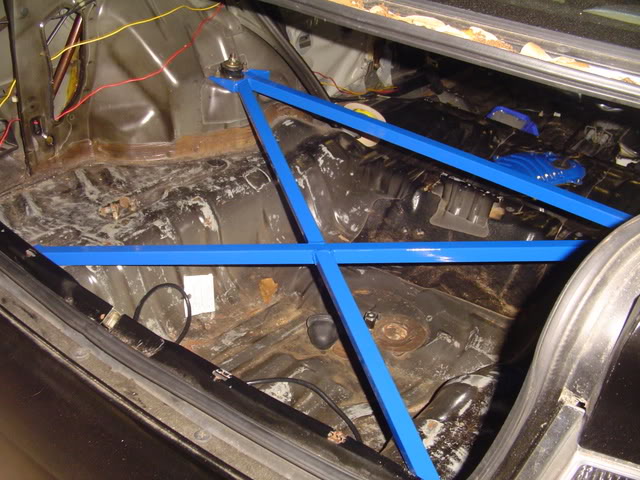

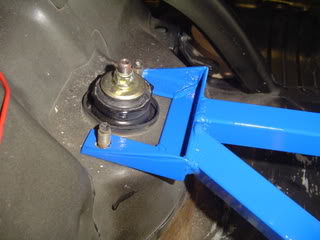

here are the finished products and a closeup of the bracket that someone wanted

Rice Rocket

pretty cool ----, and it only cost 37 dollars
