Nice work guy's... i got my pipe on the way so when i make the manifold i'll post some pics... thanks again for the info...



where are you getting your pipe from and for how much?



I buy threw BMC, Racing Solutions, and LSD... i contacted and got the response from LSD and bought it from him... i bought 4 stright's and 4 u bends... i wonted 45's and 90's but he said he didnt have any so i just got that... $75 shipped for 16 gauge 1.75 Mild steel header pipeing... everyone else i seen only had 1.5 and1.6... my buddy orderd 1.5 header kit and it was way to small for the flange... I was told to use 1.75 and seen pics of the manifold with that pipe and choose to go with that...



can't wait to see it.

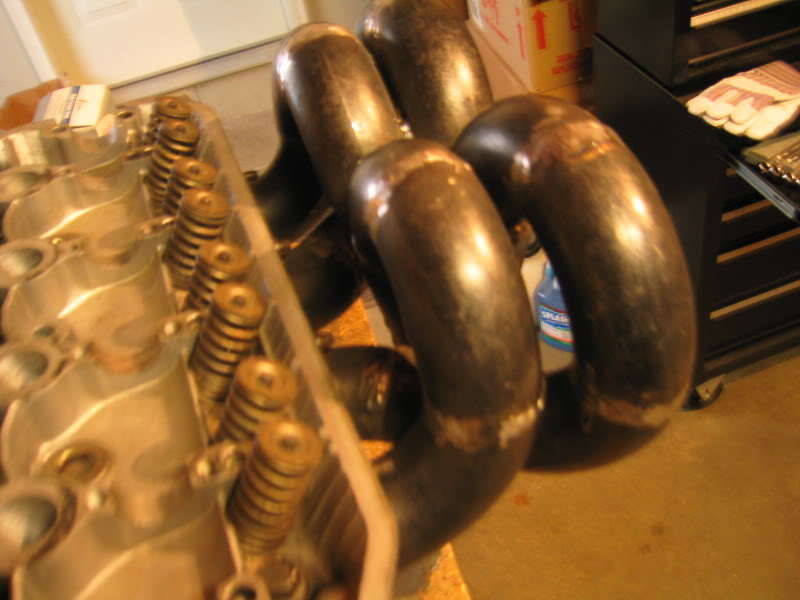

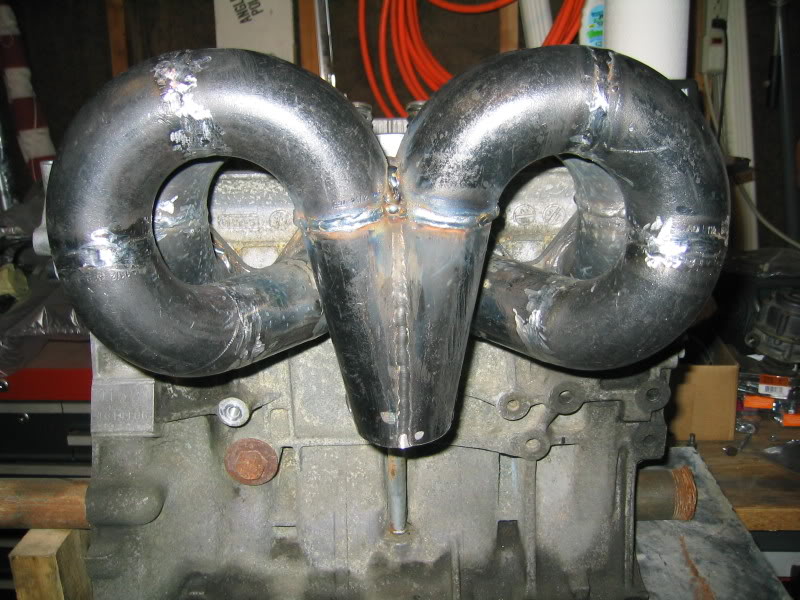

all migged except the collector, Just lots of hours grinding it down to make it look pretty =)



fuckn sic doggy

ryan89crx - does that heat wrap ---- work or whats the benefits?

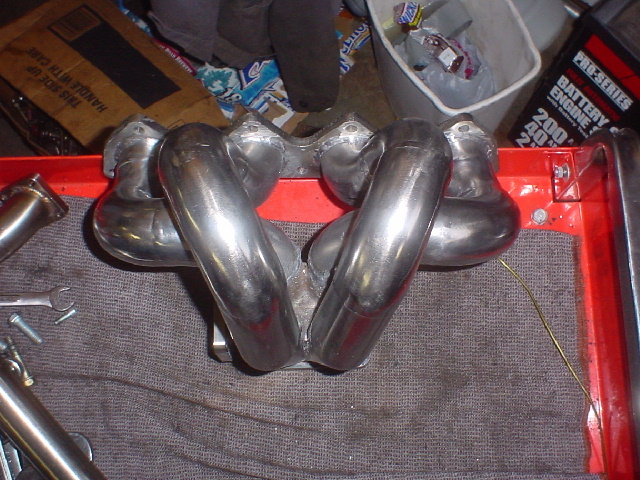

Made mine w/using a handler 135. Depending on how cramped the manifold is, you have to really plan things out.



Hmm. I don't have any good angled pics of the whole thing.



Those manifolds look nice... i just got my Header pipeing in and should get started on it very soon.. i'll update this with some pics or add a link to it when i build my first 1... thanks guys...



helps keep underhood temps down. but it also keeps the heat in the metal, causing more stress on all your welds and whatnot. the main reason i did it was to make my mani look better. but i really like how its easier to work in the e-bay and not burn the ---- out of yourself



The only problem I hear is that you got 16g piping. Unless you really know how to design and suppot you manifold it will not carry the weight of your turbo and the stress of the engine rocking.
