Jun 5, 2008 | 01:48 AM

#21

EricW

0.5 BAR

Joined: Apr 2006

Posts: 78

From: Panama City, Florida

Re: making an intake manifold

Nice work!

Jun 5, 2008 | 11:48 PM

#22

Big J

Thread Starter

0.5 BAR

Joined: Dec 2006

Posts: 141

Re: making an intake manifold

got the hole cut for the throttle body, need to drill and tap the mounting holes, tabs to bolt fuel rail to, holes for vac lines, and resurface the flange and TB mounting points

Jun 6, 2008 | 10:45 AM

#23

gon3r

0.0 BAR

Joined: Oct 2003

Posts: 0

Re: making an intake manifold

welds look good.

Jun 6, 2008 | 10:12 PM

#24

Big J

Thread Starter

0.5 BAR

Joined: Dec 2006

Posts: 141

Re: making an intake manifold

we'll just call it done, with the exception of drilling and tapping for vac fittings, and smoothing the TB inlet taper some more

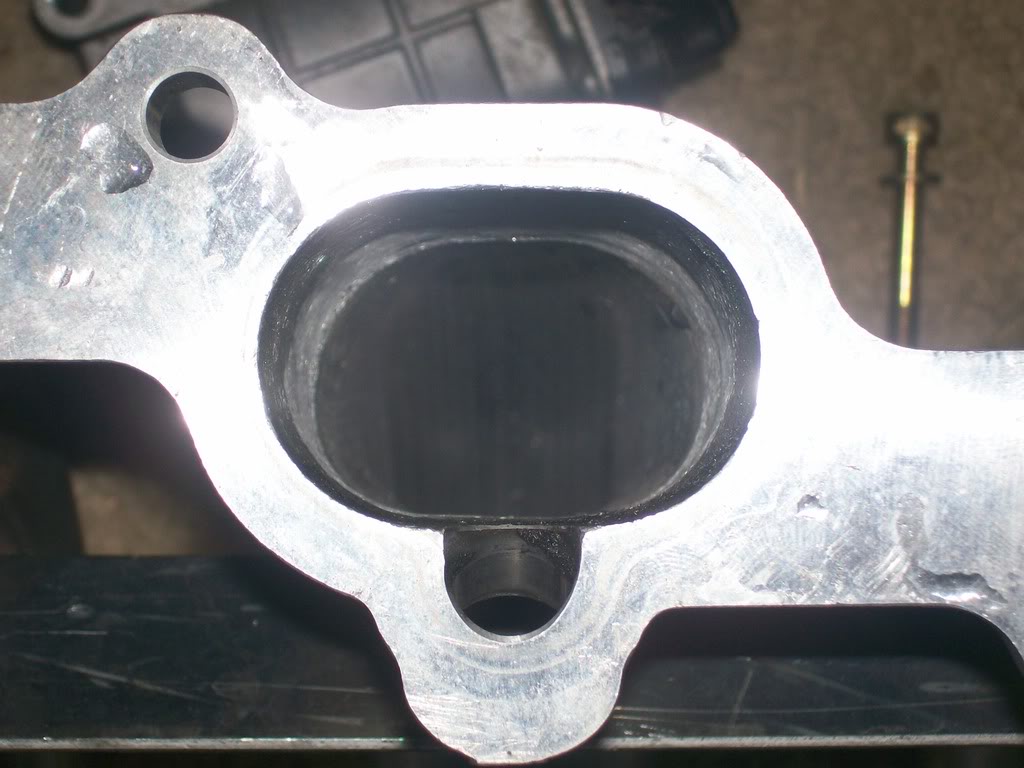

Name: allpicsarchive466.jpg
Views: 1523
Size: 93.4 KB

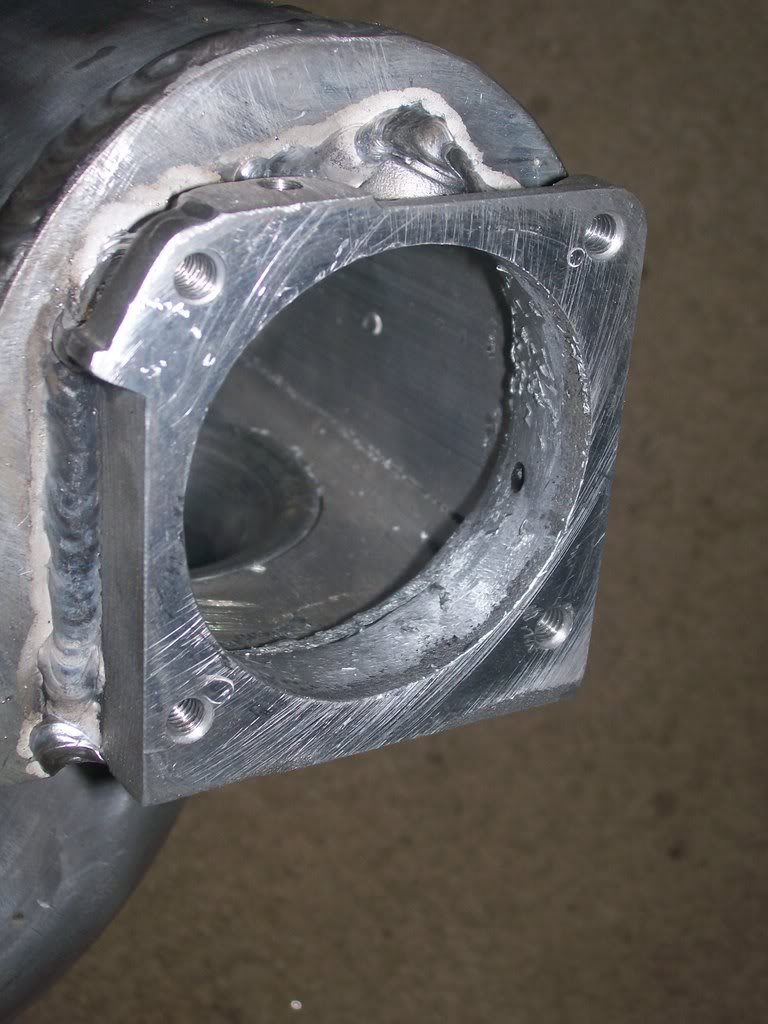

Name: allpicsarchive471.jpg
Views: 1581
Size: 102.5 KB

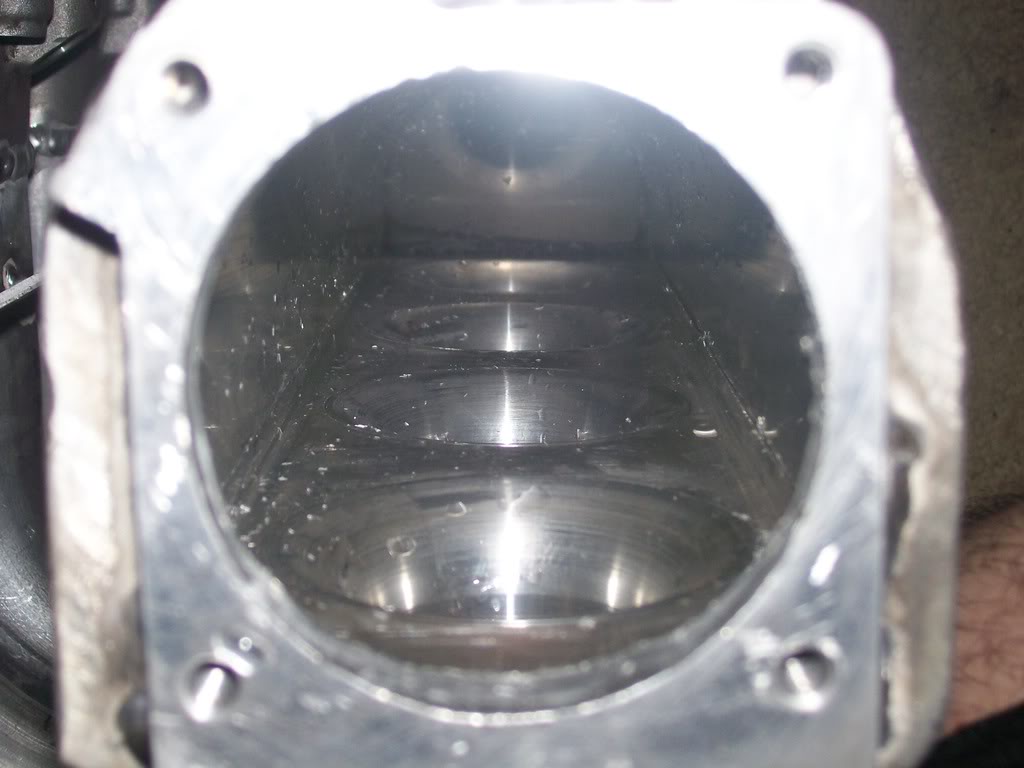

Name: allpicsarchive473.jpg
Views: 1559
Size: 69.7 KB

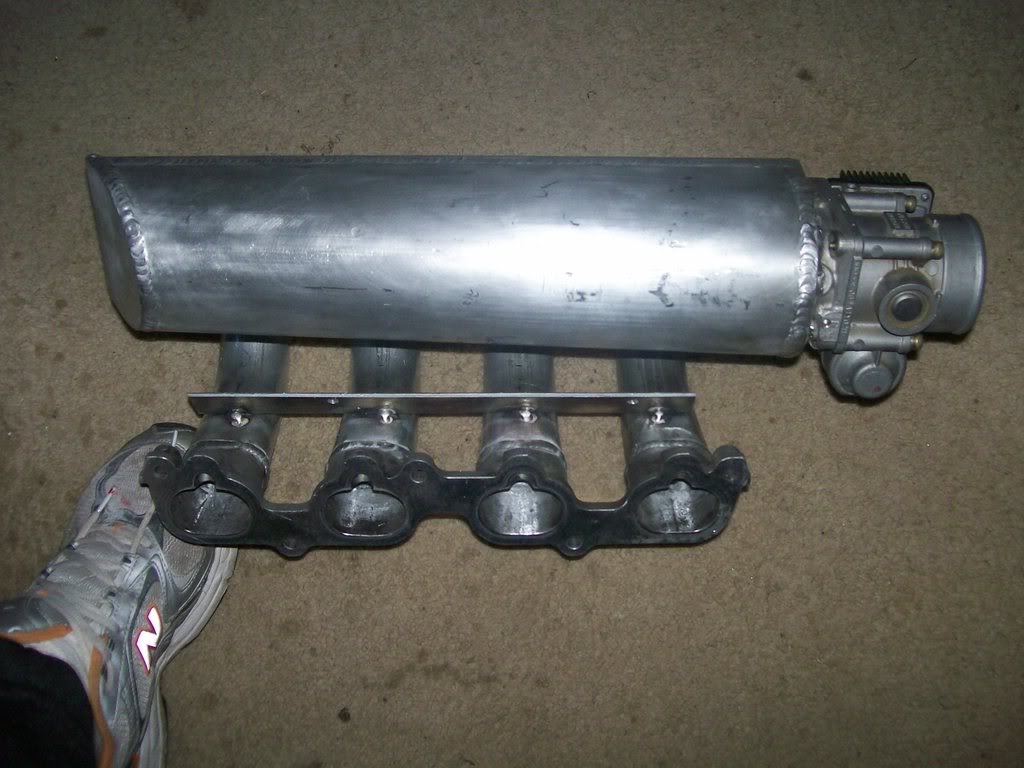

Name: allpicsarchive476.jpg
Views: 1581
Size: 105.3 KB

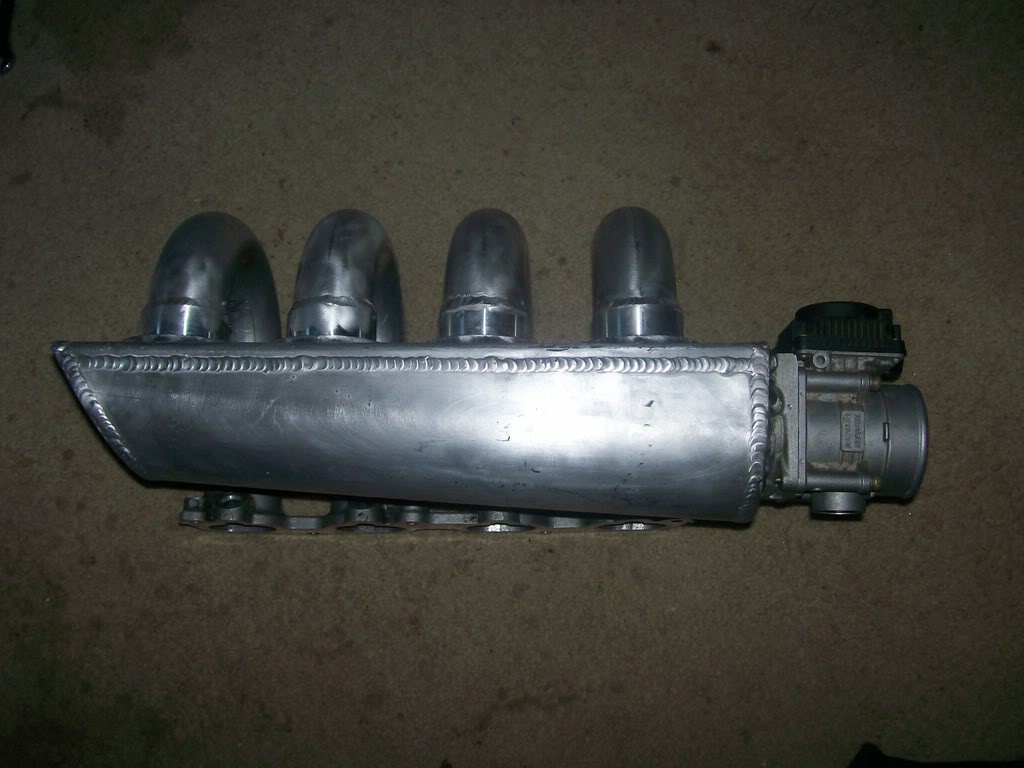

Name: allpicsarchive478.jpg
Views: 1619
Size: 81.4 KB

Name: allpicsarchive482.jpg
Views: 1709
Size: 111.2 KB

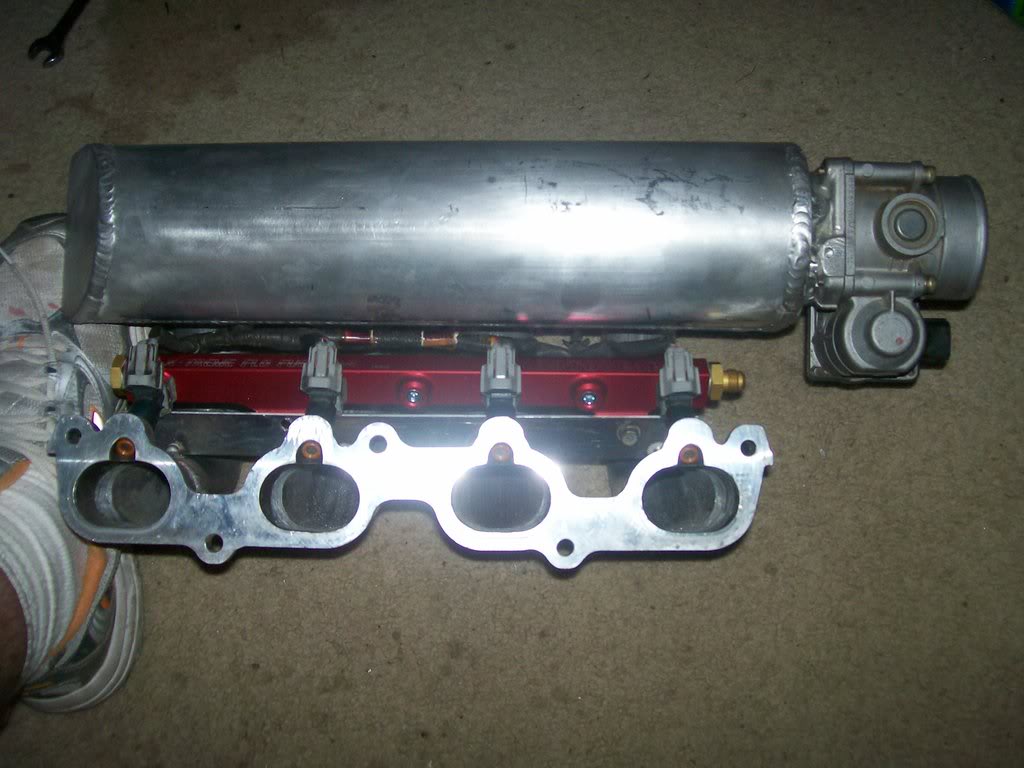

Name: allpicsarchive483.jpg
Views: 1574
Size: 95.5 KB

Jun 7, 2008 | 10:13 AM

#25

Big J

Thread Starter

0.5 BAR

Joined: Dec 2006

Posts: 141

Re: making an intake manifold

I'll paypal the first person that can find thick walled (.120+) mandrel bent aluminum tubing for sale on the internet $1 :P

Jun 7, 2008 | 09:58 PM

#26

Big J

Thread Starter

0.5 BAR

Joined: Dec 2006

Posts: 141

Re: making an intake manifold

http://www.wagnercompanies.com/Elbow...ns_for_Pi.aspx

any radius from 1" and up 3/4 to 1 1/2 some in 2" diameter, aluminum, mild and stainless

I took me forever to find mandrel bent thick walled aluminum pipes
