So I done a bit more welding.

Sorry for the crap phone camera pics again.

Name: DSC00176.jpg
Views: 17
Size: 86.5 KB

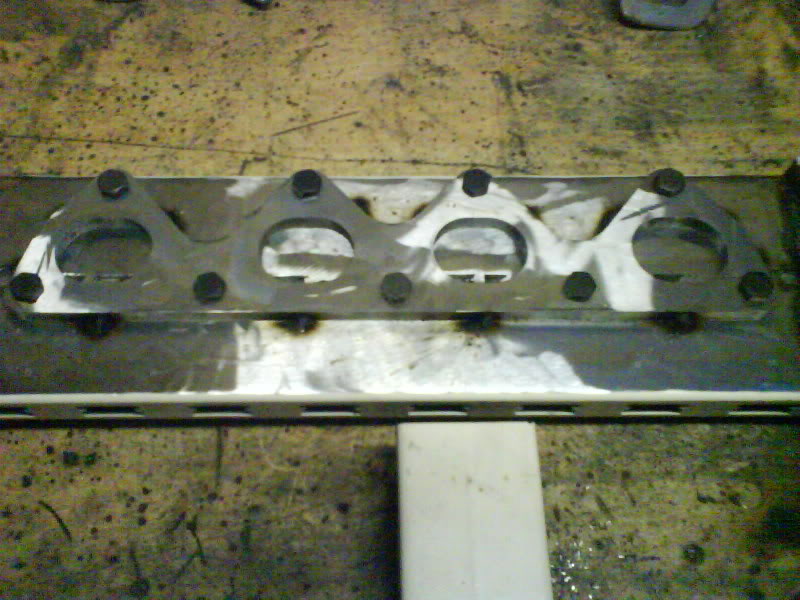

My super jig to stop my flange from warping!

Name: DSC00177.jpg
Views: 17
Size: 56.5 KB

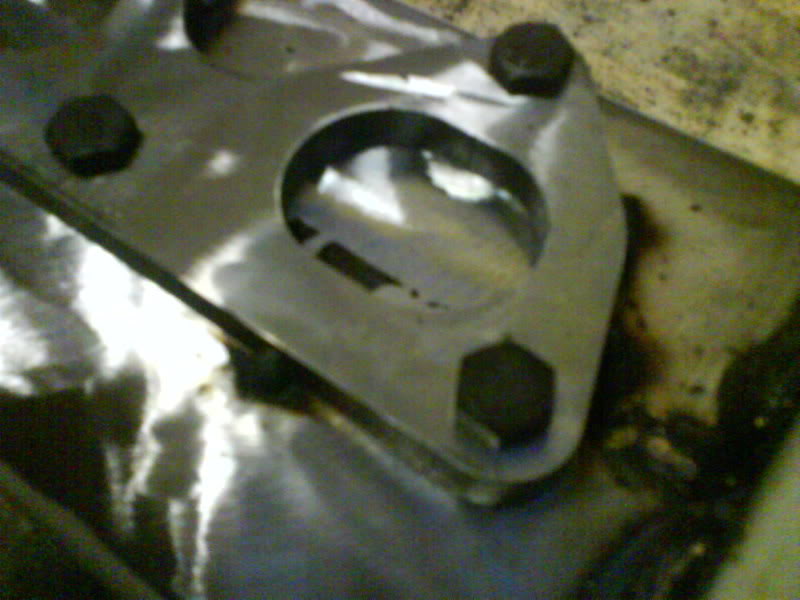

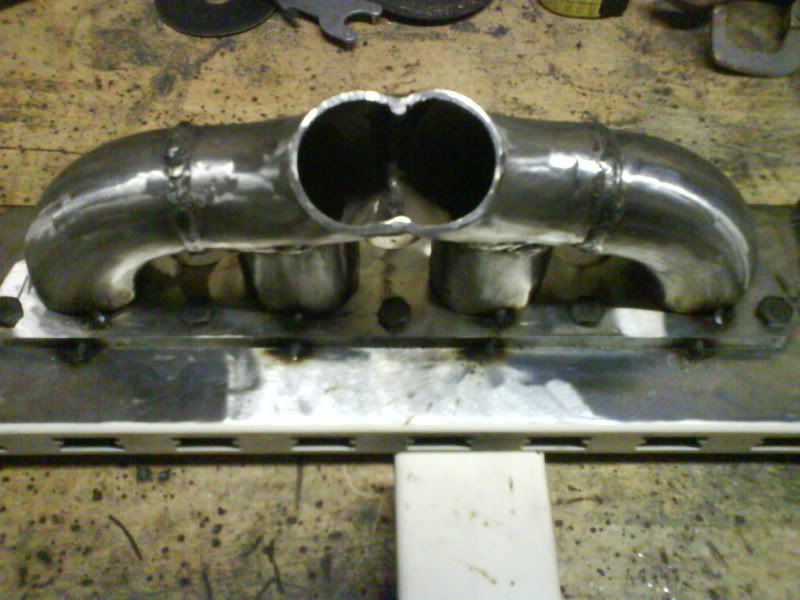

Tacked on just incase

Name: DSC00178.jpg
Views: 17
Size: 67.0 KB

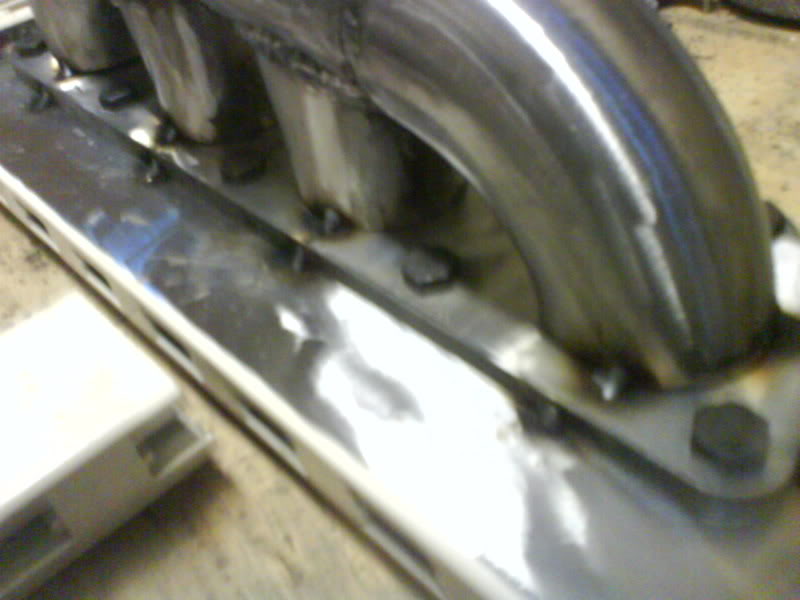

Name: DSC00180.jpg
Views: 17
Size: 46.2 KB

Name: DSC00181.jpg
Views: 16
Size: 66.2 KB

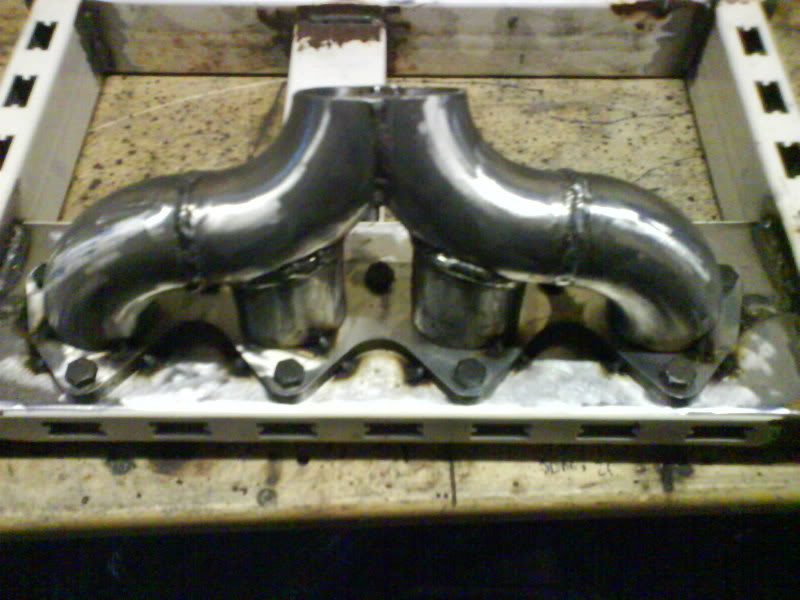

Tacked on the runners

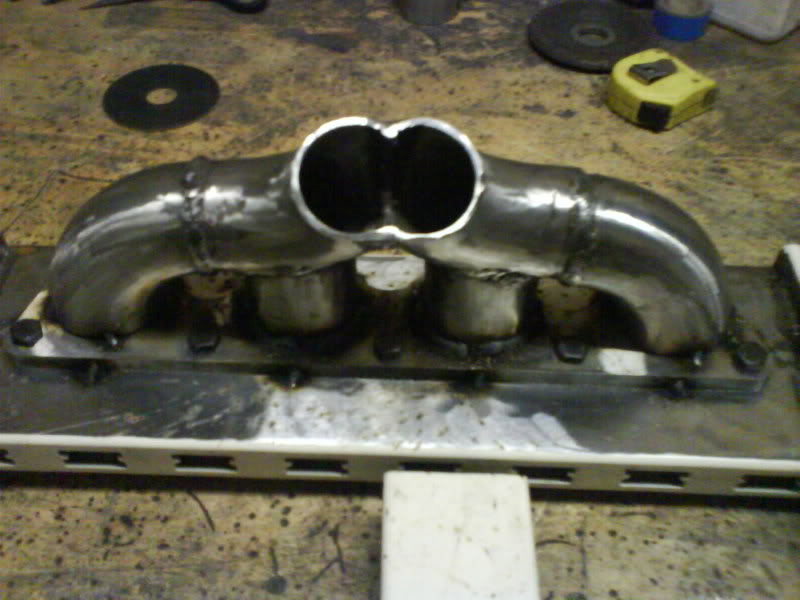

Name: DSC00182.jpg
Views: 16
Size: 61.9 KB

Welded runners 2 and 3 first

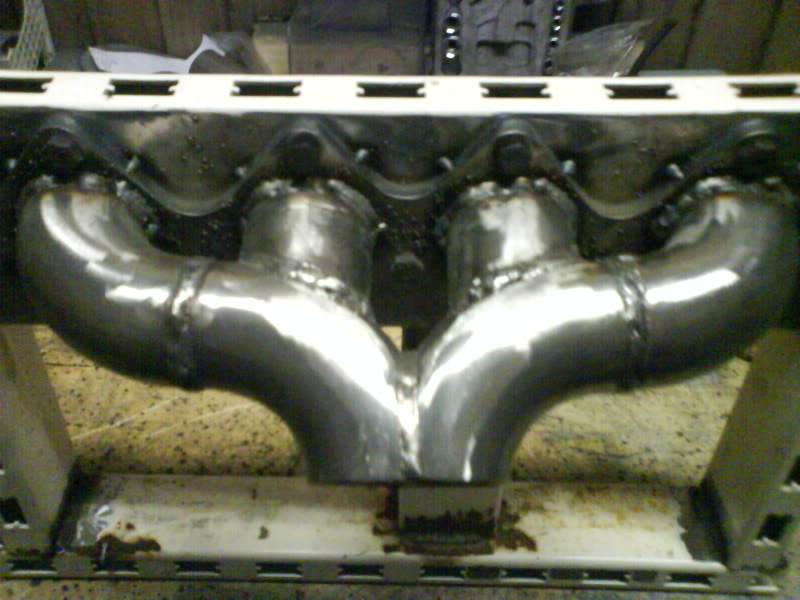

Name: DSC00184.jpg
Views: 18
Size: 65.3 KB

All Welded up

Just need to clean up the splatter and weld on the Turbo flange. Also need to weld on the wastegate flange.. still figuring it out.

thanks for looking.

12-13-2007, 07:41 PM

#14

jackfrost1031

0.5 BAR

Join Date: Apr 2005

Posts: 119

Re: First ever manifold - Migged log

nice job. i'd definitely rock that.

12-13-2007, 07:52 PM

#15

RedCavz

0.0 BAR

Join Date: Nov 2004

Posts: 0

Re: First ever manifold - Migged log

good job man! what did you use to cut the holes in the 90's for the 2 & 3 runners? holesaw?

12-13-2007, 09:20 PM

#16

vtec_lude

0.5 BAR

Thread Starter

Join Date: Jul 2007

Posts: 66

Re: First ever manifold - Migged log

I used a plasma cutter for that. I took the manifold off the jig and there's no warpage so I'm pretty pleased with that. Next is the wastegate flange and T3 flange. Not sure which order to do it first. Once that's done I'll completely clean up the splatter.
