Default risitor box and dsm injectors

i got a 1997 acura LS..got a garrett t3 set-up....as of now for fuel mangenemt...I'm running a FMu with the 255 walbro intak fuel pump....cars been boosting 8 psi for about 6 months now and runs ok...I haven't really pushed it all the way....welll I'm gonna get my ecu chip pretty soon....did a-lot of resrearch on DSM injectors and Resistor Box ...I seen a-lot of (how to install DSM injectors on this form and on hondatech) but all they show are the installation of DSM injectors with thoes inline resistors...and the one that shows the resistor box installation is also kinda effy cause its just drawings on adobe....i know I need OBD1 Injectors Clips, I have the blue tops DSM injectors 450ccs also a obd-0 Accord Resistor Box....so which wire or WIRES do i connect....any advice would really be helpful
goodie is offline
Old 09-04-2006, 09:27 AM
  #2
3.0 BAR

Join Date: Aug 2003
Posts: 1,950
Default Re: risitor box and dsm injectors

I know there is a good writeup out there somewhere so no, you didn't search well enough. When I had to do this for my first time I just followed the write up which shows the 4 power wires that need to go to each individual wire of the box and then the other 4 wires all tie into the single wire off the box (the resistor box has 4 like wires and 1 odd one). For the injector clips just make sure the colors are right and what not. I have done this install countless times and only looked at the directions once, you'll figure it out.
nonvtec is offline
Old 09-04-2006, 10:27 AM
  #3
0.0 BAR

Join Date: Dec 2002
Posts: 0
Default Re: risitor box and dsm injectors

ill give ya hint its on the site look
Guy-Fast is offline
Old 09-04-2006, 07:17 PM
  #4
USS
0.0 BAR

Join Date: Oct 2004
Posts: 0
Default Re: risitor box and dsm injectors

Search. I wrote a little bit on it like 2 days ago in FI.
USS is offline
Old 09-04-2006, 11:46 PM
  #5
1.5 BAR

Join Date: Nov 2005
Location: Harford Co. MD
Posts: 1,241
Default Re: risitor box and dsm injectors

Originally Posted by Snafubmx234
No.

Everything that is hooked up to that block gets supplied with a constant 5 (or 12, can't remember) volt source. Your injectors, IACV and other ---- tap off of this block. When these devices are needed, the ECU grounds them. Your injectors firing, for instance. What you need to do is take a multimeter, and set it to detect resistance (ohms). Put one plug in the injector plug, on the side with the yellow wire/black stripe. Then, take the other end and plug it into each port in that box. When you find what wire is what, you'll get a resistance reading (in ohms). Mark that terminal on that distribution block with a market. Go to the next injector, ect. Once you get the four wires, you need to cut/strip them.

If you're working with the Radio Shack in-line resistors, you'll just put one resistor in line with each wire. If you're doing it with a resistor box, take the 4 wires on the distribution plug side and solder them all together with the red wire. Then solder the other 4 with any of the other wires on the injector plug side.

Here's a picture for you -


this is a little help ^^^^^^
igotnothin is offline
Old 09-06-2006, 08:06 PM
  #6
1.5 BAR

Join Date: May 2003
Posts: 785
Default Re: risitor box and dsm injectors

I did a write up on installing a solderless resistor box (cut no wires, easily returned to stock). its over on Honda-Tech though...
T-RO is offline
Old 09-06-2006, 10:35 PM
  #7
1.5 BAR

Join Date: Nov 2005
Location: Harford Co. MD
Posts: 1,241
Default Re: risitor box and dsm injectors

post a link for us plz
igotnothin is offline
Old 10-14-2006, 05:39 PM
  #8
1.5 BAR

Join Date: May 2003
Posts: 785
Default Re: risitor box and dsm injectors

Thought i had copied the write up on HMT but cant find it now.
Heres another link to it: http://www.honda-tech.com/zerothread?id=736737
T-RO is offline
Old 10-14-2006, 08:29 PM
  #9
3.0 BAR

Join Date: May 2004
Posts: 5,049
Default Re: risitor box and dsm injectors

Originally Posted by igotnothin
post a link for us plz
Look in the CEL #16 thread in this forum. There is yet another method mentioned in there. If you guys can't find this ---- you are just not looking.
Cray91 is offline
Old 10-14-2006, 10:43 PM
  #10
1.0 BAR

hard2obtain's Avatar

Join Date: Jan 2006
Posts: 526
Default Re: risitor box and dsm injectors

Originally Posted by T-RO
I did a write up on installing a solderless resistor box (cut no wires, easily returned to stock). its over on Honda-Tech though...
Other one for you

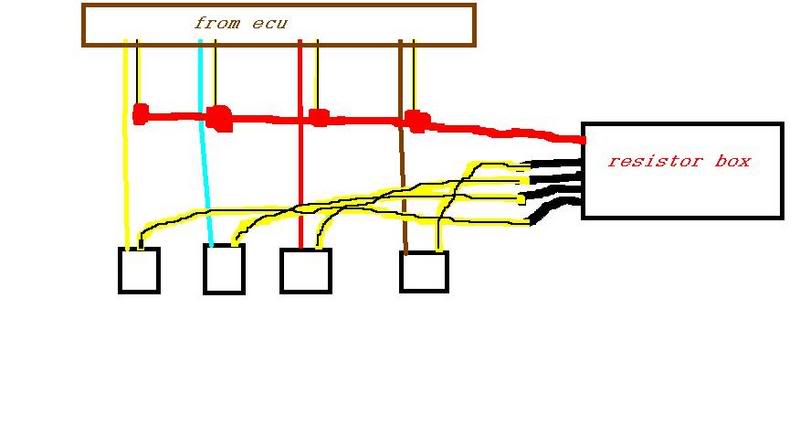

Name:  POLOresistor_box_chaka.jpg
Views: 6
Size:  23.1 KB
hard2obtain is offline
