Default 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing link

the set up
96 dx hatch converted to obd1
b20b stock
440 injectors
ching chong ebay t3/t4
external wastegate with 4psi spring? (i was told)
450cc injectors RC
fmu*
missing link*
afc*

so this kid wanted me to build him a chiped po6 ecu, which wasent the hard part. trying to figure out what to undo from his old setup is. i am still learning some of this stuff, so i got some questions. so i bult the po6 and for now i am gonna run it off a crome bin from the xenocron bank. my main question is since this car is supposely only running 4psi, is the missing link needed on the map sensor? we already removed the afc anbd the fmu is comming out tomarrow. i am just not sure aboyt the missing link and check valves if any.

besides the xenocron bank, anyone else know where i can find some bins? i havent started palying with tunnig yet, we are looking to find someone local to street tune, but want to make sure the car is set up right first.
SQ is the SQUAD is offline
Old 01-20-2008, 07:50 PM
  #2
1.5 BAR

Join Date: Feb 2007
Posts: 1,087
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing link

if your running crome just ad boost tools and tune you dont need a fmu or missing link if you read xenocrons beginers intro to crome page on his website you can get the car running fine i did
lilpooh21186 is offline
Old 01-22-2008, 01:56 AM
  #3
0.0 BAR

Join Date: Dec 2002
Posts: 0
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing

motor=stock with crome


no stupid hack fixes



ecu=reads boost
=

happy motor


pretty simmple
Guy-Fast is offline
Old 01-22-2008, 03:58 PM
  #4
1.5 BAR
Thread Starter

Join Date: Mar 2005
Posts: 946
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing

i dunno much about tuning, i tired a fuw boosted basemaps from the xenocron bin but none seem to run the car as good as the one chris put on my single cam ecu. so we put the car on the dynojet today and it did 195whp, i am waiting for the guy to email the graphs and ill post them up. when we was at idel the a/f was at 18! but once it started running it droped down to the 14's
SQ is the SQUAD is offline
Old 01-24-2008, 03:20 AM
  #5
1.5 BAR

Join Date: Oct 2005
Posts: 1,490
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing

b20b + 4 psi dose not = 195whp :P
14afr in boost = melt down
sounds like your wide band is out of wack
turbo4life is offline
Old 01-24-2008, 11:17 AM
  #6
1.5 BAR
Thread Starter

Join Date: Mar 2005
Posts: 946
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing

well, the car will most likely melt down, lol. i think it is pushing way more boost, but like i said, they kid doesnt have a boost gauge. i got the afr reading from the dynojet dyno.
SQ is the SQUAD is offline
Old 01-24-2008, 05:34 PM
  #7
1.5 BAR

Join Date: Oct 2005
Posts: 1,490
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing

well this is wat the pistons will look like soon

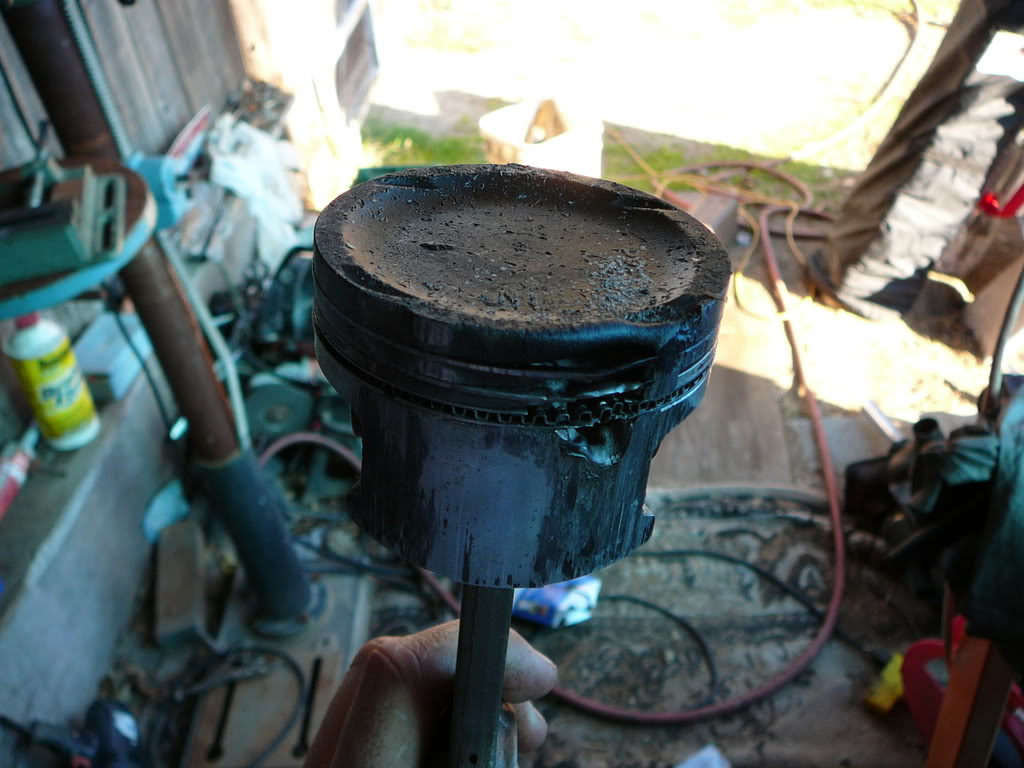

Name:  P1000367.jpg
Views: 68
Size:  109.3 KB

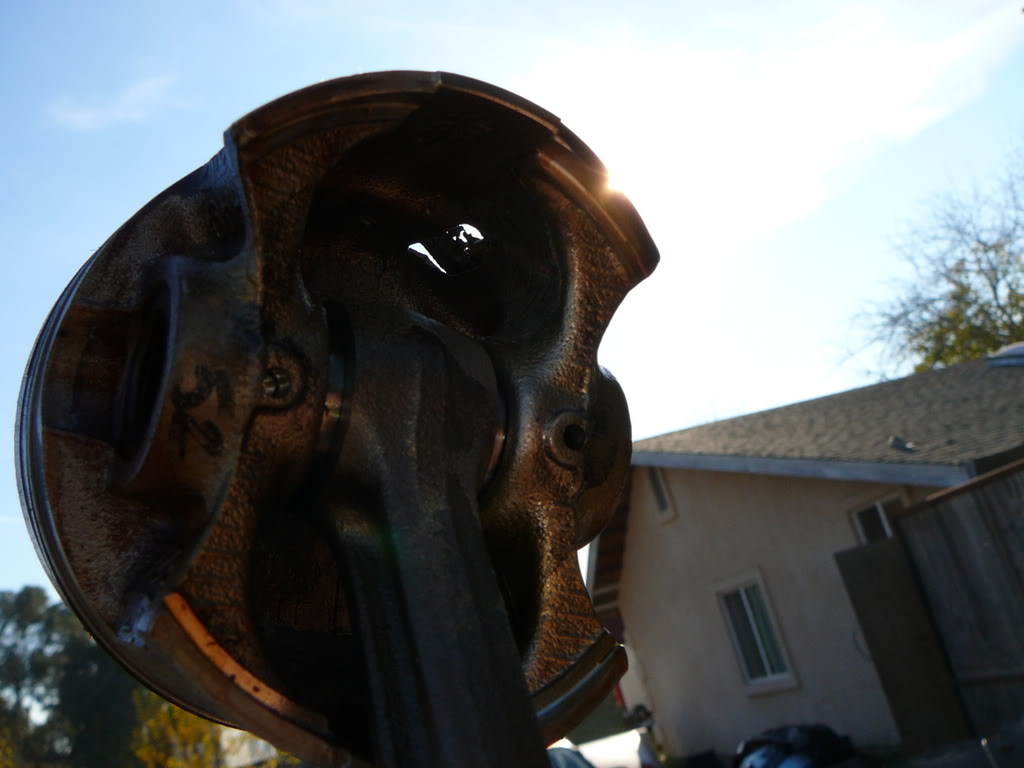

Name:  moltenpiston.jpg
Views: 40
Size:  70.5 KB
turbo4life is offline
Old 01-25-2008, 03:54 PM
  #8
3.0 BAR

Join Date: May 2006
Posts: 1,967
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing

A missing link is to prevent the ECU from seeing boost. Since you're using a chipped ECU you don't want to use a missing link becase you WANT the ECU to read boost.
E-b0la is offline
Old 01-28-2008, 05:44 PM
  #9
1.5 BAR

Join Date: Feb 2007
Posts: 1,087
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing link

if you dont know ---- about tuning dont tune someone's ---- or take things really slow
lilpooh21186 is offline
Old 01-29-2008, 02:02 AM
  #10
1.5 BAR

Join Date: Oct 2005
Posts: 1,490
Default Re: 96 hatch, b20b, ching chong turbo kit on 4 psi, chipped po6, fmu w/ missing

i dont get it how would someone get into tunning when they dont know ---- how it works fmu missing + crome wtFrizzle


that is just gota be rice thinking
loose the fmu and missing link ---- and tune..
turbo4life is offline
