I picked up a TD04 turbo and i need to find the flange for it so i can put it on a hf manifold... does anyone know what it is thanks.



Anyone T3 or T25?



What's it off of? I've seen a few different tdo4's...one's that are from volvo's with a t3 flange that needs to be modified, one's that have an offset 14b style flange, even one's with a triangle shaped flange. A little more info or some pics would be nice.



im not sure, i bought off of a friend, here are some pics....



And i want to buy this adapter plate, thats why i was just wondering. I have a HF manifold.
http://cgi.ebay.com/ebaymotors/HF-Ma...QQcmdZViewItem



Yeah, that's more of the 14b style flange. If you want, take a measurement from center of the bolt holes and I'll compare it to my old 14b exhaust housing just to make sure.

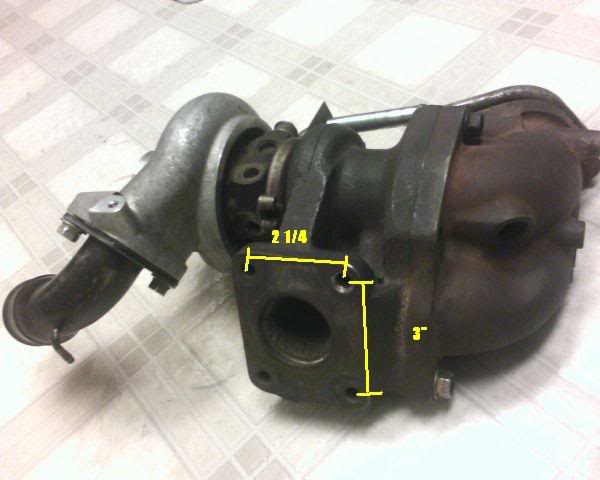

here are the measurements, thanks man

What would be a better adapter plate.....

http://cgi.ebay.com/ebaymotors/HF-Ma...QQcmdZViewItem

http://www.bmcrace.com/product_info....products_id=50



Yeah, it's a 14b flange. BMC makes an awesome product, but I'm sure you could find one from someone off of here cheaper (albeit used) in the wanted to buy section. One more thing, by the looks of the small sized inlet on the exhaust housing, I would reccomend porting it out to match up with the 14b adapter when you get it.



thanks man, much appreciated
