What is this connector?

i did see in other forum..

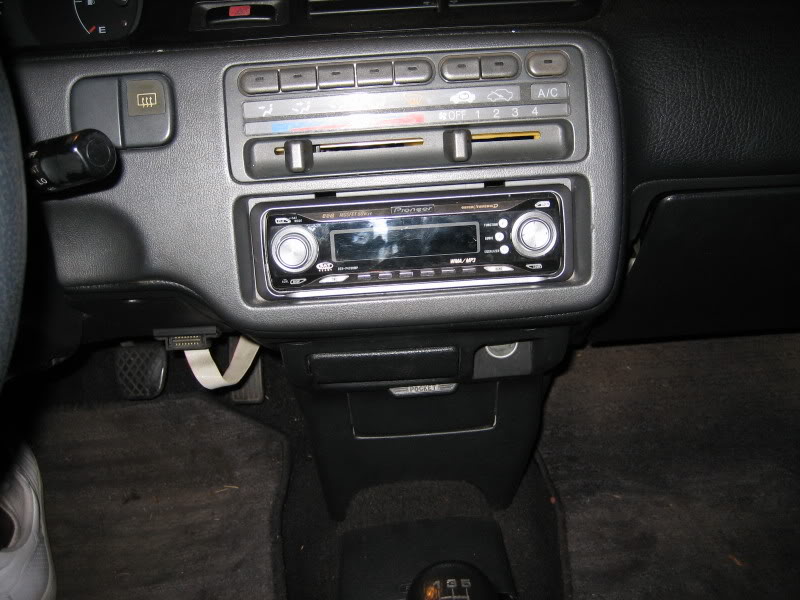

Name: pic011.jpg
Views: 41
Size: 80.6 KB

Name: pic012.jpg
Views: 48
Size: 76.3 KB

it's connector for to test the ecu? (to connect on laptop and to tuned the ecu?) , right?

how can i to do this connector? (diagram)

Apr 19, 2006 | 05:09 PM

HMTguy

Guest

Posts: n/a

Re: What is this connector?

It could be anything. A connector for the ecu to datalog only needs 4 wires.

For all we know he could have done an OBD1 to OBD2 conversion from the look of it, no idea why though.

Apr 19, 2006 | 08:08 PM

SpankedYA!

0.0 BAR

Joined: Mar 2004

Posts: 0

Re: What is this connector?

That connects the flux capacitor to the ecu. After all that is what makes time travel possible.

Apr 19, 2006 | 08:34 PM

Chris Harris

3.0 BAR

Joined: Jul 2003

Posts: 6,447

Re: What is this connector?

Never seen anything like that for ECU tuning. Maybe for plugging in a Display of sorts...DVD?

Apr 19, 2006 | 09:11 PM

HMTguy

Guest

Posts: n/a

Re: What is this connector?

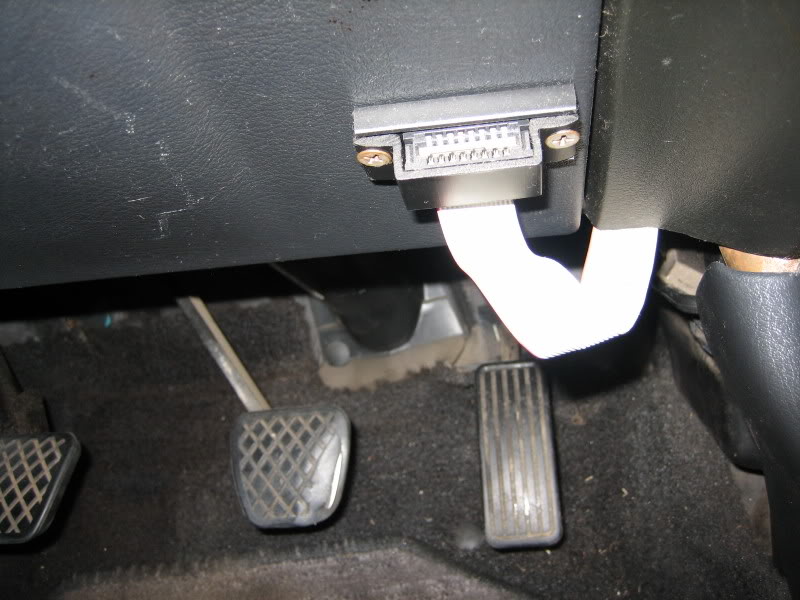

Name: pic012.jpg
Views: 38
Size: 76.3 KB

Maybe?

Apr 19, 2006 | 09:14 PM

Chris Harris

3.0 BAR

Joined: Jul 2003

Posts: 6,447

Re: What is this connector?

nope...not even close

Apr 19, 2006 | 11:47 PM

HMTguy

Guest

Posts: n/a

Re: What is this connector?

Actually, it's the almost the exact same connector. 8 pins on each side. Don't pay attention to the "official" OBDII casing as in the second pic, the home made setup as in the first one has plenty of room and allows for an OBDII connector to fit.

Apr 20, 2006 | 12:01 AM

Zeniceguycrx

3.0 BAR

Joined: Feb 2006

Posts: 3,905

Re: What is this connector?

it could be the honda1 conector

Apr 20, 2006 | 06:02 PM

Walter

Thread Starter

3.0 BAR

Joined: Apr 2006

Posts: 2,057

Re: What is this connector?

thanks for answers, so, if i want a ECU chipped and i would like to do a connector usb for to connect to latop.. how can i to do it?

Apr 20, 2006 | 07:22 PM

#10

HMTguy

Guest

Posts: n/a

Re: What is this connector?

Quote:

Originally Posted by Walter

thanks for answers, so, if i want a ECU chipped and i would like to do a connector usb for to connect to latop.. how can i to do it?

You get a usb cell phone cable and wire it directly to your ecu. There's lots of write-ups on how to do this and what specific cables you can use, just look around.
