Default Injectors
can I use D15b7 injectors on an Si crx. I need to know asap. This guy that is a mechanic for honda told me I could. But I thought other wise.
crxrx7 is offline
Reply
Old 03-14-2007, 12:48 AM
  #2
0.0 BAR

catch.can's Avatar

Join Date: Mar 2005
Posts: 0
Default Re: Injectors
Those injectors off that engine are off of a 92-95 civic. Which is obd1
Yes you can stick them in a SI motor, youl just have to switch the injector clips out and mabey undo the resister box in the crx.
catch.can is offline
Reply
Old 03-14-2007, 12:49 AM
  #3
3.0 BAR
Thread Starter

crxrx7's Avatar

Join Date: Sep 2003
Posts: 1,752
Default Re: Injectors
can I just unplug the resistor box or do I have to rewire all that ----?
crxrx7 is offline
Reply
Old 03-14-2007, 12:57 AM
  #4
0.0 BAR

catch.can's Avatar

Join Date: Mar 2005
Posts: 0
Default Re: Injectors
should be able to just unplug i think? don't quote me on that though
catch.can is offline
Reply
Old 03-14-2007, 02:21 AM
  #5
3.0 BAR

88dx's Avatar

Join Date: Nov 2003
Posts: 5,838
Default Re: Injectors
you have to cut the little tabs off inside the injectors, and all the wires the go to the resistor box u wire all together
88dx is offline
Reply
Old 03-14-2007, 09:32 PM
  #6
0.5 BAR

turbobiscuit's Avatar

Join Date: Mar 2007
Posts: 79
Default Re: Injectors
i think obd1 injectors are high impedence ...... and obd0 are low imp........ so wire it up and skip the resistor box
turbobiscuit is offline
Reply
Old 03-14-2007, 11:48 PM
  #7
3.0 BAR
Thread Starter

crxrx7's Avatar

Join Date: Sep 2003
Posts: 1,752
Default Re: Injectors

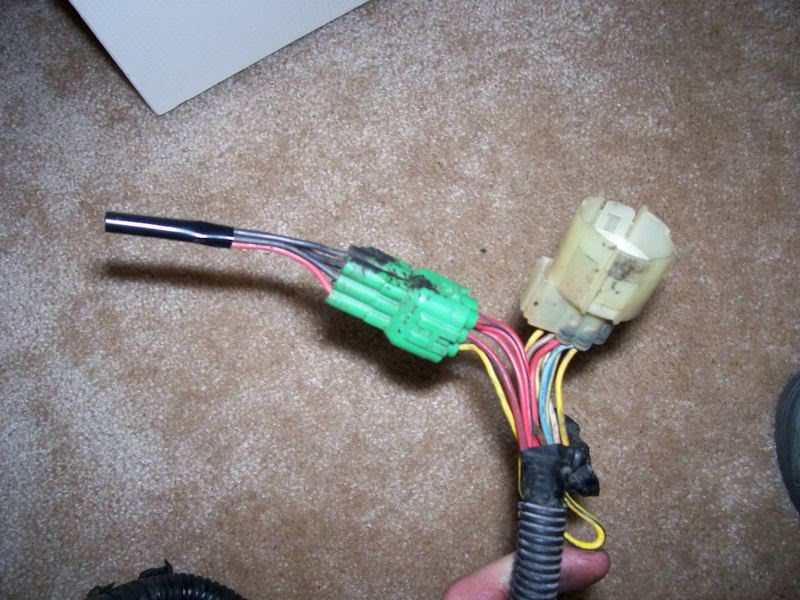

I did. I had a extra resistor box and I cut the plug off of it and put all the ends together. I think thats what I was suppose to do. Here is a picture.
Name: Picture072.jpg Views: 10 Size: 91.4 KB
crxrx7 is offline
Reply
Old 03-14-2007, 11:51 PM
  #8
0.0 BAR

Smith-02's Avatar

Join Date: Apr 2006
Posts: 0
Default Re: Injectors
no, you just wire around the resistor box.
Smith-02 is offline
Reply
Old 03-14-2007, 11:52 PM
  #9
3.0 BAR
Thread Starter

crxrx7's Avatar

Join Date: Sep 2003
Posts: 1,752
Default Re: Injectors
Originally Posted by c0mpl3x
no, you just wire around the resistor box.
What does that mean?
crxrx7 is offline
Reply
Old 03-15-2007, 12:00 AM
  #10
0.0 BAR

Smith-02's Avatar

Join Date: Apr 2006
Posts: 0
Default Re: Injectors
Originally Posted by crxrx7
What does that mean?

wires going into resistor box, wires come out.

cut out resistor box. wire wires that went in, to wires that went out. viola, low imp.
Smith-02 is offline
