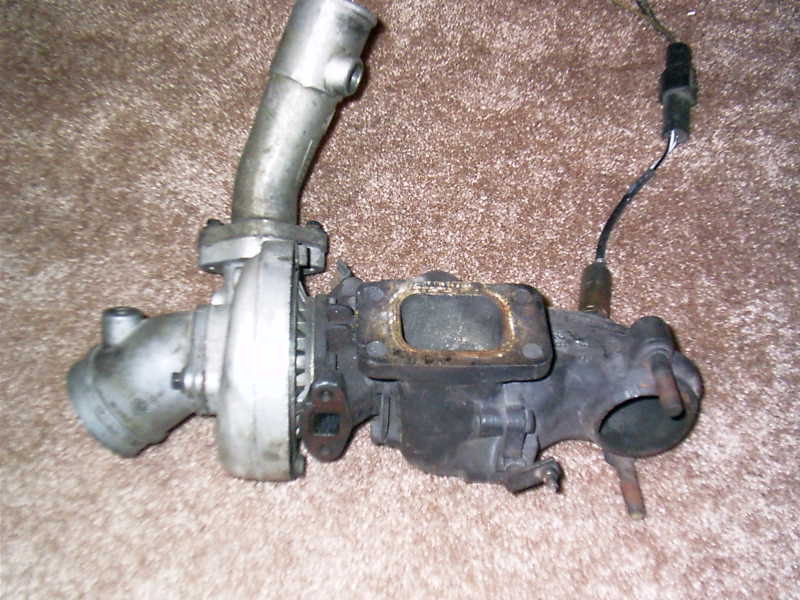

picture attached, he said its from a svo mustang Air Research M11 with ar .63 on the turbine side but wondering how hard they are to work with and what there good for, it looks strange



Its just a t3. Is it a 60/63, 60/48? It looks weird because it has the stock elbow on it and It has the compressor pipe still bolted on it.



he said it said .63 on the turbine



its a 60/63 ford GREAT turboone of my favorite used turbo's of all time good for about 300 hp



so its a little big for a d-series? hows it spool on a b series? so there is a normal flange behind that elbow?



works good on both motors, i woud say great for d and better for b. it a kinda wierd flange but bmc and ther companies make flanges



im not to familiar with t3's but it kinda looks like the oil drain would be pointed at the block



Just clock it and it'll be fine



thats the perfect turbo for a d. i haved the same one sitting in my garage.
very easy to work with. jago has the same one on his ride.



btw, if you plan on going to an external wastegate just take that o2 housing off. the wastegate flapper is built right inn. get an exhaust flange to cover the remaining hole.



.48 and .63 Both will work but For a D or a B18A/B, you can easily swap a 0.48 a/r turbine on this turbo which will give you better spool up and still allow to make as much as 270-280 HP with sustain power to through top end.
